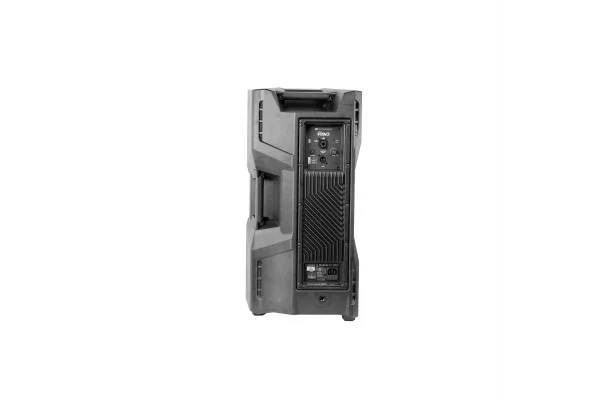

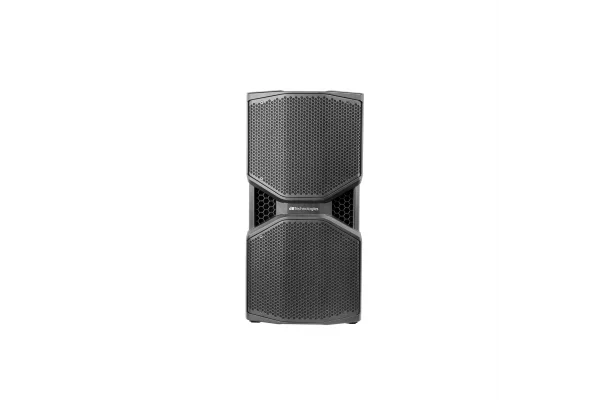

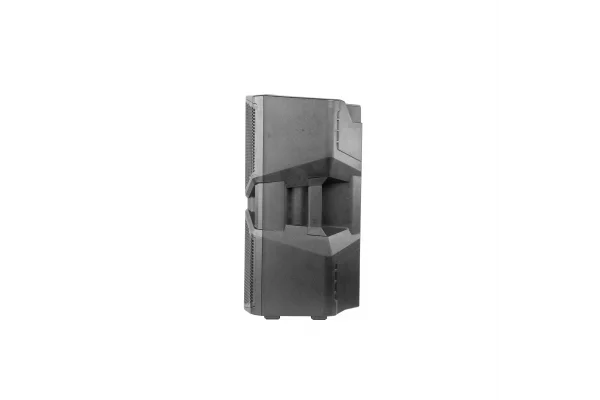

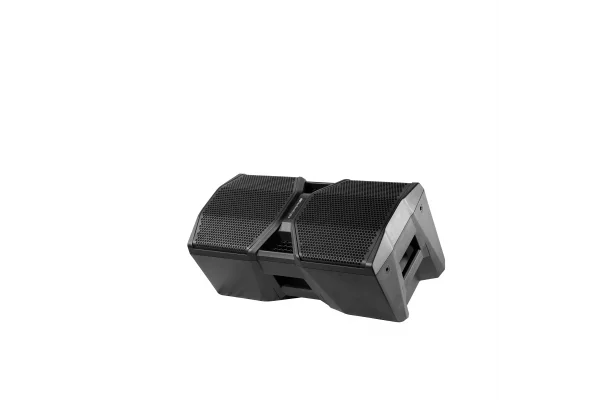

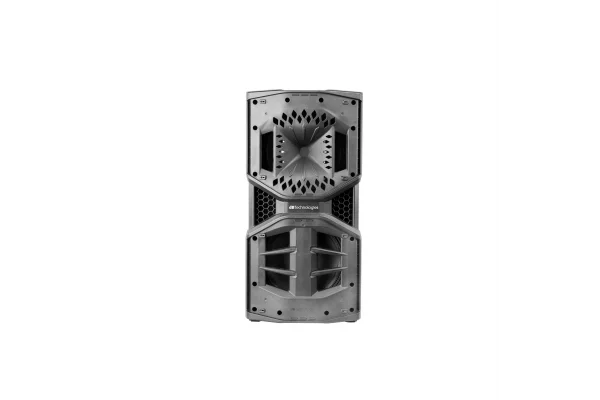

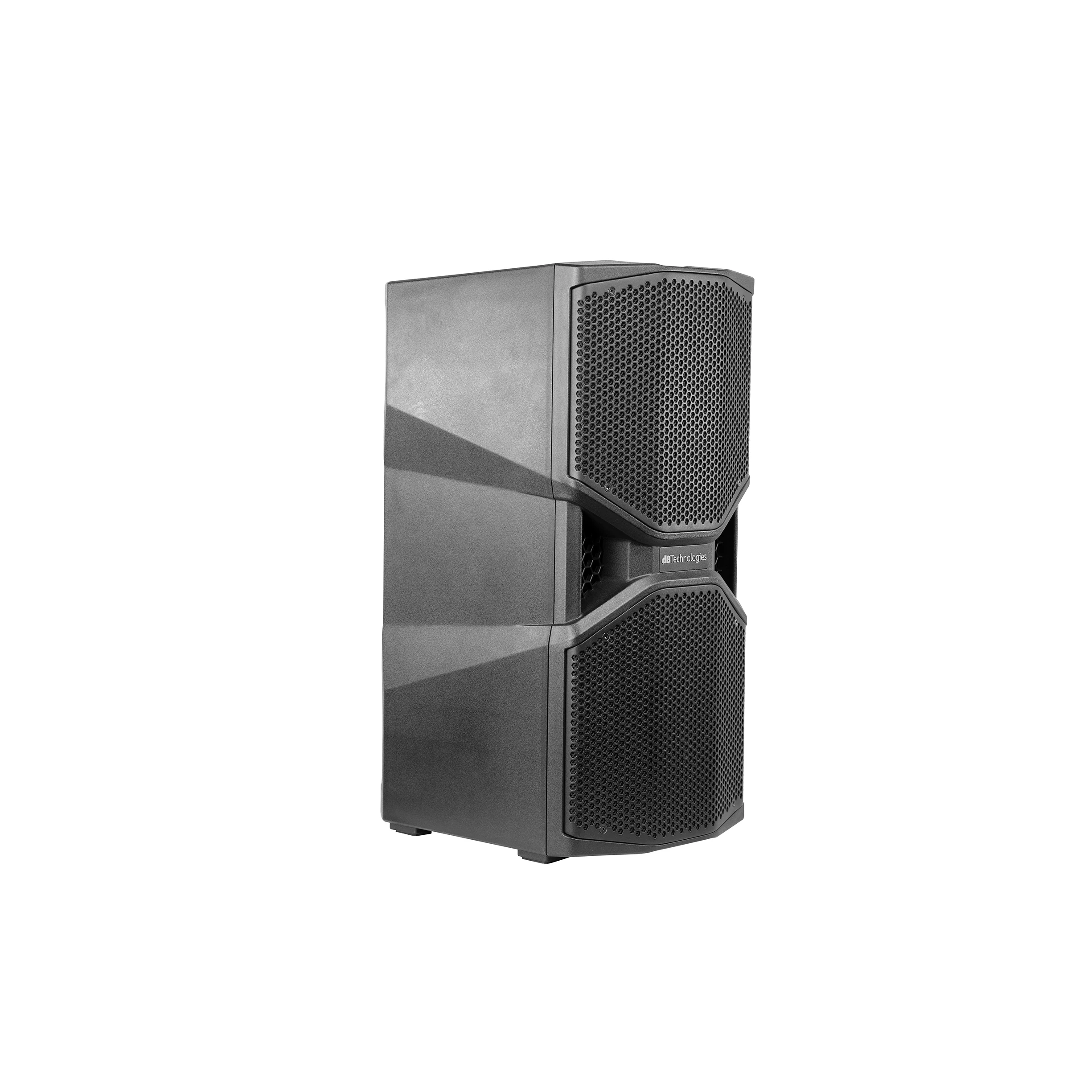

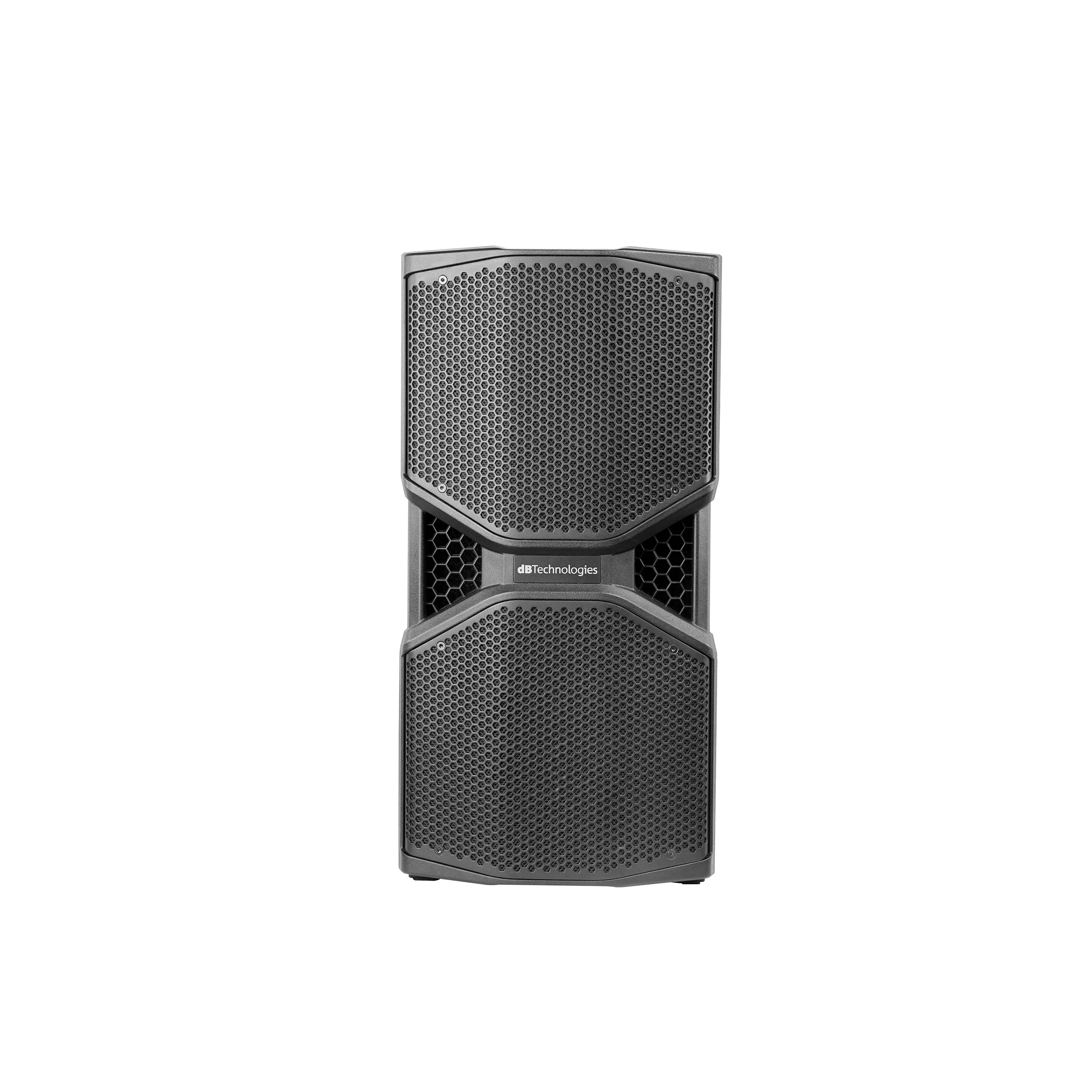

DB OPERA REEVO 212 Aktif Hoparlör 2x12"+ 2100-watt 133-db- Quasi 3-way configuration
- Coaxial transducers
- 2x Neodymium woofer
- 1050 W RMS / 2100 W 133 dB Max SPL
- acoustic phase plug
- FIR Filters
- 3x Flying point
- Low noise reflex port
- Made in Italy
Teknik Özellikleri ;
Speaker Type
- Quasi 3-Way Active Speaker
- Acoustical data : Frequency Response [-10dB] 48 - 20.000 Hz
- Frequency Response [- 6dB] 52 - 19.200 Hz
- Max SPL 133 dB
- HF 1" Exit CD, 1.75" v.c.
Type HF
- Compression driver
- Horizontal Directivity : 100°
- Vertical Directivity : 80°
- Horn : Asymmetrical Horn

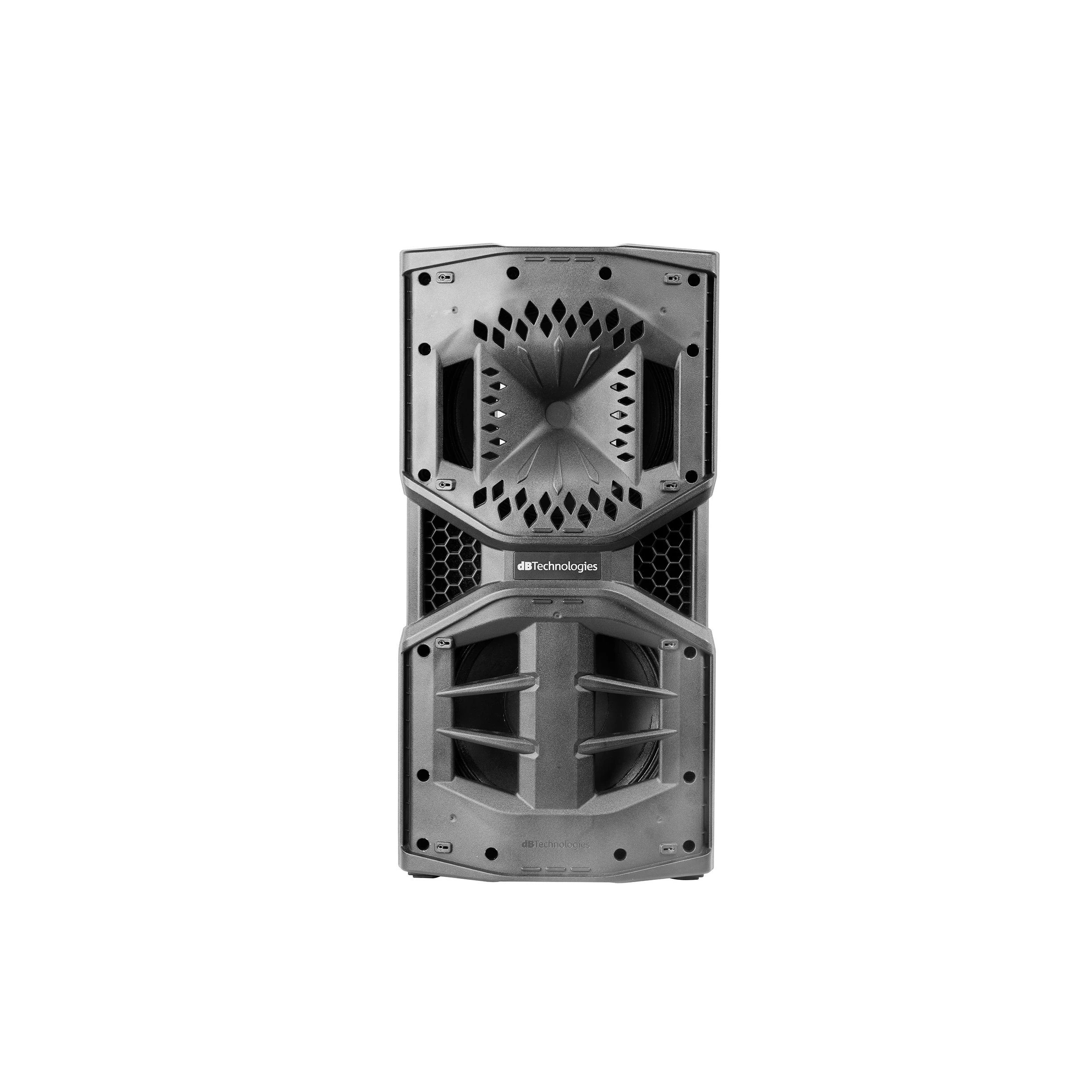

- LF : 2x 12" Neo, 2.5" v.c.
Amplifier
- Amp Technology Digipro G2 with SMPS
- Amp Class : Class D
- RMS Power : 1050 W (525W + 525W)
- Peak Power : 2100 W (1050W + 1050W)
Processor
- Controller : DSP 28/56 bit
- AD/DA Converter : 24 bit/48 KHz
- CrossOver Frequency : 1260 Hz
- Limiter : Peak, RMS, Thermal
- Advanced DSP Functions : Linear Phase FIR Filters

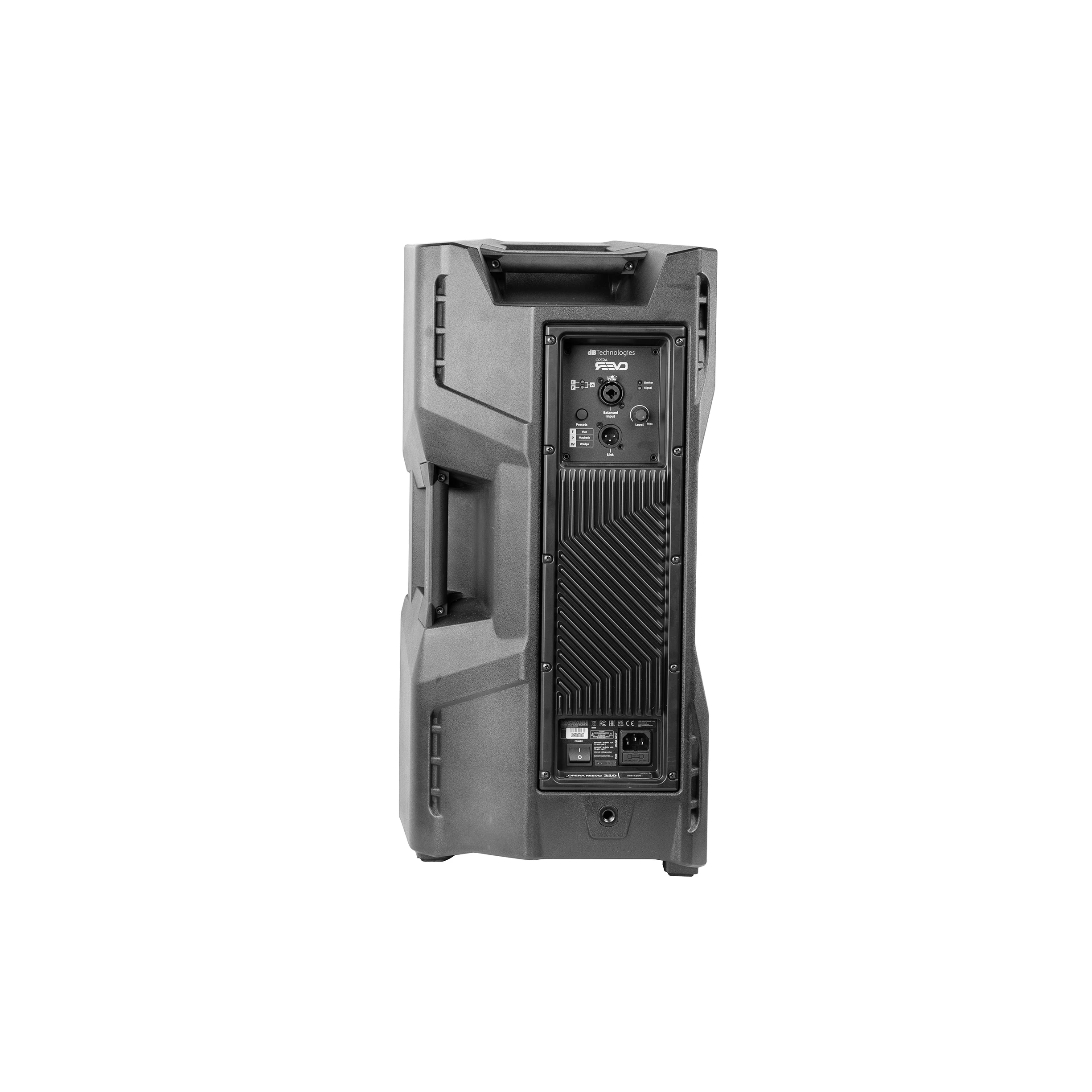

Input :
- Signal Input : 1x Combo (XLR/Jack 6.3 mm) Line
- Signal Output : 1x XLR Male (True link)
Controls :
- Gain (rotary)

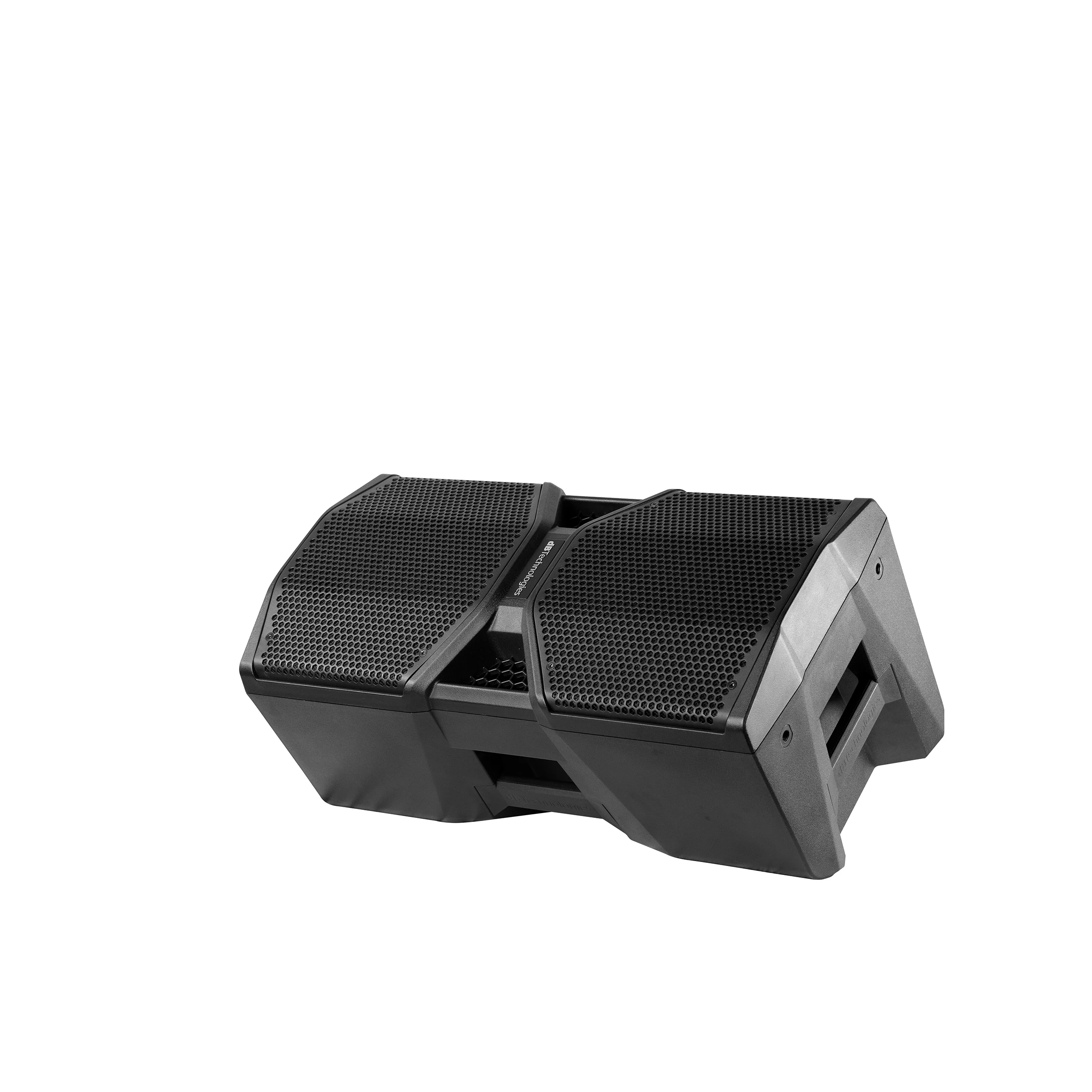

- Preset (Flat, Playback, Wedge)
Mechanics
- Housing : Polyproylene
- Grille Full grille

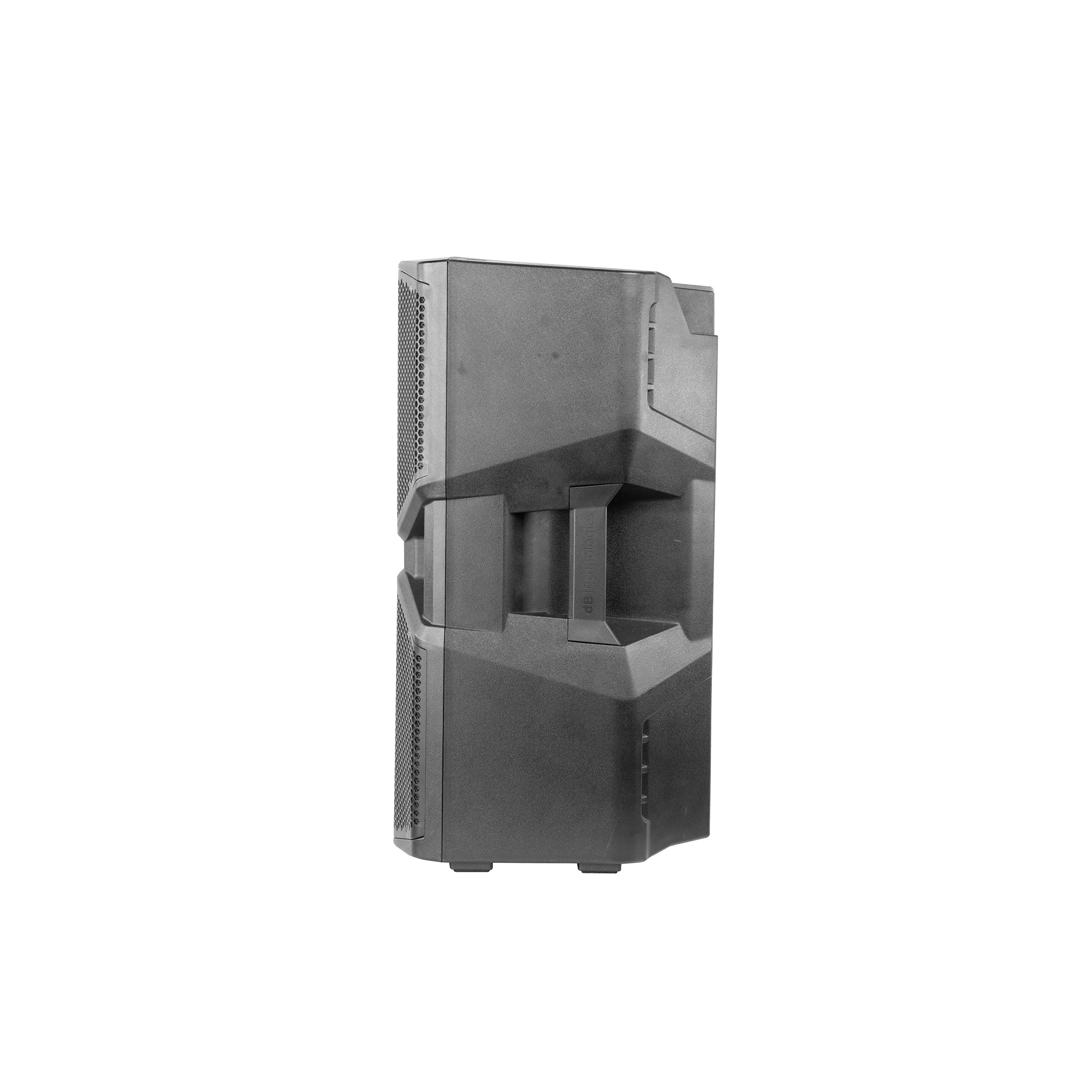

- Handles 1 on left Side, 1 on Top
- Rigging Points 2x M10 on Top + 1x M10 on Back

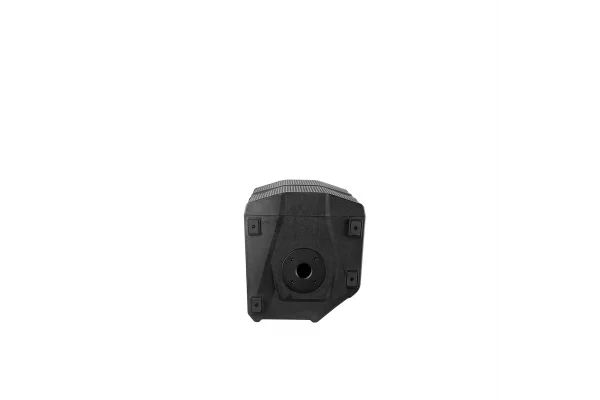

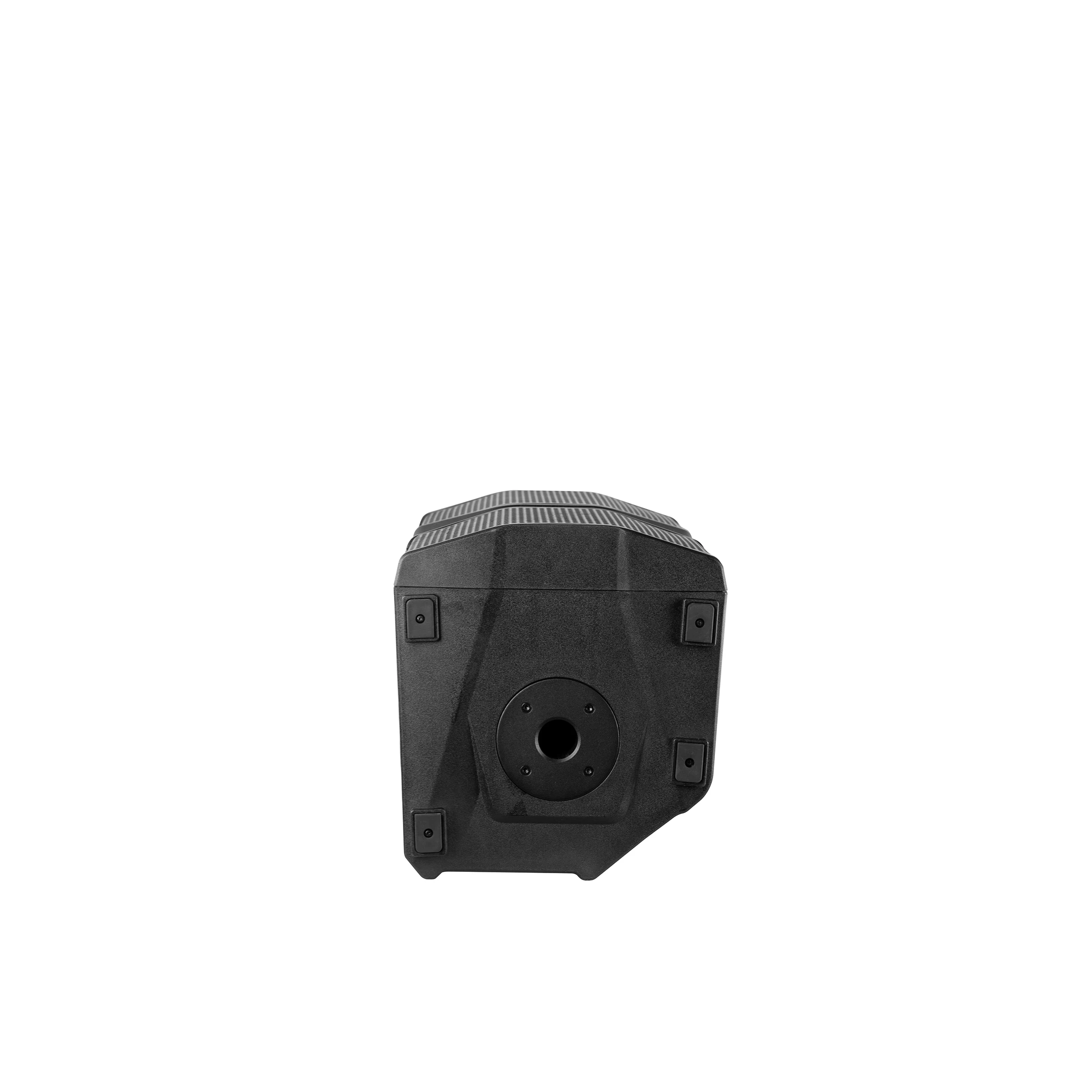

- Pole Mount : D36 mm
Width : 345 mm (13.58 in)
Height : 690 mm (27.17 in)
Depth : 376 mm (14.8 in)
Weight : 20.4 kg (44 lbs)
