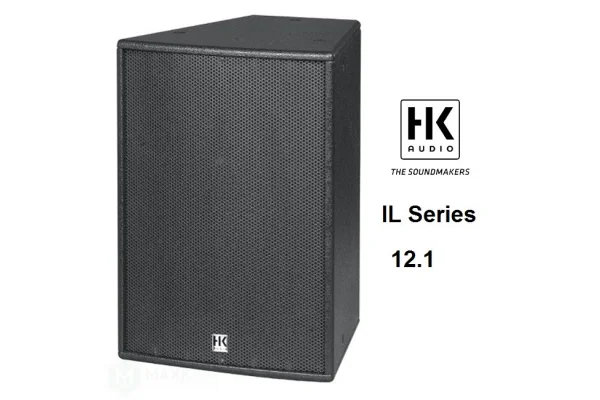

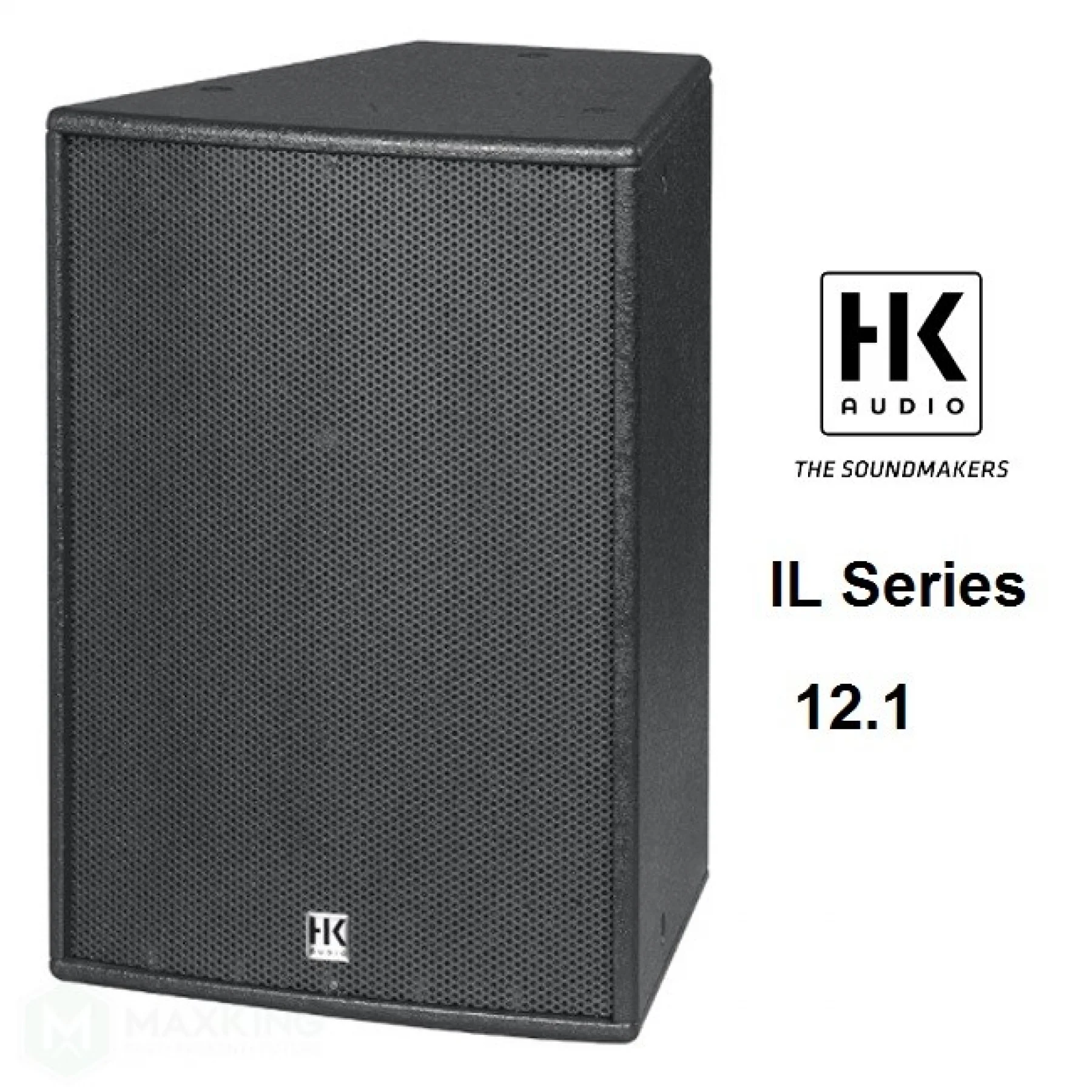

Hk Audio IL12.1 12" Pasif Hoparlör 300/1200 Watt 131 dB
A two-way, fullrange cabinet geared for high-quality voice and music reinforcement in theaters, pubs, sports arenas and multipurpose halls, clubs, etc., the IL 12.1 may be deployed as a fullrange or mid/ high unit in combination with
the IL 115 Sub, IL 118 Sub or IL 218 Sub subwoofers.
| Model | IL 12.1 |
| Q-Factor | 9.68 |
| Product Class | Install Sound |
| Power-handling nominal (RMS) | 300 W |
| Power-handling, peak | 1200 W |
| Power-handling, program | 600 W |
| Frequency response +/- 3 dB | 83 Hz - 19 kHz |
| Frequency response -10 dB | 67 Hz - 19 kHz |
| Nominal impedance | 8 Ohm |
| Sensitivity 1W | 104 dB |
| Maximum SPL, @ 10% THD | 131 dB |
| Maximum SPL, 1W/1m (@ 3% THD) | 125 dB |
| Connections | 1x Speakon NL 4 and 1x binding posts |
| LF Speaker | 12" |
| HF Driver | 1" exit throat |
| Horn characteristics | 60° x 40° (90° x 60°) |
| Directivity | 8.40 dB |
| Crossover frequency | 2 kHz, 12 dB / Oct. |
| Rigging points | a total of 12x M10 threaded bits for attaching mounting accessories |
| Enclosure | MDF 16 mm |
| Grille | impact-resistant protective steel grille |
| Finish | black or white acrylic enamel |
| Dimensions (WxHxD) | 42 cm x 59 cm x 41 cm |
| Weight | 22 kg / 48.5 lbs. |
