Meteor Müzik Ses Işık Anons ve Görüntü Sistemleri

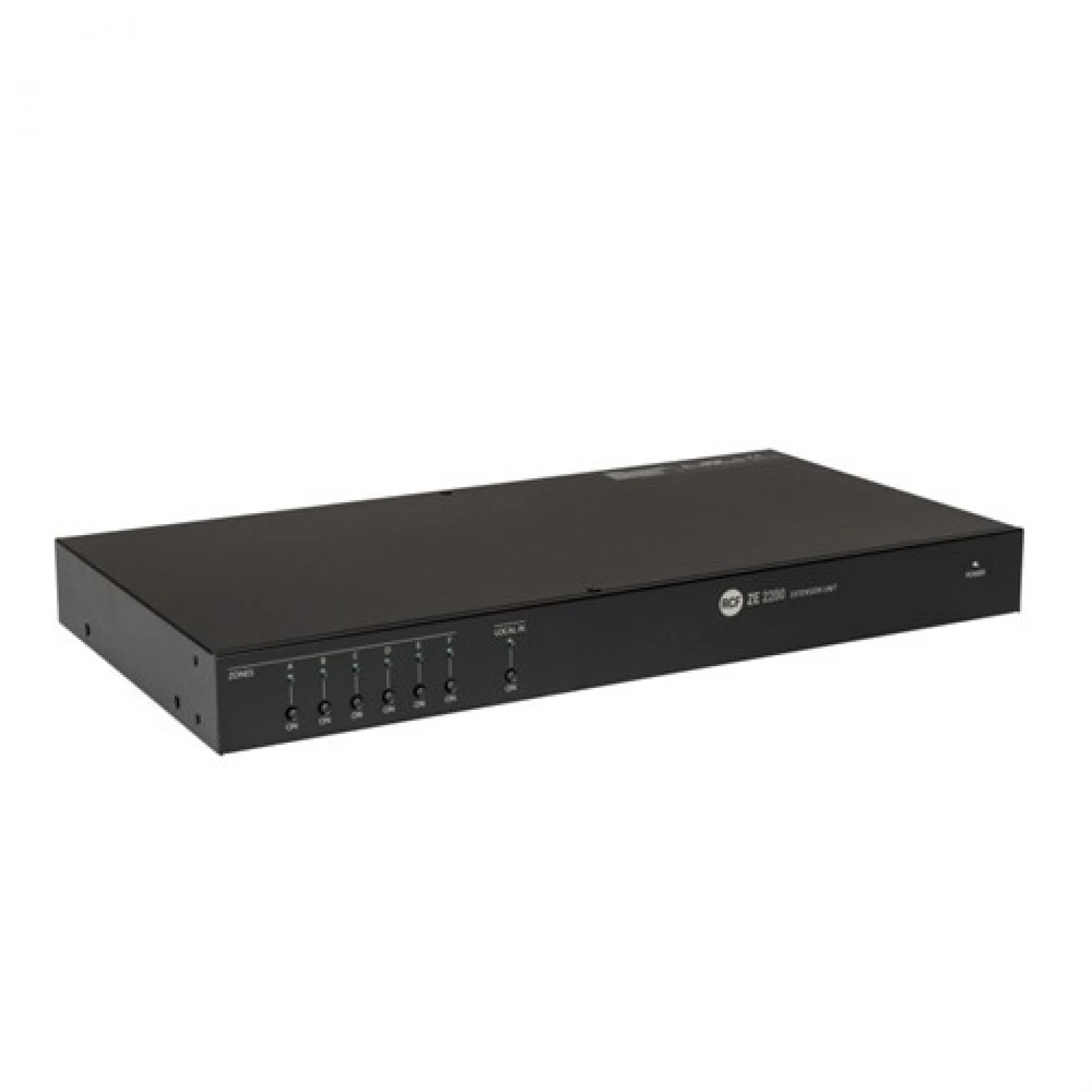

Rcf Ze-2200 6 Zone Genişletme Ünitesi

RCF ZE 2200 6 Bölge Genişletme Ünitesi



  • Direct link to ZM 2100 or ZM 2124 to expand the number of the system output zones till 54 by linking up to 8 devices in daisy-chain wiring topology
  • 6 zone management based on ZM 2000 dual-bus system architecture: primary and secondary buses
  • Interconnection terminals for power amplifiers to manage primary and secondary buses independently, using 100V single or dual amplifier configuration or 0dB multiamplifier configuration according to system requirements
  • Auxiliary input to inject a local program on the secondary bus
  • Switches with indicators to send or not the secondary bus program (i.e. music) on each of the 6 zone outputs
  • GPI and GPO logic ports are available for interface purposes with third parties systems and for monitoring feedback.
  • Power supply AC or DC24V, 1U 19" rack mounting



INPUT SECTION
  • AUX INPUT SENSITIVITY:1 V (+ 2 dBu)
  • AUX INPUT SIGNAL / NOISE RATIO:> 75 dB
  • AUX INPUT FREQUENCY RESPONSE:50 Hz ÷ 20 kHz
  • AUX INPUT IMPEDANCE:10 kΩ (unbalanced)
OUTPUT SECTION
  • PRE OUT max. output level:1 V
  • AMPLIFIER 100 V INPUT MAX. POWER:240 W
  • AMPLIFIER 100 V input max. power:240 W
POWER REQUIREMENT
  • POWER SUPPLY:115 V / 230 V ac (50-60 Hz), 24 V
  • MAX. POWER CONSUMPTION:15 W
  • OPERATING TEMPERATURE:– 10 ÷ + 45 °C (+ 14 ÷ + 113 °F)
PHISICAL SPECIFICATION
  • DIMENSIONS (w, h, d):438 x 44 x 222 mm (19" rack, 1 units)
  • NET WEIGHT:3.4 Kg
