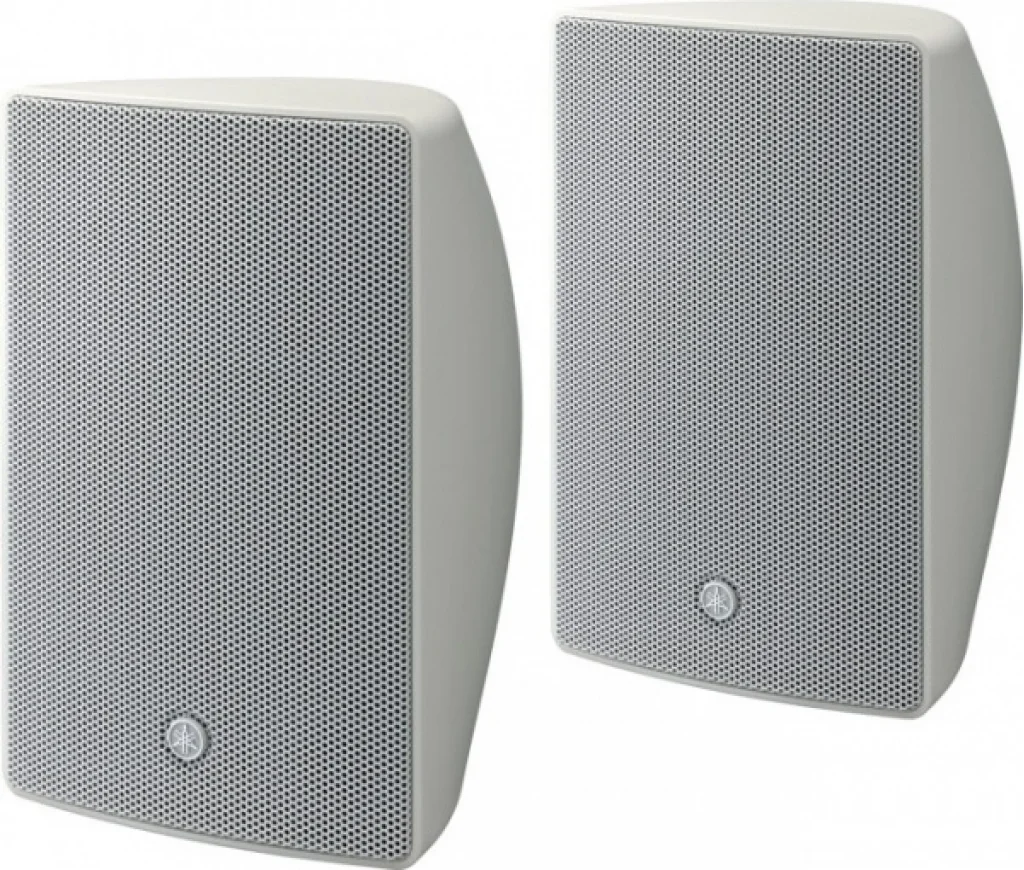

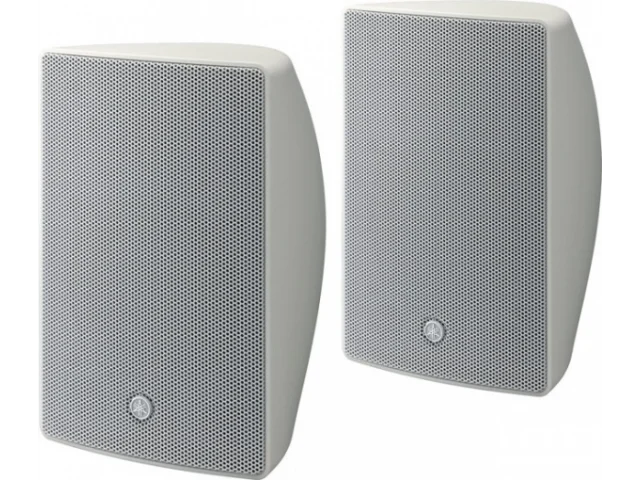

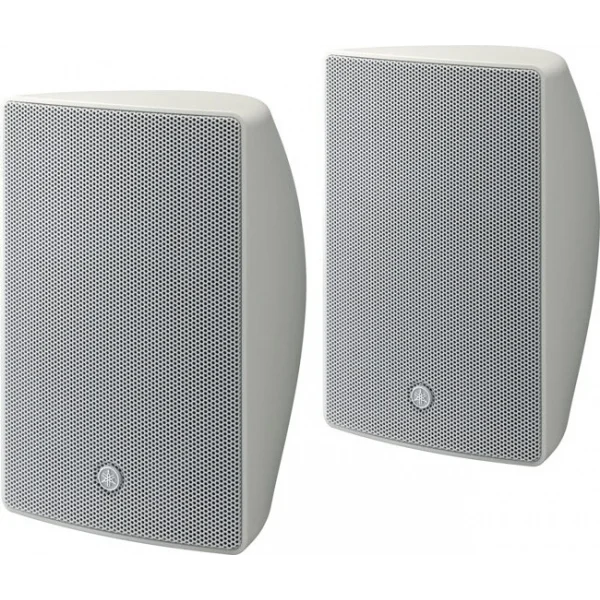

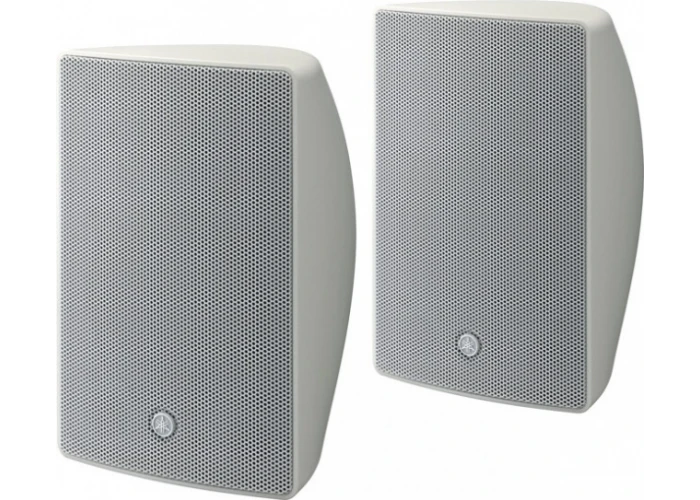

Yamaha VXS5R2 5" indoor Duvar Hoparlörü
5,25" 2-way, Bass-reflex Surface Mount Speaker
8Ω 75/150W / 70V 3,8-7,5-15-30W / 100V 7,5-15-30W
Peak 114dB SPL, 62Hz - 20kHz, H120°-V120°
IP35
| General specifications | VXS5 / VXS5W | VXS5-VA / VXS5-VAW |
|---|
| Speaker type | 2-way, Bass-reflex | 2-way, Bass-reflex |
|---|
| Frequency range (-10dB) | 62Hz - 20kHz | 62Hz - 20kHz |
|---|
| Nominal coverage | H | 120° | 120° |
|---|
| V | 120° | 120° |
|---|
| Components | LF | 5.25" Cone | 5.25" Cone |
|---|
| HF | 0.75" Soft dome | 0.75" Soft dome |
|---|
| Crossover | 3kHz | 3kHz |
|---|
| Power rating | NOISE | 75W | 75W |
|---|
| PGM | 150W | 150W |
|---|
| Nominal impedance | 8Ω | 8Ω |
|---|
| Transformer taps | 100V | 30W (330Ω),15W (670Ω),7.5W (1.3kΩ) | 30W (330Ω),15W (670Ω),7.5W (1.3kΩ) |
|---|
| 70V | 30W (170Ω),15W (330Ω),7.5W (670Ω),3.8W (1.3kΩ) | 30W (170Ω),15W (330Ω),7.5W (670Ω),3.8W (1.3kΩ) |
|---|
| SPL | Sensitivity (1W; 1m on axis) | 89dB SPL | 88dB SPL |
|---|
| Peak (Calculated) | 114dB SPL | 113dB SPL |
|---|
| I/O connectors | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | 1x Ceramic terminal block (3P) (input: +/-, Earth) |
|---|
| Shape | Rectangular | Rectangular |
|---|
| Cabinet material | ABS | ABS |
|---|
| Finish | VXS5:Black / VXS5W:White | VXS5-VA:Black / VXS5-VAW:White |
|---|
| Waterproof | IP35 | IP35 |
|---|
| Dimensions | W | 176mm (6.9") | 176mm (6.9") |
|---|
| H | 280mm (11.0") | 280mm (11.0") |
|---|
| D | 163mm (6.4") | 163mm (6.4") |
|---|
| Net weight | 3.6kg (7.9lbs) | 3.6kg (7.9lbs) |
|---|
| Accessories | Wall / Ceiling mount bracket, Terminal cover | Wall / Ceiling mount bracket, Terminal cover |
|---|
| Packaging | Packaged in pairs | Packaged in pairs |
|---|
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | CE, RoHS |
|---|
| EN54-24 compliance | - | Yes (DoP No. 0359-CPR-00406) |
|---|
