Technical Data

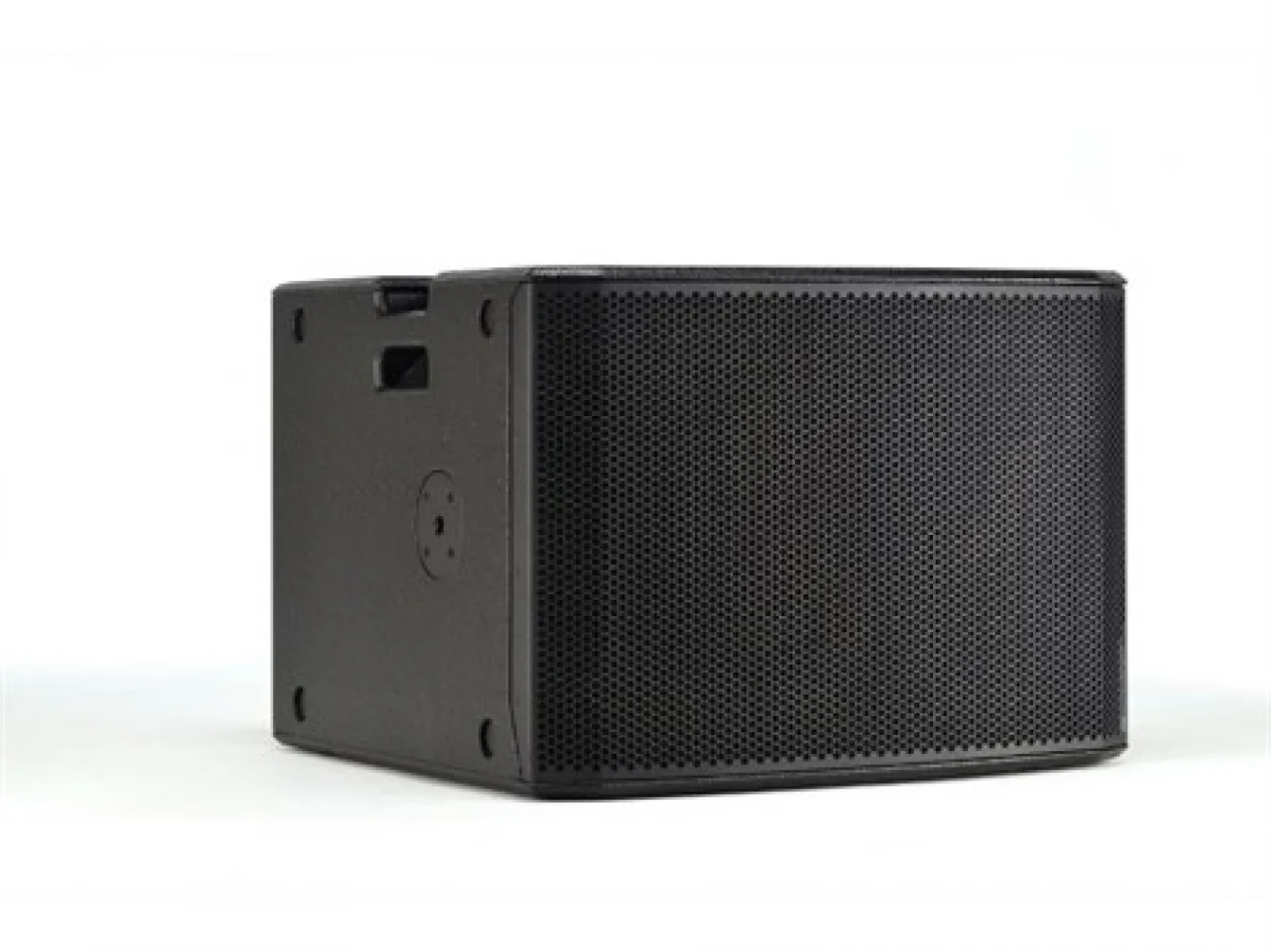

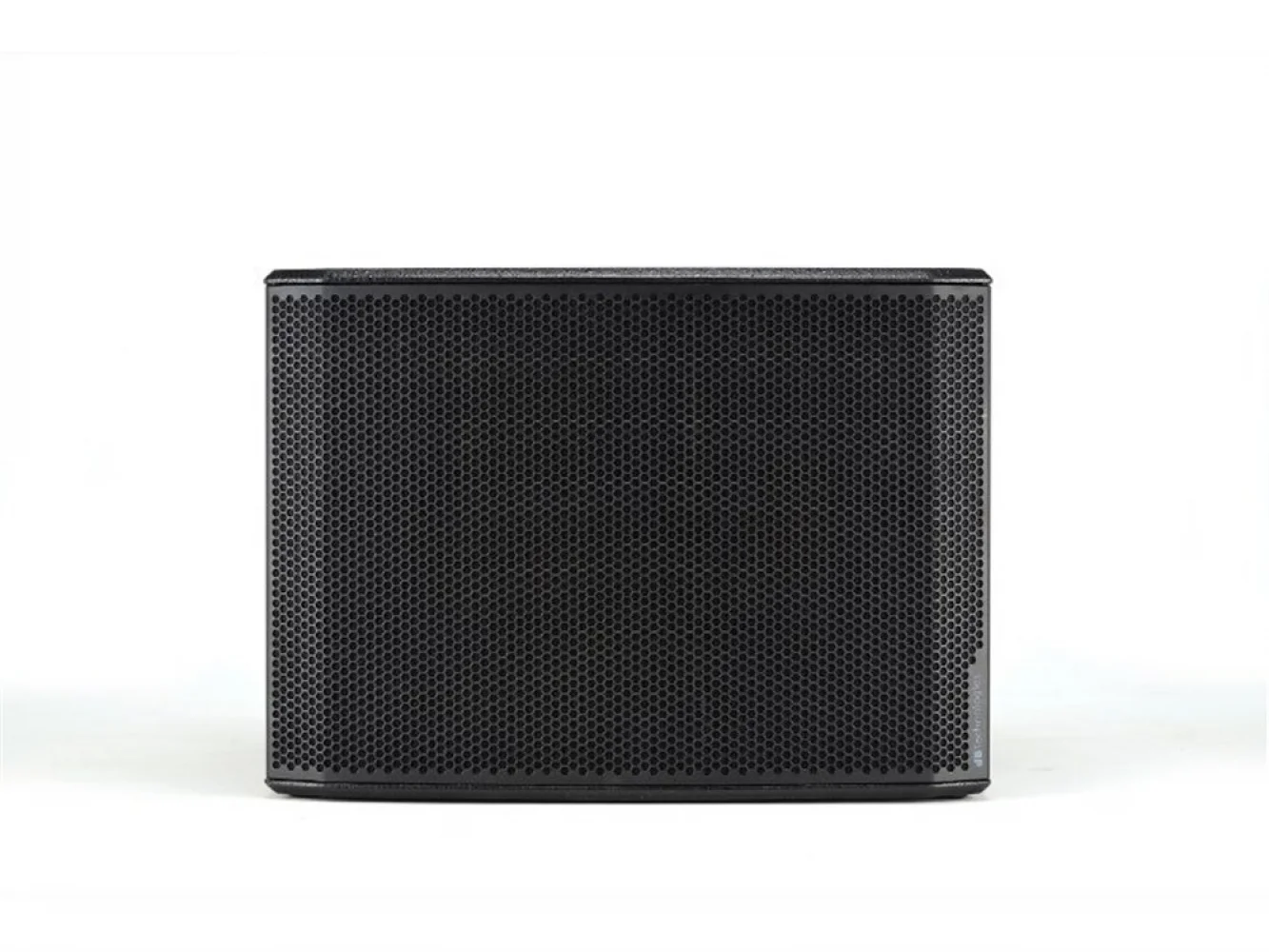

Speaker TypeActive Subwoofer
Acoustical data
Frequency Response [-10dB]42 to cut frequency (Xover dependent)
Max SPL (1 m)134 dB

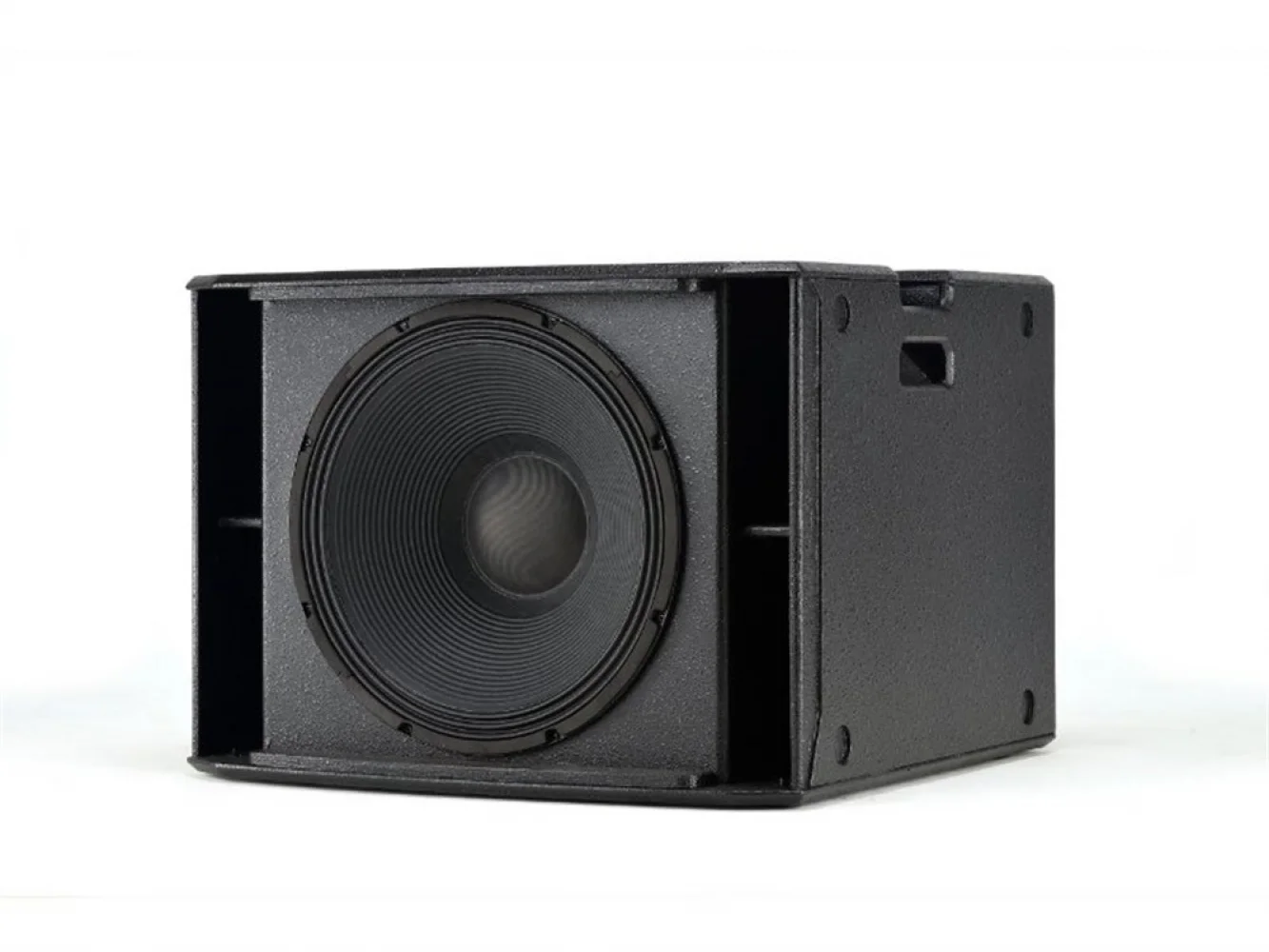

LF18"
LF Voice Coil4"
Amplifier
Amp TechnologyDigipro G3
Amp ClassClass D
Peak Power1800 W
Processor
Controller28/56 bit DSP
AD/DA Converter24 bit/48 Hz
LimiterPeak, Thermal, RMS
Crossover FrequencyVariable (70Hz - 80Hz - 90 Hz - 100Hz - 110 Hz
Controls1x Subwoofer Atteniation Control
1x Delay Rotary
1xXover Rotary
1x Polarity Switch
Input
Signal Input1x XLR female
1x USB (data service)
Signal Output2x XLR male
Mechanics
HousingPlywood

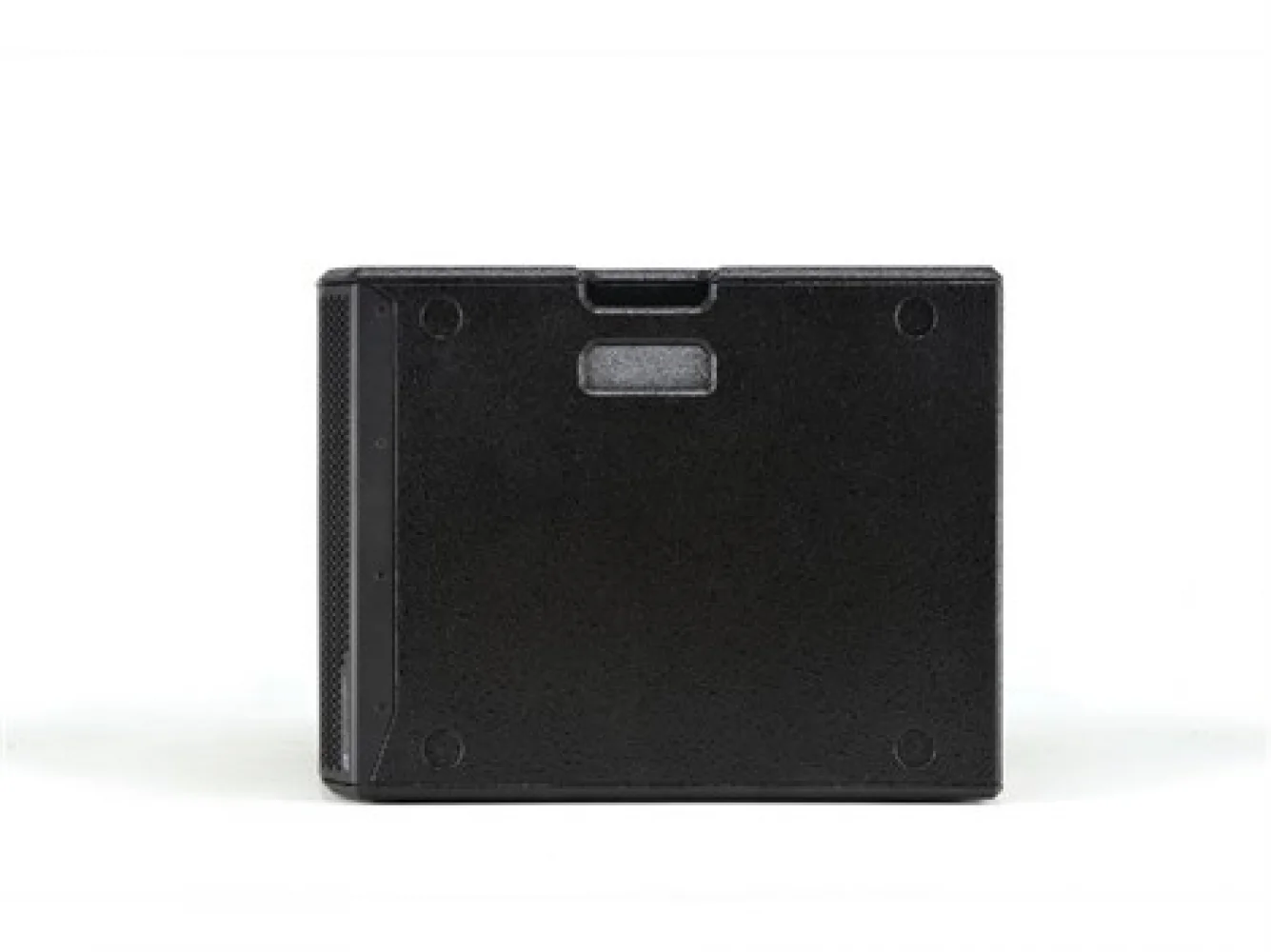

Handles2 (1x side)
Pole Mount2x M20 (1 on top + 1 on side)
Width720 mm (28.3 in)
Height530 mm (20.8 in)
Depth690 mm (27.1 in)
Weight41.8 kg (92.1 lbs)
