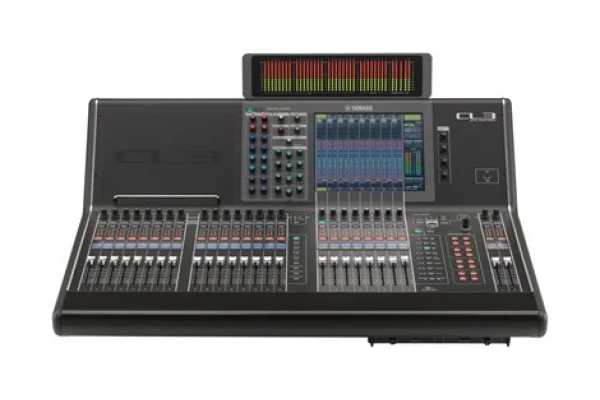

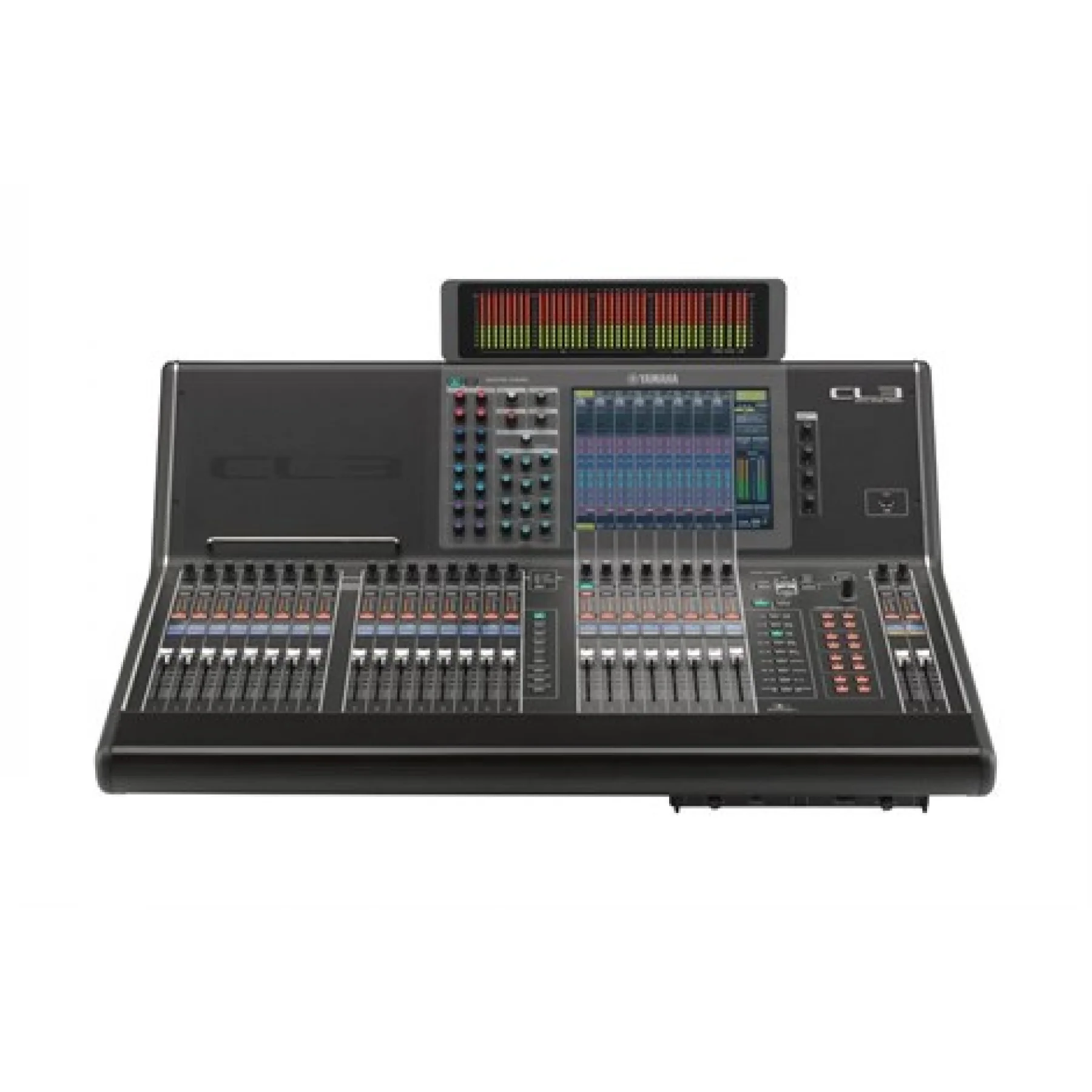

Yamaha CL 3 Digital Mixer (Max İnput 64+8 Ch, Mix Bus 24 Ch.)

0,00
Marka : Yamaha
Fiyat : $31,484.33  + KDV
İndirimli : $18,890.60  + KDV
KDV Dahil : $22,290.90
Barkod : 74925

Adet

Artır Azalt
  • Input channels: 64 mono, 8 stereo.
  • Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section .
  • Stainless steel stay for iPad support.
  • Meter bridge optional.

Technical Specification of QL/CL

  QL5 QL1 CL5 CL3 CL1
Mixing Capacity Input Mixing Channels 64 mono + 8 stereo 32 mono+ 8 stereo 72 mono + 8 stereo 64 mono + 8 stereo 48 mono + 8 stereo
Mix Buses 16 24
Matrix Buses 8 (Input to Matrix supported) 8 (Input to Matrix supported)
Stereo Bus 1 1
Mono 1 1
Cue 1 1
Local Connectors Analog Inputs 32 16 8
Analog Outputs 16 8 8
MY Slots 2 3
Dante I/O Primary / Secondary Primary / Secondary
Digital Out 1 (AES/EBU) 1 (AES/EBU)
GPI 5 in / 5 out 5 in / 5 out (CL V1.11 or later)
Word Clock I/O Yes Yes
MIDI I/O In / Out In / Out
External Redundant PSU No Optional PW800W
Meter Bridge No Output meter built-in Optional MBCL
Ethernet Yes Yes
AC Inlet V-Lock Type V-Lock Type
Scene Memory Number of Scenes 300 300
Recall Safe Yes Yes
Focus Recall Yes Yes
Fade Time Yes (0s ~ 60s) Yes (0s ~ 60s)
Preview Yes Yes (CL V1.51 or later)
Selective Load / Save Yes Yes (CL V1.7 or later)
Tactile Control Keys No (on-screen) Yes
Input Channel Functions Gain Compensation Yes Yes
Digital Gain Yes (-96dB ~ +24dB) Yes (-96dB ~ +24dB)
ATT -96dB ~ 0dB -96dB ~ 0dB
HPF 20Hz ~ 600Hz, -6 or -12dB/oct Selectable 20Hz ~ 600Hz, -6 or -12dB/oct Selectable (CL V1.51 or later)
PEQ 4 Band Full PEQ (RTA overlay support in QL V3.0 or later) 4 Band Full PEQ (RTA overlay support in CL V3.0 or later)
Dynamics 1 Gate / Ducking / Compressor / Expander Gate / Ducking / Compressor / Expander
Dynamics 2 Compressor / Compander-H / Compander-S / De-esser Compressor / Compander-H / Compander-S / De-esser
Input Delay Yes (0ms ~ 1000ms, frame delay support in QL V3.0 or later) Yes (0ms ~ 1000ms, frame delay support in CL V3.0 or later)
DCA Group 16 (Output DCA support in QL V3.0 or later) 16 (Output DCA and DCA Roll-Out support in CL V2.0 or later)
MUTE Group 8 8
Number of Inserts 2 2 (CL V2.0 or later)
Direct Out Yes Yes
Output Channel Functions PEQ 4 Band Full PEQ (RTA overlay support in QL V3.0 or later) 4 Band Full PEQ (RTA overlay support in CL V3.0 or later)
Dynamics 1 Compressor / Expander / Compander-H / Compander-S Compressor / Expander / Compander-H / Compander-S
MUTE Group 8 8
Number of Inserts 2 2 (CL V2.0 or later)
Premium Rack Number of Premium Racks 8 8
Mountable Device RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (QL V3.0 or later) RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (CL V3.0 or later)
Effect Rack Number of Effect Racks 8 8
Number of Effect Programs 54 54
Mountable Device Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (QL V3.0 or later) Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (CL V3.0 or later)
GEQ Rack Number of GEQ Racks 8 16
Mountable Device 31BandGEQ / Flex15GEQ / Dugan Automixer / 8Band PEQ (CL V3.0 or later)
(RTA overlay support in QL V3.0 or later)
31BandGEQ / Flex15GEQ / Dugan Automixer (CL V3.0 or later) / 8Band PEQ (CL V3.0 or later)
(RTA overlay support in CL V3.0 or later)
Dante Number of I/O Channels 64 in / 64 out 32 in / 32 out 64 in / 64 out
Dante Patch from Console Yes Yes
Recording USB Memory Recording Yes Yes
DVS Recording Yes (DVS and Nuendo Live bundled) Yes (DVS and Nuendo Live bundled)
Broadcast Functions 5.1 Surround Panning Yes (QL V3.0 or later) Yes (CL V3.0 or later)
Surround Monitor Yes (QL V3.0 or later) Yes (CL V3.0 or later)
Mix Minus Yes (QL V3.0 or later) Yes (CL V3.0 or later)
L-Mono / R-Mono / LR-Mono Yes (QL V3.0 or later) Yes (CL V3.0 or later)
Other Functions Port to Port Yes No
RTA Yes (QL V3.0 or later) Yes (CL V3.0 or later)
Output Port Delay Yes (0ms ~ 1000ms, frame delay support in QL V3.0) Yes (0ms ~ 1000ms, frame delay support in CL V3.0)
Cascade Yes Yes (via MY slots)
User Level Yes Yes
Help File Yes Yes (CL V1.51 or later)
Oscillator Sine Wave 1ch / Sine Wave 2ch (QL V3.0 or later) / Pink Noise / Burst Noise Sine Wave 1ch / Sine Wave 2ch (CL V3.0 or later) / Pink Noise / Burst Noise
Channel Link Yes (Output Channel Link support in QL V3.0 or later) Yes (Output Channel Link support in CL V3.0 or later)
Channel Copy/Move Yes Yes
User Interface Display 10 inch Touch Panel 10 inch Touch Panel
Centralogic Section No Yes
Faders 32 + 2 16 + 2 16 + 8 + 8 + 2 16 + 8 + 2 8 + 8+ 2
Selected Channel Encoders Gain, HPF, PEQ (controls for a selected band), Dynamics 1/2 (Threshold only), Pan Gain, HPF, PEQ (controls for 4 bands), Dynamics 1/2 (Threshold only), Pan, Mix/Matrix Sends
Channel Encoder No Yes (for Gain, Send Level, or an assigned parameter)
Channel Name / Color Display Yes Yes
Custom Fader Banks Yes (customized for all faders in a lump) Yes (customized for each fader section)
User Defined Keys 12 (x 4 banks in QL V3.0 or later) 16 (x 4 banks in CL V3.0 or later)
User Defined Knobs 4 (on-screen) 4
Touch and Turn Knob Yes Yes (using a User Defined Knob)
Monitor Level Knob Yes (on-screen) Yes
Wooden Arm Rest No Yes
iPad Stay Yes No Yes No
Rack-mounting No Yes No
Software Editor QL Editor (Win/Mac) CL Editor (Win/Mac)
StageMix QL StageMix (iPad app) CL StageMix (iPad app)
Console File Converter Yes (Win/Mac) Yes (Win/Mac)
