Mackie Profx4 V2 4 Kanal Usb Kayıt Mikseri 16 Dijital Hazır Efektli

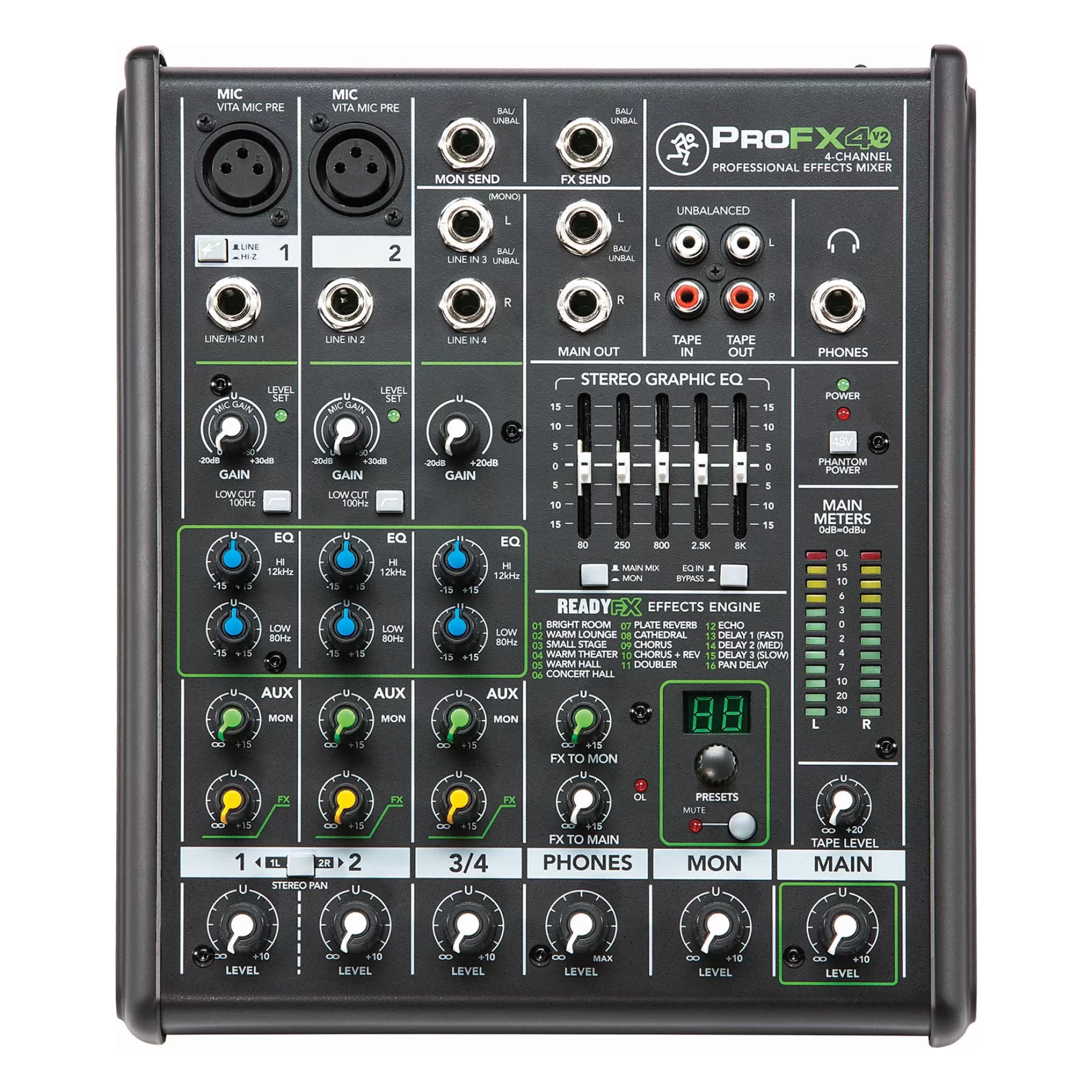

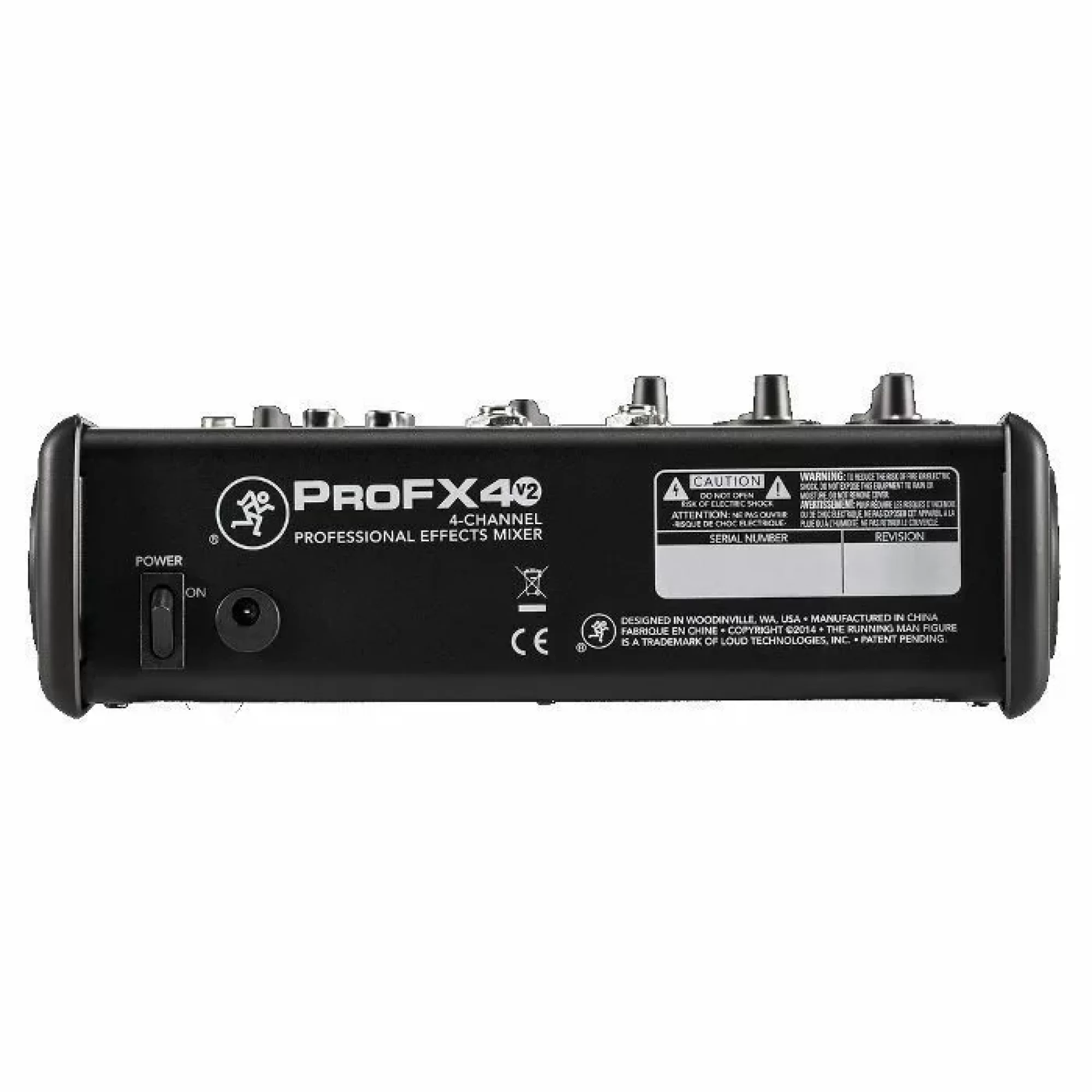

Mackie ProFX4 v2 Analog Kayıt Mikseri



The ProFX4v2 4-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 2 XLR mic inputs with low-noise Vita microphone preamps, per channel 2-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX4v2 offers professional features to suit a wide variety of configurations.

In addition to the mic inputs, the ProFX4v2 includes 4 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX4v2s effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 5-band graphic EQ that can be used for tuning mains or monitors.





  • 2 low-noise Vita mic preamps
  • ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
  • 5-band graphic EQ for tuning mains or monitors
  • Aux output ideal for driving a monitor mix
  • 2-band EQ (80 Hz and 12 kHz) on all channels
  • Directly connect guitar, bass, and other instruments via Hi-Z input
  • 100 Hz low-cut filter and 48V phantom power on all mic channels
  • Stereo RCA tape I/O with input level control
  • Headphone output with separate level control
  • Solid steel chassis protects your investment
  • Tough ABS side protection



Equivalent Input Noise150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to FX send, max gain -128 dBu
Residual Output NoiseAll outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -85 dBu
Frequency ResponseMic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz
THD+N22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01%
Attenuation and CrosstalkAdjacent Inputs @ 1 kHz: -80 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -80 dB
Common Mode Rejection RatioMic In to Main Out, max gain, 1 kHz: 70 dB
Maximum LevelAll inputs: +22 dB
Main Out: +22 dBu
All other outputs: +22 dBu
ImpedanceMic In 3.8 kOhms

All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced
EqualizationLow ±15 dB @ 80 Hz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Maximum Voltage GainMic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 76 dB
FX Send: 75 dB

Mono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
XLR Main Output: 56 dB
Monitor Send: 56 dB
FX Send: 55 dB

Stereo Line Input Channel to:
Tape Output: 30 dB

XLR Main Output: 46 dB
Monitor Send: 46 dB
FX Send: 45 dB

Tape Input to:
Main Output: 30 dB
Digital EffectsI/O: mono input / stereo output
Number of Presets: 16
MetersMain L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Graphic EQFrequency Centers [5-Band]: 80, 250, 800, 2.5k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable
Phantom Power48 VDC to all mic channels simultaneously
AC Power RequirementsUniversal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class I Hard-Wired Wall Wart: [12 VDC @ 1.5 A]
Operating Temperature32 - 104˚F (0 - 40˚C)
Dimensions2.9 x 8.7 x 10.1" (73 x 220 x 256 mm)
Weight3.2 lb (1.4 kg)
