Almost invisible. The XS WIRELESS Presentation Set is an all-in-one package – the ideal partner for impressive presentations.
The professional ME 2-2 clip-on microphone, easily attached to your clothing, ensures a powerful sound transmission – and an enthusiastic audience.
Features
Easy-to-use, all-in-one package for speakers and presenters
Unobtrusive clip-on microphone
High speech intelligibility
Mute button for full speech control
Synchronization via RF remote channel
Frequencies tunable in steps of 25 kHz
24 MHz bandwidth (13 MHz for the E band)
8 frequency banks with each max 12 presets
| RF frequency range | 821...832 MHz / 863...865 MHz | 504922 |
|---|
| 766...790 MHz | 504921 |
| 614...638 MHz | 504919 |
| 606...630 MHz | 504918 |
| 548...572 MHz | 504920 |
| 548..... 865 MHz | |
| Presets | 12 | |
|---|
| THD, total harmonic distortion | < 1 % | |
|---|
| Signal-to-noise ratio | > 103 dB(A) | |
|---|
| Transmission/receiving frequencies | 960 (520 in range E) | |
|---|
| Switching bandwidth | 24 MHz (13 MHz in range E) | |
|---|
Receivers
Article No. 504922, 504921, 504919, 504918, and 504920
Technical Data and Specification of XSW 12| |
|---|
| Dimensions | 200x127x42mm | |
|---|
| Weight | ~ 730g | |
|---|
| Antenna connector | 2x BNC, 50 Ohm | |
|---|
| Audio output level (balanced) | XLR: +14 dBu max | |
|---|
| Audio output level (unbalanced) | Jack: +8dBu max | |
|---|
| Diversity reception | True Diversity | |
|---|
Transmitter
Article No. 504922, 504921, 504919, 504918, and 504920
Technical Data and Specification of XSW 12| |
|---|
| Dimensions | 96x66x24mm | |
|---|
| Frequency response | mic.:100.....16.000 Hz | |
|---|
| line:60.....16.000 Hz | |
| Weight | ~ 95g | |
|---|
| RF output power | typ. 10 mW | |
|---|
| Operating time | typ. 10h | |
|---|
| Power supply | 2x AA batteries | |
|---|
| Input voltage range | 0,5 Vrms line | |
|---|
| 1.8 Vrms line | |
Clip-on microphone
Article No. 504922, 504921, 504919, 504918, and 504920
Technical Data and Specification of XSW 12| |
|---|
| Microphone | permanent polarized | |
|---|
| Sound pressure level (SPL) | 142 dB(SPL) max. | |
|---|
| Pick-up pattern | omni-directional | |
|---|
| AF sensitivity | 5 mV/Pa | |
|---|

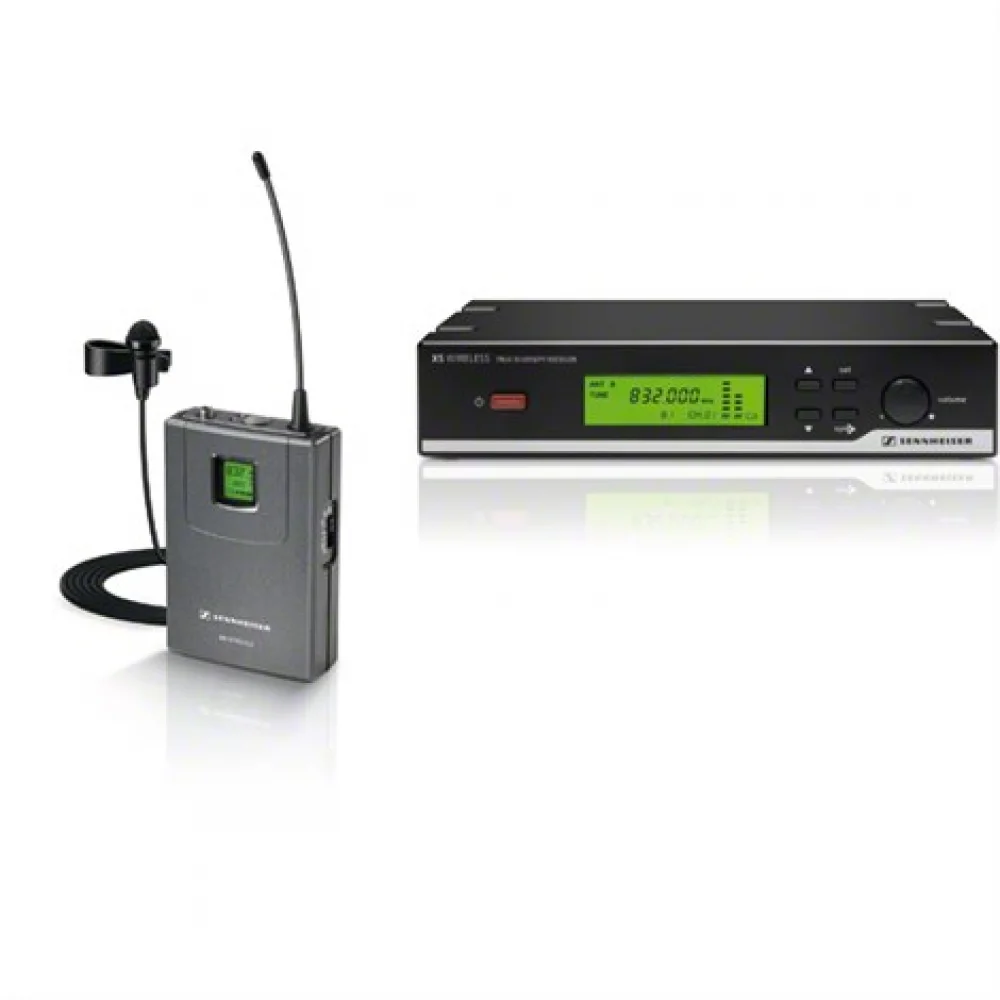

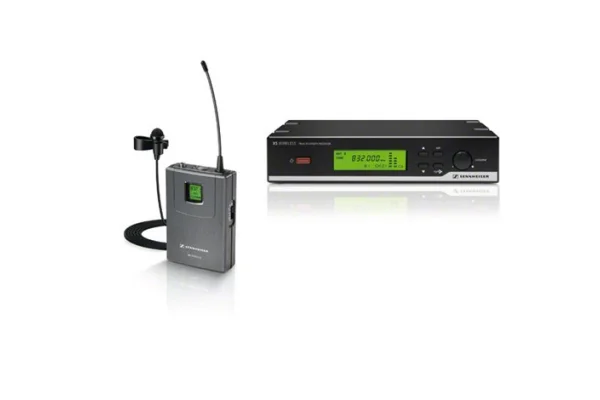

What s in the box?
- 1 EM 10 stationary receiver
- 1 SK 20 bodypack transmitter
- 1 ME 2-2 clip-on microphone (omnidirectional pick-up pattern)
- 1 NT 2-3 power supply unit
- 2 antennas
- 2 AA batteries
- 1 pouch
- Instruction manual
