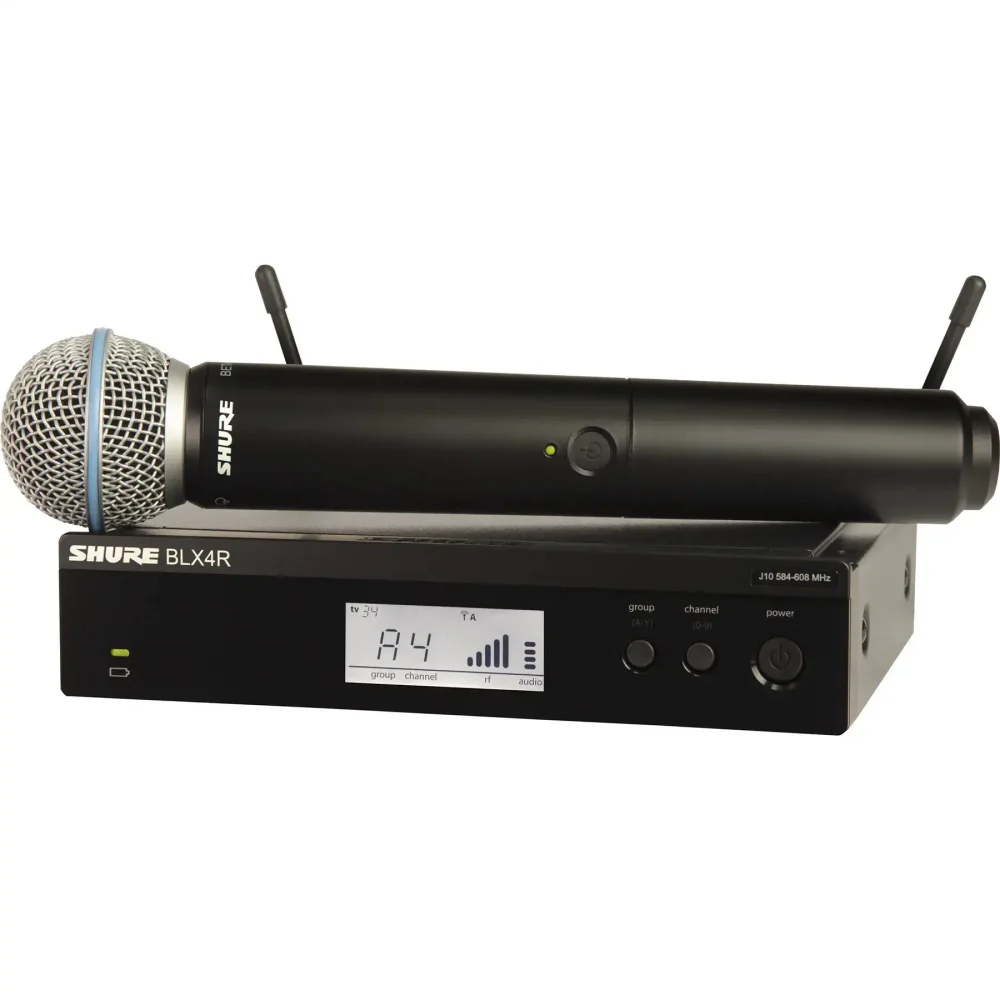

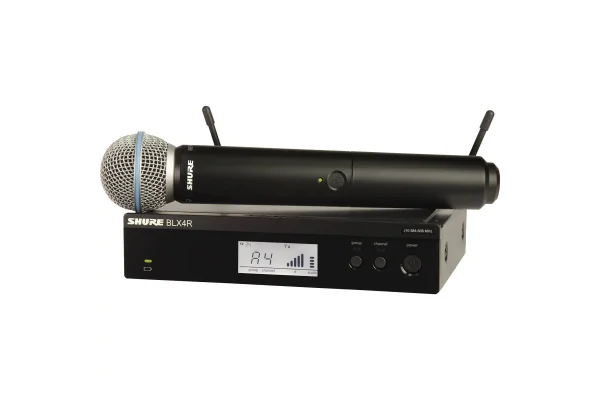

BLX4R Rackmount Wireless Receiver
| Output | 1x XLR Output 1x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω 1/4": 50 Ω |
| Audio Output Level | XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS, Steel |
| Power Requirement | 12 to 15 V DC @ 260 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.9 x 7.7 x 6.4" (50 x 198 x 163) |
| Weight | 2.2 lb (998 g) |
BLX2 Handheld Transmitter / Beta58A Mic
| Transmitter | |
|---|---|
| Audio Input Level | 0 dB Gain: -20 dBV Maximum -10 dB Gain: -10 dBV Maximum |
| Gain Adjustment Range | 10 dB |
| RF Output | 10 mW, Typical (Varies by Region) |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Housing | Molded ABS |
| Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) |
| Weight | 7.7 oz (218 g) |
| Microphone | |
|---|---|
| Type | Dynamic (Moving Coil) |
| Frequency Response | 50 Hz to 16 kHz |
| Polar Pattern | Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency |
| Output Level | Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL |
| Ürün Grubu | Mikrofon (Kablosuz) |
| Kablosuz mikrofon tip | Tek EL |
