Dynacord TGX20 Digital Amplifier, 4x5000 Watt 4-ohm
The TGX 4-channel live sound amplifiers from Dynacord are among the most powerful you can find on the market, representing the pinnacle of pro audio electronics. In addition to unprecedented power density, they offer the typical Dynacord audio quality, high reliability, and energy efficiency.
Developed and manufactured in Germany, the TGX amplifiers are the ultimate amplifier solution for large live performance sound applications. They incorporate several proprietary amplifier technologies developed by Dynacord Engineering, one of the most experienced research and development teams in the audio industry.
Features
4-channel DSP amplifier for live applications
Highest power density with 20 kW in 2 RU
Fully integrated 96 kHz DSP with FIR-Drive technology
Dante and OCA integration via OMNEO with redundancy options
Color touch screen for operation without remote software
Technical Data
Output power: 5200 W - 6000 W
Number of amplifier channels: 4
Maximum output voltage: 210 V peak
Max. output current: 84 A peak
Voltage gain: 32.0 dB, adjustable from 24–40 dB
Input sensitivity: 13.7 dBu (3.73 V),adjustable to 5.7 to 21.7 dBu
THD: < 0.05 %
IMD-SMPTE, 60 Hz, 7 kHz: < 0.15 %
DIM100, 3.15 kHz, 15 kHz: < 0.15 %
Crosstalk: < -80 dB
Frequency response: 20 Hz to 20 kHz (± 1 dB)
Damping factor, 20 Hz to 200 Hz, 8 Ω: > 400
Amplifier topology: Class D, Fixed Frequency
Signal-to-noise ratio: 115 dB
Output noise: < -70 dBu
Digital signal processing: Sampling rate 48 kHz/96 kHz, OMNEO/Dante synchronized
Signal delay/latency: 0.70 ms/0.53 ms
Dante network latency: typ. 1.00 ms
Signal processing: 32-/40-bit, floating point
User EQ: 12 filters per channel
User delay: 0 to 2000 ms per channel
Array EQ: 5 filters per channel
Array delay: 0 to 500 ms per channel
Speaker EQ: 10 filters per channel
Speaker crossover: Hi-pass and Lo-pass per channel
Speaker FIR: up to 1025 taps, Linear-Phase filter, LinearPhase Brickwall Crossover
Speaker limiter: Peak anticipation and RMS/TEMP limiter per channel
Other features: Source selection and mix, level, mute, polarity, sine and noise generator, level meter, impedance measurement, and load monitoring
Memory: DSP presets 1 factory + 20 user
Speaker pool presets: 30 speaker settings
Source monitoring and fallback: AES3 lock and OMNEO/Dante network monitoring, switch to alternative source selection

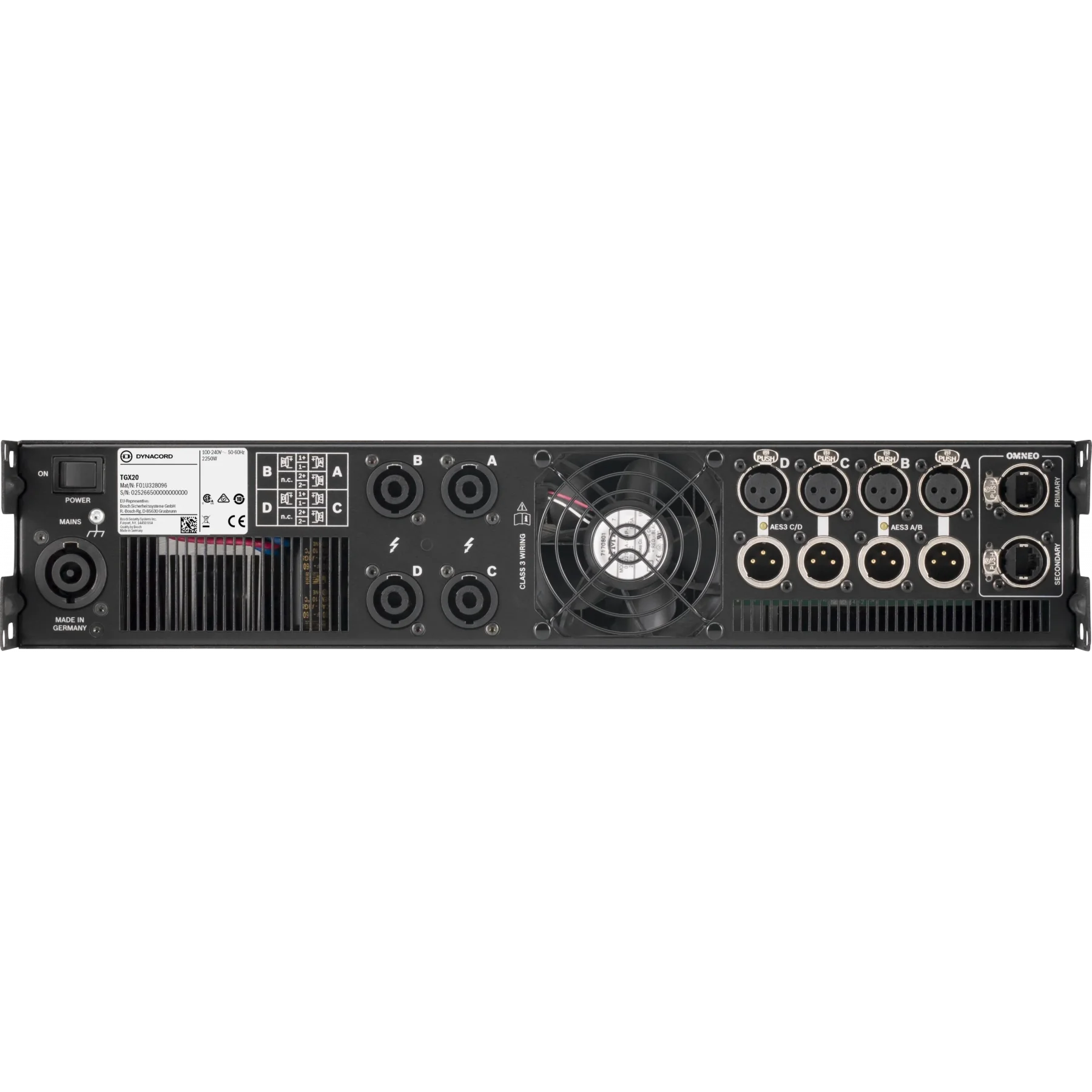

Analog audio input/loop-through: Type 4 x 3-pin, XLR female/male
Max. input level: +24 dBu
Input impedance, active balanced: 20 kΩ
Reference level same as digital input: +21 dBu for 0 dBFS
Digital audio input/loop-through: Type 2 x 3-pin, XLR
Connection "Thru": active buffered, direct bypass when the device is without power
Network: Type 2x Neutrik etherCON/RJ45, redundant PRIMARY/SECONDARY
Format: 1000BASE-T/100BASE-TX, integrated switch
Network audio inputs: 8 channels, 48/96 kHz, OMNEO/Dante format
Network audio outputs (monitor): 2 channels, 48/96 kHz, OMNEO/Dante format
Front service connection: 1 x USB Type A
Power input: 1x Neutrik powerCON-HC
Speaker output: 4 x NL4
User interface: Display 320 x 240 pixels, 3.5", color TFT
Status indicators on the front: Illuminated LED ring in color
Front controls: Rotary encoder, capacitive touch screen
Rear indicators: 2 x LED (AES3 input mode active, amplifier searching)
Rear controls: Power switch
Power requirements: 100 to 240 V, 50 to 60 Hz, AC
Power consumption: Nominal power consumption 2250 W
1/8 of the maximum output power at 4 Ω: 2850 W
Idle mode (no input signal): 110 W
Standby mode: < 19 W
Power supply topology: Switching power supply with digitally controlled power factor correction (PFC)
Protection circuits: Audio limiter, overtemperature, DC, high frequency, short circuit, back-EMF, peak current limiter, inrush current limiter, power-up delay, main circuit breaker, over/under voltage protection of the mains
Cooling: Front to rear, temperature-controlled fans, monitored
Ambient temperature limits: +5 °C to +40 °C
IEC protection class: Class I (earthed)
Electromagnetic environment: E1, E2, E3
Color: Black
Dimensions (WxDxH): 483x88.1x514.2mm
Weight: 18.3kg
