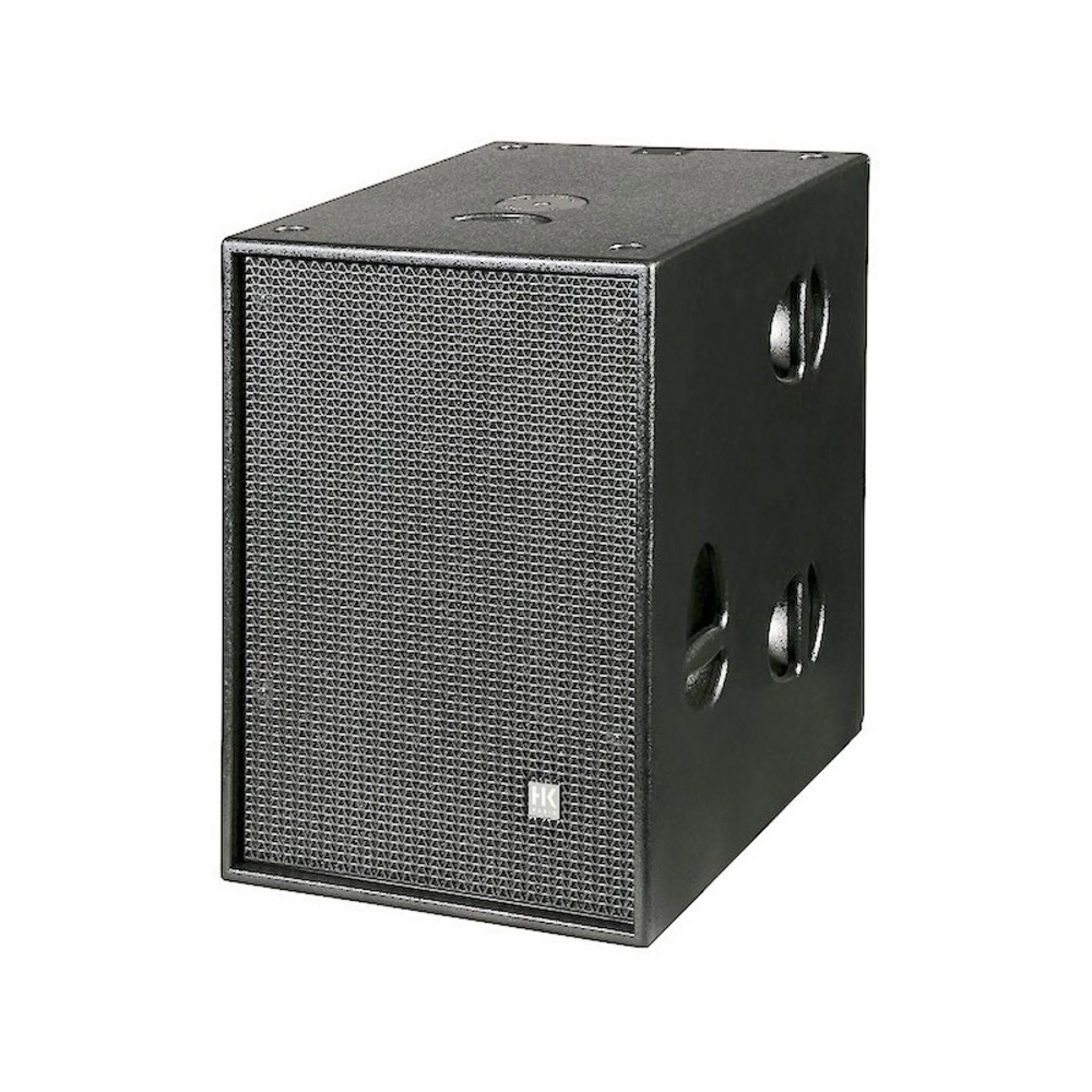

Hk Audio CTA118SUB 18" Dsp Aktif Subwoofer 1000-watt

price for Piece
Fast Shipping

HK Audio Contour Array CTA 118 Sub 18" DSP Aktif Line Array Subwoofer, 1000 Watt



  • Sensitivity 1W@1m (Half Space): 101 dB
  • Max. SPL peak (Half Space): 133 dB
  • Frequency response +/-3 dB: 42 Hz – fx



An active, direct-loaded subwoofer, the 18“ CTA 118 SUB serves as the system’s powerful engine room. All the required circuitry is on board, including a 56-bit DDO-Pro™ digital controller and two 1,000-watt RMS PWM power amps. One of the power amps drives the subwoofer’s 18“ speaker; the other is configured by the controller to drive a CTA 208 mid/high unit or a ConTour Series™ CT 108, CT 112 or CT 115 enclosure.
Packing a powerful punch, the CTA 118 SUB delivers low-ranging yet clearly defined bass response, rendering impulses with great accuracy and authority even when handling the heaviest loads. Filter presets have been devised for the various setups. They fine-tune the components of each configuration to work optimally with each other, ensuring peak system performance and reliability. Simply select the appropriate filter preset on the controller, and the integrated display will immediately indicate all information of relevance to the given setting.
The internal electronic circuitry is shock-mounted on rubber grommets, while a dolly facilitates transport and affords additional protection against damage and dirt.





ModelCTA 118 Sub
HeadlineActive System Bass
Frequency response +/- 3 dB42 Hz – fx
Frequency response -10 dB36 Hz – fx
Sensitivity 1W101 dB
Maximum SPL, @ 10% THD130 dB @ 10% THD (half space)
subwoofer amplifier1000 W RMS, Class D
Sat & Mid/high unit amp1000 W RMS, Class D
Active protectiion circuitsDDO™ Pro Limiter, thermal protect, short-circuit
ConnectionsXLR female, electronically balanced & floating, DDO-Pro™ Net/ RS 485 Ethercon
LF Speaker18"
Pole mountM20 plate
Handles7, integrated
Optional accessoriesProtective cover, dolly, stack plate
EnclosureBirch plywood 18mm, 13- ply
GrilleMetal grille with black acoustic foam
FinishBlack polyurethane lacquer
Dimensions (WxHxD)51cm x 73 cm x 71 cm
Weight59 kg/ 129.8 lbs.
