| Weight | 17kg (38lbs) |
| Electronic shutter effect | Strobe effect, pulse effects, instant open and blackout |
| Electronic dimming | 0 - 100%, four dimming curve options |
| Color mixing | CMY, independently variable 0-100% |
| Color wheel | 9 color filters plus open |
| Rotating gobo wheel | 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake |
| Static gobo wheel | 9 gobos plus open, wheel indexing, rotation and shake |
| Zoom | Motorized |
| Focus | Motorized |
| Iris | 0-100% |
| Beam effects | Rotating three-facet prism |
| Pan | 540°, coarse & fine control and speed |
| Tilt | 260°, coarse & fine control and speed |
| Control options | DMX |
| RDM compliance | ANSI/ESTA E1.20 |
| DMX channels | 21 |

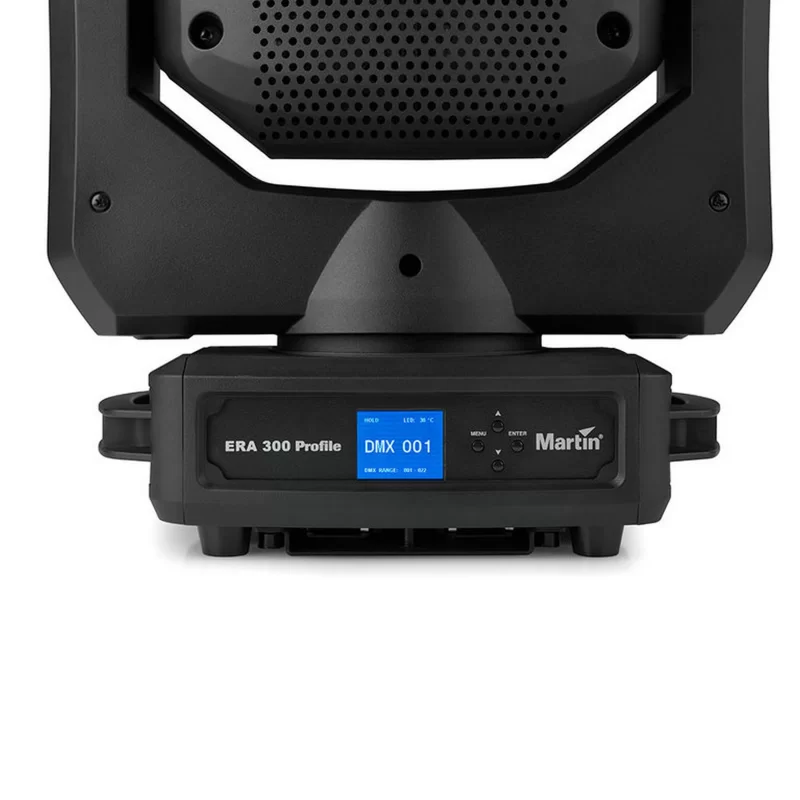

| Setting and addressing | Control panel with backlit LCD display |
| DMX compliance | USITT DMX512/1990 |
| Light source | 260W LED engine |
| Zoom range | 13° - 28° |
| Light engine luminous output | 20,000 lumens |
| Fixture luminous output | 9,500 lumens |
| CRI (Color Rendering Index) | >70 |
| Minimum LED lifetime | 20,000 hours (to >70% luminous output)* |
| Optics notes | *Manufacturer´s figure obtained under manufacturer´s test conditions. |
| CCT | 6500 Kelvin |
| Color | Black/White |
| Housing | High-impact flame-retardant thermoplastic |
| Protection rating | IP20 |
| Mounting points | Two quarter-turn brackets for rigging clamps |
| Orientation | Any |
| AC power in, thru | Neutrik powerCON TRUE1 |
| DMX data in/out | 3-pin & 5-pin locking XLR |
| AC power | 100-240V nominal, 50/60 Hz |
| Power supply unit | Auto-ranging electronic switch mode |
| Fuse | T 6.3A |
| 120 V, 60 Hz | 3.13A, 374W, PF 0.999 |
| 230 V, 50 Hz | 1.62A, 362W, PF 0.993 |
| Typical Power and Current notes | Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. |
| EU safety | EN 60598-2-17 (EN 60598-1),EN 62471, EN 62493 |
| EU EMC | EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547 |
| US safety | UL 1573 |
| US EMC | FCC Part 15 Class B |
| Canadian safety | CSA C22.2 No. 166 |
| Canadian EMC | ICES-003 Class B, ICES-005 Class B |
| Australia/NZ | RCM |
| Cooling | Forced air (temperature regulated, low noise) |
| Maximum ambient temperature (Ta max.) | 40° C |
| Minimum ambient temperature (Ta min.) | 0° C |
| Included Items notes | Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets for rigging clamp attachment |
| Cables, 16 A, for connection to power in chains | Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91610174 |
| Connectors | Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788 |
| Martin ERA 300 Profile in cardboard box | P/N 9025109547 |
| Martin ERA 300 Profile White in cardboard box | P/N 9025109886 |
| Cables, 16 A, for relaying power in chains | Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 |
| Installation hardware | G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007 |
| Martin™ RDM 5.5 Splitter | P/N 90758150 |
| Martin Companion Cable | P/N 91616091 |
| Related items notes | Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com |
| Gobo diameter | 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) |
| Maximum image diameter | 19.0 mm (0.75 in.) |
| Gobo thickness, maximum | 1.1mm borosilicate glass |
| 16-bit control | Dimming, pan and tilt |
| Transceiver | Opto-isolated RS-485 |
| Length | 375 mm (14.8 in.) |
| Width | 217 mm (8.5 in.) |
| Height | 564 mm (22.2 in.) |
