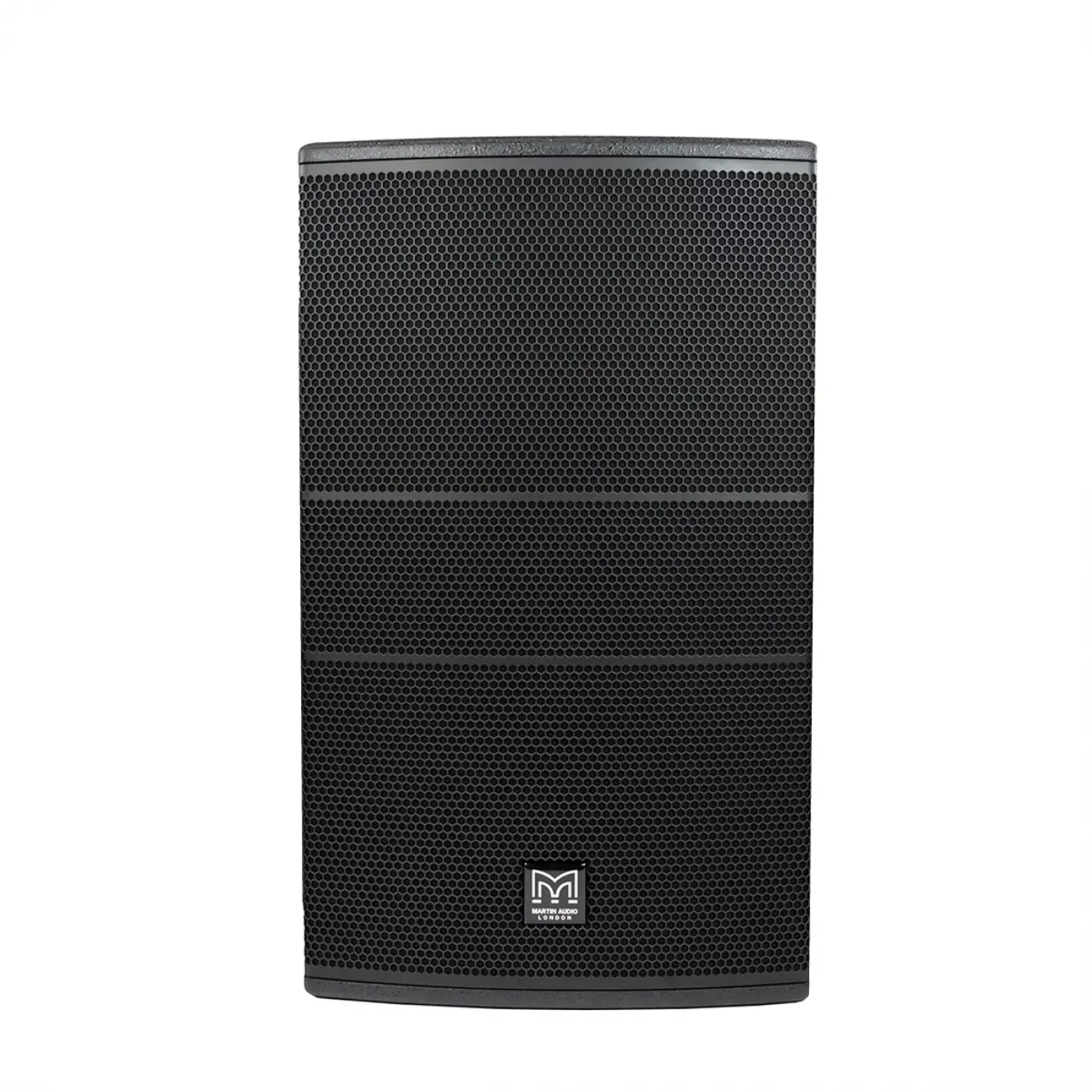

Martin S12 12" Pasif Hoparlör 600W Prg 129 dB

Adet
  • Full-range, passive two-way system
  • KTV specific voicing
  • Enhanced bass response from rear port
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

  • TYPE    Compact, passive two-way system
  • FREQUENCY RESPONSE (5)     62Hz-20kHz ± 3dB, -10dB @ 47Hz
  • DRIVER    LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
  • RATED POWER   600W program, 1200W peak
  • SENSITIVITY (8)    99dB
  • MAXIMUM SPL (9)    126dB program, 129dB peak
  • NOMINAL IMPEDANCE    8Ω
  • DISPERSION (-6DB)    80° H x 50° V (user-rotatable)
  • CROSSOVER    2.5kHz passive
  • ENCLOSURE    Trapezoid
  • FINISH    Black textured paint
  • PROTECTIVE GRILLE    Black perforated steel with scrim cloth backing
  • CONNECTORS    2 x NL4 type
  • PIN CONNECTIONS (INPUT)    1+/1-
  • PIN CONNECTIONS (LINK)    1+/- to 1+/-
  • FITTINGS    14 x M8 inserts
  • DIMENSIONS
  • (W) 357mm x (H) 600mm x (D) 385mm
  • (W) 14.1ins x (H) 23.6ins x (D) 15.2ins
  • WEIGHT    21kg (46.3lbs)
Hoparlör Ölçüsü12"
