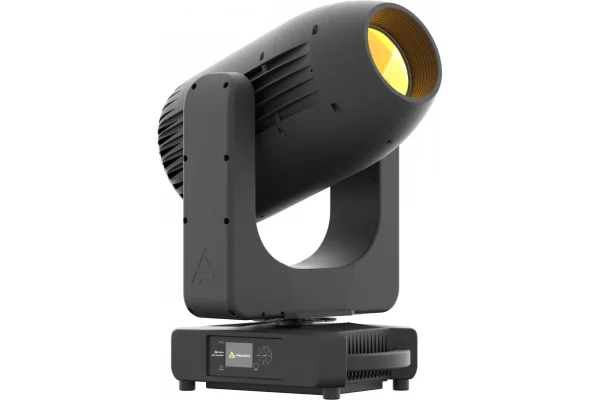

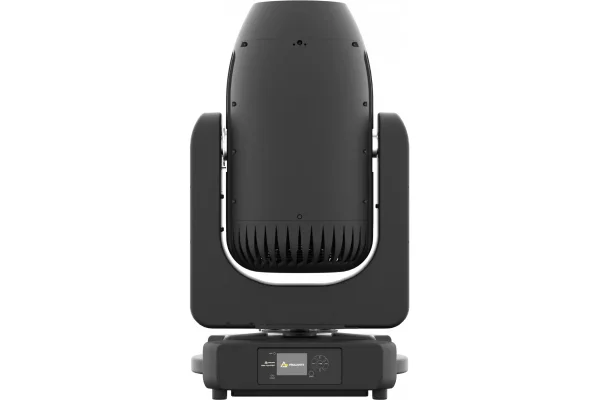

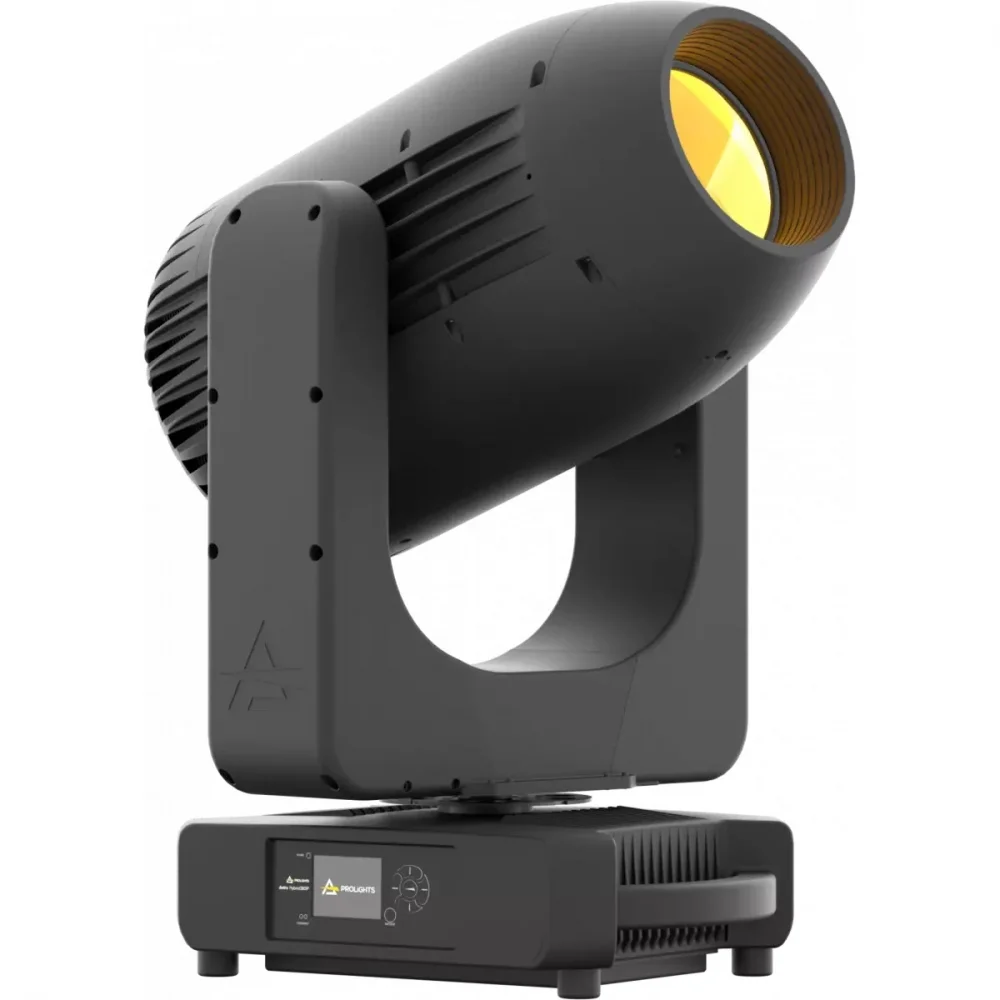

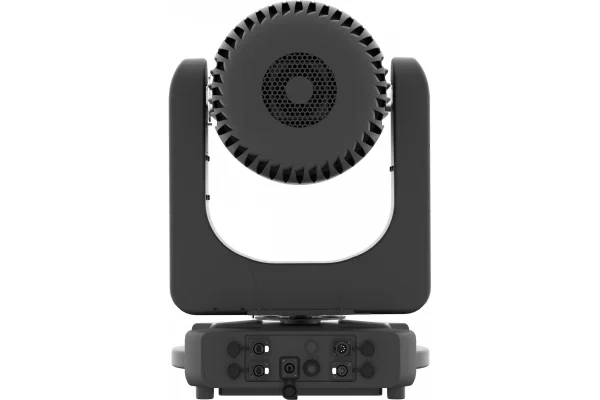

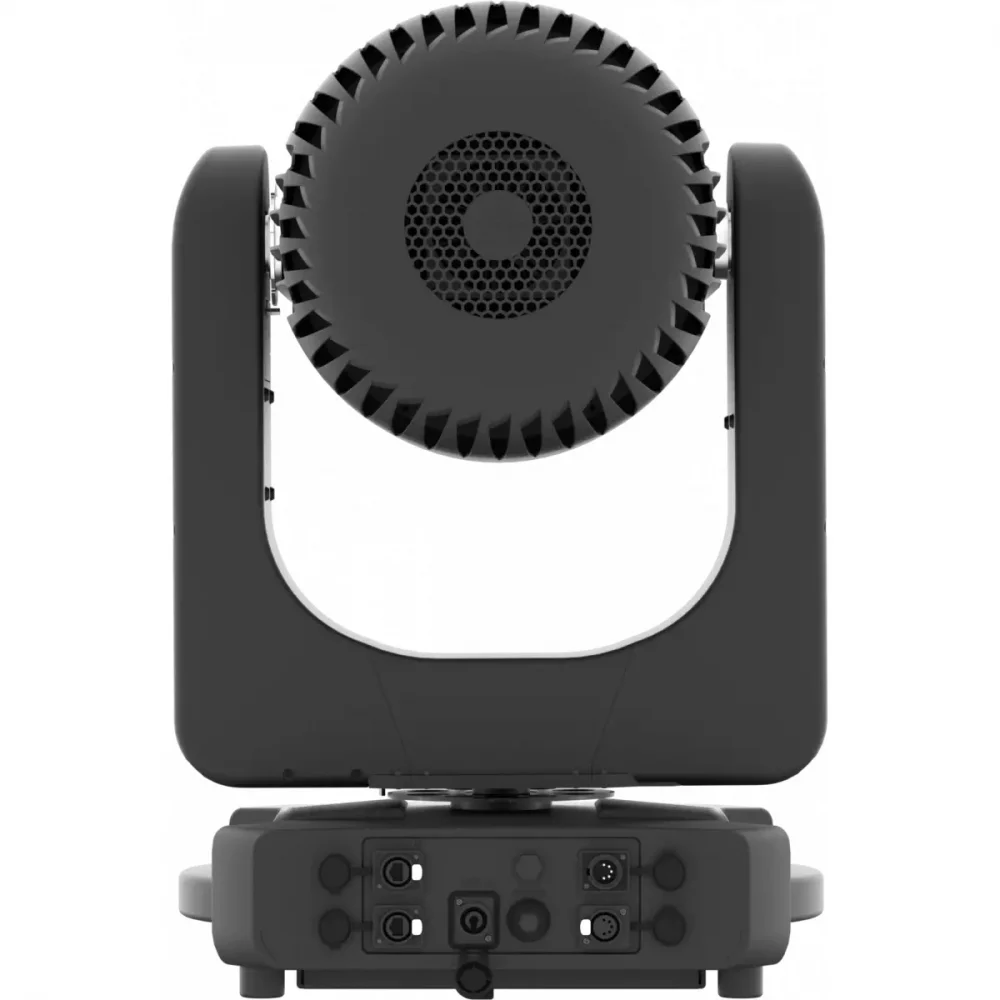

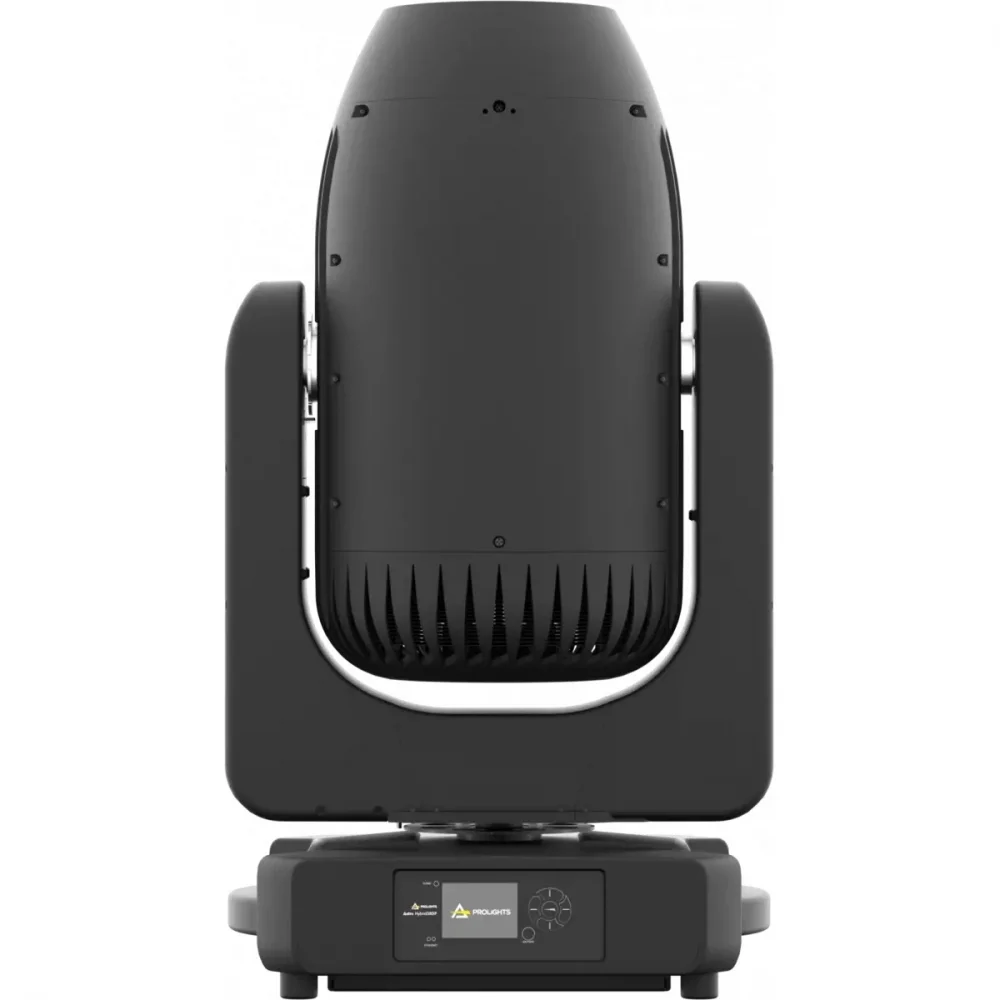

The Astra Hybrid420IP is the first waterproofed (IP65) hybrid moving light in the Astra range, designed for any large-scale touring applications and exterior installations.
Despite its waterproofed exterior, the unit meets the same performance and features as the indoor version, excelling both as a truly bright beam light and perfect spotlight, with tremendous brightness and superior evenness when comparing with other fixtures in the same category.
The Astra Hybrid420IP's optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420IP includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
LIGHT SOURCE
Source: 420W USHIO NSL421
CCT: 7.000
Luminous flux: 35.815
Lux: (2.7°) 127.339 lx - (40°) 862lx @15 m
Source life expectancy: 6.000 h
OPTICS
Zoom range: 2.7° - 40° motorised linear zoom
Lens diameter: 153mm / 6.02''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
Colour mixing: CMY colour system on 3 gradually fading colour wheels
CCT: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 15 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
Animation wheel: animation wheel with CW and CCW rotation
