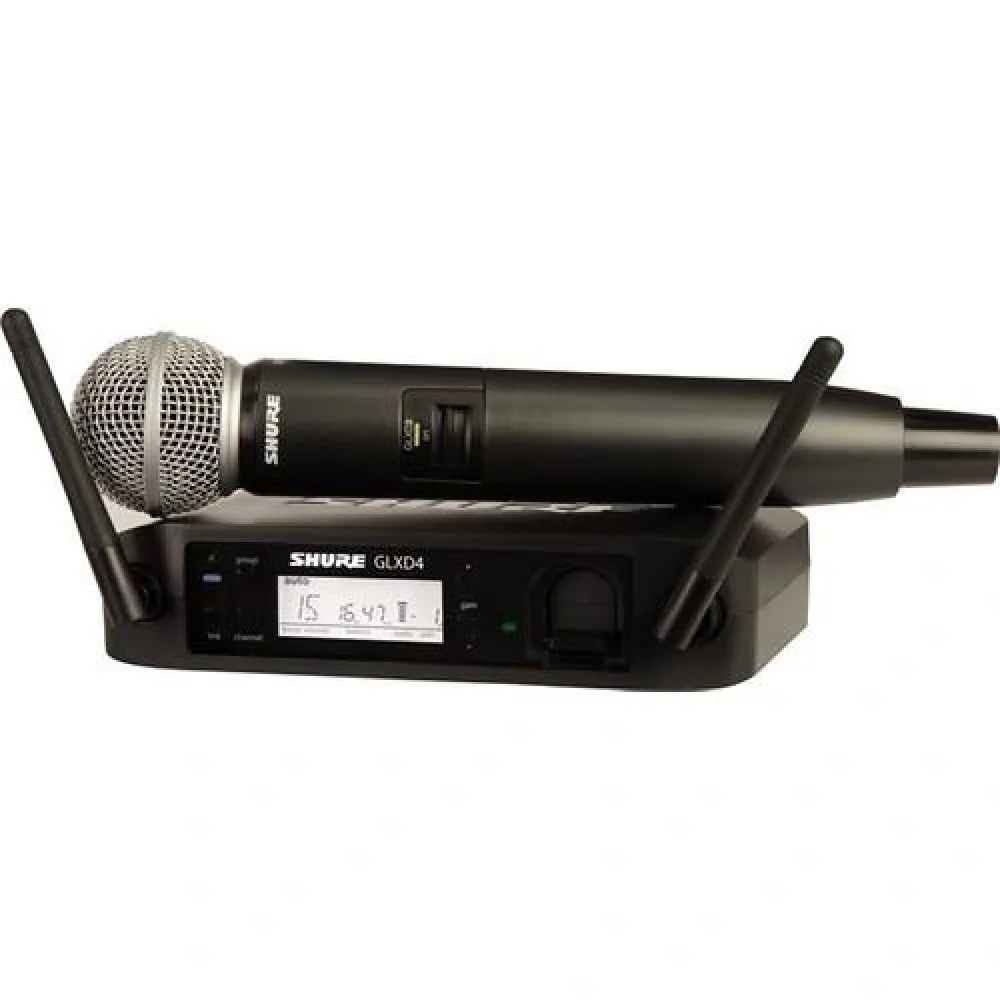

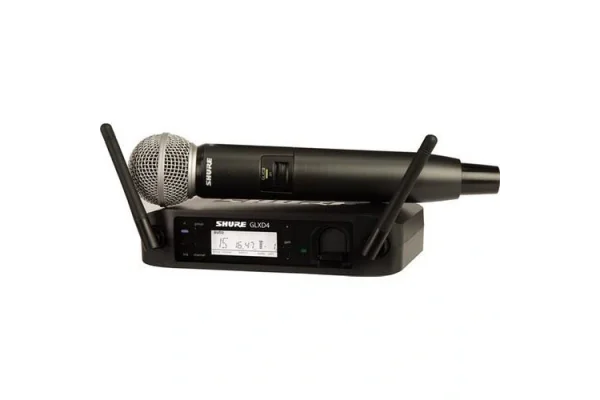

The GLXD24/SM58 Handheld Wireless System from Shure includes a GLXD4 wireless receiver and a GLXD2 handheld transmitter with an SM58 microphone element.
GLXD4 Receiver
| Outputs | 1x XLR Output 1x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 100 Ω 1/4": 100 Ω, 50 Ω unbalanced |
| Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load) 1/4": 8.5 dBV (into 3 kΩ load) |
| Tuning Frequency Range | 2400 to 2483.5 MHz |
| Range of Operation | 200 (60 m) (typical, depends on RF signal absorption, reflection, and interference) |
| Transmit Mode | Frequency Hopping |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 120 dB, A-weighted |
| RF Sensitivity | -88 dBm, typical |
| Total Harmonic Distortion | 0.2%, typical |
| RF Output | 10 mW E.I.R.P., maximum |
| Operating Temperature Range | 0° to 135°F (-18° to 57°C) |
| Storage Temperature Range | -20° to 165°F (-29° to 74°C) |
| Pin Configuration | XLR: 1= ground, 2= hot, 3=cold 1/4": Tip= audio, ring= no audio, sleeve= ground |
| Antenna | Impedance: 50 Ω Type: 1/2 wave sleeve dipole, non-removable Max Input Level: -20 dBm |
| Power Requirements | 14 to 18 V DC (tip positive with respect to ring),550 mA |
| Spurious Rejection | >35 dB, typical |
| Gain Adjustment Range | -20 to 40 dB in 1 dB steps |
| Phantom Power Protection | Yes |
| Housing | Molded plastic |
| Dimensions (HxWxD) | 1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) |
| Weight | 10.1 oz (286 g) |
GLXD2 Transmitter
| Transmitter | |
|---|---|
| RF Power Output | 10 mW E.I.R.P, maximum |
| Maximum Input Level | 147 dB SPL |
| Power Requirement | 3.7 V Rechargeable Li-Ion |
| Housing | Molded plastic |
| Dimensions | Body Length: 9.9" (252 mm) Body Width: 1.5" (37 mm) Capsule Width: 2" (51 mm) |
| Weight | 9.4 oz (267 g),without batteries |
| Microphone | |
|---|---|
| Type | Dynamic (Moving Coil) |
| Frequency Response | 50 Hz to 15 kHz |
| Polar Pattern | Cardioid, rotationally symmetrical about microphone axis, uniform with frequency |
| Ürün Grubu | Mikrofon (Kablosuz) |
| Kablosuz mikrofon tip | Tek EL |
