Tascam Series 8p Dyna 8-Kanal Mic Preamp With Analogue Compressor

Tascam Series 8p Dyna 8-Channel Mic Preamp With Analogue Compressor

Features at a glance

• Eight-channel microphone preamp with eight analogue outputs and multi-channel optical outputs
• Can be used as a standalone analogue mic preamp to expand any mixer or recording device
• Ideal to add studio-ready audio inputs to a Tascam SERIES 102i/208i or US-20x20 via a single cable
• Two S/MUX optical ports can output all eight channels up to a sampling rate of 96 kHz
  • 8 outputs at 44.1/48 kHz
  • 8 outputs at 88.2/96 kHz
  • 4 outputs at 176.4/192 kHz
• Tascam HDIA mic preamps use instrumentation amplifiers and have outstanding specifications, enabling them to provide clear, natural sound with super-low noise
• Eight balanced XLR/TRS combo input jacks

• Channels 1–2 on the front can be used for guitars, basses and other instruments with high-impedance output
• 48V phantom power can be provided to each input channel independently
• Each input channel has its own single-knob analogue compressor with true bypass

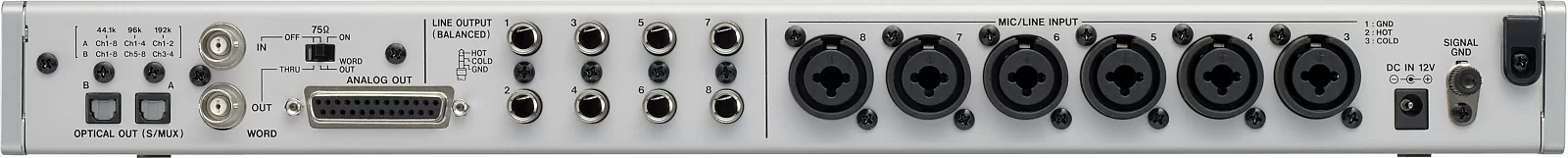

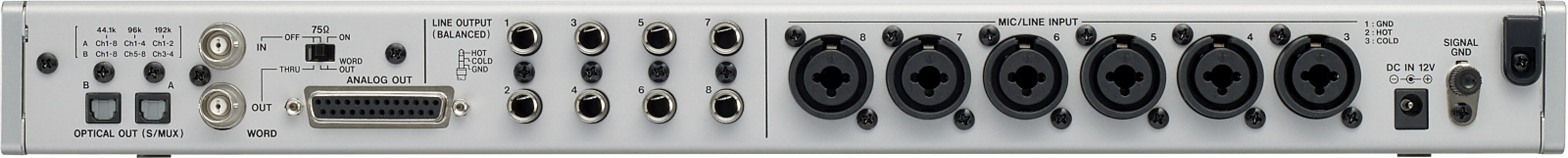

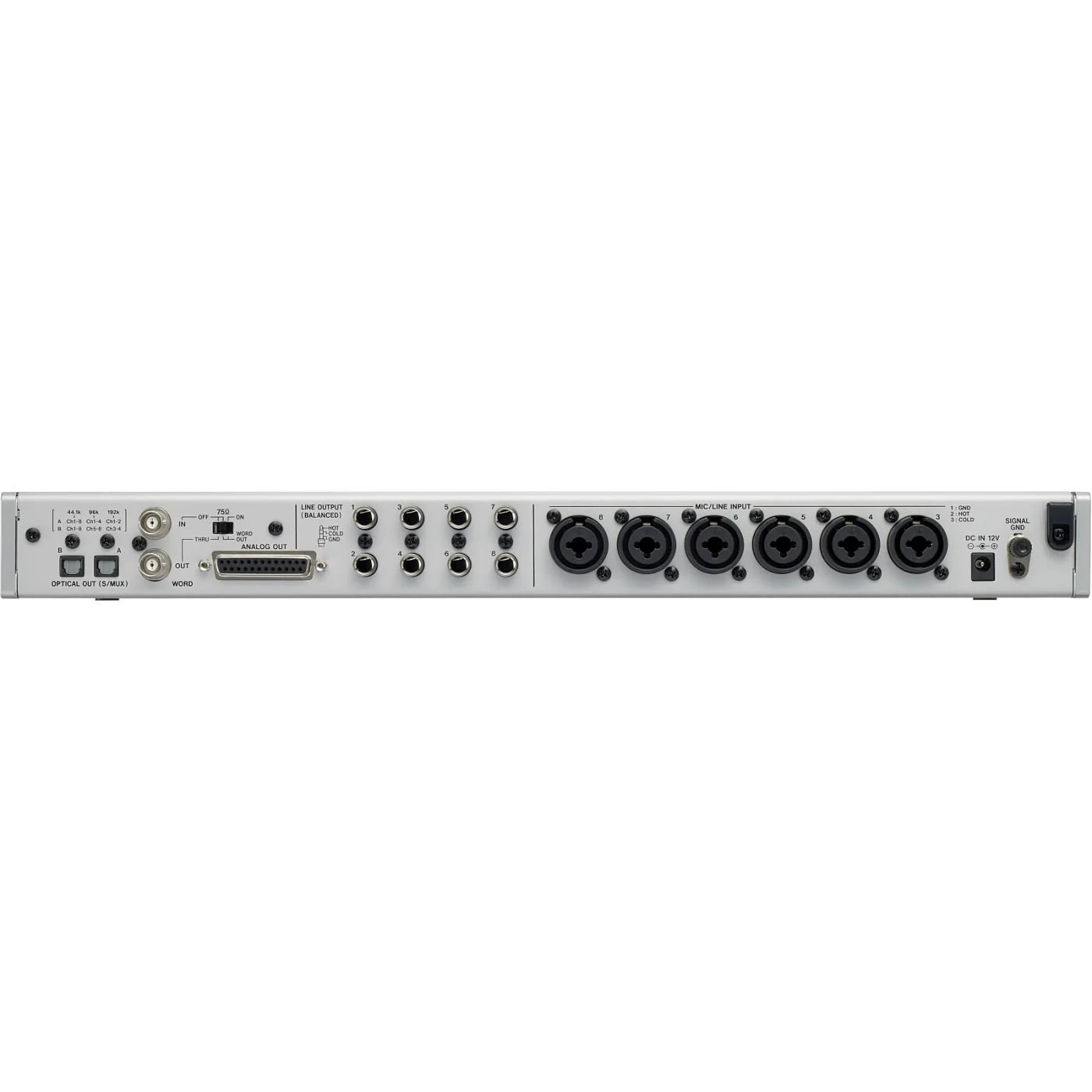

• 25-pin D-sub and eight separate TRS analogue balanced outputs support a variety of connections with other analogue equipment
• Indicators for analogue overload, compressor and digital signals as well as level meters on the front panel
• Wordclock input and output (with THRU switch) for flexible audio clock synchronisation with other equipment
• AC adapter included (Tascam PS-P1230, with four exchangeable plug inserts)

Options

• BO-16DX/OUT can be used to provide 16 XLR balanced outputs (for up to two SERIES 8p Dyna units)
