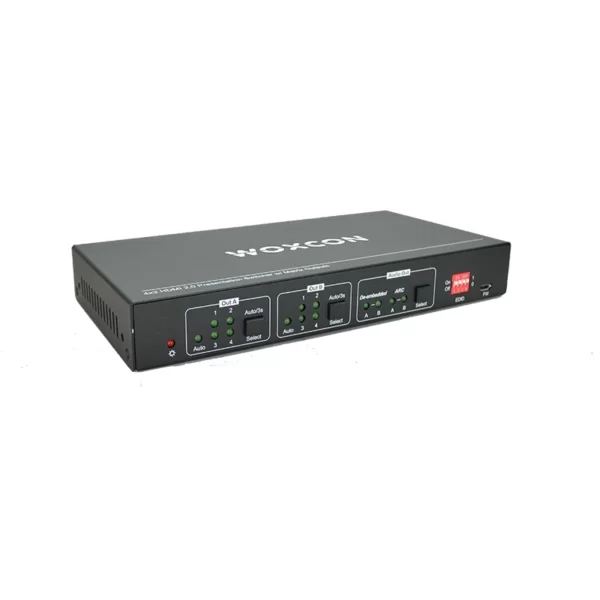

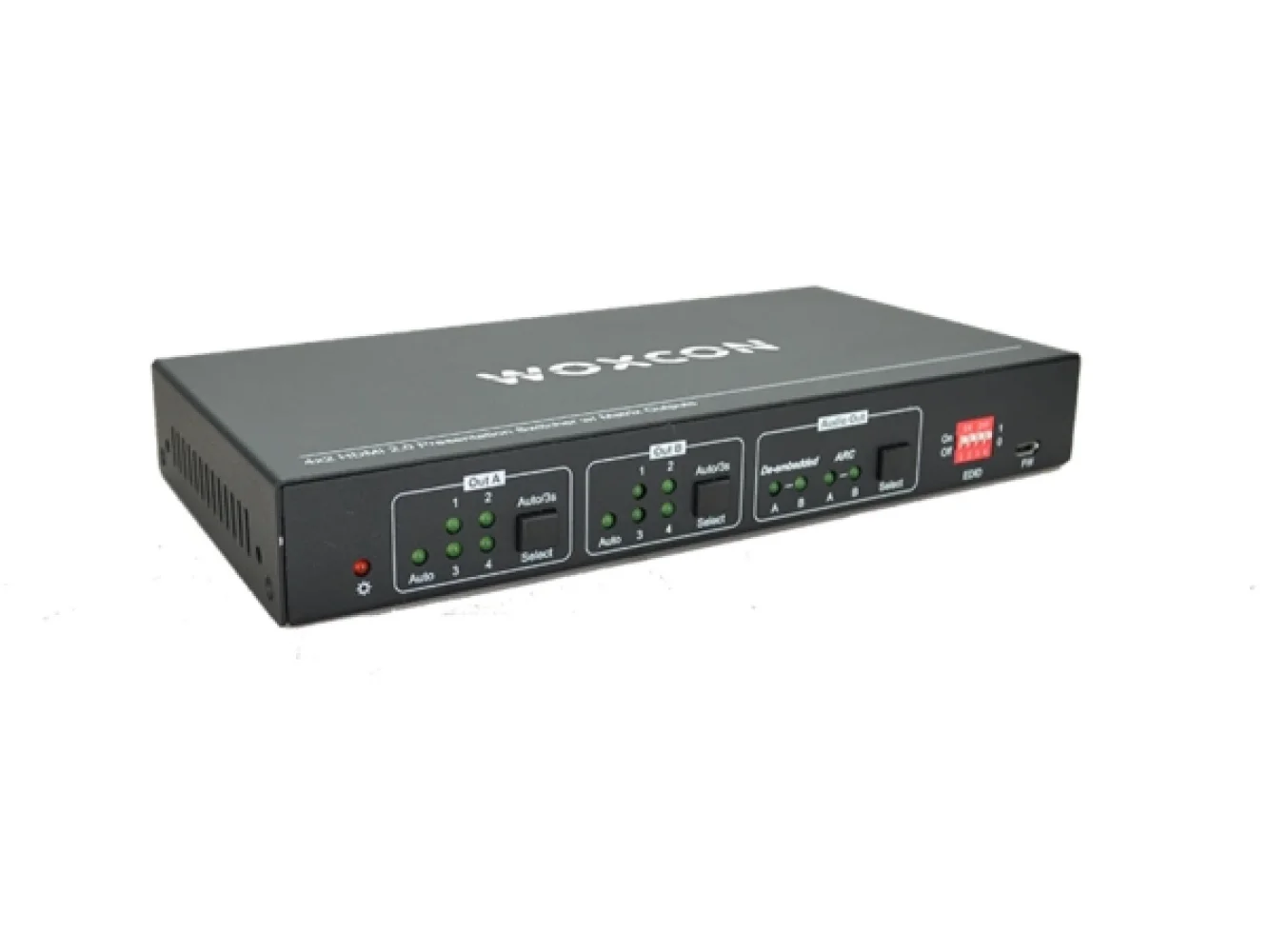

Woxcon SCU42 4x2 HDMI Presentation Scaler Matrix

WOX SCU42 4x2 HDMI Matrix Switcher

SCU42, 4×2 HDMI 2.0 matris çıkışlarına sahip bir sunum anahtarlayıcıdır. Bu cihaz, dört HDMI girişine, iki HDMI matris çıkışına ve tam HDMI 2.0 desteğine sahiptir. Ürün, çift HDMI OUT ses çıkarımı için SPDIF ve 3.5mm çıkış seçenekleri, çift HDMI OUT ARC desteği ve 4K'dan 1080p'ye ölçekleme işlevi sunar. SCU42, Web, RS232, IR ve akıllı EDID yönetimi üzerinden geniş bir kontrol esnekliği sağlar.


• 4×2 HDMI presentation switcher with matrix outputs.
• HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2.
• 4K to 1080p down-scaling.
• SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC.
• RS232, IR and TCP/IP control.
• Smart EDID management.

Technicial Specifications

Video Input
Video Input	(4) HDMI
Video Input Connector	(4) Type-A female HDMI
Video Input Video Resolution	Up to 4K@60Hz 4:4:4 8bit
HDMI Audio Format	Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 – 8Ch PCM 32-192KHz 16-24 bits; 2 – 8Ch PCM 32-192kHz 16-24 bits.
HDMI Input Cable	4K@60Hz 4:4:4 ≤ 3meters, other ≤ 5meters
Video Output
Video Output	(2) HDMI
Video Output Connector	(2) Type-A Female HDMI
Video output Video Resolution	OUT A: Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports color space 4:2:2/4:2:0 to 4:4:4, 4K to 1080p down-scaling.
	OUT B: Up to 4K@60Hz 4:4:4 8bit, HDR, Dolby Vision
HDMI Output Cable	≤ 5 meters
HDMI Version	Up to 2.0
HDCP Version	Up to 2.2
Digital SPDIF Audio Output
Audio Output	(1) Digital SPDIF audio
Audio Output Connector	(1) Toslink connector
Output level	±0.05dBFS
Frequency Response	20Hz~20KHz, ±1dB
THD+N	< 0.05%, 20Hz~20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR	> 90dB, 20Hz~20KHz bandwidth
Crosstalk isolation	< -70dB, 10KHz sine at 0dBFS level (or max level before clipping)
Noise Level	– 90dB
Unbalanced analog Audio Output
Audio Output	(1) Unbalanced analog audio
Audio Output Connector	(1) 3.5mm jack
Frequency Response	20Hz~20KHz, ±1dB
Max output level	2.0Vrms ± 0.5dB. 2V=16dB headroom above-10dBV (316 mV) nominal consumer line level signal
THD+N	< 0.05%, 20Hz~20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR	> 80dB, 20Hz~20KHz bandwidth
Crosstalk isolation	< -80dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R level deviation	< 0.05dB, 1KHz sine at 0dBFS level (or max level before clipping)
Output load capability	1Kohm and higher (supports 10x paralleled 10Kohm loads)
Noise Level	-80dB

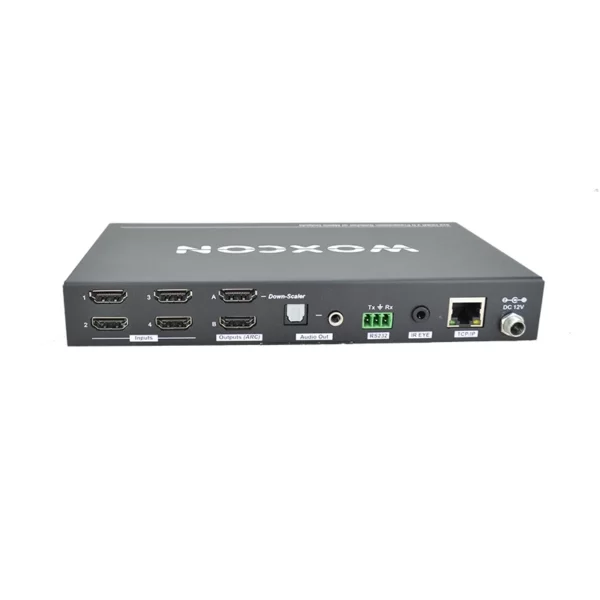

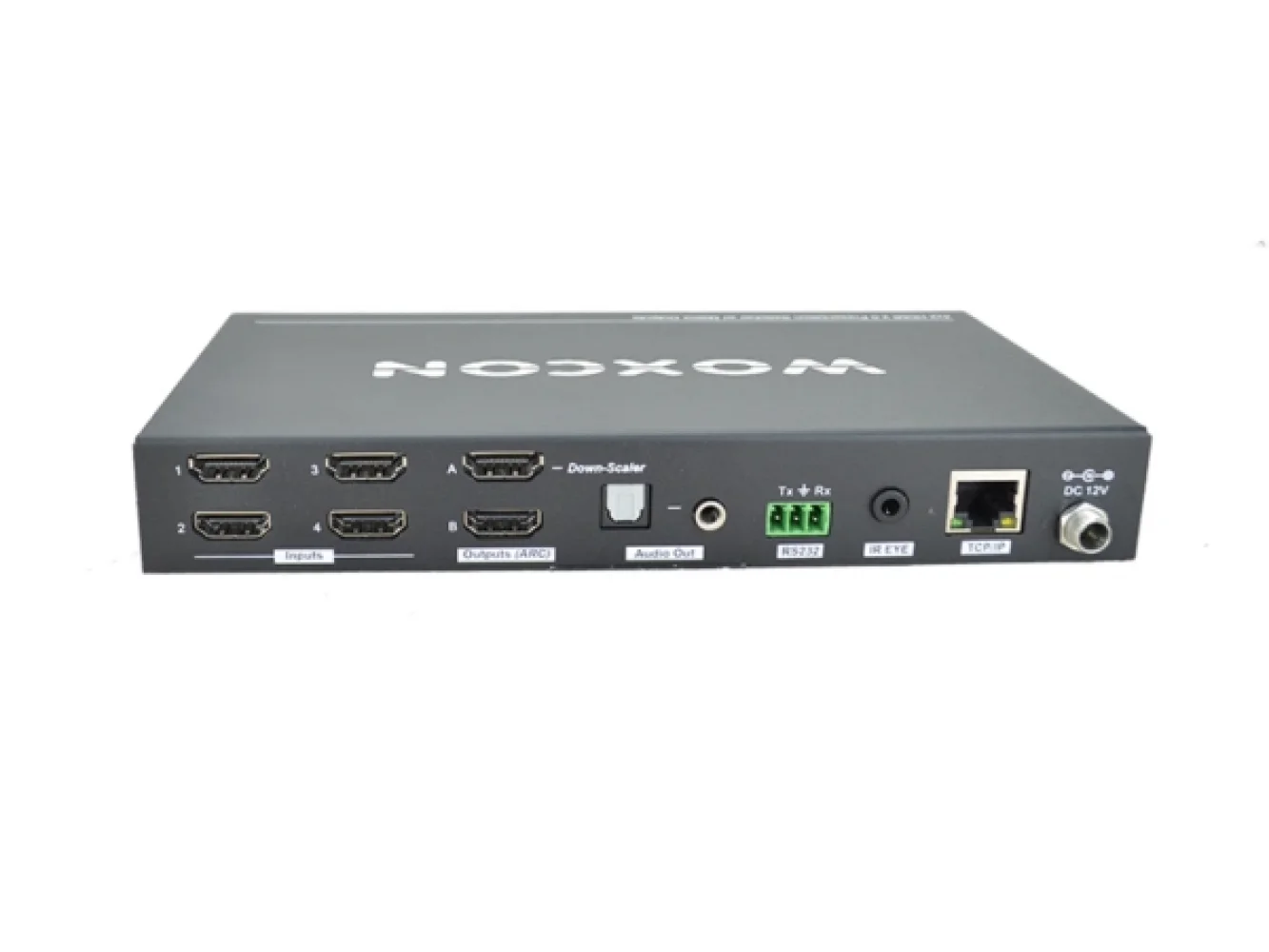

Control Part
Control Port	(1) EDID Switch, (1) FW, (1) RS232, (1) IR IN, (1) TCP/IP
Control Connector	(1) 4-pin DIP Switch, (1) Micro-USB, (1) 3-pin terminal block, (1) 3.5mm jack, (1) RJ45
General
Bandwidth	18Gbps
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	-25℃ ~ +70℃
Relative Humidity	10%-90%
External Power Supply	Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A
Power Consumption	7.5W (Max)
Dimension (W*H*D)	200mm x 28.5mm x 100mm
Net Weight	605g
