Shure Ua845-SWB

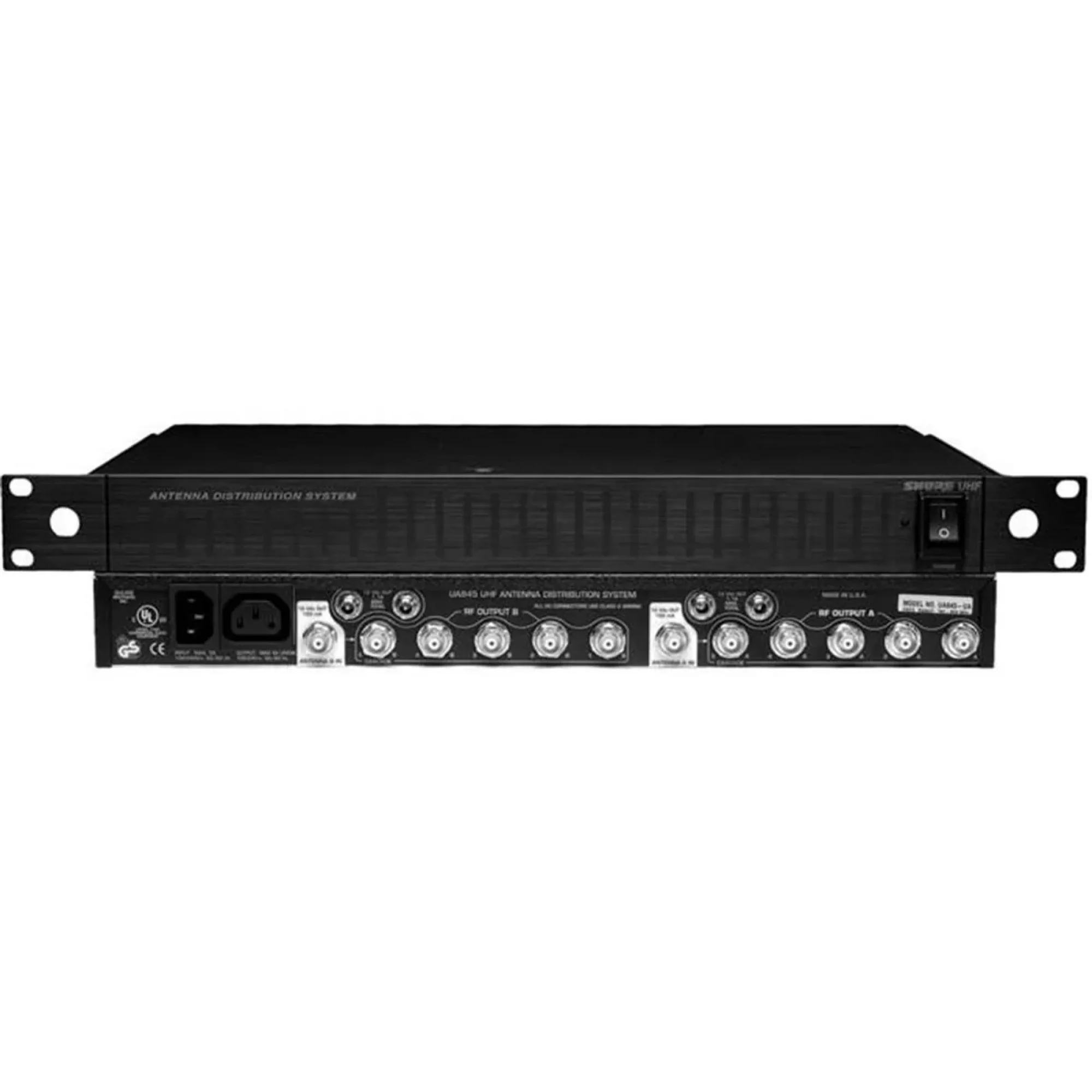

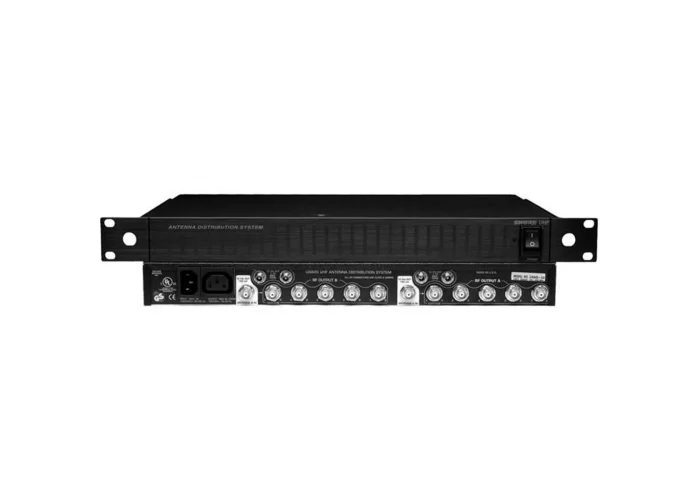

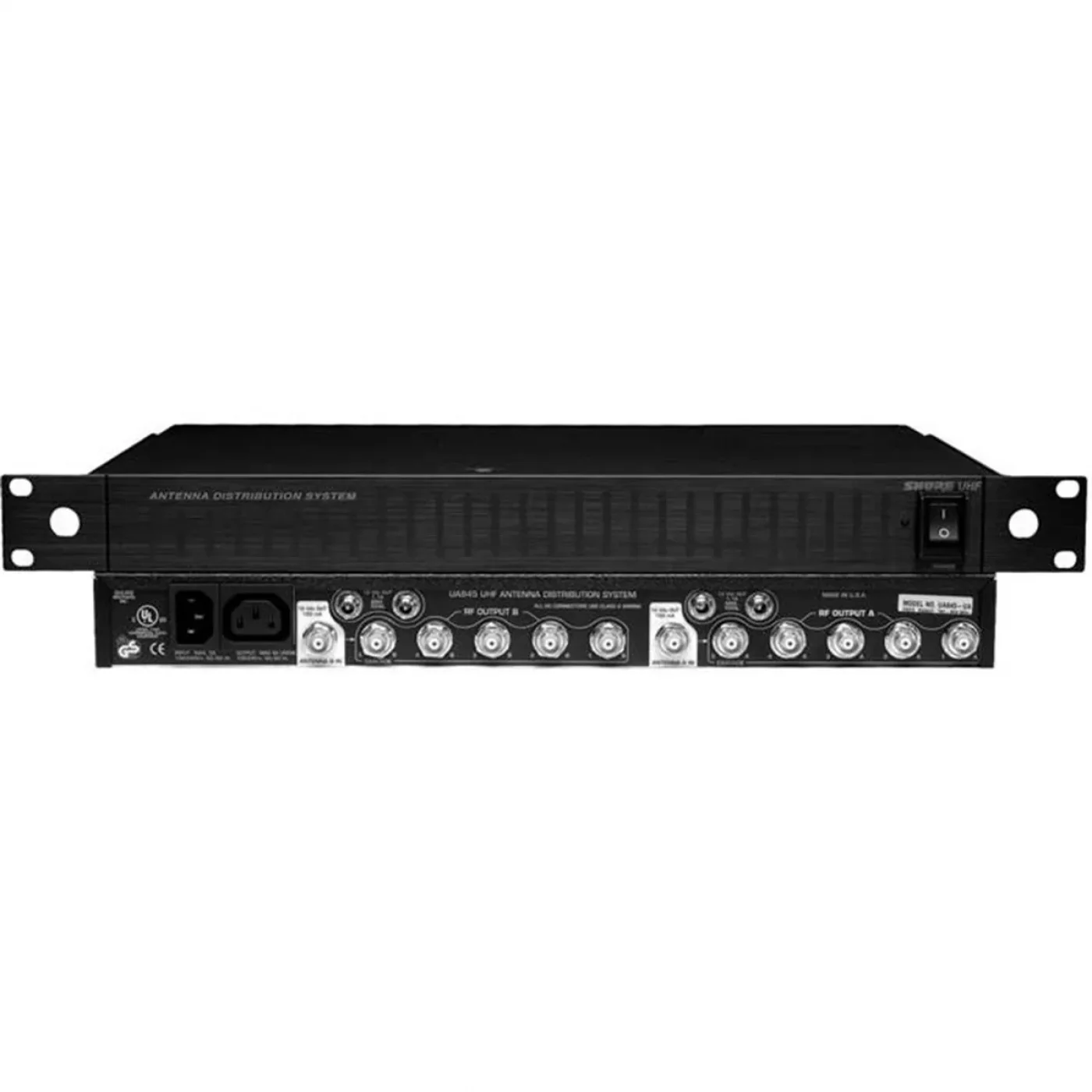

The Shure UA845WB UHF Antenna Distribution Amplifier distributes a boosted radio-frequency (RF) signal from Shure wireless microphone transmitters, to four receivers. The Shure UR4, UC4 and UHFR series are among some of the compatible wireless microphone systems.
| Carrier Frequency Range | Wideband (470-952MHz) |
| Connector Type | BNC-type x4 |
| Gain Control | 3dB typical, 0dB to 3.5dB from antenna input (Output ports 1-4)
1dB typical, -1.6dB to +1.8dB from antenna input (Cascade port) |
| Impedance | 50 ohms |
| Operating Voltage | AC Power Consumption
15W per unit typical (when used with 4UC4 s, 55W max.) |
| Weight | 7 lbs, 5 oz (3.32kg) |
| Dimensions (HxWxD) | 1.75 x 19 x 11.63" (4.45 x 48.26 x 29.53cm) |
