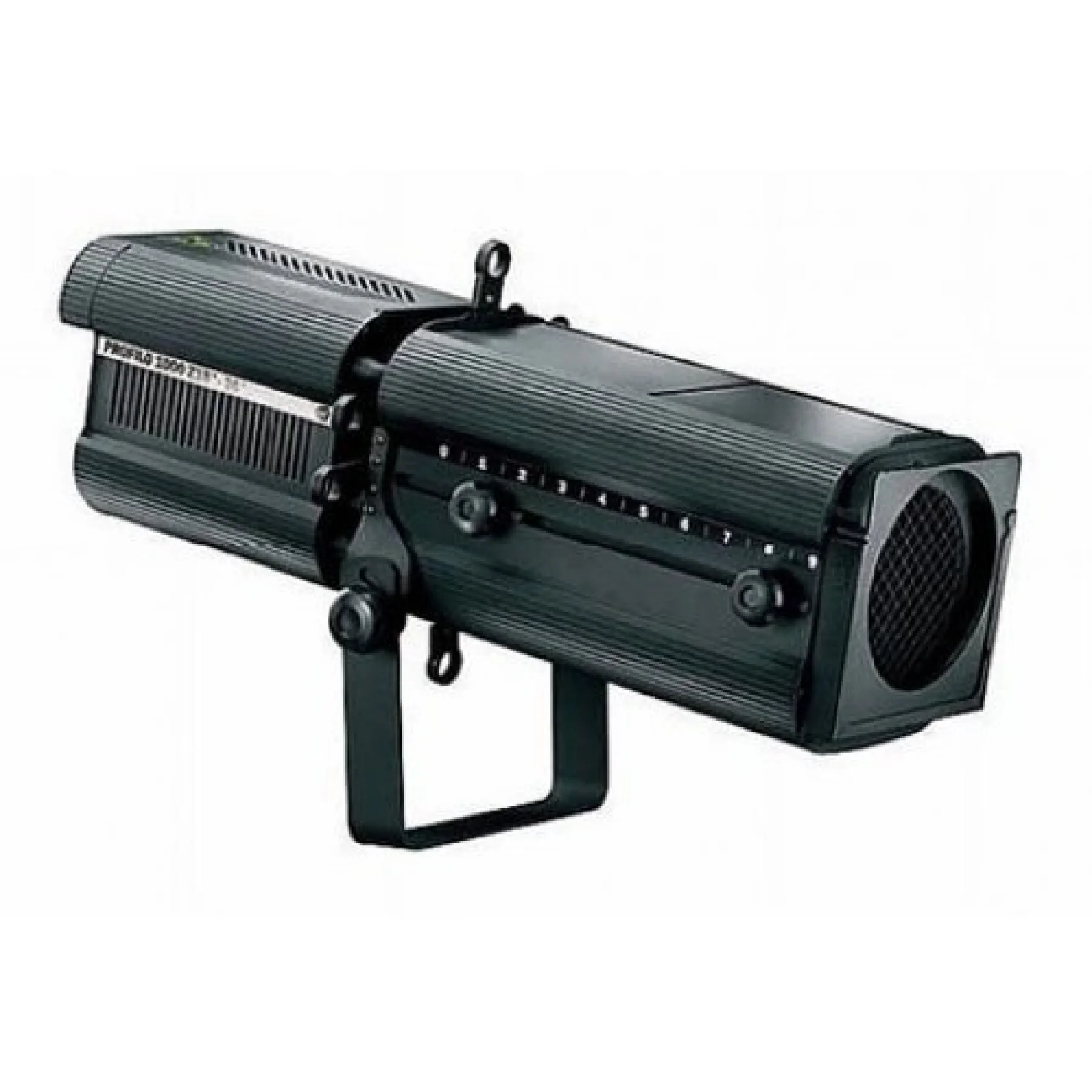

Dts Profilo 1000Z 18°/36° Zoom Profil Spot

Adet

Optical group
PROFILO 1000
• 2 Zoom ranges available: 18° ÷ 36° / 20° ÷ 50°
• High definition zoom lens with double optical condenser lens



Lamp holder
PROFILE 1000
GX9.5



Gobos
PROFILE 1000
• Gobo size: 86mm (external), 60mm (image)
• Gobo holder type B for image projection (optional)



Iris
• Iris / diaphragm (optional)



Power supply
• Range 220-240Vac 50-60 Hz



Operating temperature
-10° / 40° C



Safety
• Frontal protection grille (removable)
• Safety micro switches



Physical
PROFILO 1000
• IP20
• Internal rotating system with four removable
shutters
• Steel housing with aluminum edge profiles
• Removable cover for easy access to lamp
• Reversible yoke
• Dimensions (LxHxD):
328.5 x 407 x 746 mm (12.93x 16.01x 29.37)
• Weight: 14.8 kg (32.6 lbs)
• Finishing: Black



Accessories included
• 1 x Filterframe Black finishing - already mounted on the unit (code 02M00421.46)
• 4 x Shutter blades (code 02TP0007)



Accessories on request
• Gobo Holder Type B (code 03.TA202)
• Iris/Diaphgram (code 03.TA201)
• G60 “C” Clamp max 50 kg (code 0521A004)
• G50 “C” Clamp max 10 kg (code 0521A012)
• Floor Stand max 10 kg (code 0521A013)
• Safety steel cable 0,3x60 cm - max capacity
load 60 Kg (code 0521A010)



ONLY FOR PROFILO 1000
• Lamp 1000W GX9,5 CP70 (code 0505A042)


Shipping
PROFILO 1000
• Packaging: Carton box - 2 units each carton box
• Box size: 800 x 350 x 350 mm (31.5’’ x 13.8” x 13.8”)
• Box weight: 16 Kg (35.3lbs)
