SHURE Mxw1/O Kemer Tipi Verici, Entegre Omnidireksiyonel Mikrofonlu

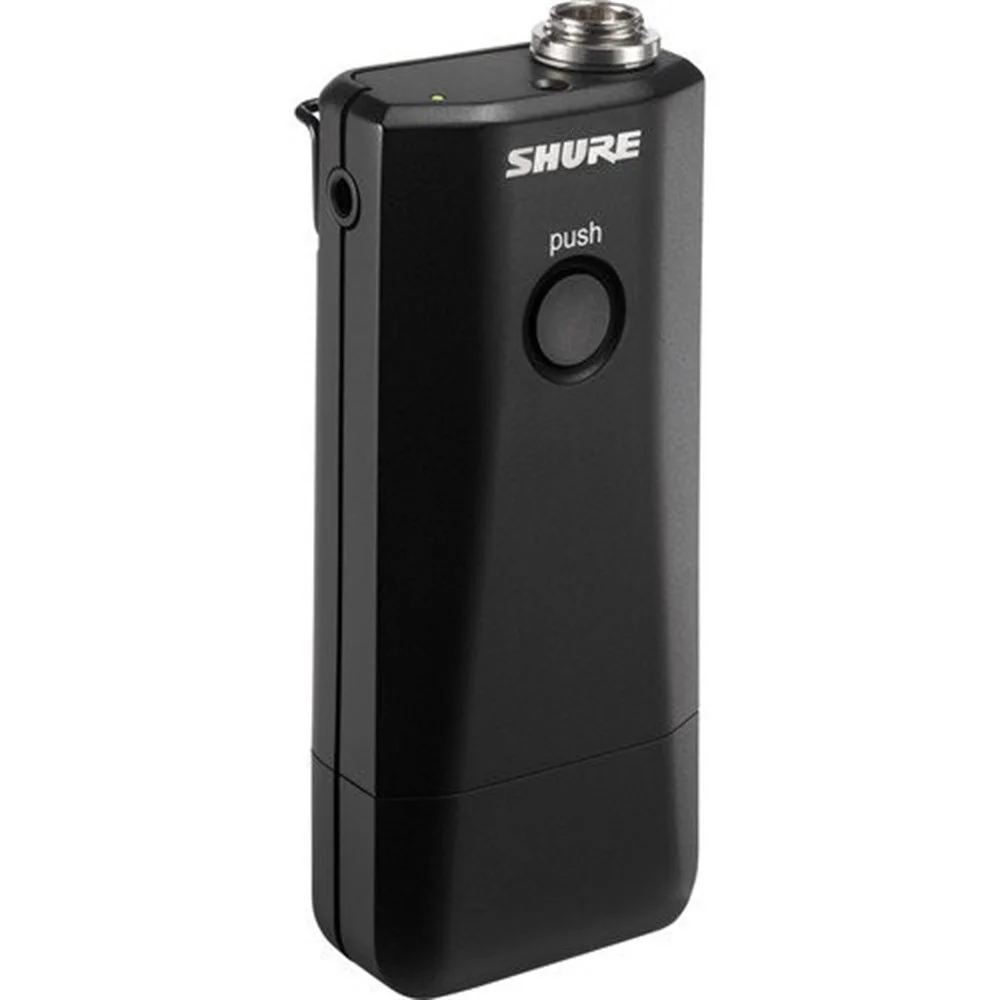

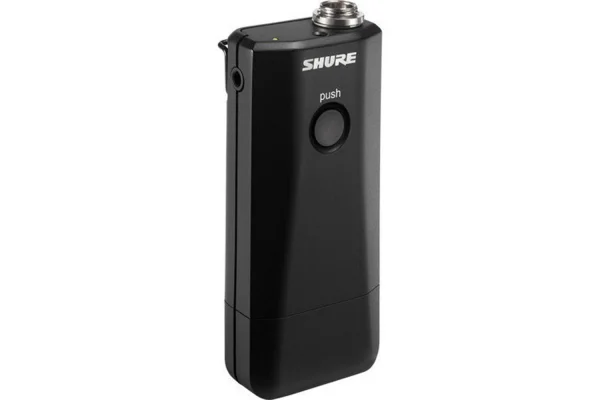

The MXW1 Bodypack Transmitter from Shure is a bi-directional bodypack transmitter designed for use with Shure s Microflex wireless conference system. It features an integrated omnidirectional microphone as well as a TA4M connector for an optional lavalier mic. In additional to transmitting audio, the MXW1 receives a return channel of audio that can be monitored with an optional earphone through the unit s earphone output. The MXW1 protects your audio with 256-bit AES encryption, allowing for secure transmission.

The unit features a built-in rechargeable battery that is capable of up to 9 hours of use. It can be worn on an optional lanyard, tucked into a shirt pocket, or attached to your clothes with the included belt-clip.

  • Compact, low-profile design: Fits comfortably into a shirt pocket or attached to clothing
  • Integrated omnidirectional mic: Captures full-range audio without connecting an external microphone
  • External microphone input: For connecting multiple styles of ear-worn or lavalier condenser microphones
  • Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
  • Earphone output: Listen to audio from a return channel for translation, cueing, or program material
  • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control.
  • Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
  • Wide working range: Wireless coverage extends up to 160 feet (50 meters)
  • Out of range alert: Emits beeping sound when range limit is exceeded
  • Wide frequency response: Captures full-range audio for clear voice transmission
  • Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing "link"
  • Encrypted wireless: AES 256-bit encryption for secure transmission.
  • Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
  • USB charging: Connects to any standard USB power source for "always on" usage


Gain Adjustment Range-25 to 15 dB (in 1 dB steps)
Maximum Input Level−9 dBV (mic gain @ -16 dB)
Headphone Output1/8" (3.5 mm) dual mono (will drive stereo headphones)
Output PowerHeadphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
Antenna TypeInternal, spacial diversity, linear polarization
Battery TypeRechargeable Li-Ion
Battery LifeUp to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health)
Charge ConnectorUSB 3.0 Type A
HousingMolded plastic
Temperature RangeRecommended for Storage: 32 to 77°F (0 to 25°C)
ConnectorMicrophone: 4-pin male mini connector (TA4M)
Input Impedance>20 kΩ (@ 1kHz)
MicrophoneInternal: Omnidirectional (20 Hz to 20 kHz)
Dimensions (HxWxD)0.9 x 1.8 x 3.9" (22 x 4
