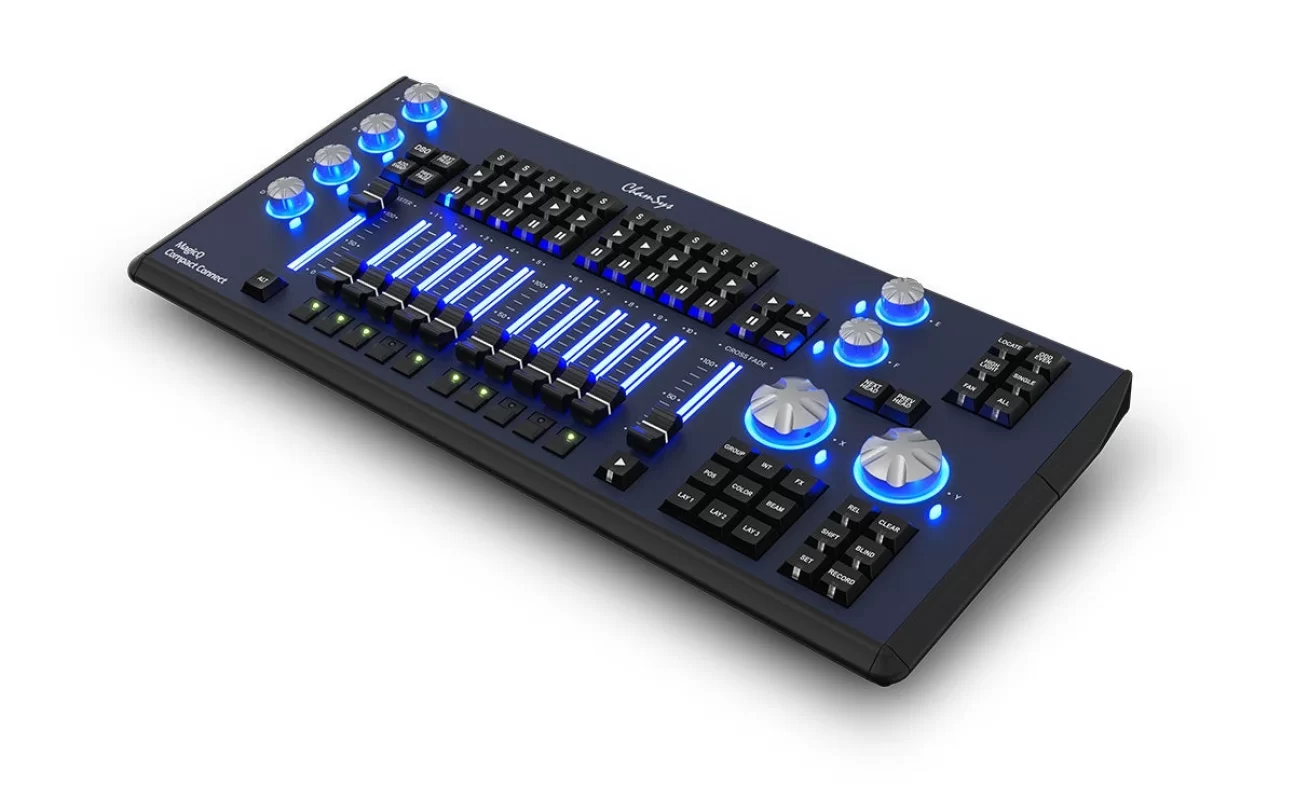

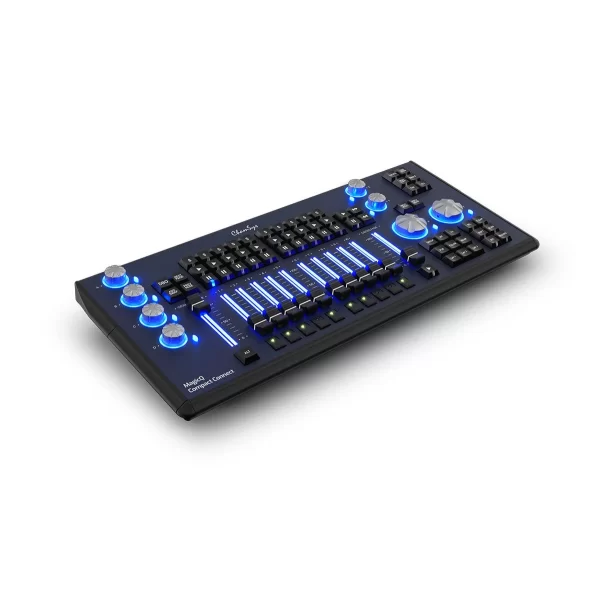

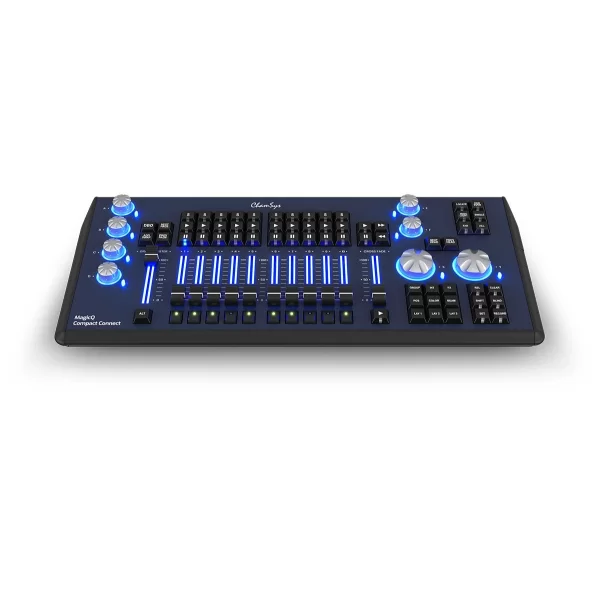

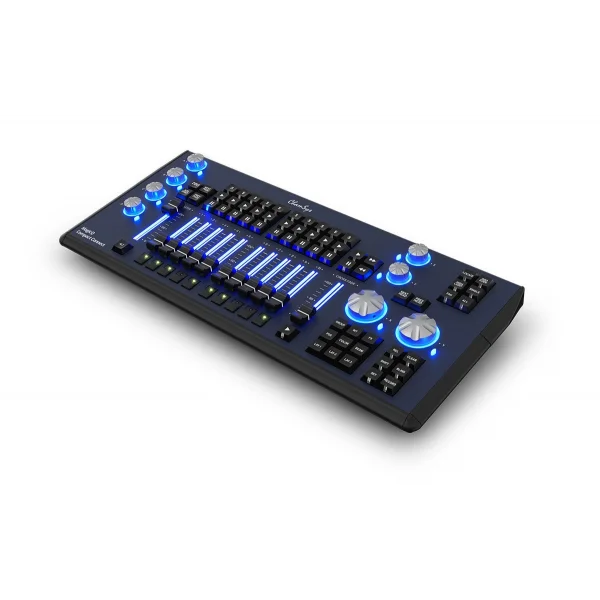

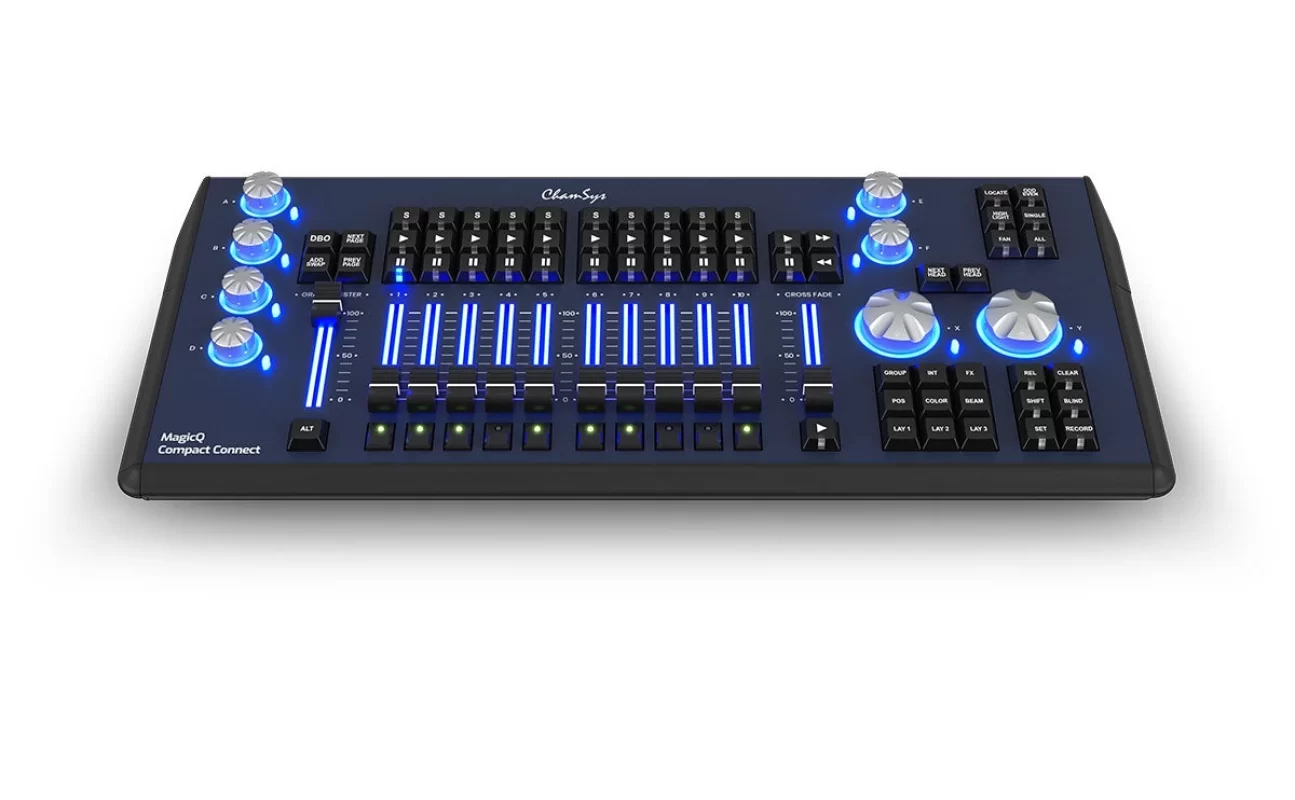

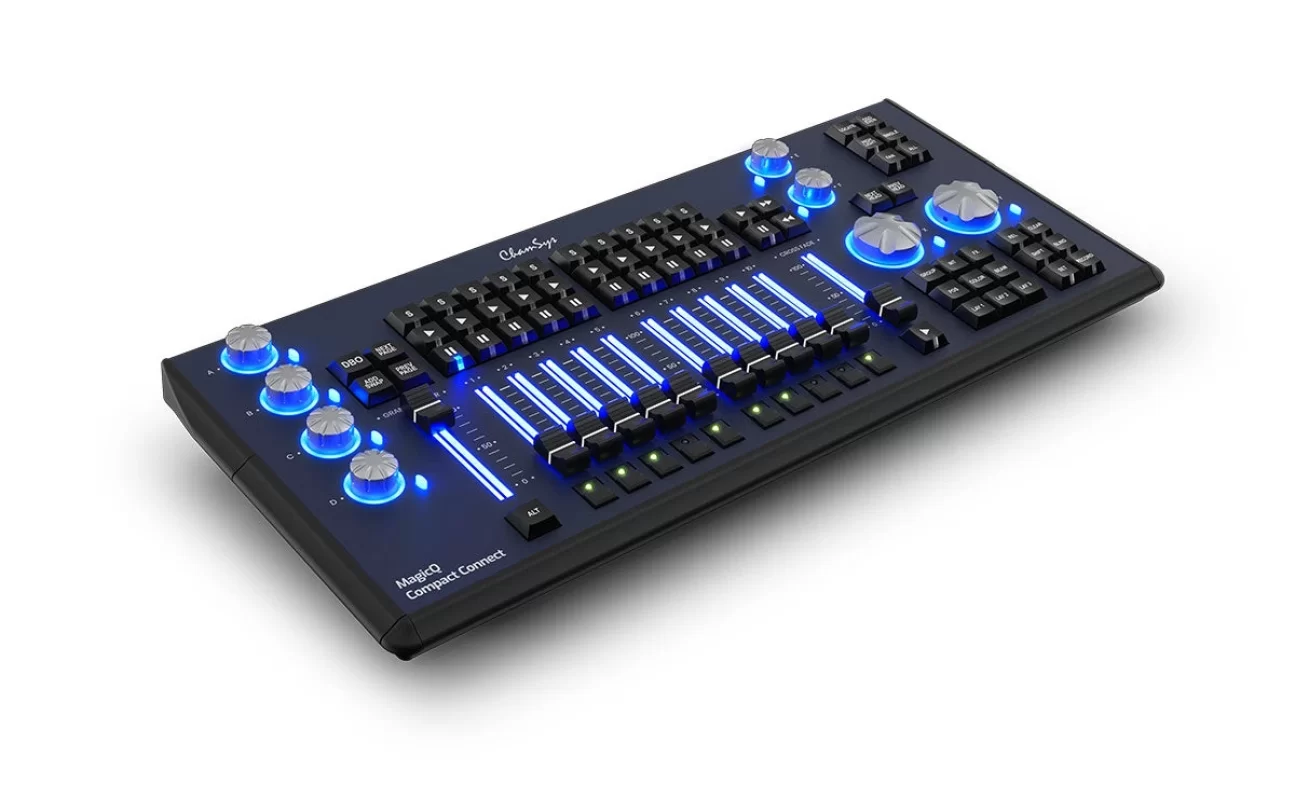

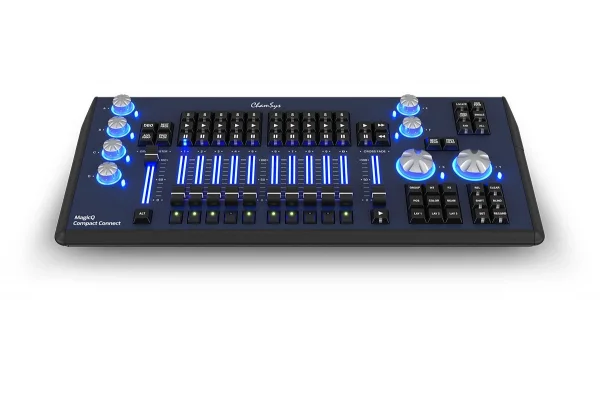

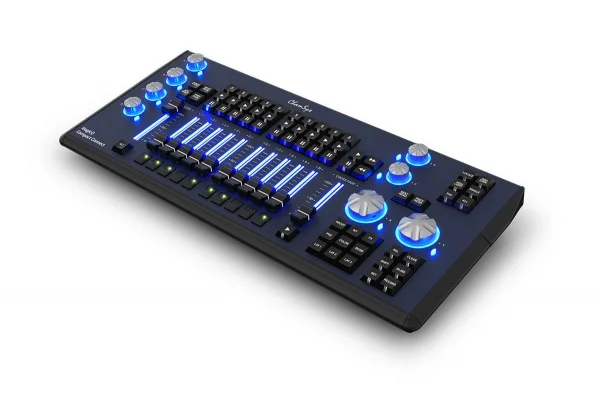

ChamSys MagicQ Compact Connect Dijital Işık Kontrol Masası

ChamSys MagicQ Compact Connect

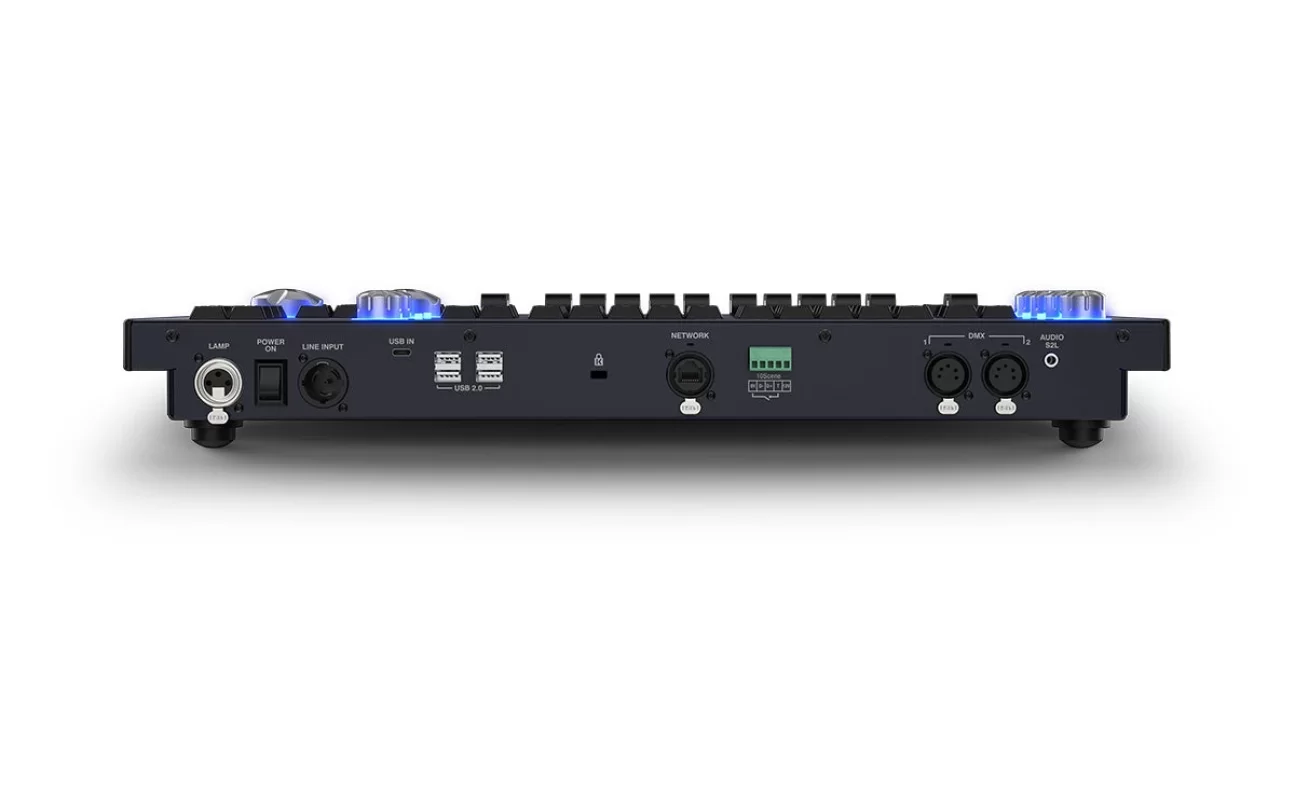

Hardware Specifications:

• Direct DMX Outputs: 2
• Fader Playbacks: 10
• Attribute Encoders: 8
• USB Ports: 5 (4 USB-A output, 1 USB-C input)
• Network Ports: 1
• Audio Input: (1 channel, 7 band): Yes
• 10Scene Input: Yes
• Kensington Security Lock Fixing: Yes
• Working Light Port: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

• Universes: 64
• Max Number of DMX Channels: 32768
• Max Number of Fixtures Supported: 32768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories:

• USB A-C Cable: 1
• Dual Colour Desk lights: 1
• Dust Cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1

Boxed Weights and Dimensions:

• Width: 630mm (24.8 inches)
• Depth: 360mm (14.2 inches)
• Height: 230mm (9.1 inches)
• Weight: 5.5kg (12.1 lb)

Flight Cased Weights and Dimensions:

• Width: 630mm (24.8 inches)
• Depth: 360mm (14.2 inches)
• Height: 230mm (9.1 inches)
• Weight: 8.0kg (17.7 lb)

Console Weights and Dimensions:

• Width: 522mm (20.5 inches)
• Depth: 230mm (9 inches)
• Height: 65mm (2.5 inches
• Height (top of encoders): 78mm (3 inches)
• Weight: 3.65kg (8 lb)
