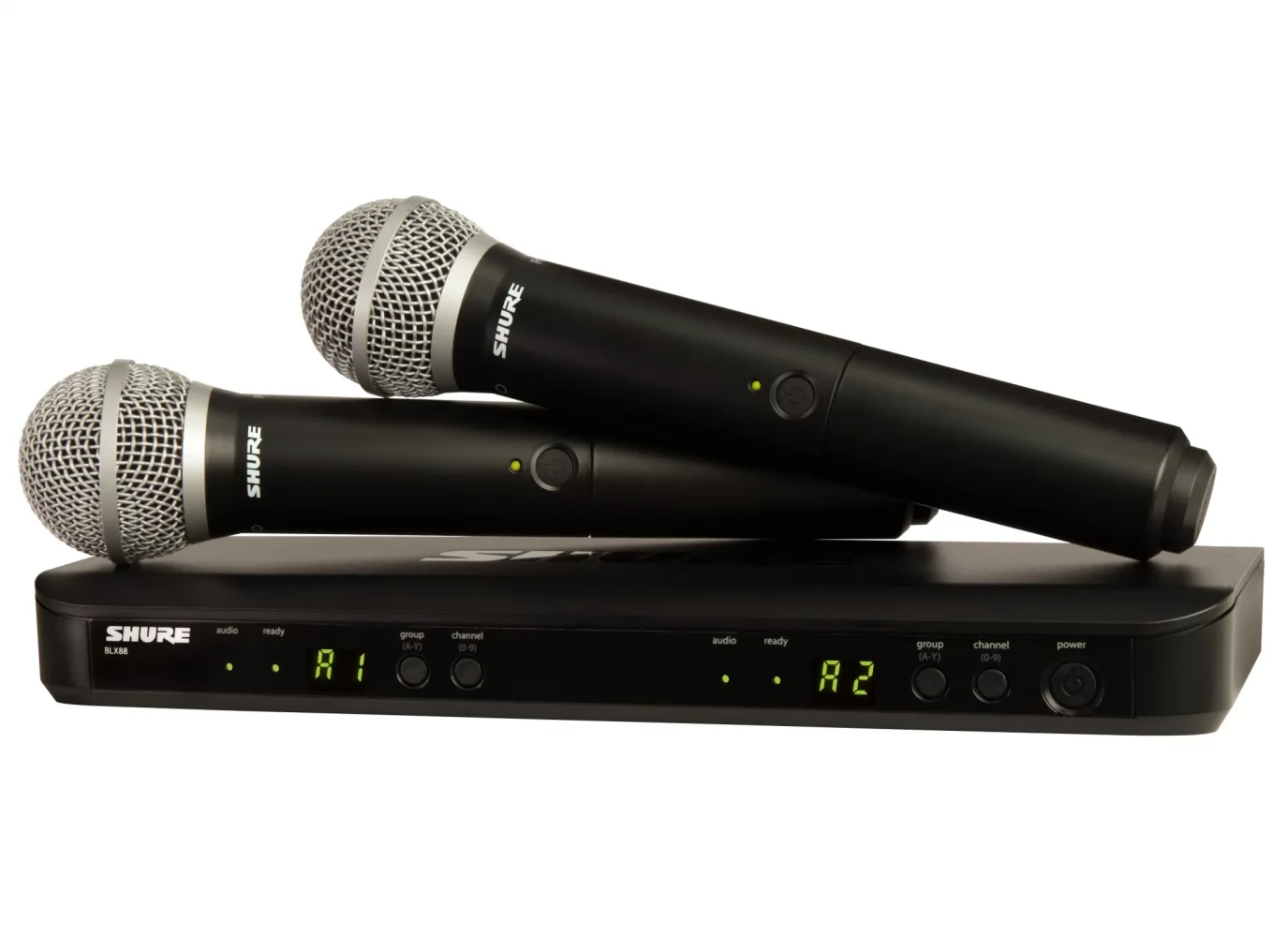

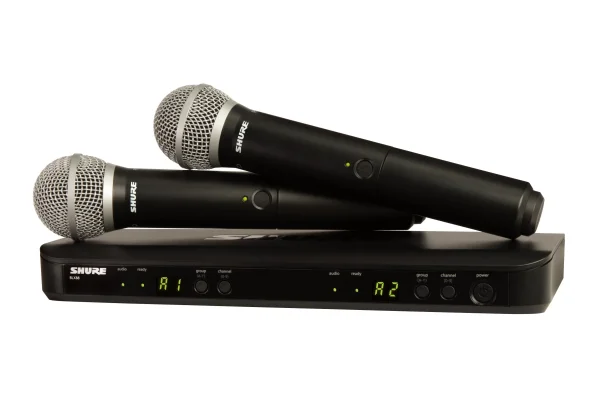

Shure BLX288E/PG58
- Dual-Channel Wireless Receiver
- 2x BLX2 Transmitters with PG58 Mic
- One-Touch QuickScan Frequency Selection
- Internal Antenna Diversity
- 300 Operating Range
- Batteries Included
Frekans
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
BLX88 Dual Channel Receiver
| Output | 2x XLR Output
2x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω
1/4": 50 Ω |
| Audio Output Level | XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS |
| Power Requirement | 12 to 15 V DC @ 320 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.5 x 15 x 4.5" (40 x 388 x 116 mm) |
| Weight | 15.1 oz (429 g) |
BLX2 Handheld Transmitter / PG58
| Transmitter |
|---|
| Audio Input Level | 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum |
| Gain Adjustment Range | 10 dB |
| RF Output | 10 mW, Typical (Varies by Region) |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Housing | Molded ABS |
| Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) |
| Weight | 7.7 oz (218 g) |
| Microphone |
|---|
| Type | Dynamic (Moving Coil) |
| Polar Pattern | Cardioid |
| Frequency Response | 60 Hz to 15 kHz |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector |
| Sensitivity | -53 dBV/Pa, (2.2 mV),1 Pascal=94 dB SPL (@ 1 kHz) |
| Electromagnetic Hum Sensitivity | 26 dB equivalent SPL in a 1 millioersted field (60 Hz) |
| Temperature Range | -20 to 153°F (-29 to 57°C) |
| Relative Humidity | 0 to 95% |
