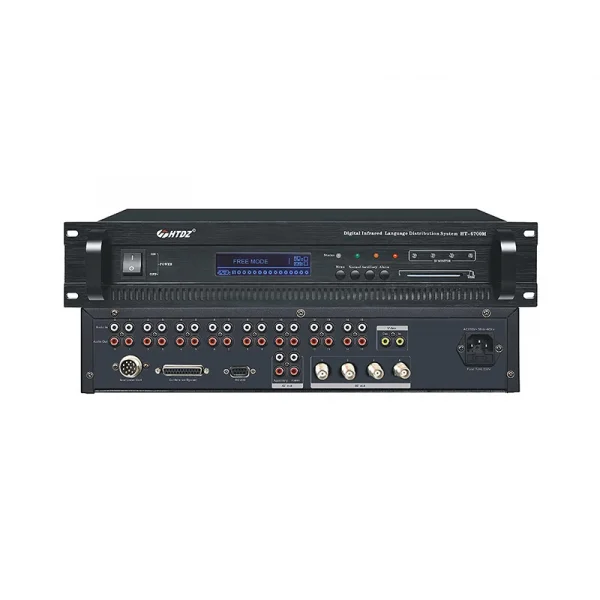

HTDZ HT-6700M/08 8 Kanal Simultane Sistem Merkezi

HTDZ HT-6700M/08 8 Kanal Simultane Sistem Merkezi

• Modulation frequency: 2 MHz to 8 MHz
• Protocol and modulation: DQPSK, according to I EC technique 61603 part 7
• Frequency response: 20Hz-10kHz (_3dB) at standard quality
• Total harmonic distortion at 1 kHz: <0.05%
• Crosstalk attenuation at 1 kHz: >80dB
• Dynamic range: >80dB
• Weighted signal-to noise ratio: >80dB(A)
• Power consumption: 0perating:100w； Standby: 25W
• Asymmetrical audio inputs: +3 dBV nominal, +6dBV maximum(±6dB)
• HF output: 1Vpp,6VDC，500hm
• Interpreter console connector interface: 12P-DIN
• Audio input: RCAx16
• Audio output: RCAx16
• HF output connector interface: TNCx4
• Power supply: 220V ~ 50Hz-60Hz
• Dimensions:483x355x88mm ,2 U rack 19"
• N.W: 8kg
