| Configuration | Multi-purpose, 2-way active loudspeaker |
| LF Transducer | 8-inch (203 mm),cone |
| HF Transducer | 1.4-inch (35.6 mm) titanium diaphragm compression driver |
| Frequency Response (-6 dB) | 59 Hz - 20 kHz |
| Frequency Range (-10 dB) | 55 Hz - 20 kHz |
| Nominal Coverage Angle | 105° Axisymetric |
Maximum Rated SPL1
Amplifier
Cooling | 128 dB @1 M, peak 122 dB @ 1 M, continuous
Class D Peak: 1800 W (LF),225 W (HF)
Low-noise, variable speed fan |

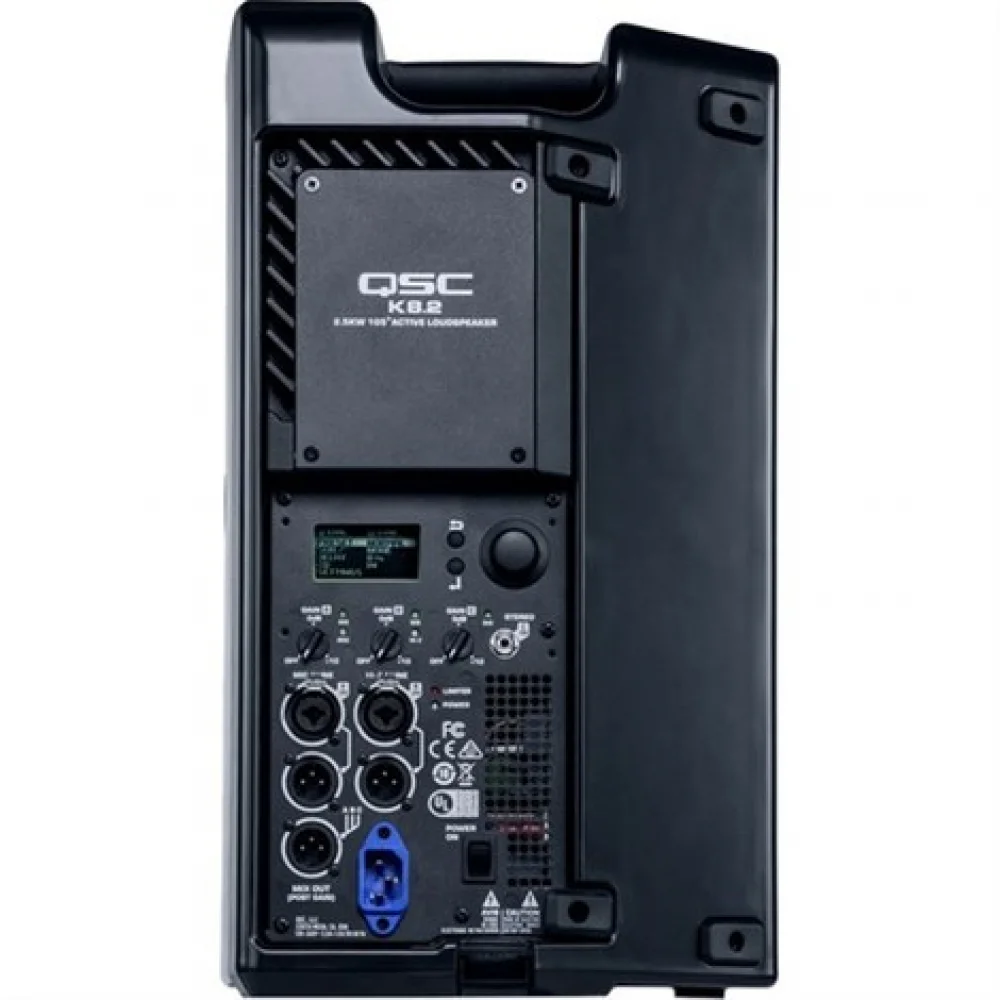

| Controls | Power
3 x Level
Rotary encoder (push)
2 x selection buttons |
| Indicators | Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED |

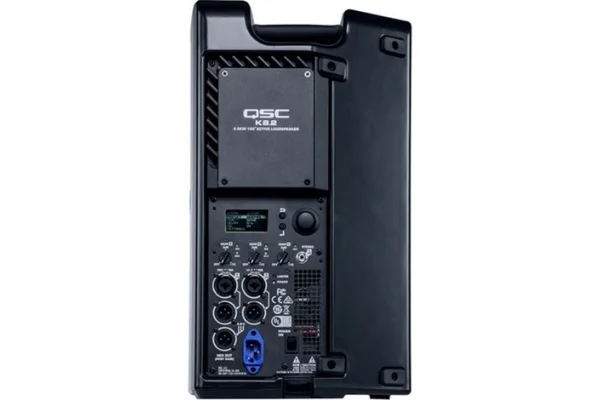

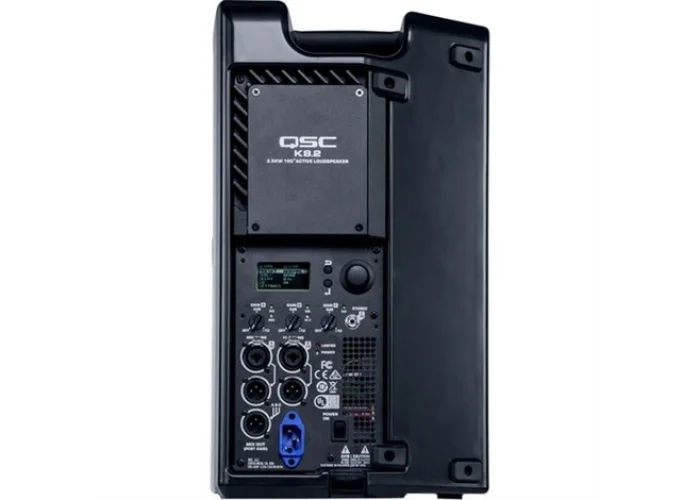

| Connectors | 2 x locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power2 | 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A |
| AC Power Consumption - Standby | .2A at any voltage |
| Enclosure Details | |
| Enclosure | Impact Resistant ABS |
| Attachment Points | 2 x M10 threaded inserts plus Pull-Back |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel, internal cloth lining |
| Dimensions (HxWxD) | 17.7 x 11 x 10.6 in
449 x 280 x 269 mm |
| Net Weight | 12.2 kg (27 lbs) |
| Shipping Weight | 14.4 kg (31.8 lbs) |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Optional Accessories | K8 Tote, K8 Outdoor Cover
M10 Kit-C, K.2-LOC Lock Out Cover
K8.2 Yoke |
