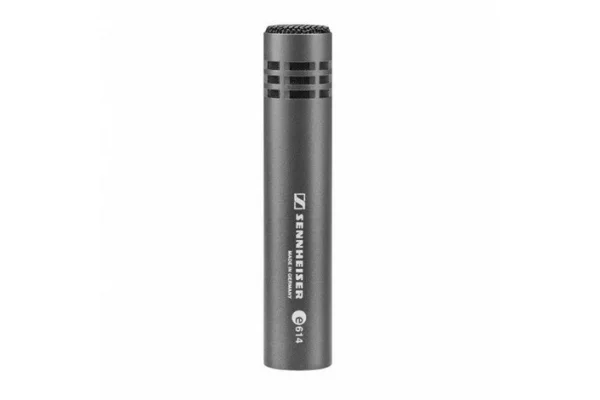

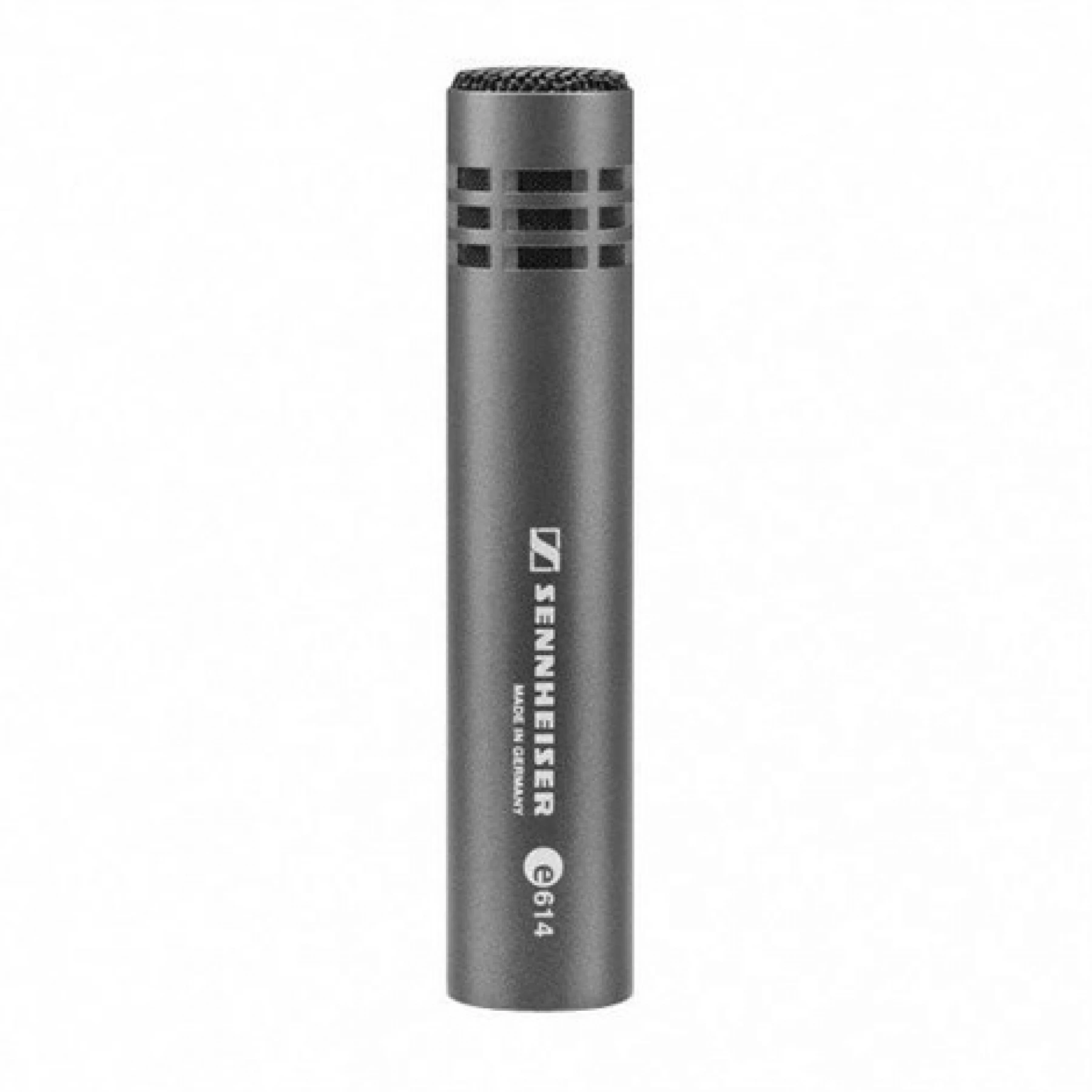

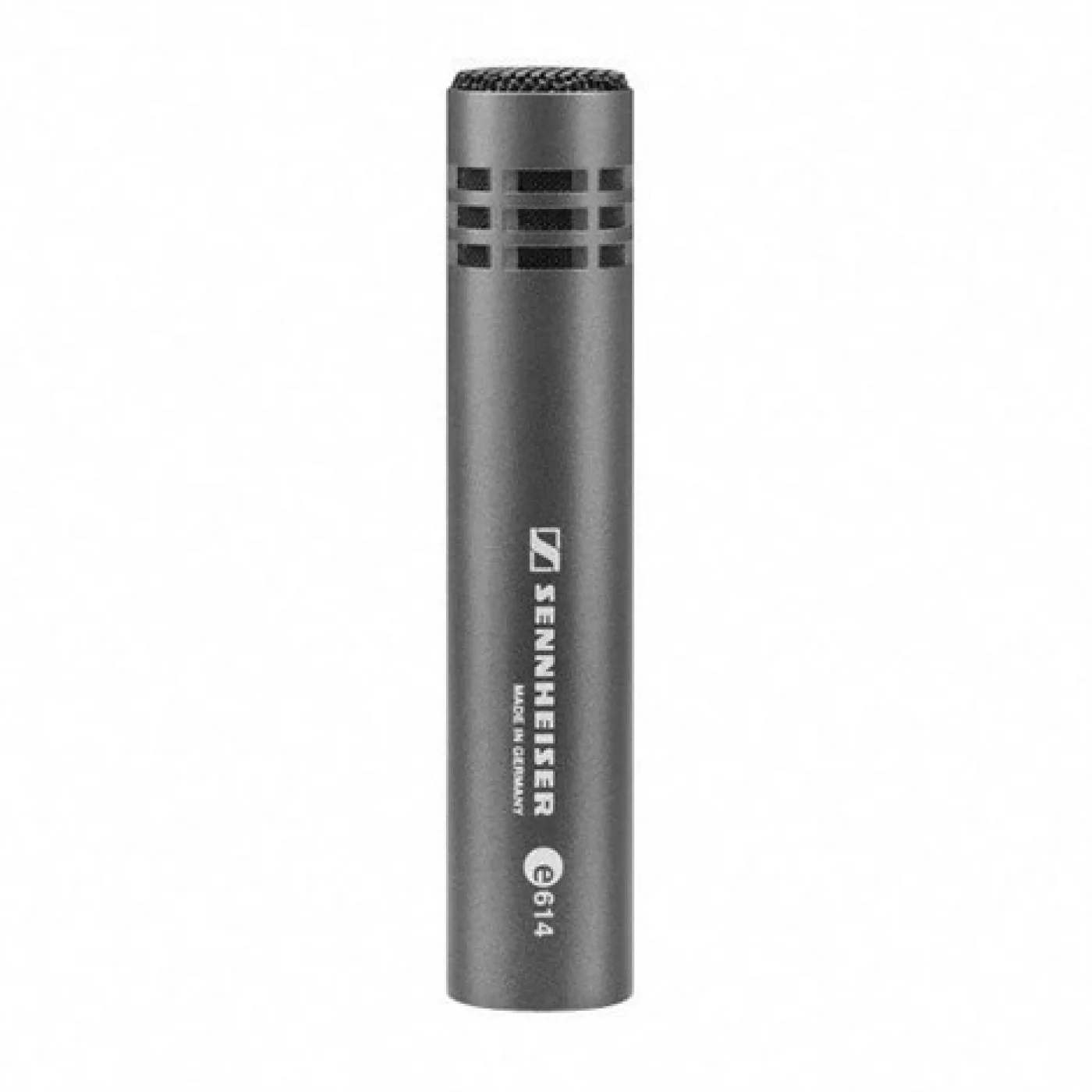

Sennheiser E 614 Condenser Supercardioid Mikrofon


Sennheiser E-614 Condanser Super-cardioid Mikrofon

Extremely wide frequency range. Focused pick-up. Outstanding transient response. As a condenser microphone, the e 614 convinces in demanding scenarios with a natural, full sound. Its wide frequency range captures nearly every instrument; its extraordinary dynamics conjure fine nuances from the air, giving them space and depth.

Thanks to the precise directivity, the e 614 safely reduces the bleed from other instruments on stage or in the studio. With its high maximum sound pressure level, it is especially designed for percussion and as an overhead mic, but also effortlessly supports stringed and woodwind instruments.


  • Condenser microphone

  • Excellent directivity over the entire frequency range (40-20,000 Hz)

  • Natural sound for flexible applications

  • Designed for high sound pressure levels

  • Rugged and ready for the road


DimensionsØ 20mm, L = 100mm
Frequency response40 Hz ... 20 kHz
Transducer principlepre-polarised condenser microphone
Weightw/o cable:93 g
Pick-up patternsuper-cardioid
Sensitivity in free field, no load (1kHz)3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
Nominal impedance50 Ohm
Min. terminating impedance1000 Ohm
Phantom powering12 – 52 V / 3 mA
Equivalent noise level24 dB(A)
Equivalent noise level weighted as per CCIR 468-335 dB
Maximum sound pressure level (passiv)139 dB/SPL
