Sinbosen D2-4000 2x7800 watt 4 ohm Power Amfi

  • Barkod: 2242005121146
  • Marka: Simbosen
  • Kategori: Pro Power Amfi
  • Fiyatlar İçin Bilgi Alınız
  • Havale/EFT ile 0 TL
Adet

D2-4000 Teknik Özellikleri
●2 Channel Class D Digital power amplifier
●Mini 1U size,convenient for Touring Applications
●Suit for Stage Power Subwoofer speaker;
●Work Under 2Ω steadily !
●Precise and Reasonable circuit structure
●Bring supper reliable sound
●Bridge-mode operation
●Original Neutrik XLR*/Speakon connectors
●Temperature protection;Over current protection;Short circuit protection built-in

 D SERIES HIGH POWER DIGITAL AMPLIFIER (DSP can be added)
ModelD2-3000D2-3500D2-4200D4-2000D4-3000
EIAJ Test Standard,1 kHz, 1% THD8Ω/Stereo2 x 3000W2 x 3500W2 x 4200W4 x 2000W4 x 3000W
4Ω/Stereo2 x 5000W2 x 6300W2 x 7800W4 x 3400W4 x 5000W
2Ω/Stereo2 x 7140W2 x 7400W2 x 8500W4 x 4760W4 x 6500W
8Ω/Bridge1 x 10200W1 x 12500W1 x 15600W2 x 6800W2 x 10000W
4Ω/Bridge1 x 14280W1 x 14800W1 x 17000W2 x 9520W2 x 13000W
 Alternating Current Power Supply
PowerPFC Power
Rated power demand100-240V±10%, 50/60Hz
Operation voltage90V-270V
Power correction factor cos(φ)>0.95 @ >500W
Standby47W and 0.8A
Gain,Sensitivity32dB,35dB,38dB,41dB
Maximum Output Voltage/Current185V/85A (370V in the BRIDGE MODE)
Power Comsumption230V (115V in the BRIDGE MODE)
Temperature
Environment temperature0°-45C / 32′-113*F
Cooling systemTunnel through cooing system
Performance
Frequency Response20Hz - 20kHz (1W@8Ω,+05 dB)
Signal-to-Noise Ratio>110 dBA (20 Hz- 20 kHz A weighted)
Crosstalk>66 dB @ 1 kHz
Input Impedance10 kΩ balanced
Total Harmonic Distortion(THD)<0.5% from 1 W to full power (Typitcal value<0.05%)
Intermodulation Distortion(IMD)<0.5% from 1 W to full power (Typical value< 0.05%)
Damping Factor (8 ohms)>5000 @ 20-200 Hz
Slew Rate50V/μs @ 8Ω

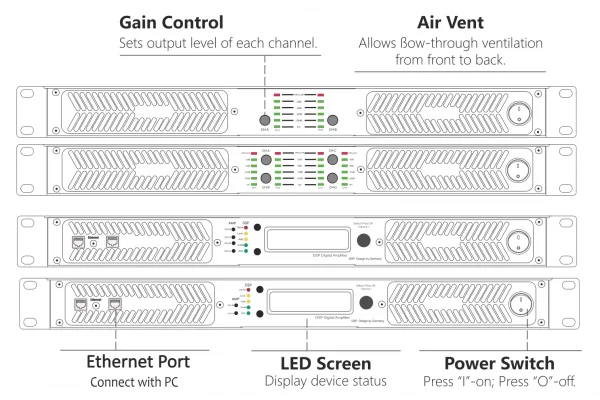

 Front Panel
Indicator LED/per channelOne PCS Green LED: the input signal of XLR ≥ -40dB;
Four pieces Green LED:
display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON
1 piece dual LED(Yellow and Red):
Protective state/Clip stste/Over heat/Over load
Power SwitchPress "I"-on; Press "O"-off.
Dust-proofTwo pieces dust-proof cotton,
it can take off to clean from the bottom of front pannel
 Application
Signal in-connection4 Channel: One balanced XLR(with lock)female per channel;
2 Channel One balanced XLR(with lock)female
and one balanced XLR male per channel.
Signal out-connectionOne SPEAKON per channel connect to loudspeakers
Power cordFited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm²,
and the card is 1.5 meters long.

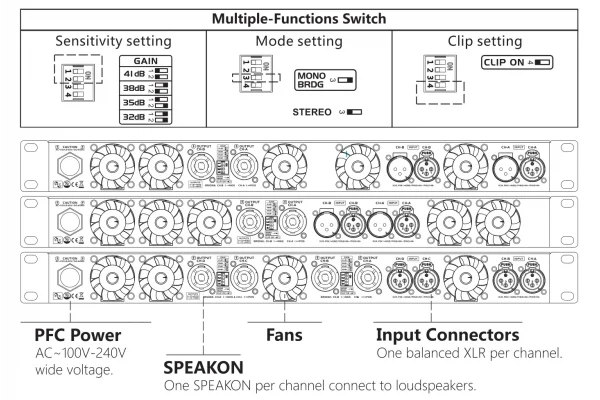

Multiple-Functions SwitchTwo Sensitivity Switches. One Mode Switch and one Clip Switch.
 Structure(The size and weight depend on different series and shipping demand )
Dimensions482 x 44 x 380mm³/482 x 44 x 470 mm³
Net weight10Kg/12kg
Packing size580 x 580 x 119mm³/615 x 615 x 119 mm³
Shipping weight12Kg/14Kg

Kanal Sayısı2 Kanal
Kanal Gücü /4 ohm5000 to 7000 watt
