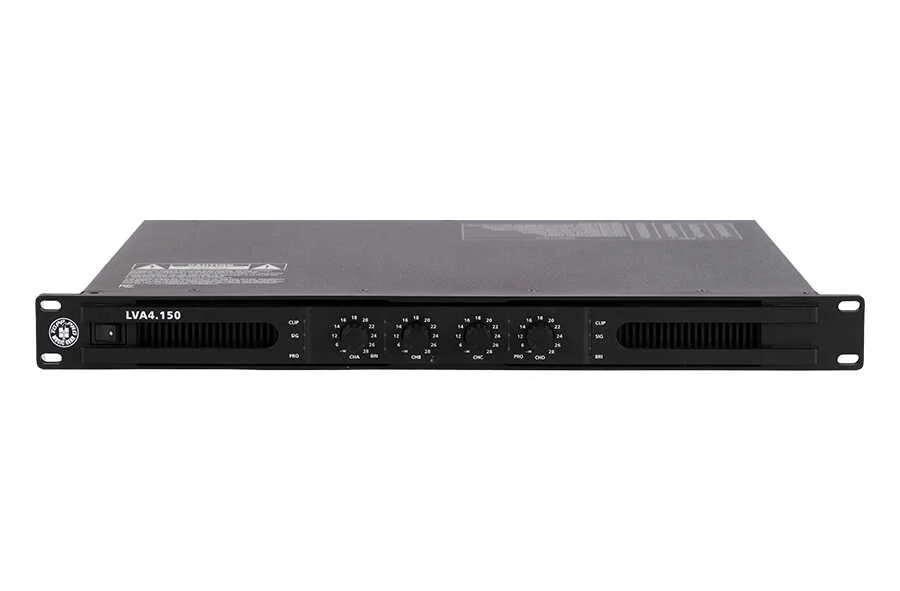

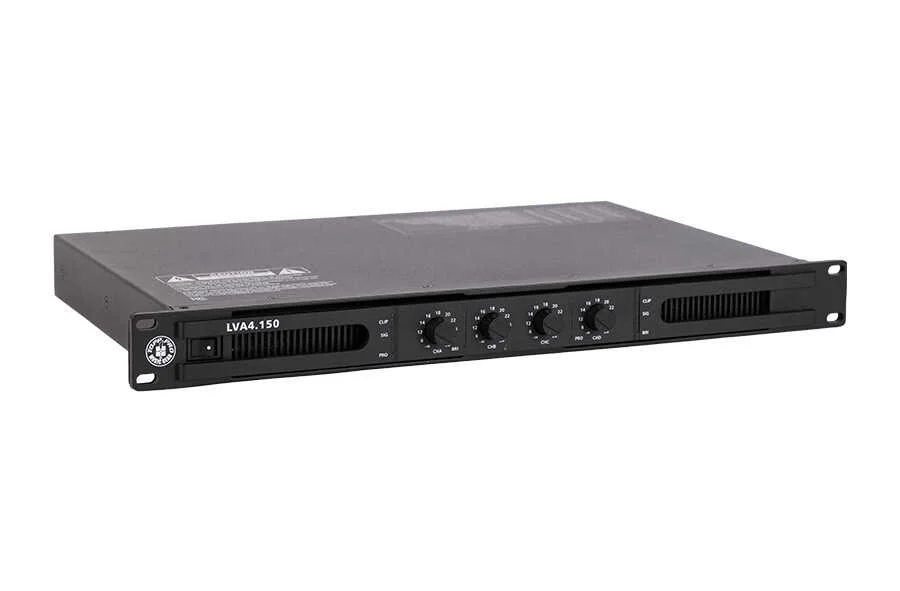

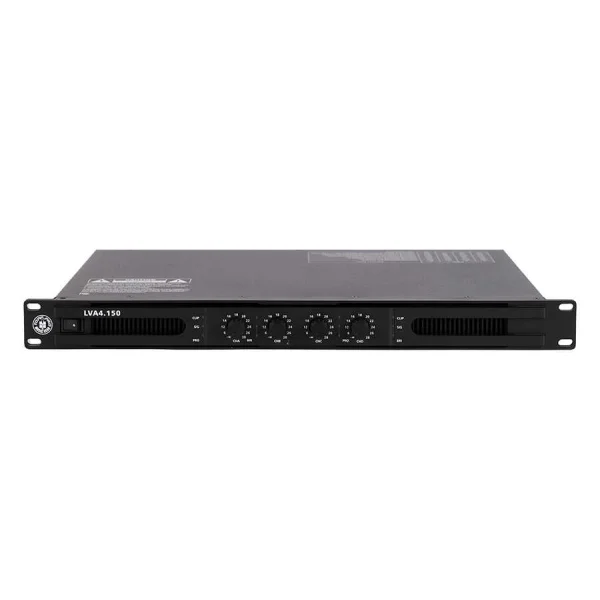

Topp Pro LVA4.150 QUAD 4x150W/4-ohm Power Amplifier
| LVA4.150 | |
| Power (Both channels driven) | 360W x 4 2Ω (EIAJ) - 150W x 4 4Ω (RMS) - 90W x 4 8Ω (RMS) |
| Bridge Mono | 720W x 2 4Ω (EIAJ) - 300W x 2 8Ω (RMS) |
| Input Sensitivity (Limiter Off) | 0.9 - 1.1V (+0/-1dBv) |
| Input Impedance | 20K ohms balanced or 10K ohms unbalanced |
| Frequency Response | 20Hz~20KHz (+0/-1dB) (At 10dB below Rated Output Power) |
| Voltage Gain | 28 (+/-0.5dB) |
| THD + N | <0.1% (1KHz 1/8 Rated Power, A-Weighted) |
| S/N Ratio (Ref. 1KHz, A-Weighted) | > 96dB |
| Crosstalk (Below Rated Power) | > 70dB |
| Damping Factor (1KHz, 8W) | > 200 |
| Power/Output Circuity | Switching Power Class-D |
| Protections | Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar |

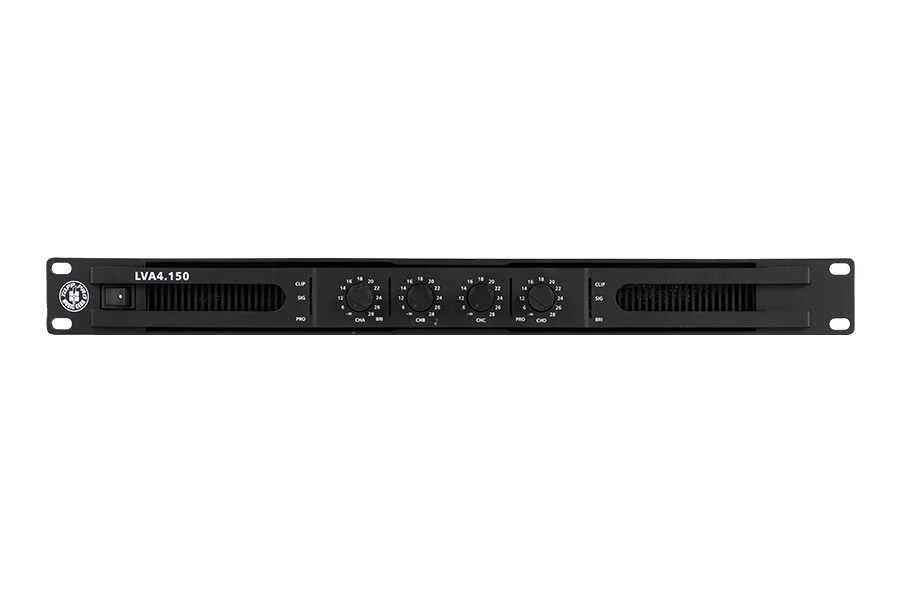

| Controls | Front: On/Off Power Switch, Volume Channel A, B, C, D - Rear : 8 preset modes |
| Indicators | POWER: 1 blue - PROTECTION & CLIP: 4 red - SIGNAL: 4 green LEDs |

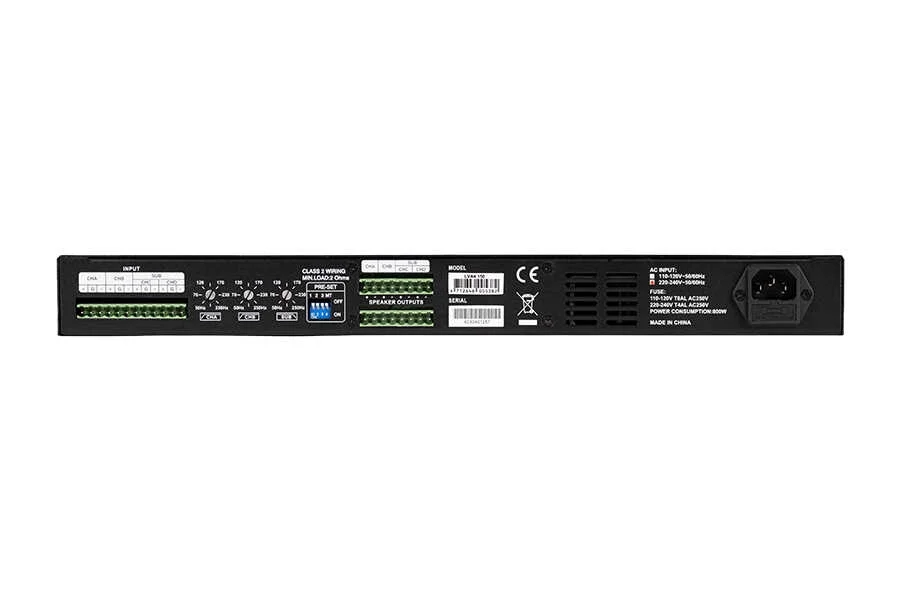

| Connectors | Inputs: Euro block - Outputs: Euro block |
| Power Supply | AC: 110-120V or 220~240V 50/60Hz |
| Dimension (HxWxD) | 44 x 483 x 360 mm / 1.73" x 19.02" x 14.17" |
| Weight | 4.6 kg / 10.14 lbs |
