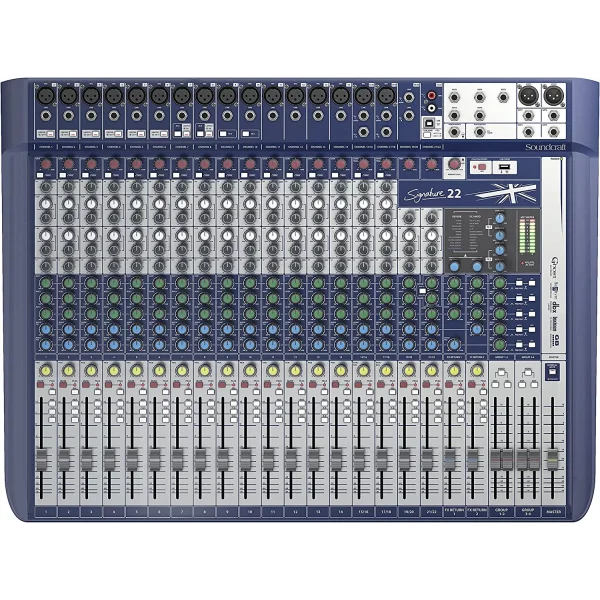

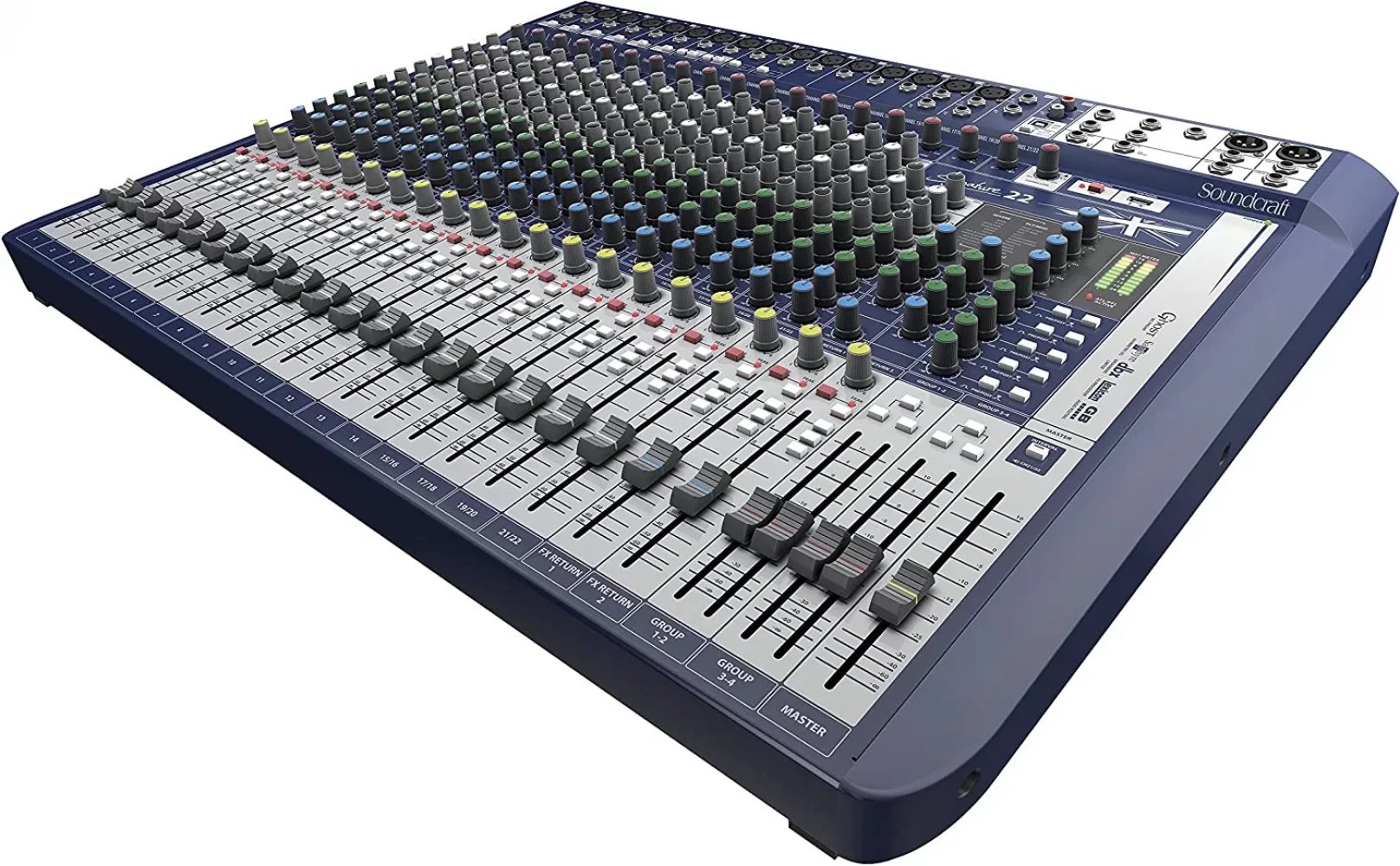

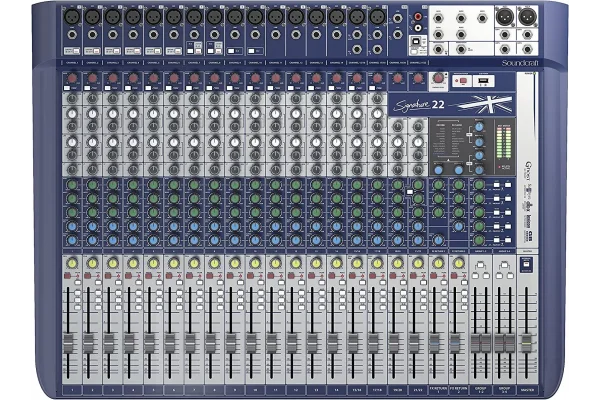

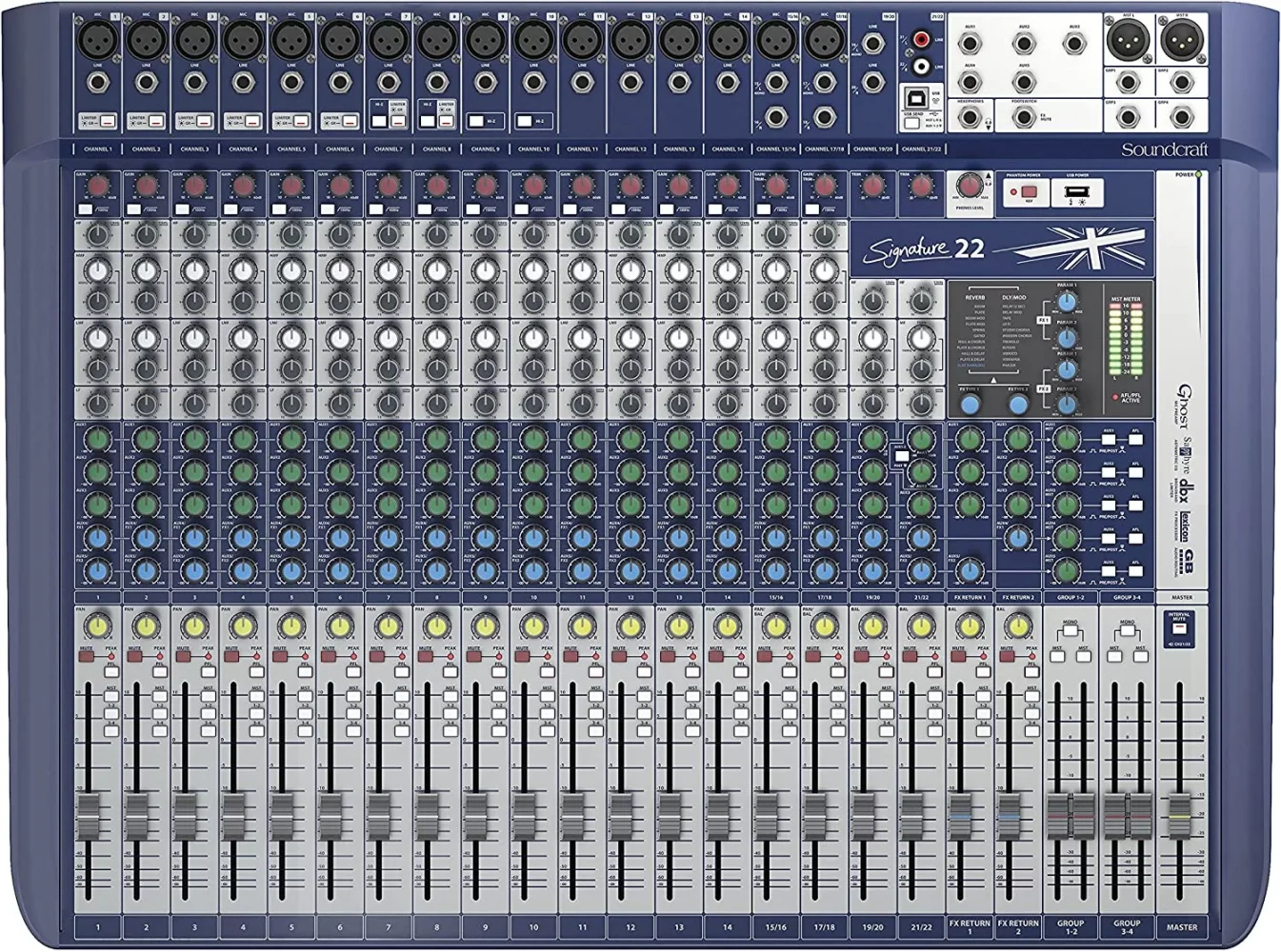

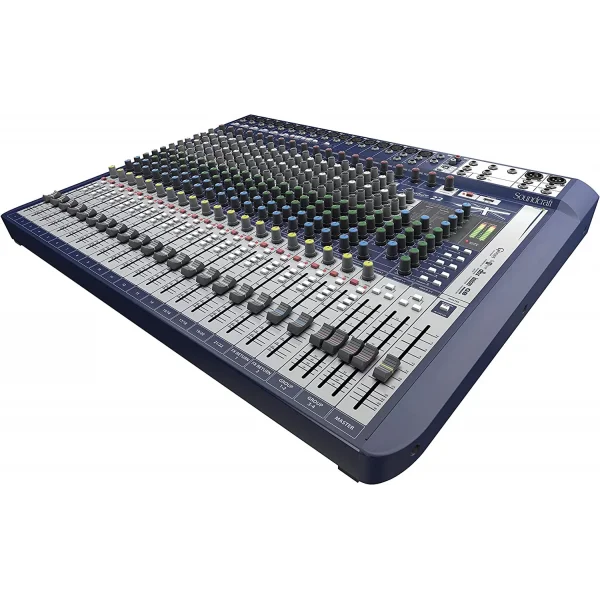

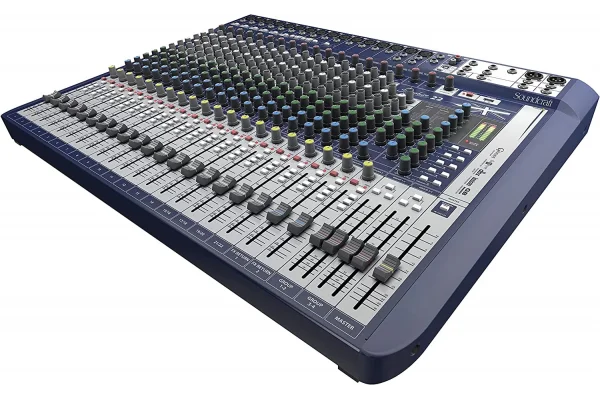

Soundcraft SIGNATURE22
The Signature 22 is a high-performance 22-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.
All Soundcraft Signature Series consoles incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.
- High-Performance 22-input small format analogue mixers with onboard effects
- Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
- Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
- Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
- dbx® Limiters (High-ratio Compressors) on input channels
- 2-in/2-out USB audio playback and recording
- Switchable Hi-Z inputs for guitars, basses and other instruments
- Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
- Comprehensive Soundcraft® GB Series audio routing
- Smooth premium-quality faders
- Robust metal construction for tour-grade build quality and reliability
- Internal universal power supply
Tech Specs
- Type:Analog
- Channels:22
- Computer Connectivity:USB (24 x 22)
- Faders:25 x 100mm Throw
- Inputs - Mic Preamps:16 x XLR
- Phantom Power:22
- Inputs - Line:20 x TRS
- Inputs - Other:1 x Stereo (RCA)
- Outputs - Main:2 x XLR
- Outputs - Other:5 x TRS (Aux),4 x TRS (Subgroup),1 x TRS (Footswitch)
- Aux Sends:5 x Pre/Post
- Busses/Groups:3 x Aux Busses, 2 x Aux/FX Bus, 4 x Mono, 2 x Stereo Subgroups
- Headphones:1 x 1/4"
- USB:1 x Type A, 1 x Type B
- EQ Bands:4-band British
- Effects:Yes
- Height:4.3"
- Width:26"
- Depth:19.3"
Signature Series
