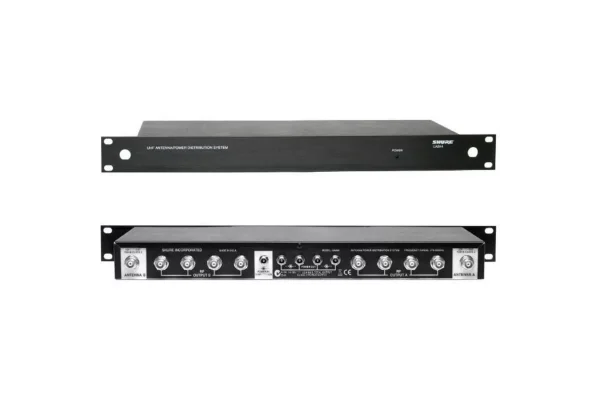

SHURE UA844-SWB/E 4 Way Combiner, Power + Anten

Adet

Shure UA844SWB-E

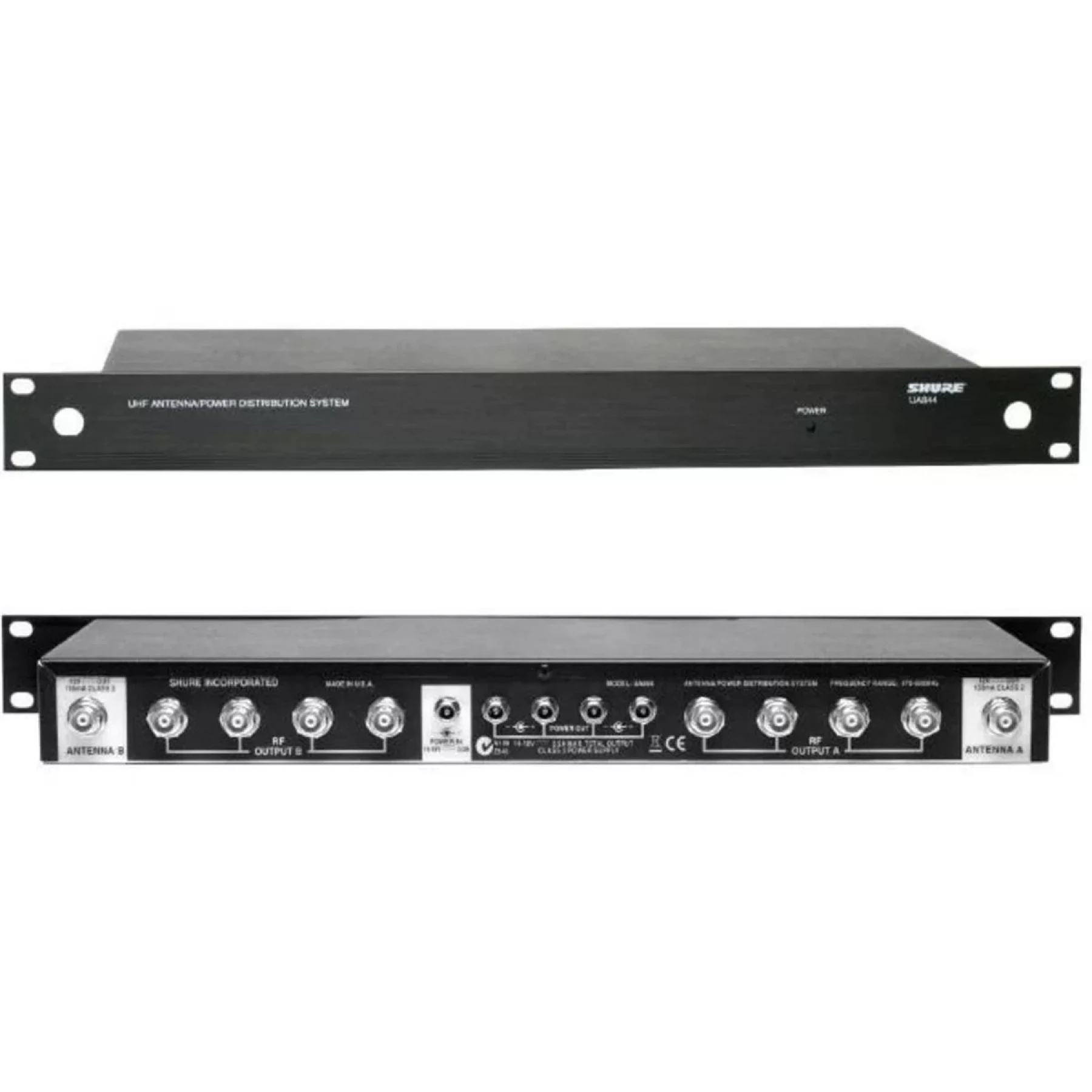

The Shure UA844WB Wideband UHF Antenna Distribution System will effectively boost and split incoming radio-frequency (RF) signal from ULX and SLX series transmitters, and split the signal into four receivers.

The incoming RF signal is amplified on input to compensate for insertion loss. In addition, the UA844 remotely powers the connected receivers via 14 to 18Vdc power outputs.

Up to 4 UHF receivers are supported and multiple UA844WBs can be chained until the maximum number of compatible frequencies is reached. The UA844WB operates on the wideband UHF range of 470-952 MHz and is intended for use with the ULX and SLX wireless receivers.

Supports Up to 4 Receivers
The UA844 distributes RF signal from dual antennas. Up to 4 UHF receivers are supported and multiple UA844 can be chained.
Provides Remote Power
The UA844 can provide remote power to the connected receivers, eliminating bulky power supplies and access cables.
RF Signal Boost
Incoming RF signal is amplified before distributed to compensate for insertion loss.


Carrier Frequency RangeWideband UHF (470-952 MHz)
Connector TypeBNC
Gain ControlDistributed RF Output Level:
-0.5 to 3dB, 1dB typical, from antenna input (unused ports terminated with 50 ohms)
Impedance50 ohms
Operating VoltageDC Input Voltage: 14 to 18 Vdc
DC Output Voltage: 14 to 18 Vdc, 4 connectors
Weight1.62 Kg (3.6 lbs)
Dimensions1.75 x 19 x 6.75" (44.5 x 482.6 x 171.5mm) (H x W x D)
