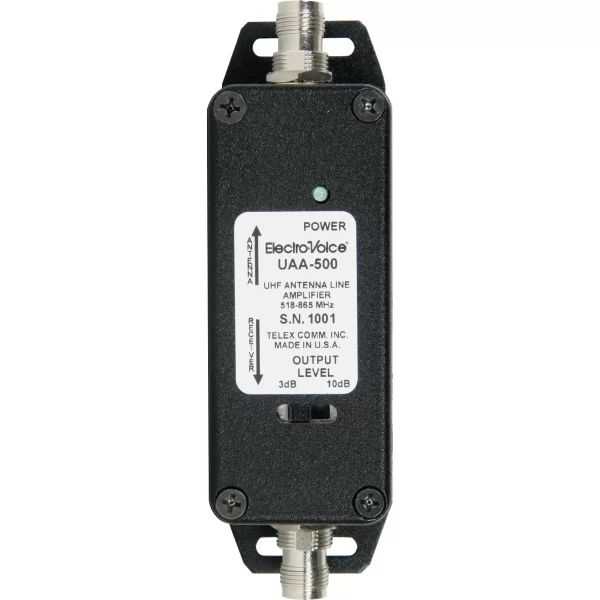

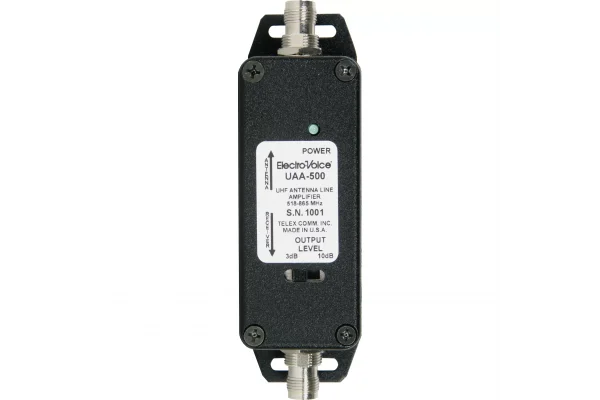

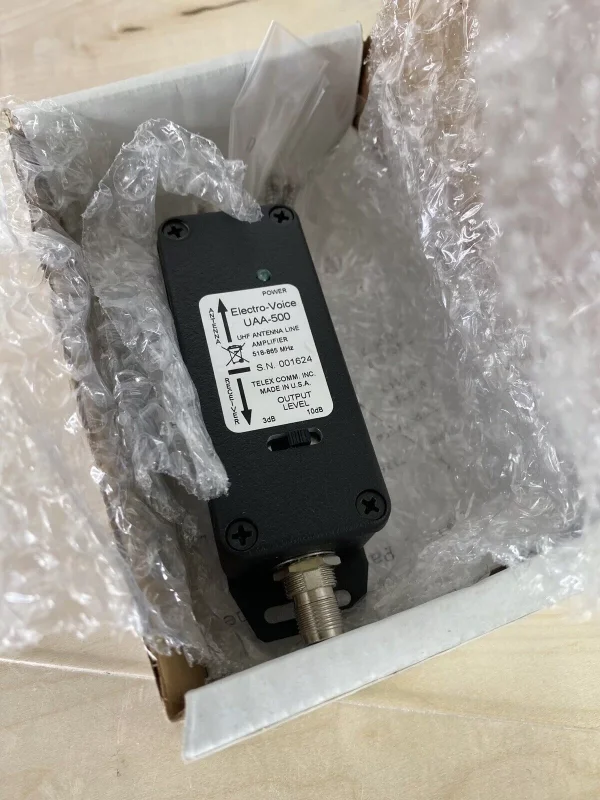

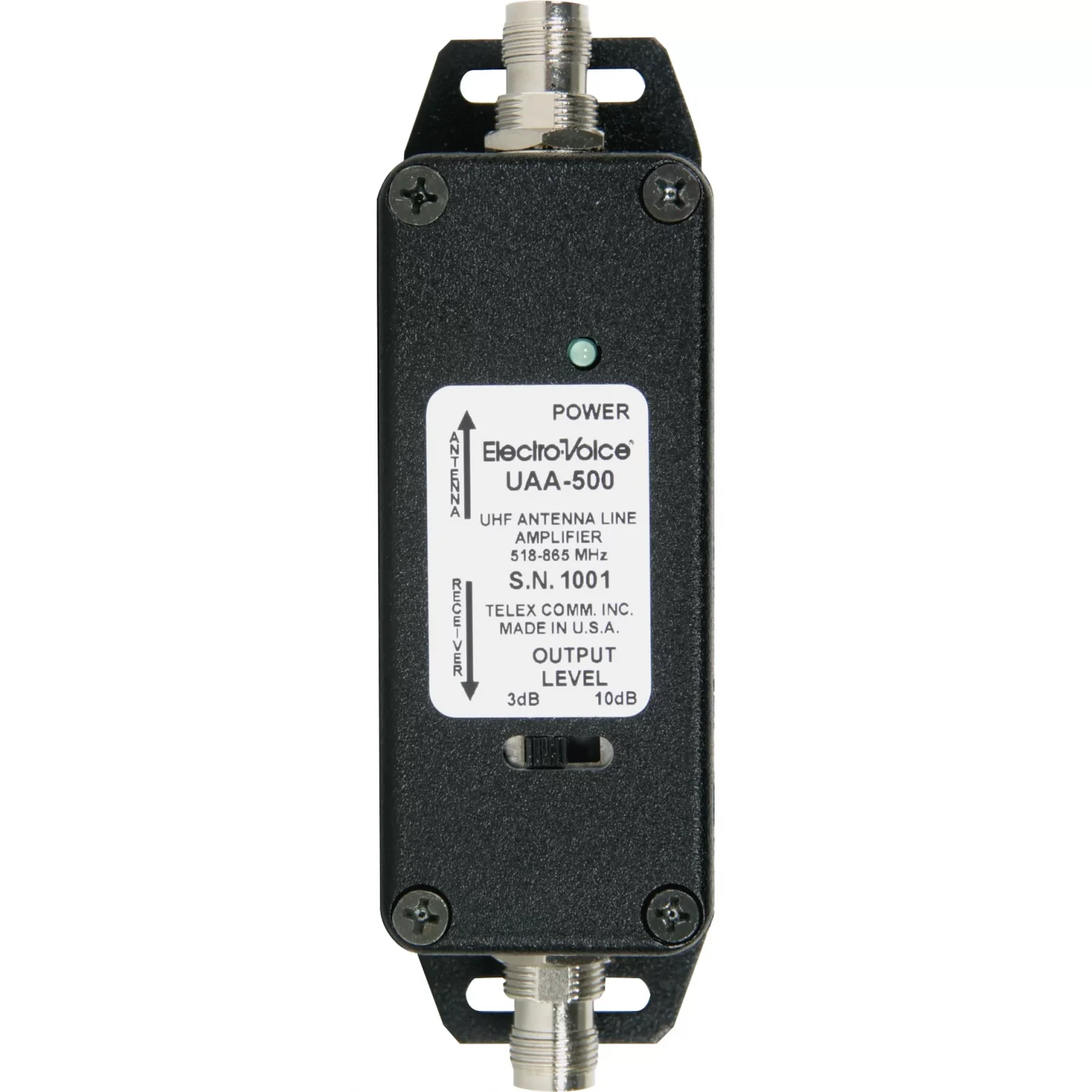

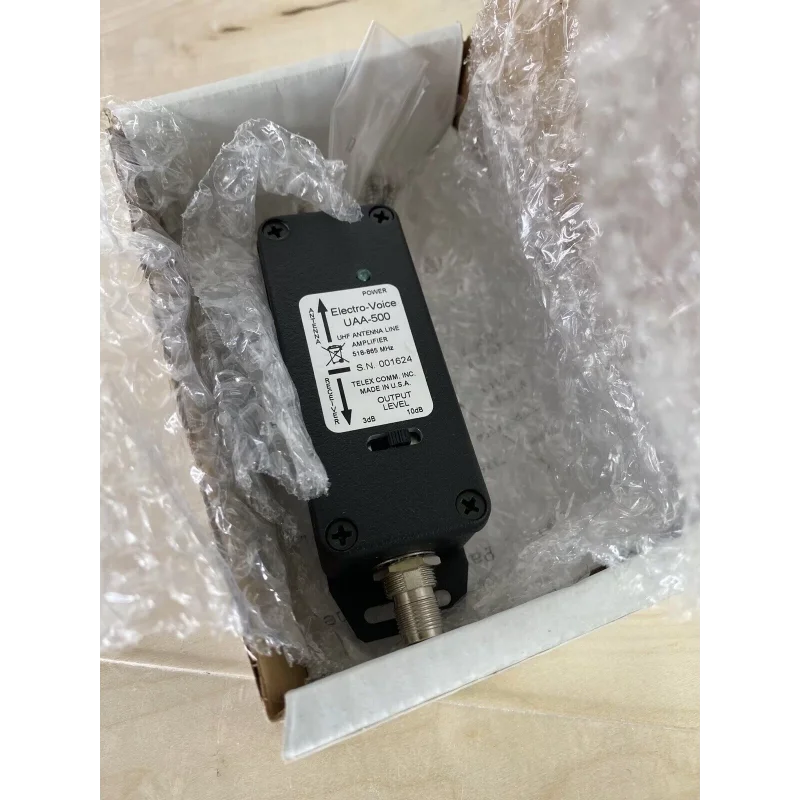

The UAA-500 is a broadband UHF amplifier with selectable 3dB and 10dB amplification settings. Antenna signal amplifiers are used to make up for losses in the cable run, they do not extend the operating range of the wireless microphone.
- 3 or 10dB selectable gain
- Green LED to indicate power
- Requires phantom power from APD4+ or REV receiver
- Wideband 500 – 900 MHz operating range
- Cast aluminum case with mounting tabs
| Case Material | Cast Aluminum |
| Connector Type | TNC Female |
| Operating Current | 65 mA typical |
| Operating Voltage | 12 VDC |
| RF Frequency Range | 500-900 MHz |
| RF Signal Gain | 3 or 10 dB |
| Third Order Intermod | 30 dBm |
| Height | 119 mm (4.69") |
| Width | 38 mm (1.5") |
| Depth | 32 mm (1.26") |
