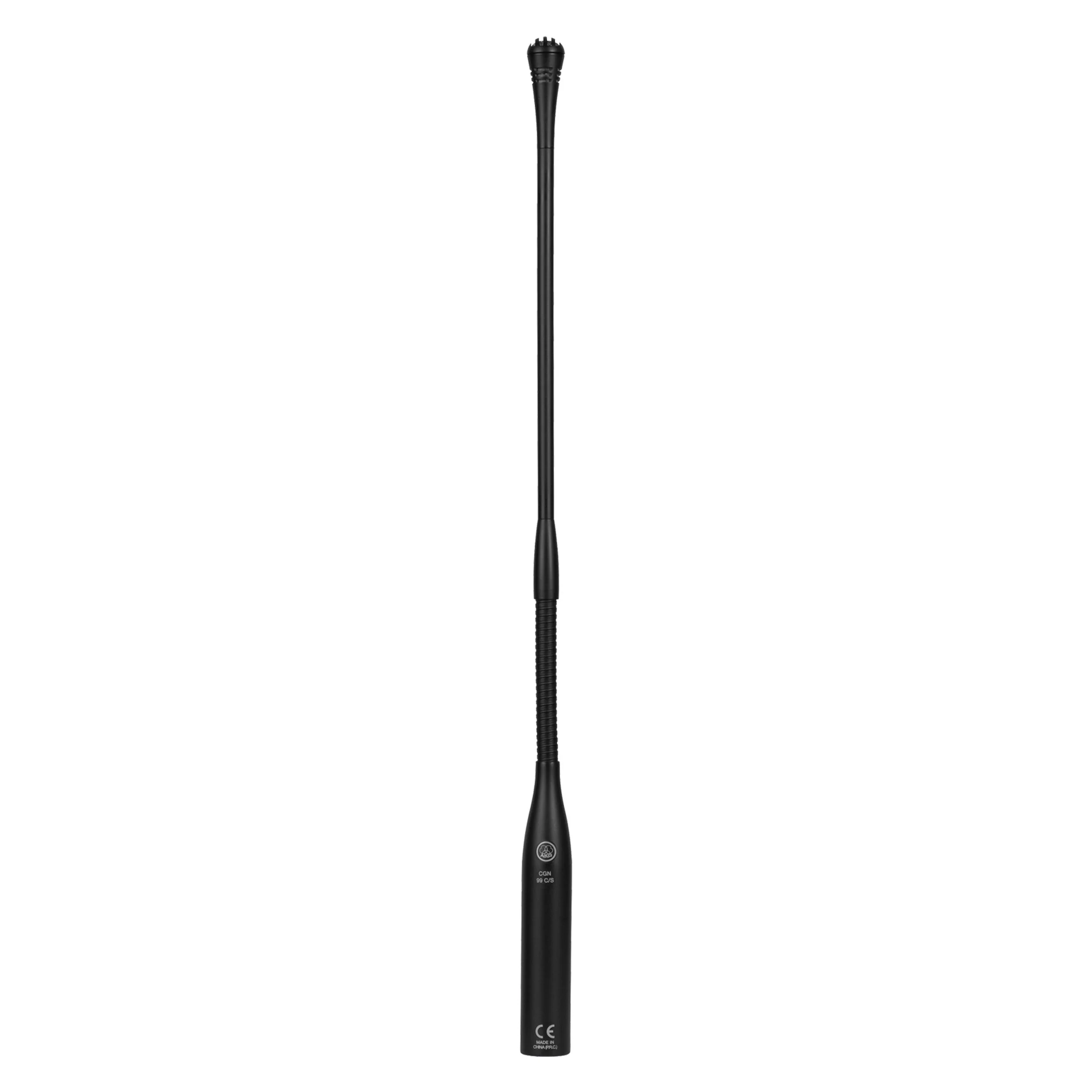

The CGN99 C/S and CGN99 C/L, part of the DAC Series, are condenser gooseneck microphones with a cardioid polar pattern. They are specially designed for inexperienced speakers who talk into the microphone from widely varying angles.
The rugged gooseneck is available in two different lengths (C/S: 30cm (12in); C/L: 50cm (20in) and ideal for fixed and mobile installations. CGN99 C/S and CGN99 C/L come with an integrated XLR phantom power adapter with 250Hz bass rolloff. The phantom power adapter connects to any standard mixer input with 9V to 52V power supply.
| General | | Audio Frequency bandwidth | 70 to 18000 Hz | | Equivalent Noise Level | 21 dB-A | | Signal to Noise | 73 dB-A | | Bass Cut Filter | 250 Hz | | Electrical Impedance | 600 Ohms | | Recommended Load Impedance | 2000 Ohms |
|
| Polar Patterns | | Polar Pattern | cardioid | | Polar Pattern 1 | Cardiod | | Polar Pattern Picture 1 | 9887 |
|
| Powering Interface | | Voltage | 9 to 52 V | | Current | 3 mA |
|
| Audio Output | | Type | Symmetrisch XLR | | Gender | Männlich | | Contacts | 3 Kontakte |
|
| Design | |
| Dimensions / Weight | | Height | 380 mm | | Diameter | 13.5 mm | | Net Weight | 160 g |
|
