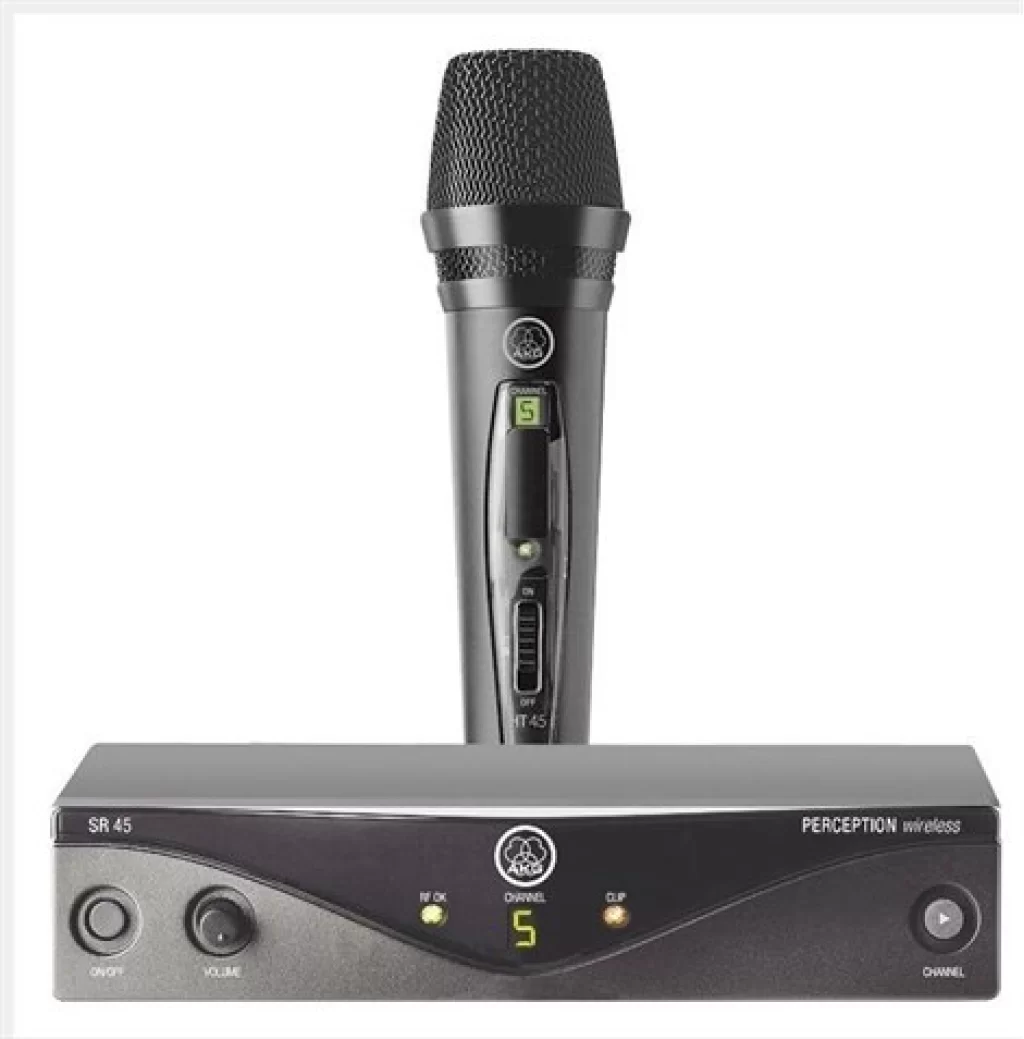

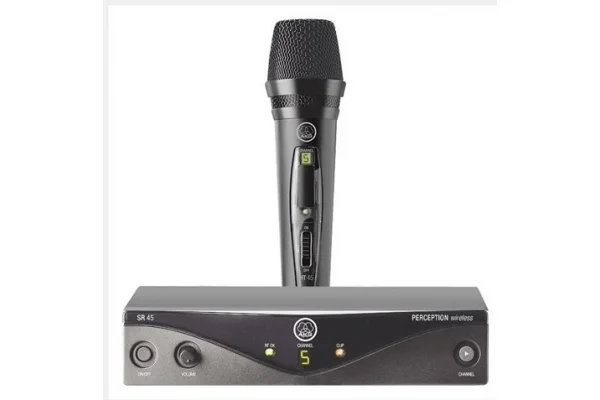

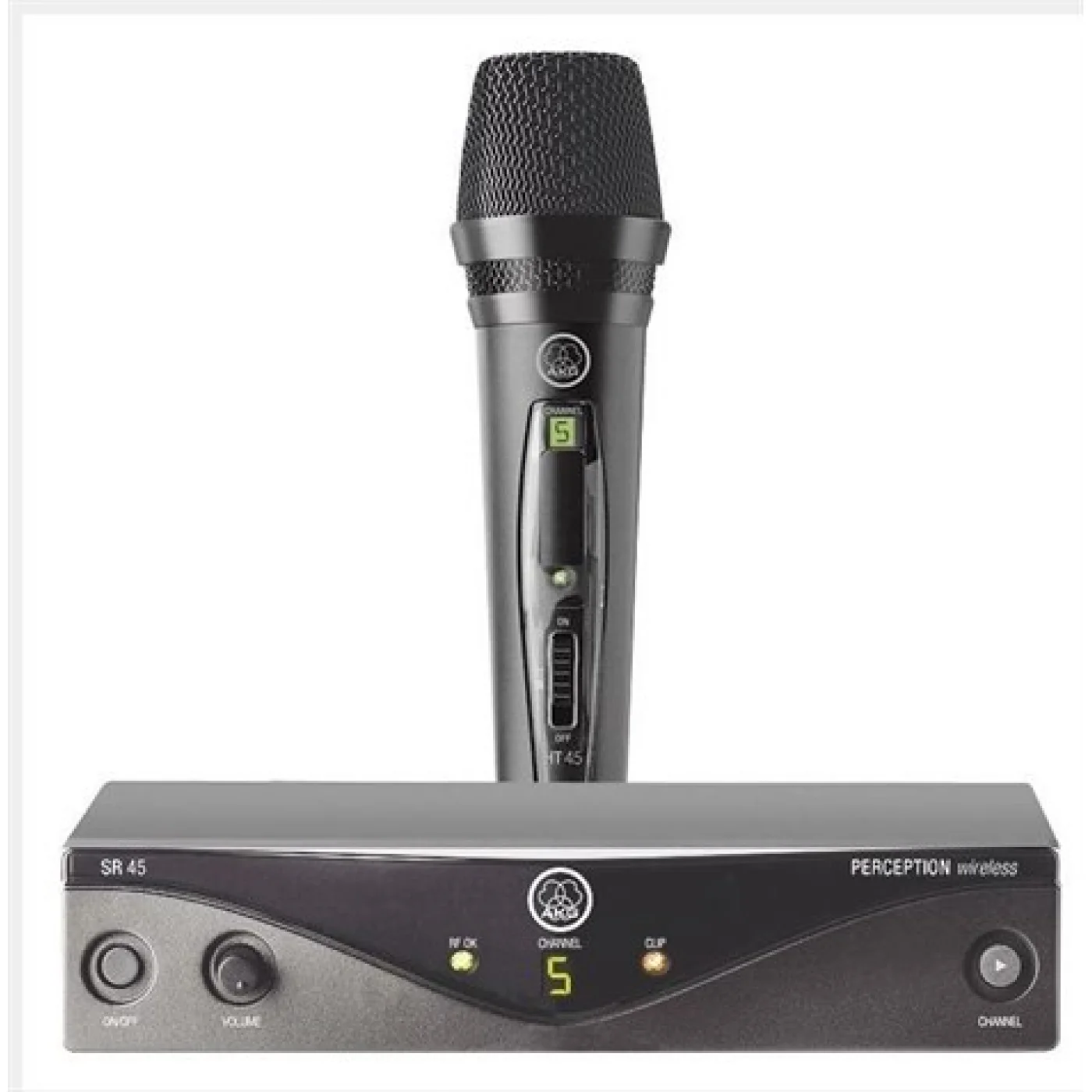

AKG WMS45 VOCAL SET El Tipi Kablosuz Mikrofon Seti

Adet

The HT45 analog high-performance wireless handheld transmitter features a dynamic microphone capsule for demanding vocal performances. The cardioid polar pattern ensures maximum gain before feedback and lets your voice cut through any mix. Its spring-steel wire-mesh front grille protects the transducer from the hardships of on-stage use.

The HT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery status indicator shows red before the battery goes dead, allowing the user to fully control his performance time.





Audio
Audio Frequency bandwidth70 to 20000 Hz
Signal to Noise105 dB-A
THD at 1 kHz0.8 Prozent
Enhanced
Operating temperature range-10 to 55 Celsius
Peak deviation45 kHz
Radio
Switching bandwidth30 MHz
Recommended simultaneous channels5
Number of selectable frequencies8 Fixed frequencies
Frequency SelectionFixed frequency
Wireless channels within device-
Radio Range (Line of Sight)30m
Switchable RF Powerno
ModulationFM
EncryptionNo encryption
Pilot Toneno
Transmitter
Nominal deviation15 kHz
Radio Output Power (min/max)0 ... 0 mW
Microphone head versionsP5
Interchangeable Microphone Headno
Transmitter SynchronizationManual
Battery 1
BatterietypeLR6 AA Alkaline Batterie
Number of Batteries1
Operating Time7 h
Battery 2
BatterietypeHR 6 AA (NiHM) Wiederaufladbare Batterie
Number of Batteries1
Operating Time8 h
Battery 3
BatterietypeHR 6 AA (NiHM) Wiederaufladbare Batterie
Number of Batteries1
Operating Time8 h
Design
BodyPlastic
Finishblack
Dimensions / Weight
Height237 mm
Width51 mm
Net Weight214 g




Telsiz mikrofon alıcısı Fm modulasyon çalışacaktır.Cihazın çalışma frekansı 530-560Mhz olmalıdır.Cihaz ses ban genişliği en az 40hz-20khz olacaktır.Sinyal gürültü oranu 105db(a) olacaktır.Susturucu özelliği -100 ve -70 dbm olacaktır.Cihaz tepe sapma frekans oranı 45khz olmalıdır.Seçilebilir band genişliği 30mhz den az olmamalıdır.Nominal sapma 15khz olacaktır.Kullanılacak verici Fm modulasyon kullanacak ve taşıyıcı frekansı 530-560Mhz olacaktır.Ses band genişliği en az 70hz-20khz olacaktır.Rf çıkış 10mW olmalıdır.Cihazın 8 saat çalışabilme özelliği bulunacaktır.Verici Lr6 ve Hr6 aa alkaline pil ile çalışacaktır.

Kablosuz MikrofonTek EL
