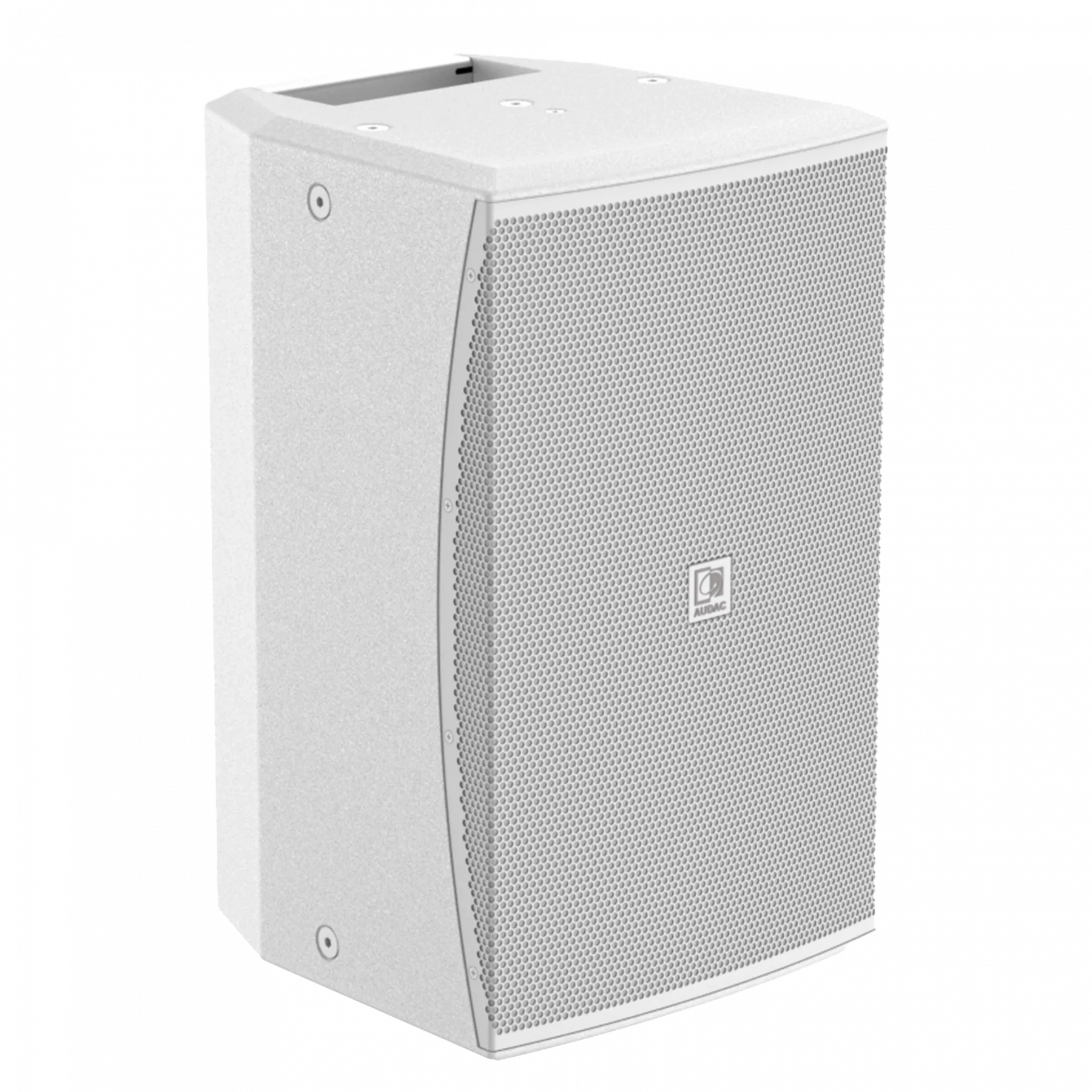

Speaker type | 2-way | ||
Peak power handling | 1200 W | ||
Program power handling | 600 W | ||
RMS/AES power handling | 300 W | ||
Impedance | 8 Ω | ||
Sensitivity (1W/1m) | 96 dB | ||
Sound Pressure (Max. W/1m) | 121 dB | ||
Frequency | Response (± 3 dB) | 65 Hz - 20 kHz | |
Dispersion | Horizontal | 90° | |
Vertical | 70° | ||
Crossover | Type | Passive built-in | |
Drivers | HF | Compression driver with 1.7" VC and 1" throat | |
LF | 10" (2.5" VC) | ||

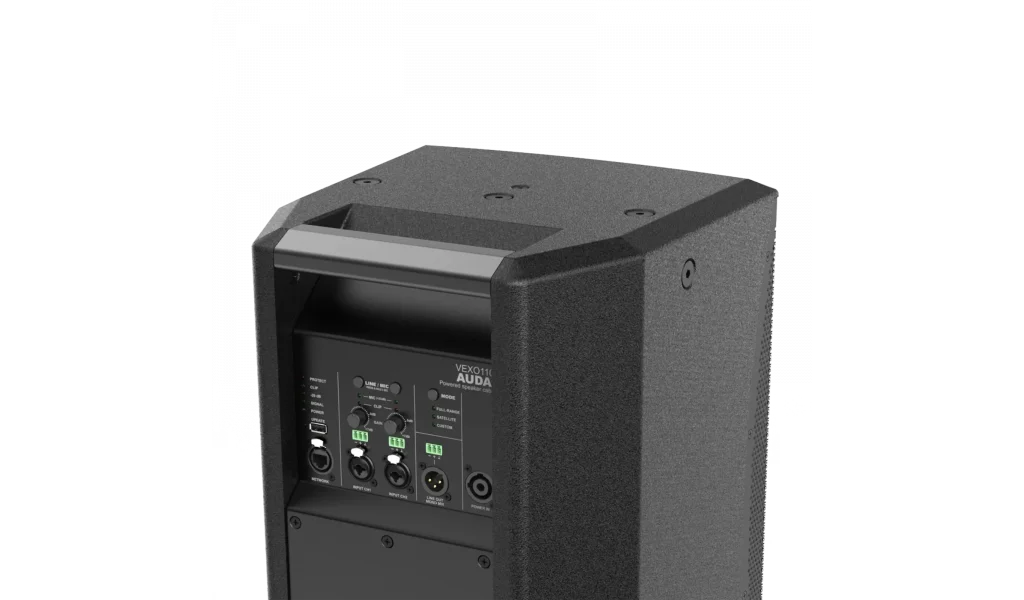

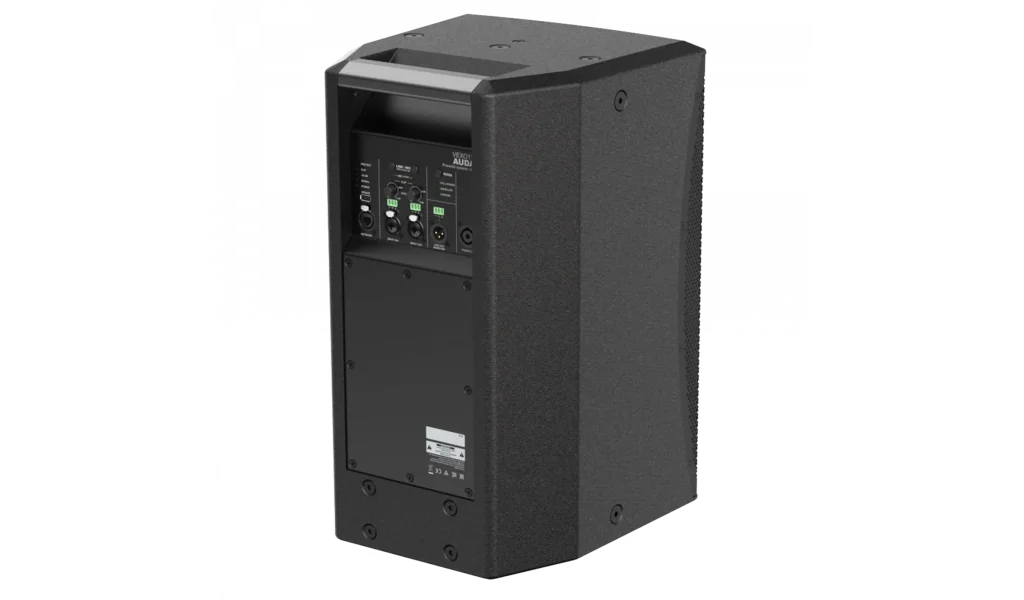

Connectors | Remote control | RJ45 | |
Input | 2 x Combo XLR / 6.3 mm jack | ||
3-pin Euro Terminal Block (Pitch - 3.81 mm) | |||
3-Pin terminal block (linkthrough) | |||
XLR male (linkthrough) | |||
Inputs | USB port | ||
RJ45 (Ethernet) | |||
Power | Consumption | Standby | 3.2 W |
Idle | 22.5 W | ||
AC Inputs | Voltage | 110 ~ 240 V AC / 50 ~ 60 Hz |
Dimensions | 329 x 540 x 345 mm (W x H x D) | |
Weight | 18 kg | |
Construction | 15 mm high-quality plywood | |
Finish | Cabinet finishing | Polyurethane coating |
Front finish | Powder coated steel grill with acoustical foam | |
Mounting & handling | Rigging points | 10 x M10 |

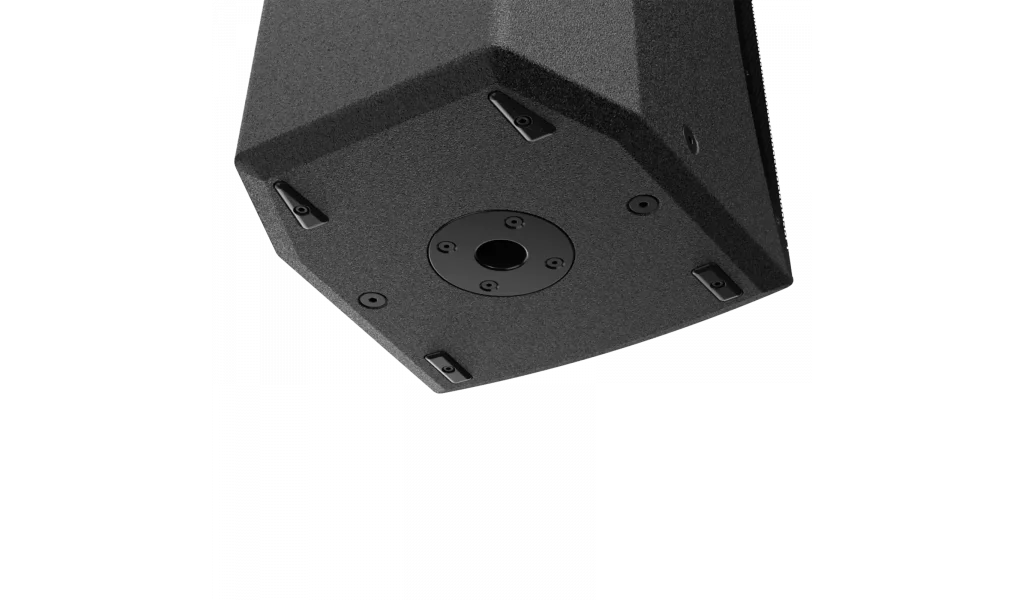

Stand fitting | 35 mm pole adapter on bottom | |
Powerdrive mount | Powerdrive type 75 (108 x 50,8 mm) | |

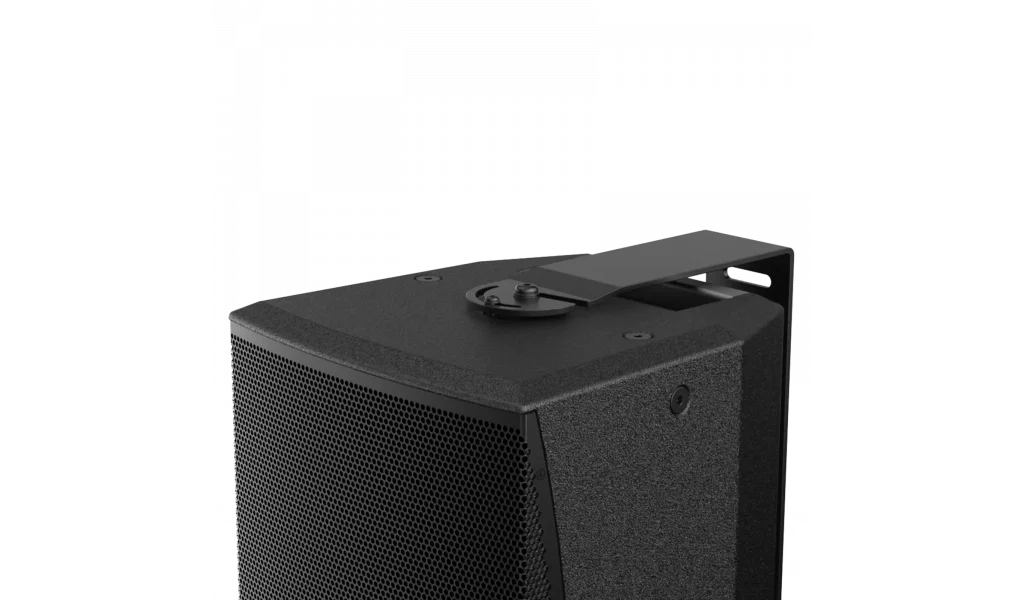

Mounting & handling | Carry handles | On top |

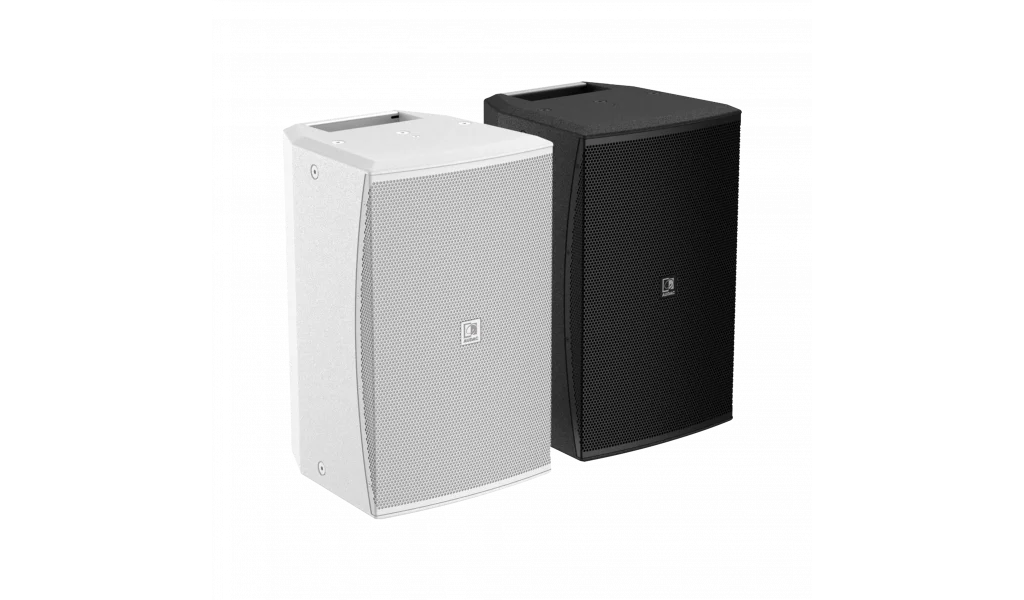

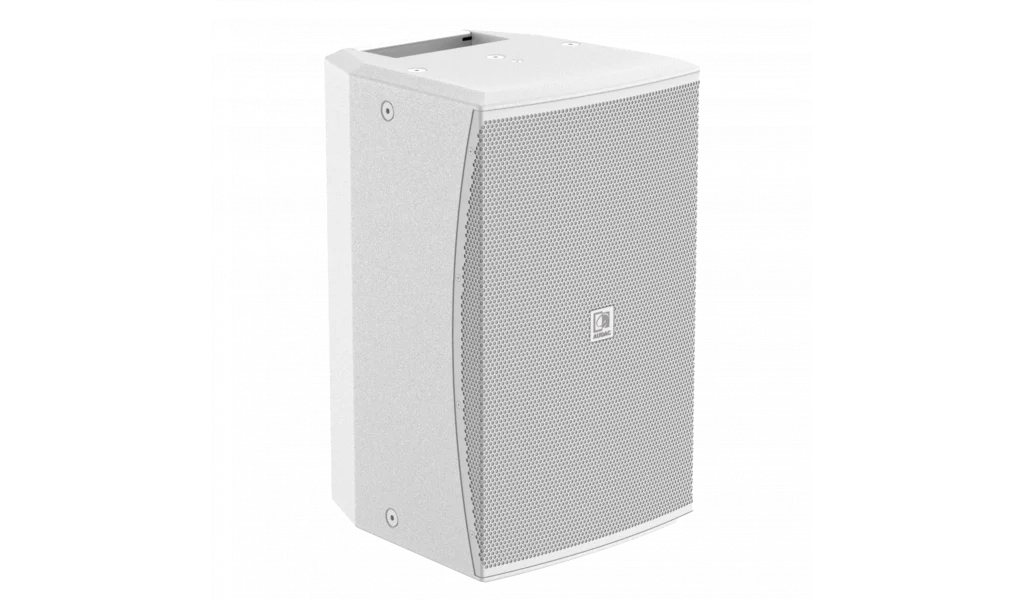

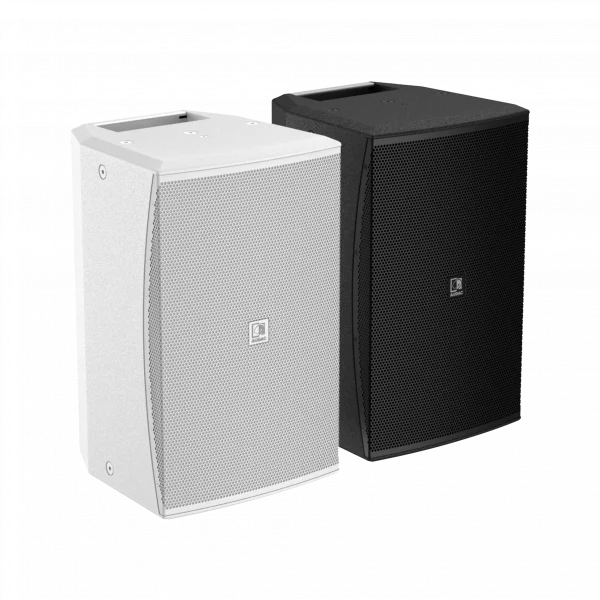

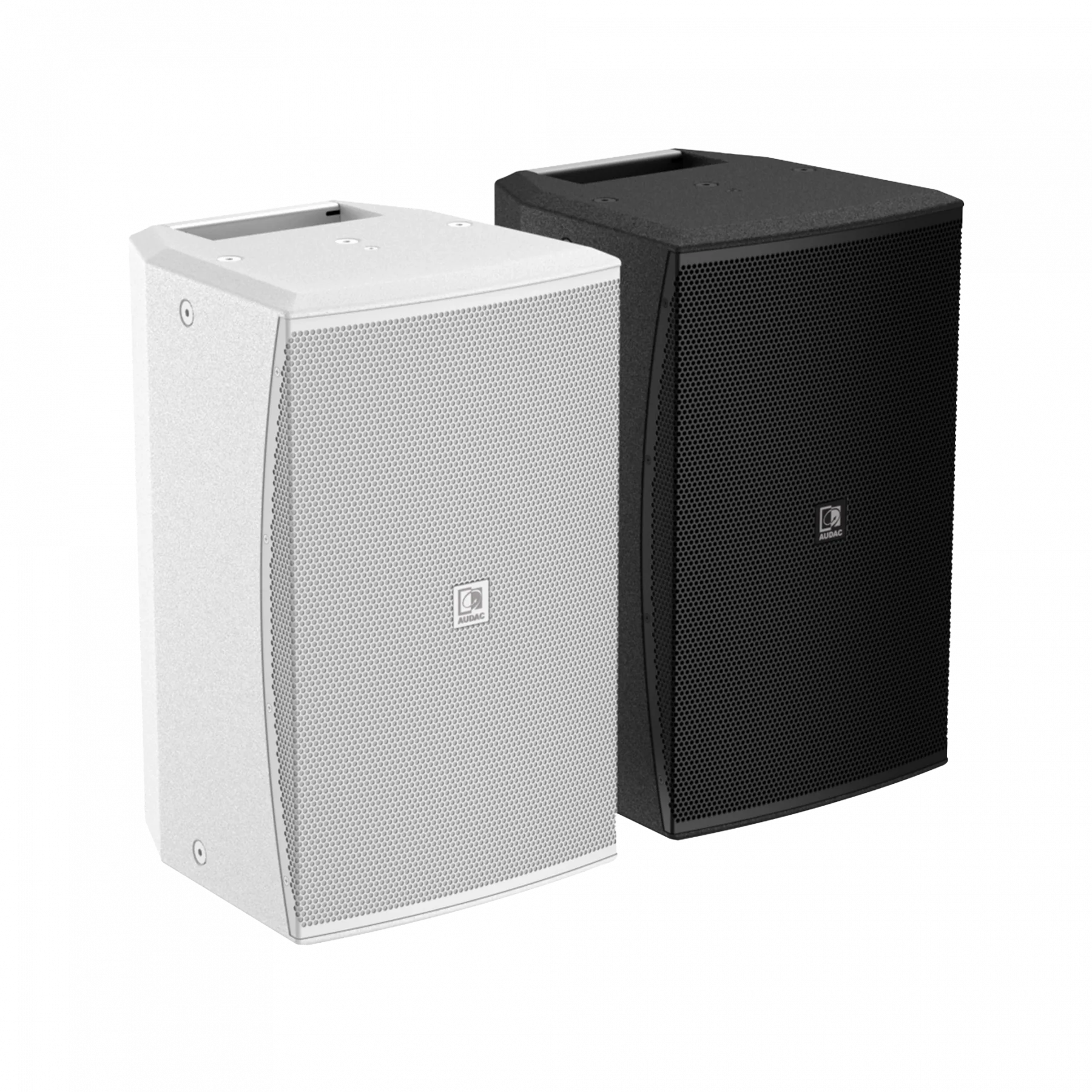

Colours | Black & White | |
Accessories | Optional | ANI44XT - Dante™/AES67 audio network interface |

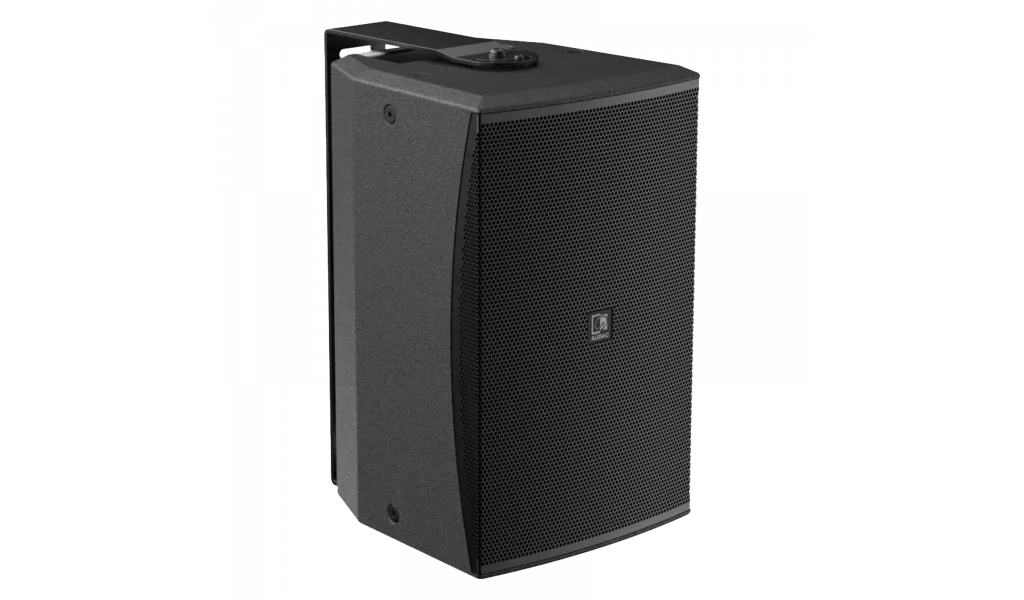

MBK110V Mounting bracket |
Hoparlör Ölçüsü | 10" |
Renk | Siyah , Beyaz |
Hoparlör Türü | Aktif Hoparlörler |
