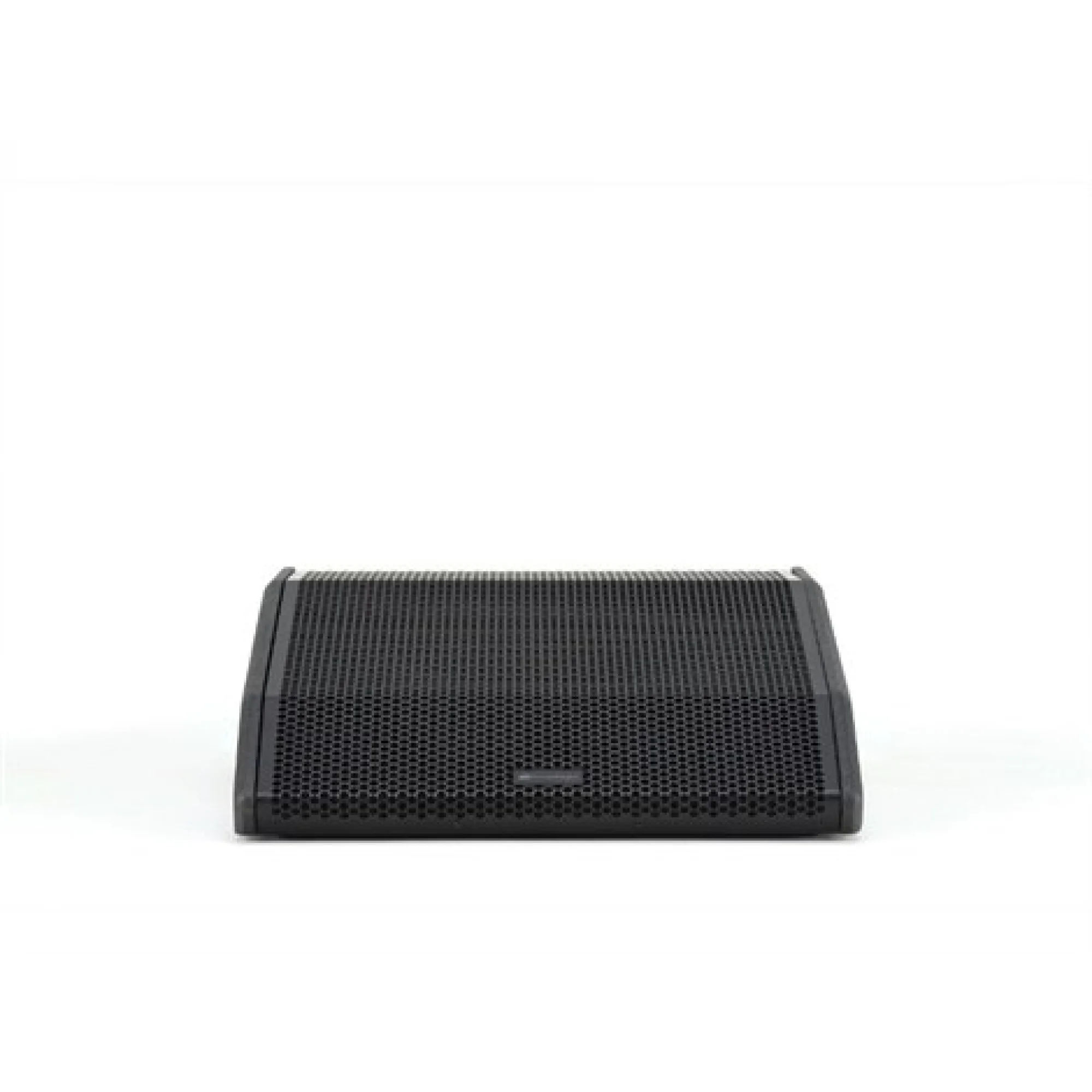

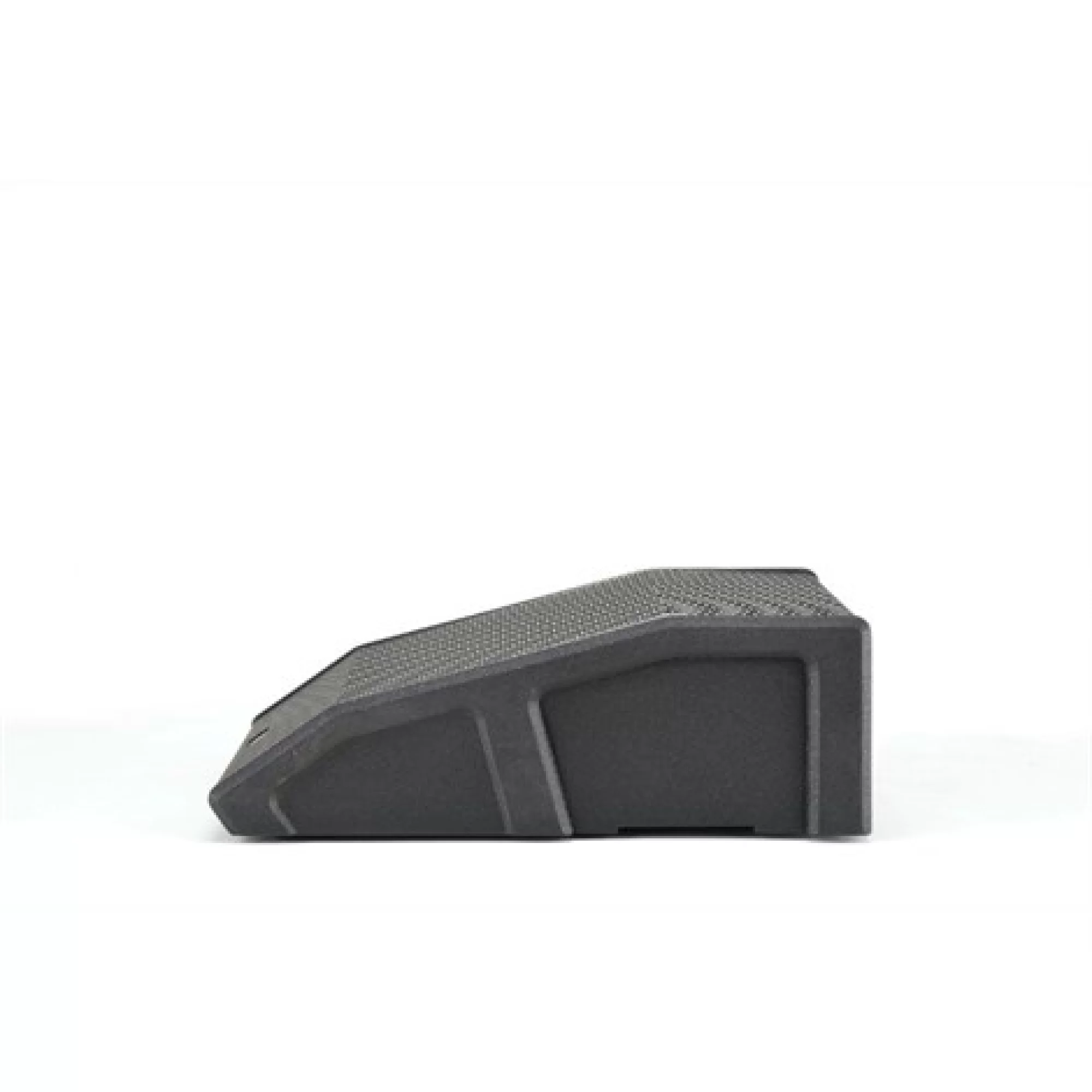

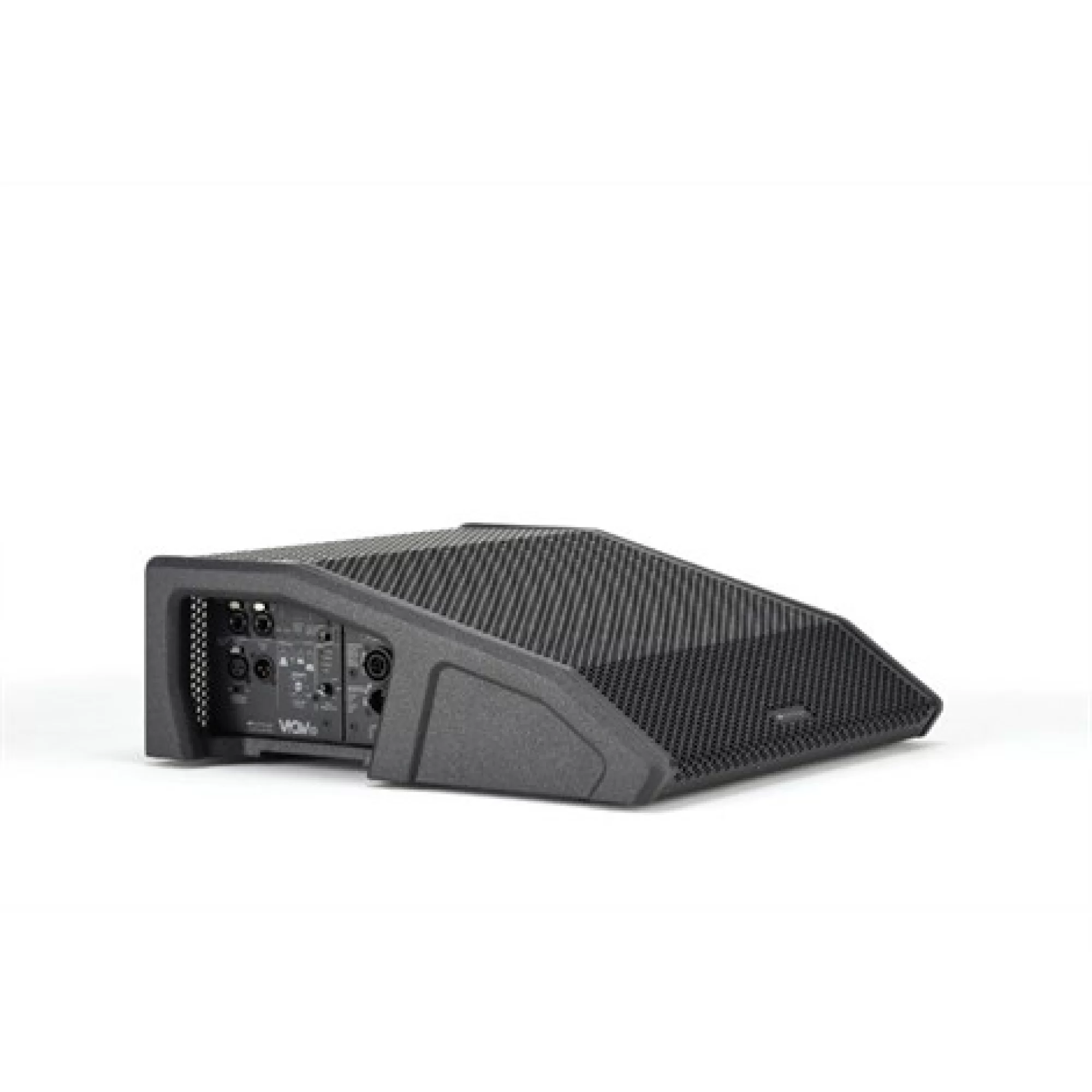

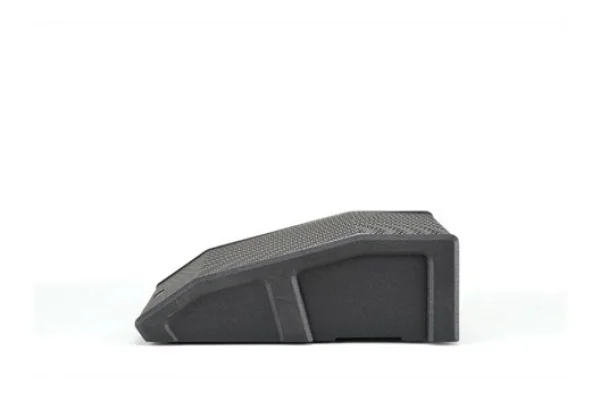

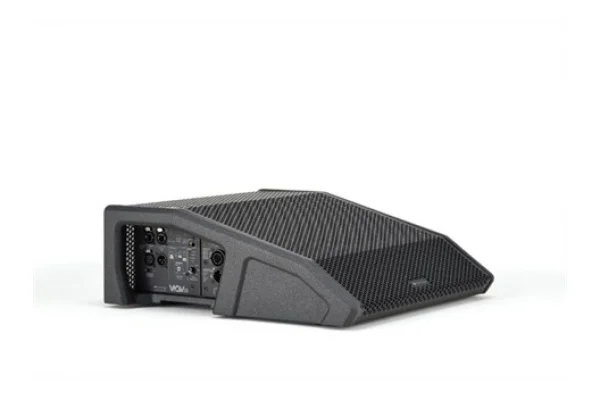

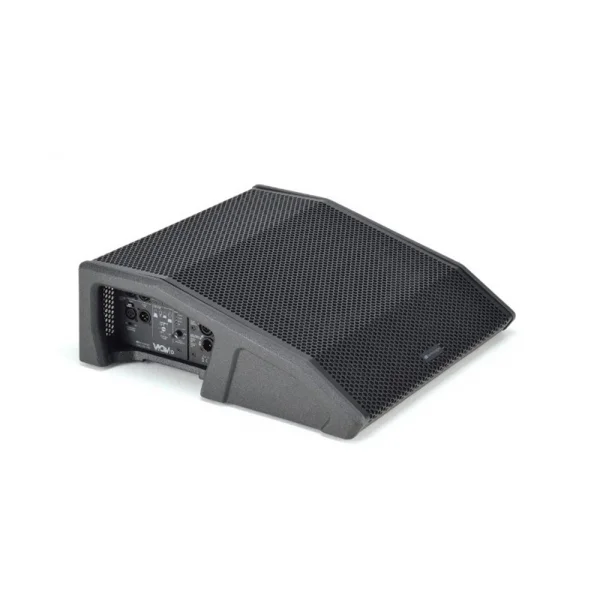

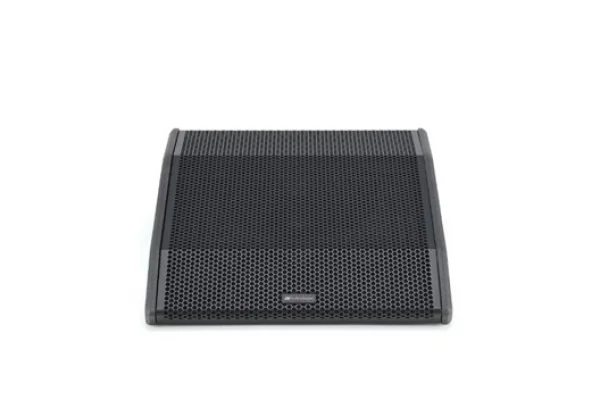

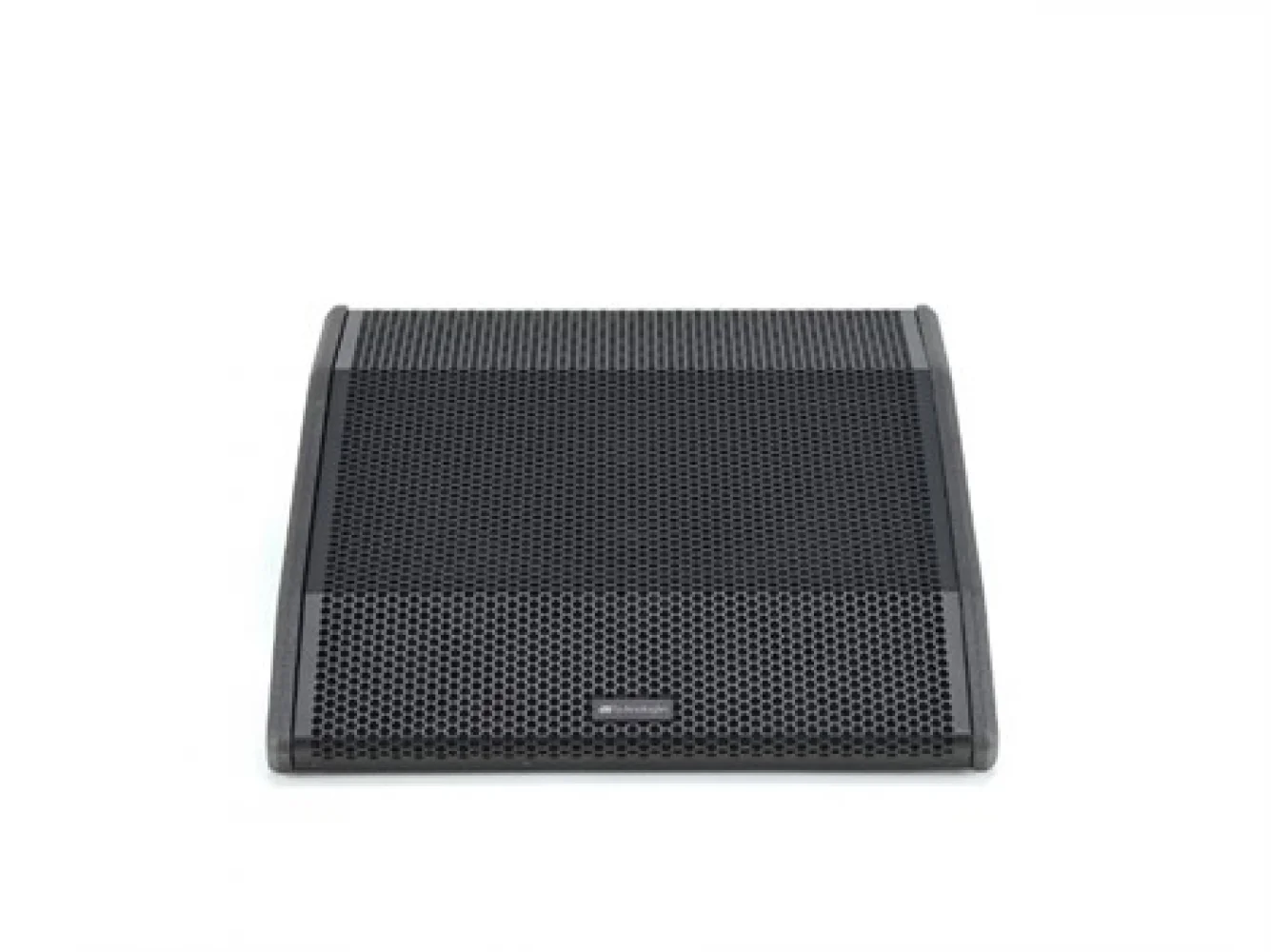

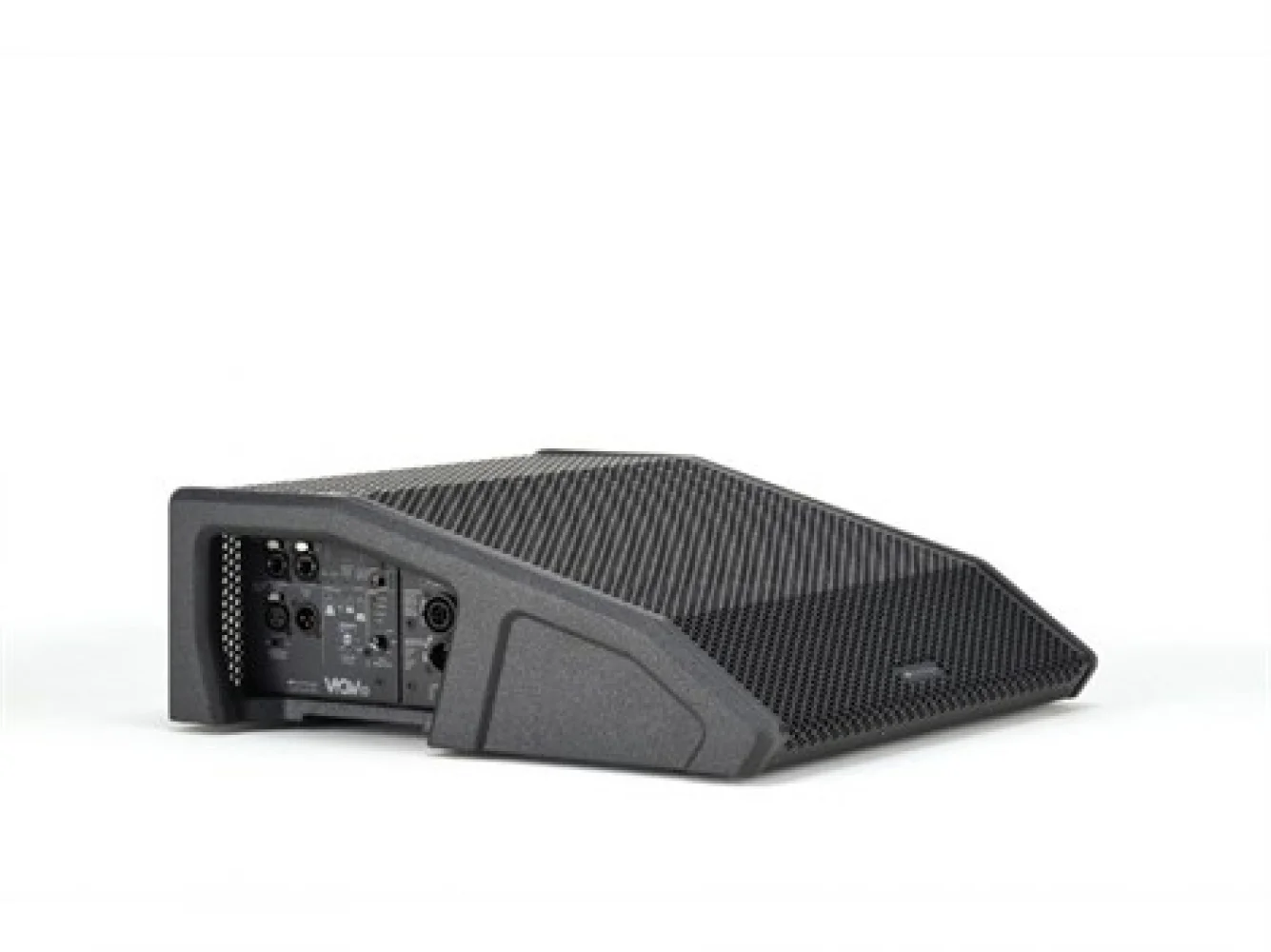

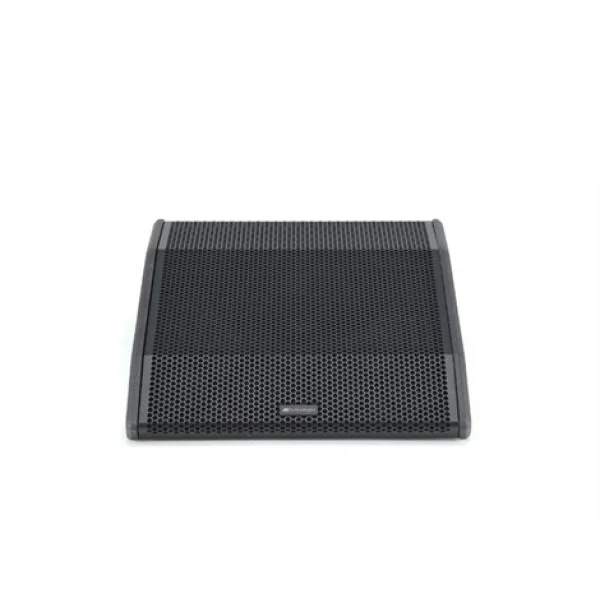

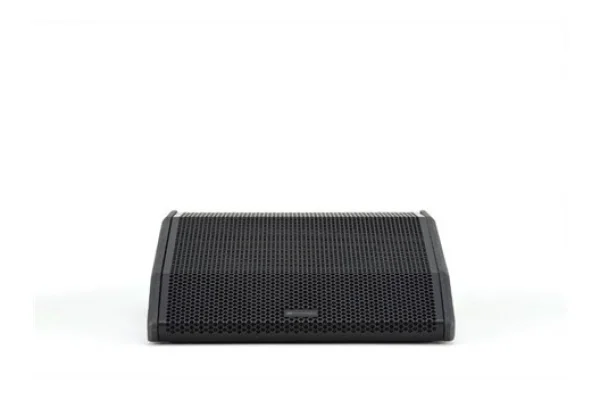

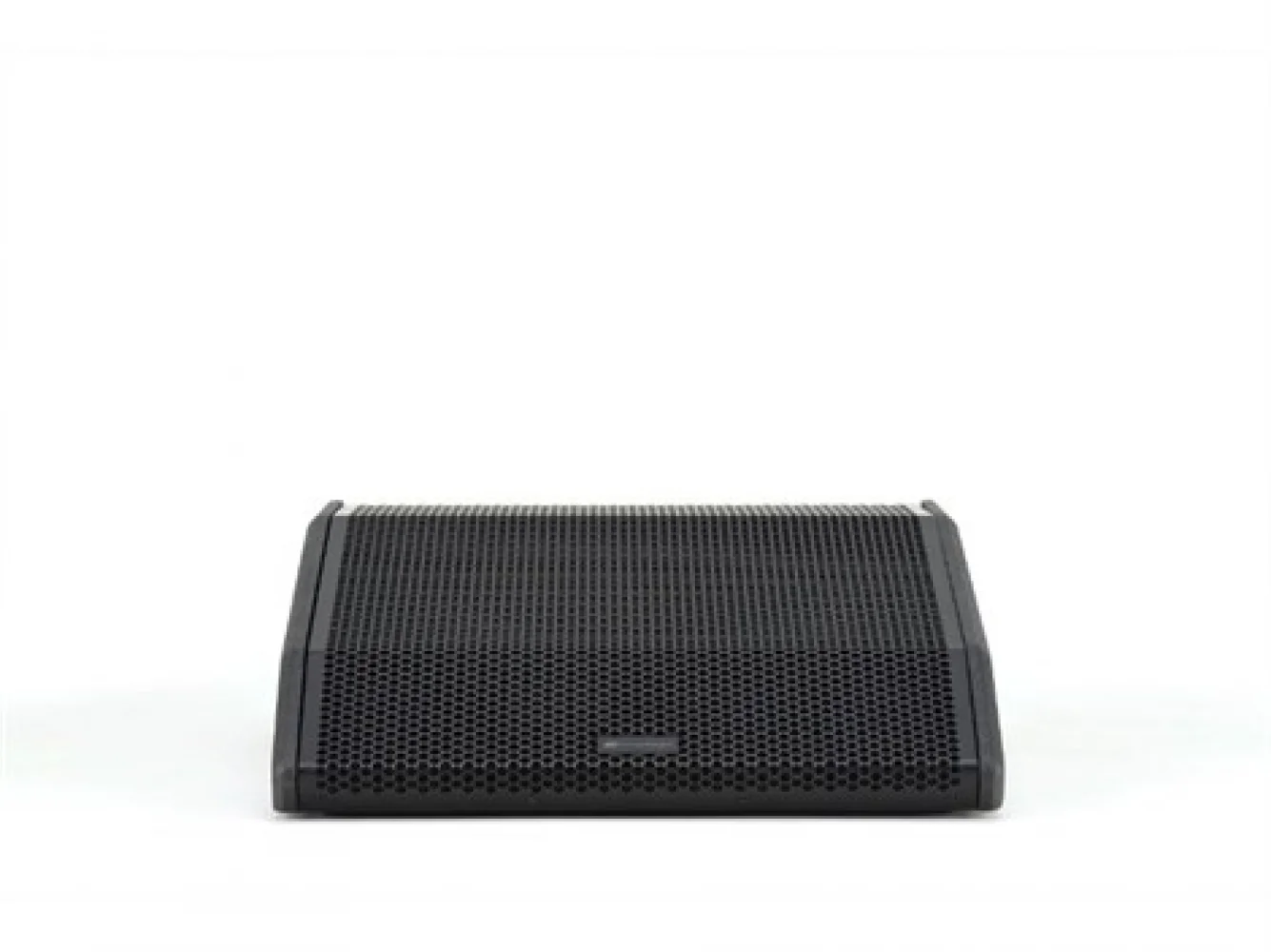

dB Technologies VIO-W10 10" Aktif Sahne Monitör Hoparlör 400-watt RMS RDNet 126-dB

Stok yok sipariş üzerine tedarik edilir. Lütfen iletişime geçiniz: 0 (533) 592 49 10

Technical Data
Speaker Type2-Way Active Wedge Monitor


Acoustical data
Usable Bandwith [- 10 dB]58 - 15,000 Hz
Frequency Response [- 6 dB]68 - 14,000 Hz
Max SPL126 dB

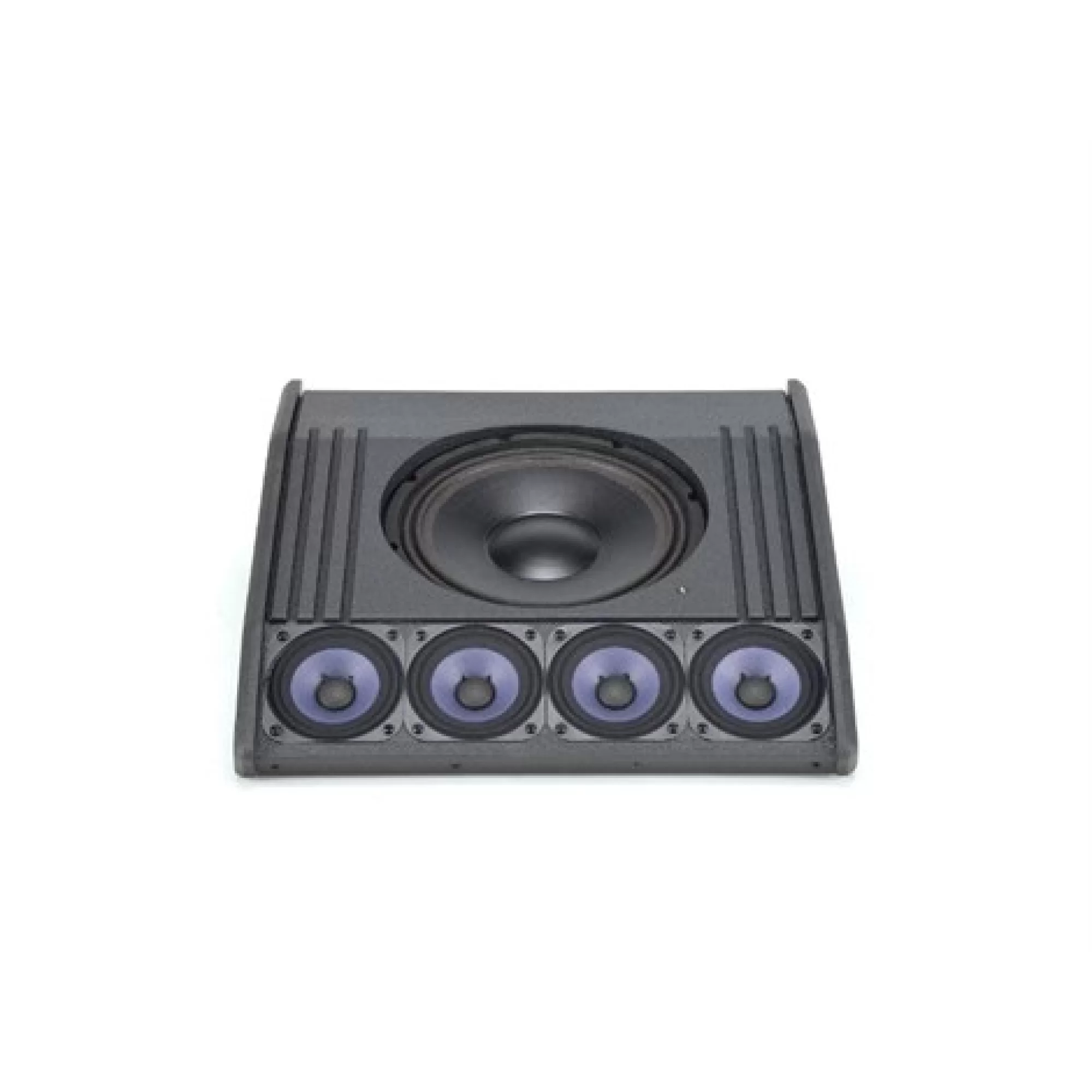

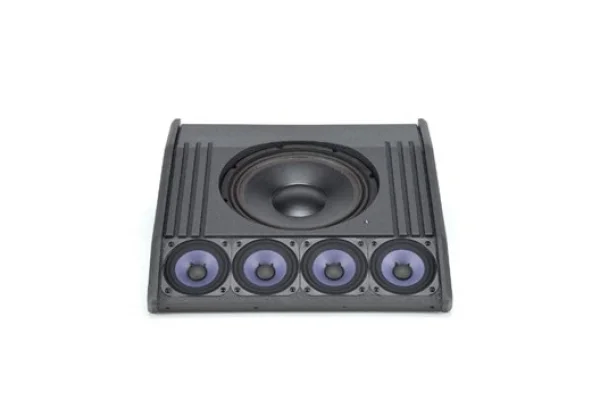

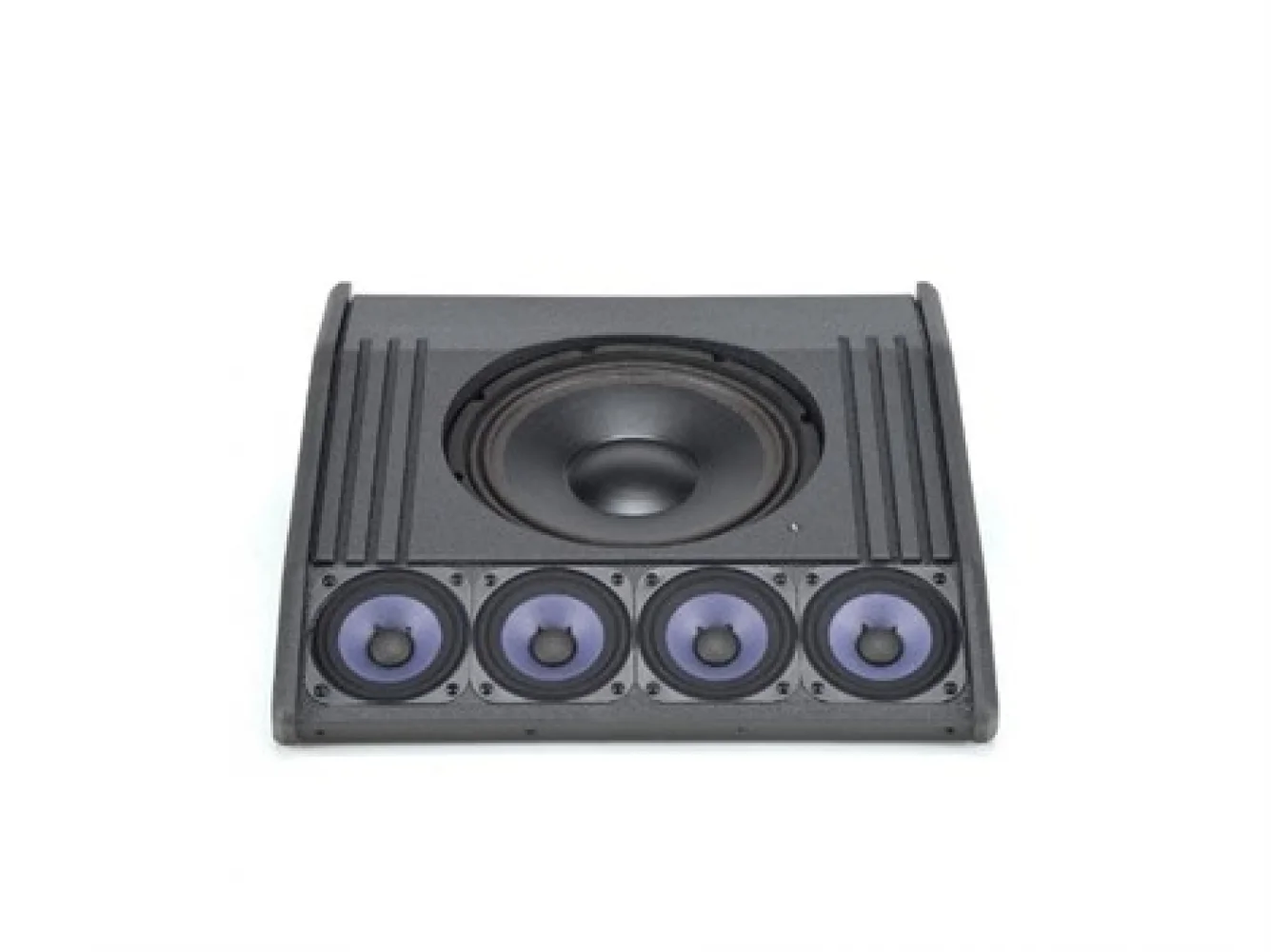

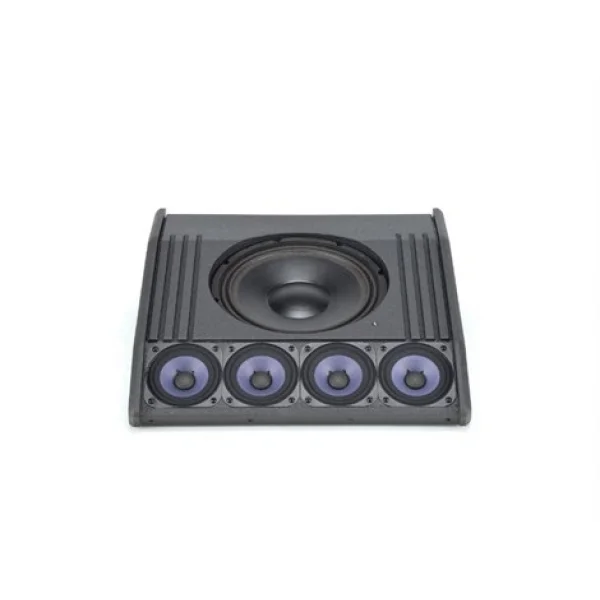

HF4x 4" - 1" v.c. Neodymium
LF1x 10" - 2.5" v.c.
Horizontal DirectivityDependent on Focus Preset
Vertical DirectivityDependent on Focus Preset


Amplifier
Amplifier400 W RMS Class D Digipro® G3
CoolingConvection
Power SupplyAuto-range SMPS


Processor
ControllerDSP 28/56 bit
Converter AD/DA24 bit/48 kHz
LimiterPeak, RMS, Thermal
Processing (filters)Linear Phase FIR Filters

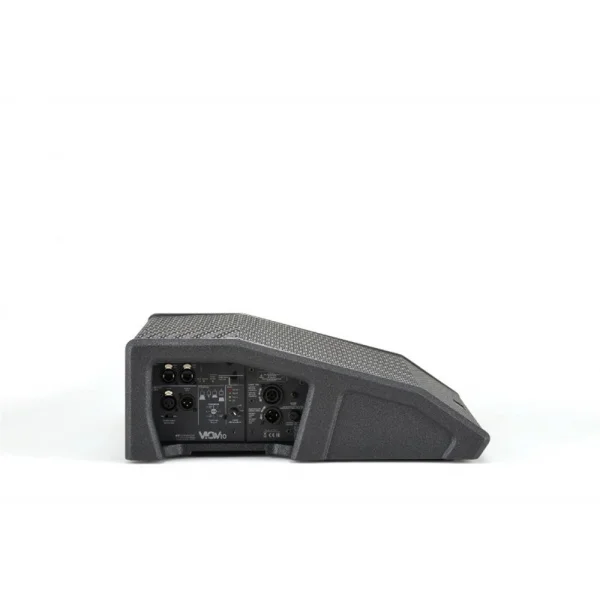

Input
Signal Input1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
Signal Output1xXLR male, 1x RJ45 Link (RDNet)
Power Socket1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out
Controls1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED

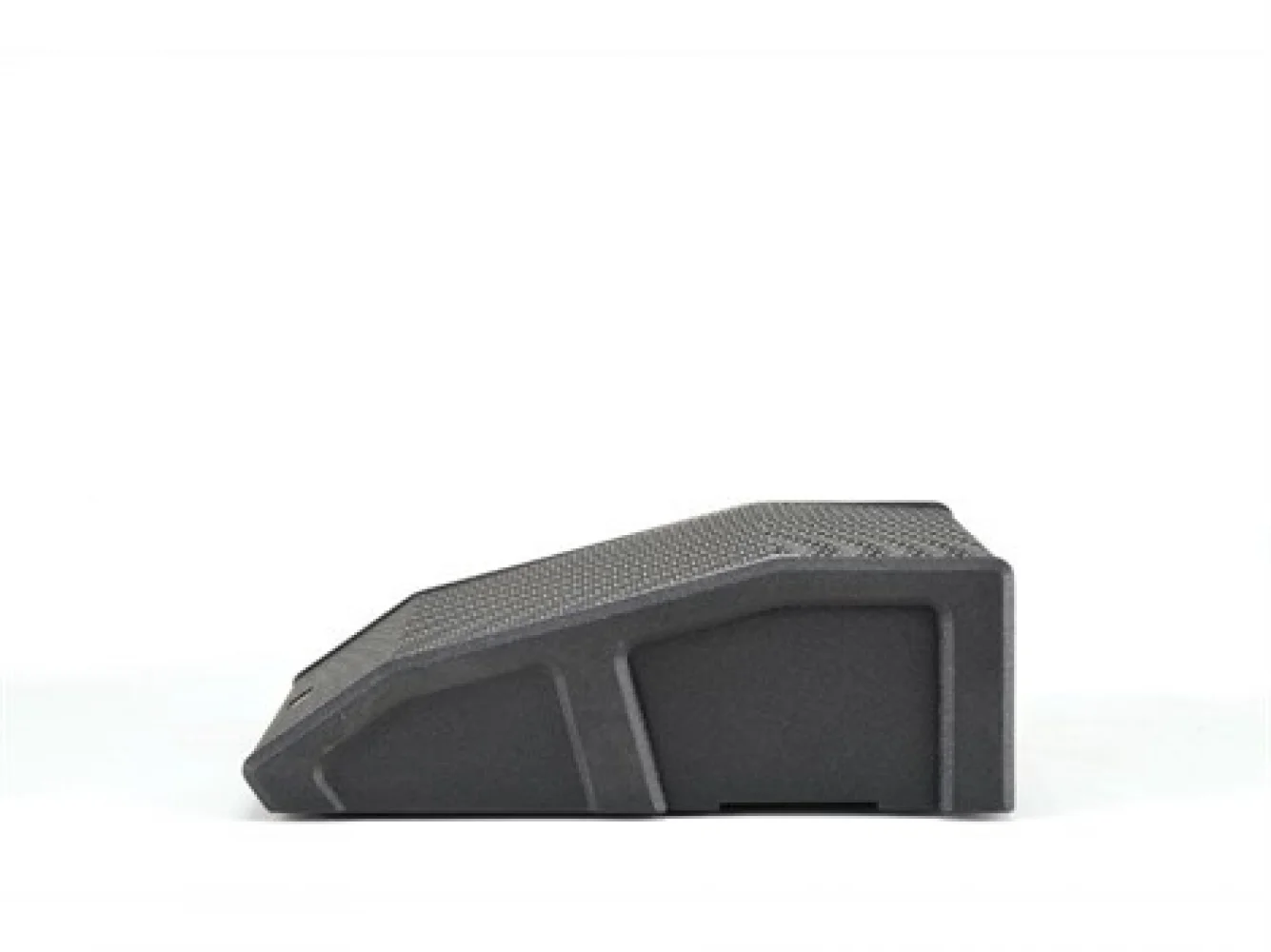

Mechanics
HousingWooden cabinet, Polyurea painting
Handles1 on left side
Width450 mm (17.71 in)
Height165 mm (6.49 in)
Depth480 mm (18.89 in)
Weight13.7 kg (30.20 lbs)

Hoparlör TürüAktif Hoparlörler , Aktif Monitor Hoparlör
Hoparlör Ölçüsü10"
