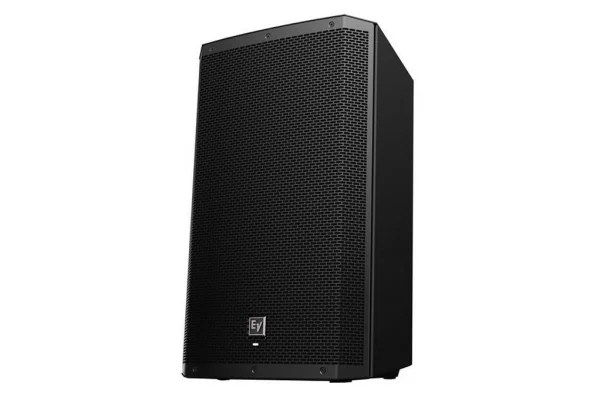

Electro-Voice ZLX-15 15-inch Two-Way Passive Loudspeaker
The ZLX-15 gives you the confidence of the industry’s most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.
- 15” woofer for extended low-frequency response and 1.5” high-frequency titanium compression driver
- 44 Hz – 20 kHz frequency range
- 250 W continuous and 1000 W peak power handling
- 96 dB SPL sensitivity; 126 dB max SPL
- 36.5 lbs (16.6 kg)
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 dB |
| Frequency Range | 44 Hz - 20 kHz |
| Maximum SPL | 126 dB |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 250 / 1000 W |
| Frequency Response | 56 Hz - 18 kHz |
| Recommended High-Pass Frequency | 40 Hz |
| Maximum SPL (1% THD) | 0 dB |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| LF Transducer | EVS-15L, 380 mm (15 in) Woofer |
| HF Transducer | DH-1K |
| Crossover Frequency | 1700 Hz |
| Minimum Impedance | 7 Ω |
| Connector Type | Dual NL4 |
| Enclosure Material | Polypropylene |
| Grill | 18 Gauge Steel with Black Powder Coat |
| Height | 685 mm (26.97") |
| Width | 423 mm (16.65") |
| Depth | 383 mm (15.08") |
| Weight Net | 16.6 kg (36.6 lbs) |
| Shipping Weight | 22 kg (48.5 lbs) |
