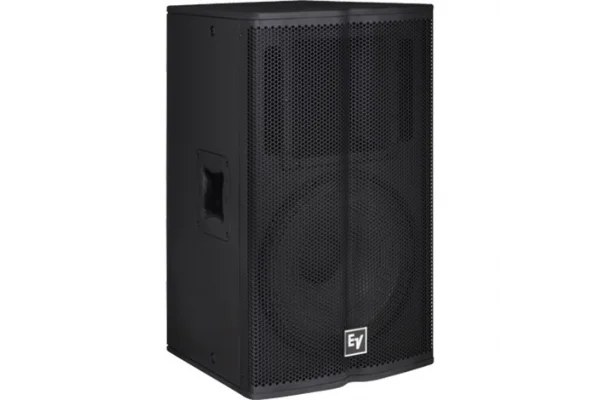

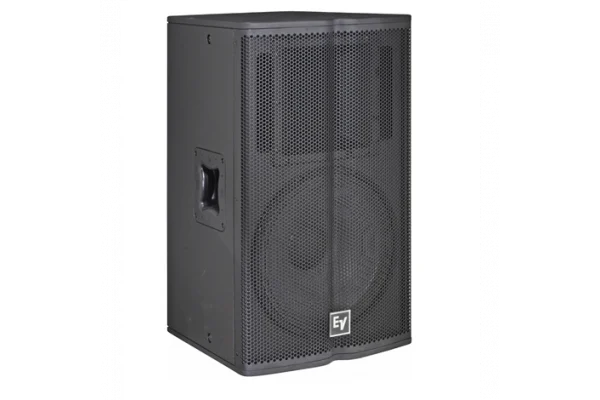

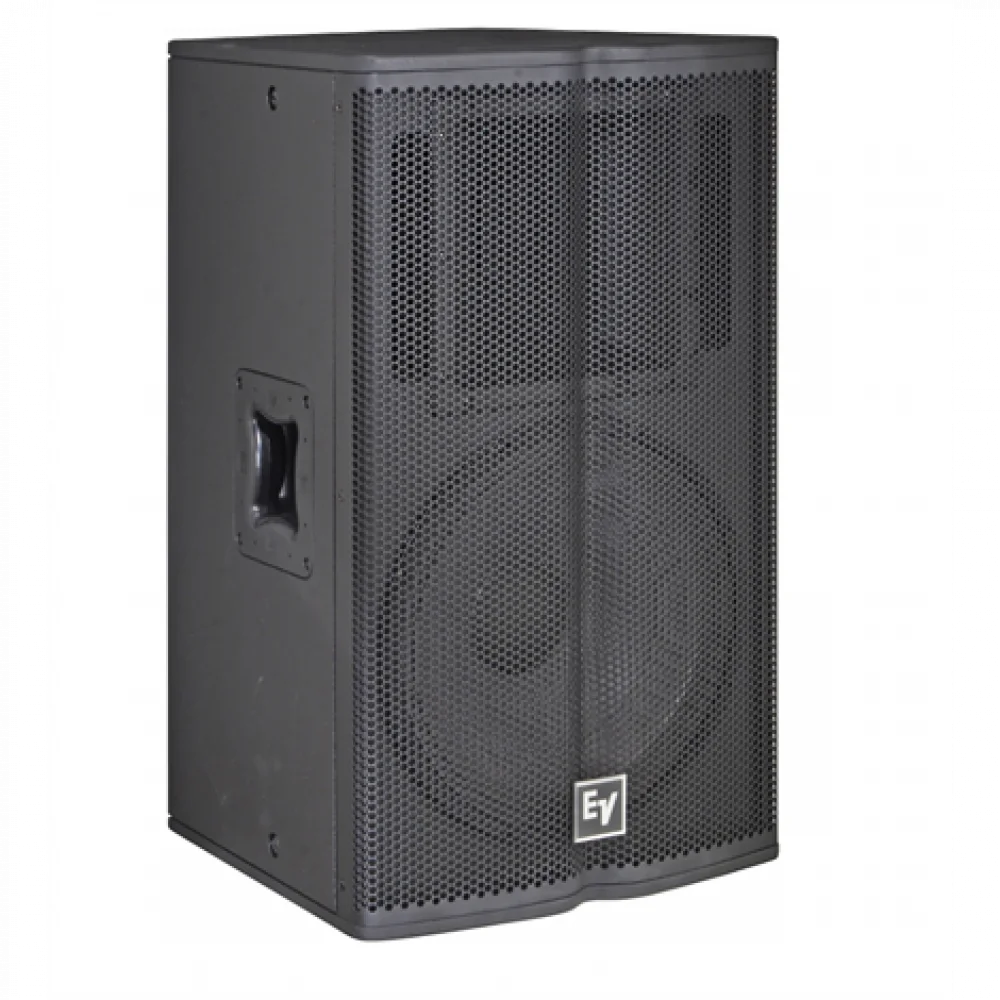

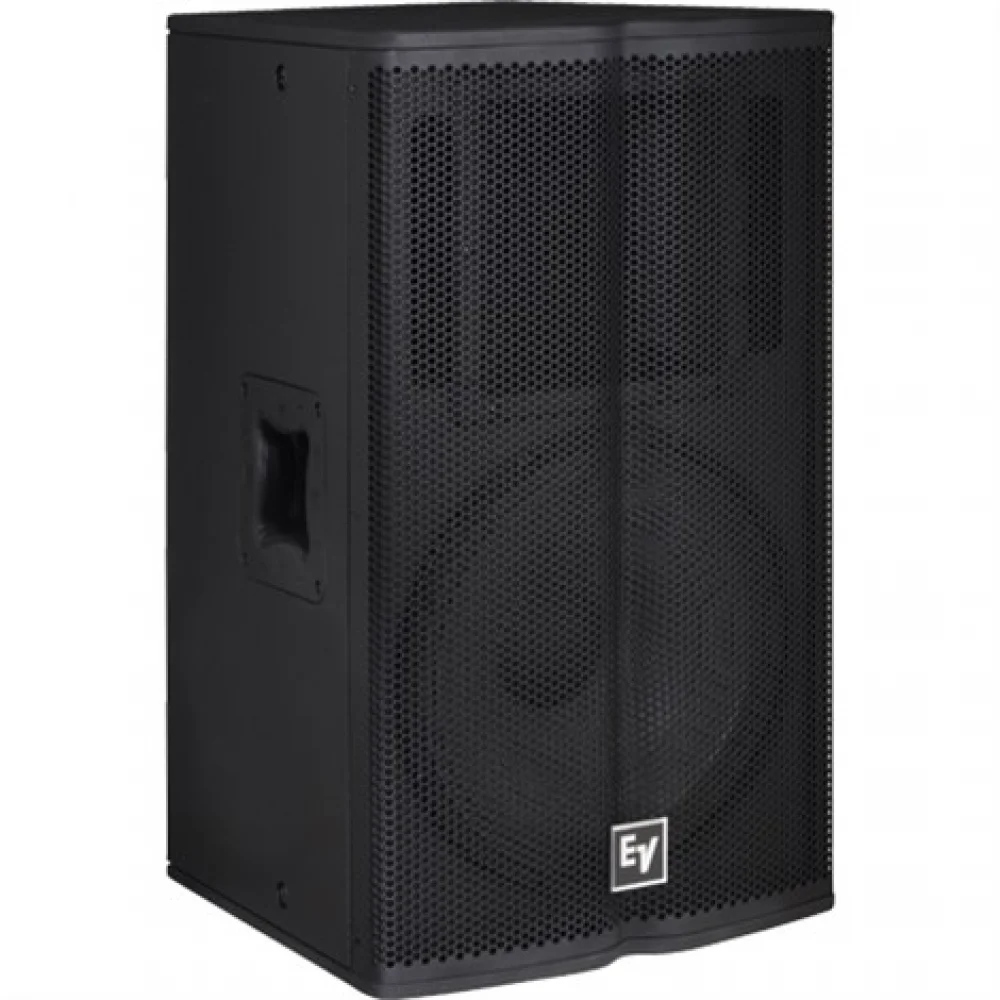

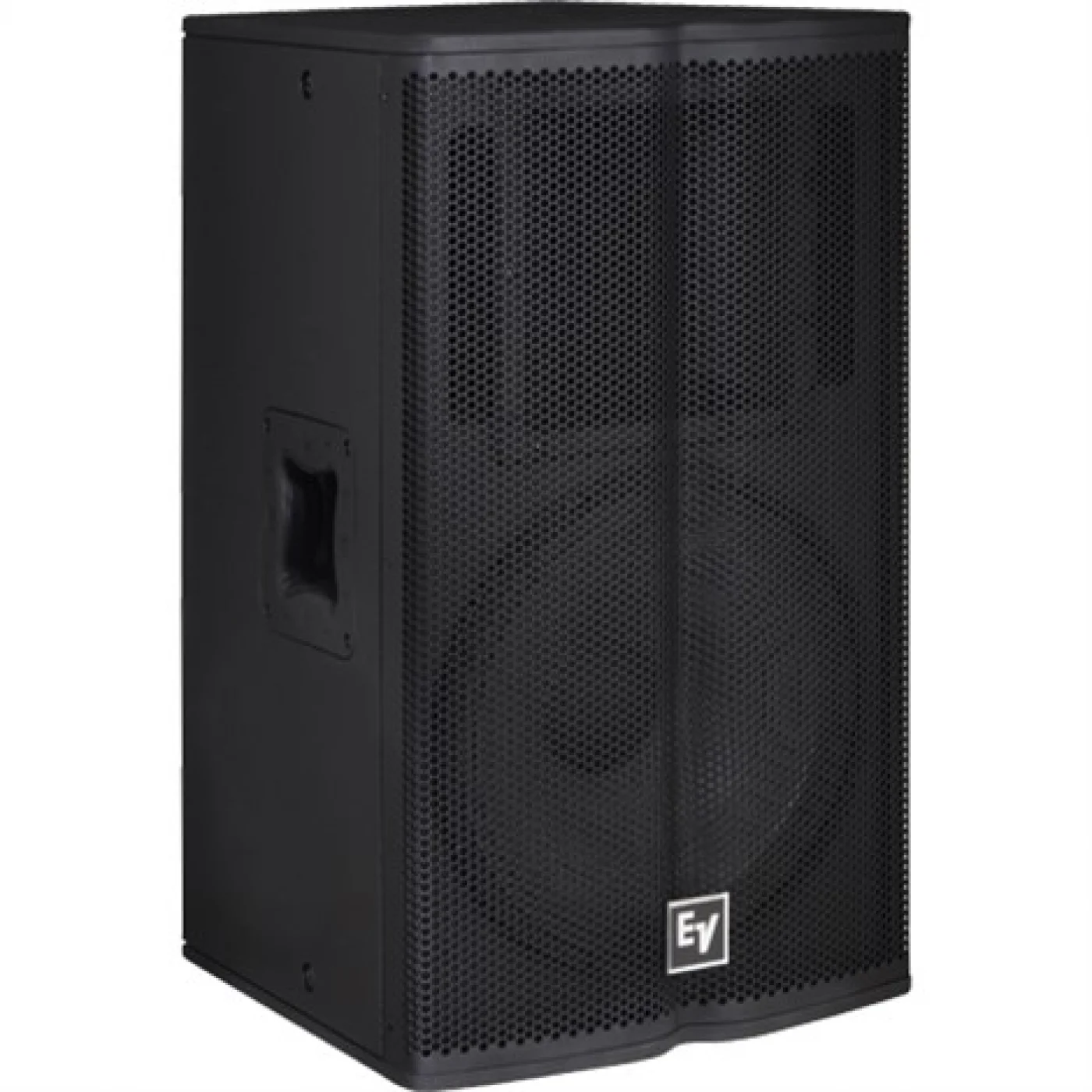

Electro Voice TX1152 15" Pasif Hoparlör, 1000W 133 Db


Electrovoice TX1152 15" Passive Speaker, 1000W 133 Db


  • High-output, high-quality sound
  • Excellent pattern control for medium throw use
  • Low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Rotatable Constant-directivity 60º x 40º horn
  • Advanced 4th-order crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six 3/8-inch threaded suspension points
  • Black EVCoat™ finish


Input ConnectionsParallel Neutrik® NL4
Speaker TypeFull-range
Frequency Response (-3 dB)65 - 20000 Hz
Frequency Response (-10 dB)45 - 20000 Hz
Internal CrossoverYes
Recommended High-Pass Frequency40 Hz
Sensitivity 1 W/1 m100 dB
Max. SPL/1m (calc)133 dB
Coverage (Nominal -6 dB) H60 °
Coverage (Nominal -6 dB) V40 °
Rotatable HornYes
System Power Handling (Continuous/Program/Peak)500//2000 Watts
LF Transducer15-inch SMX2151
HF Transducer1.25-inch DH3/2010A
Crossover Frequency1750 Hz
Nominal Impedance (Passive)8 Ω
Minimum Impedance6.2 Ω
Enclosure MaterialPlywood and MDF with EVCOAT
Suspension(6) 3/8-inch threaded inserts
Height475 mm (18.7")
Width439 mm (17.28")
Depth655 mm (25.79")
Weight Net27.6 kg (60.85 lbs)


Hoparlör TürüPasif Hoparlörler
Hoparlör Ölçüsü15"
