| Power Source (AC) | |
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 273W |
| Power frequency | 50-60Hz |
| Light source | |
|---|---|
| Type | DISCHARGE (LAMP 7R) |
| Quantity | 1 |
| Power (W) | 230 |
| Color Rendering Index (CRI) | 65 |
| Color Mixing System | |
|---|---|
| CMY | 16 bit |
| Color Wheel | |
|---|---|
| Quantity | 14 + Biały |
| Dimming | |
|---|---|
| Dimming | 8 bit |
| Focus adjustment - Focus | |
|---|---|
| Focus adjustment - Focus | Motorized (8 bit) |
| Prism | |
|---|---|
| Prism 1 | 3 (Round) |
| FROST filter | |
|---|---|
| FROST filter | light (Step) |
| CTO | |
|---|---|
| CTO | smooth |
| GOBO Wheel | |
|---|---|
| Static | 17 |
| Rotary | 16 |
| Rotation | 8 bit |
| Removable slot | No |
| Strobe - frequency | |
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
| DMX control | |
|---|---|
| Number of modes | 2 |
| Number of channels | 16-20 |
| Movement | |
|---|---|
| Range PAN | 540 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 16 bit |
| Modes of operation | |
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| User Interface | |
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |

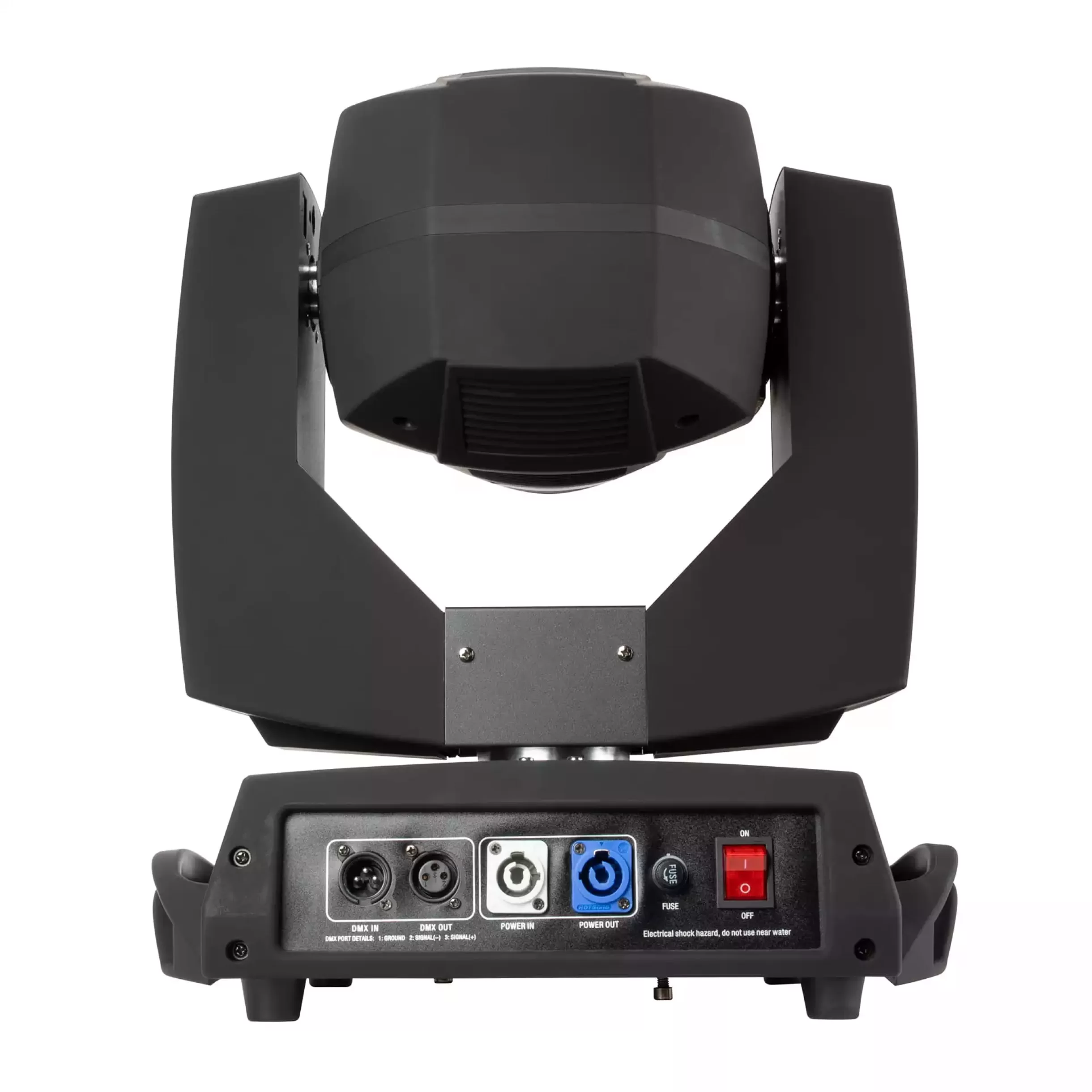

| Connectors | |
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin DMX |
| DMX OUT | 3-pin DMX |
| Physical parameters | |
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |
| Fixing | Mounting hole |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing color | Black |
| Cooling | Active |
| Length [cm] | 40 |
| Width [cm] | 32 |
| Height [cm] | 49 |
| Weight [kg] | 14,8 |

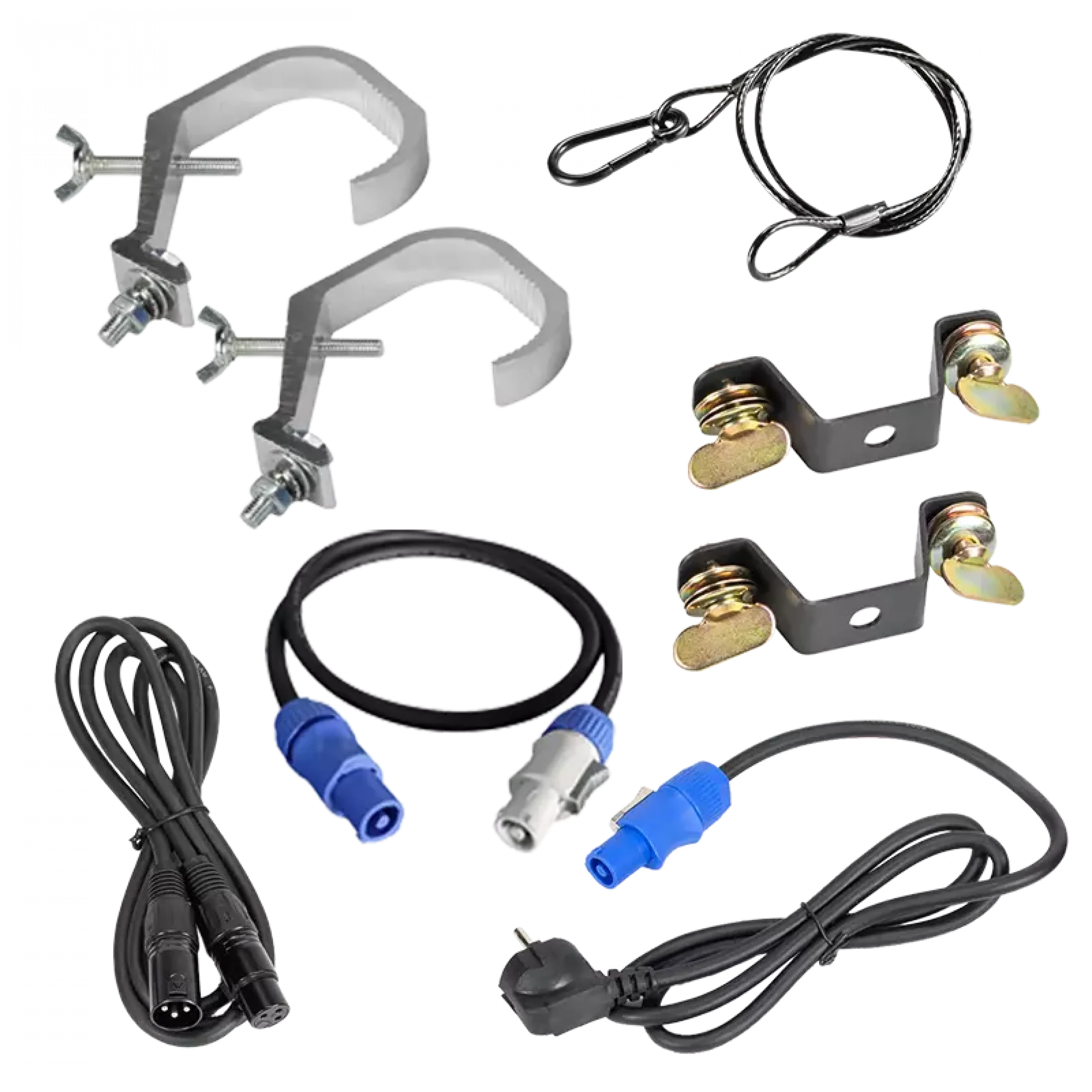

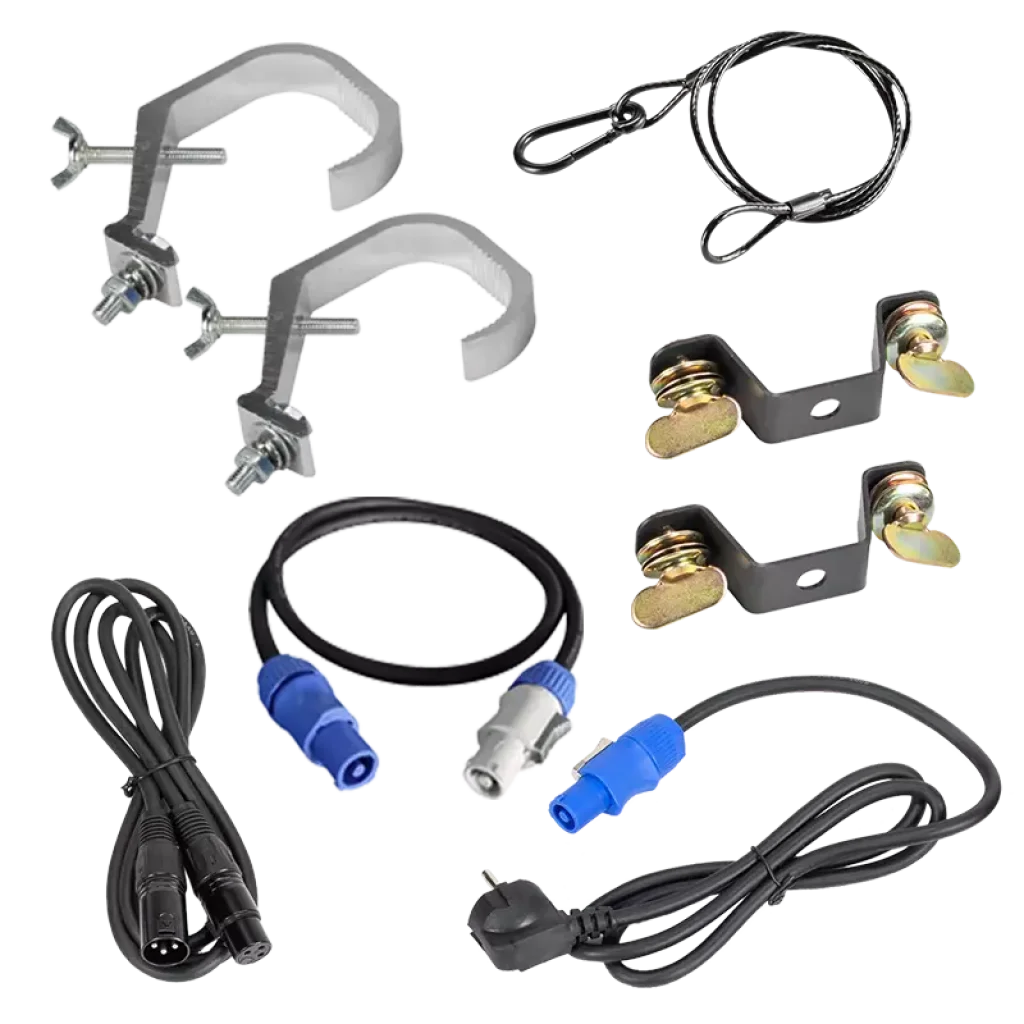

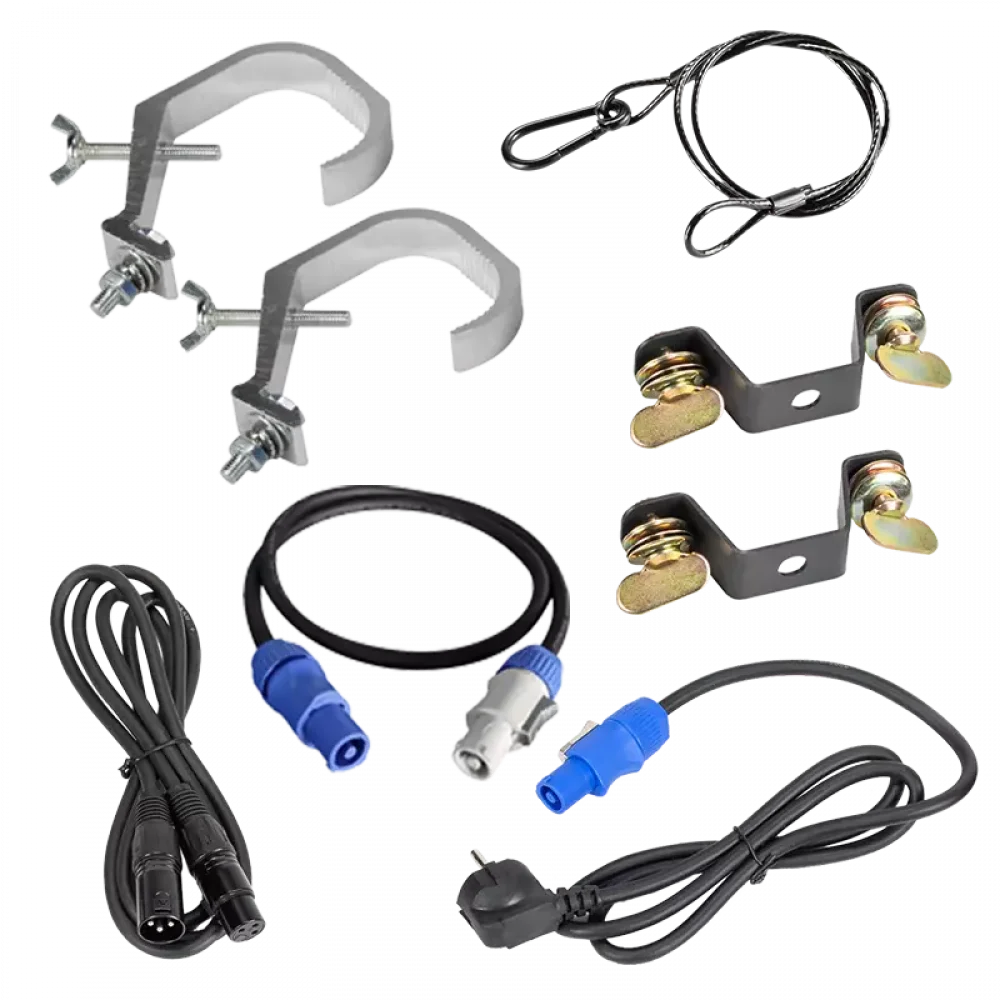

| Contents of the package | |
|---|---|
| A kind of package | Case (F0901990) |
| Manual | Yes |
| Wiring | PowerCON |
| Wiring | DMX 3-pin |

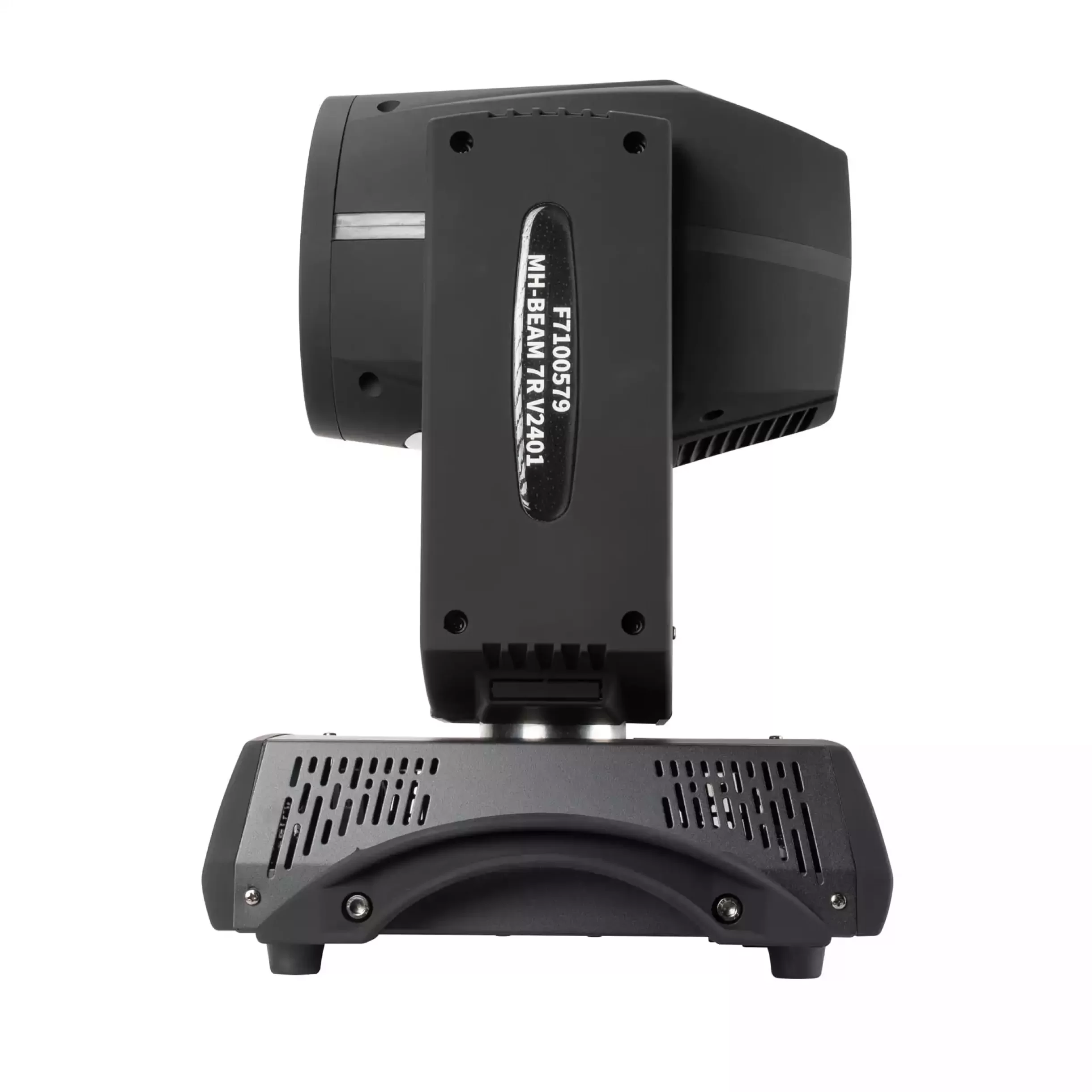

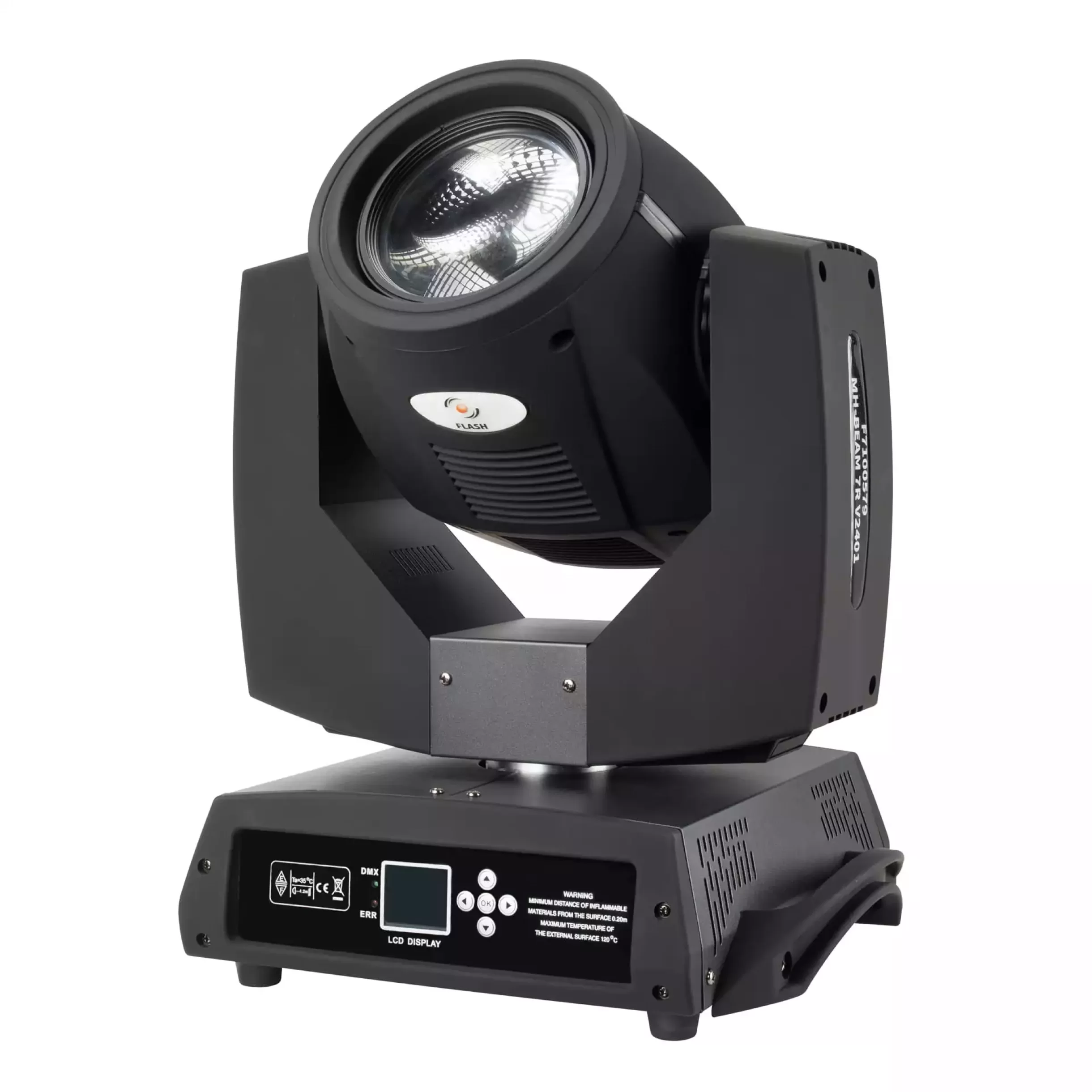

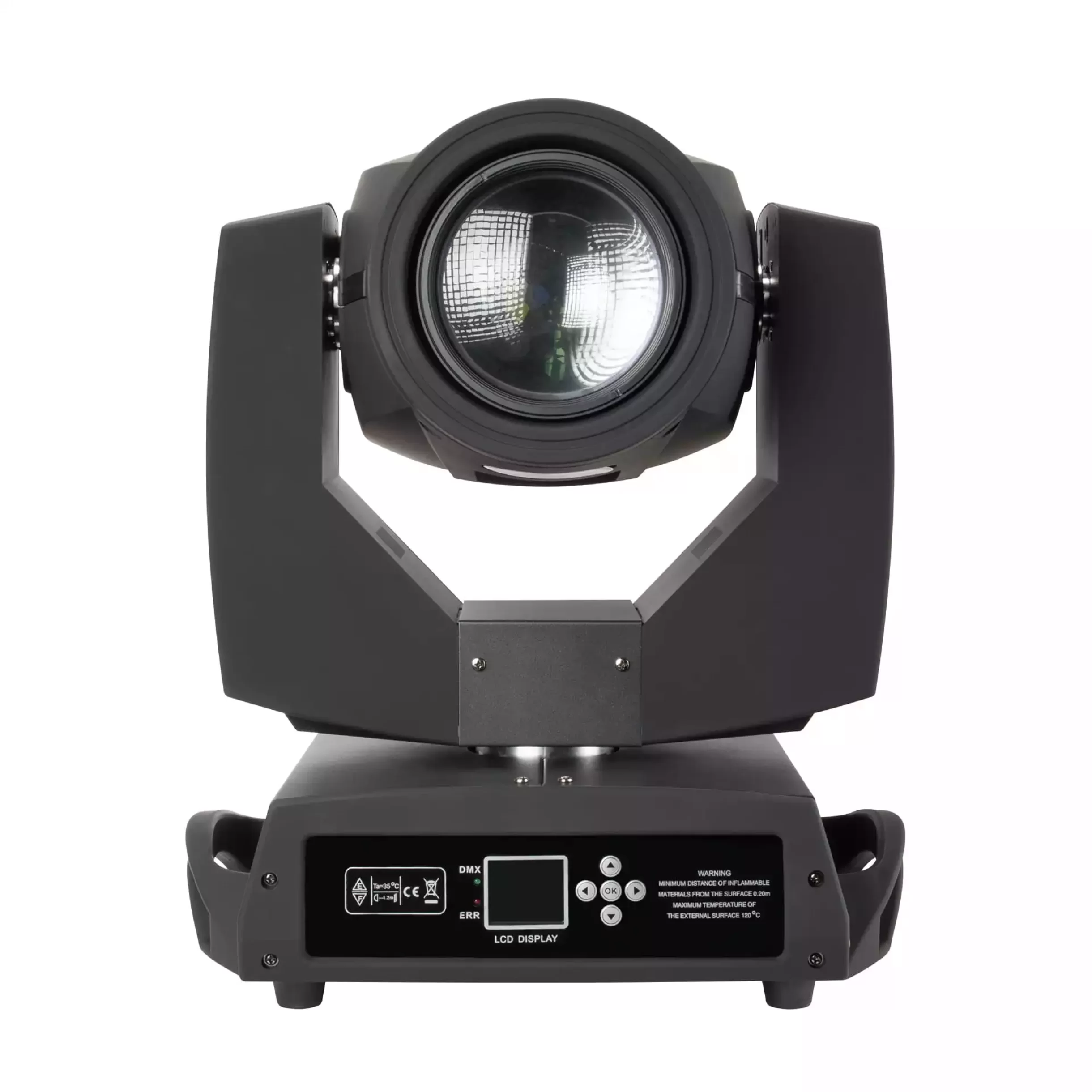

| Device | BEAM 7R v2401 |
| Handle | Yes |
| Steel safety cable | Yes |
.webp)
| MovingHead Türü | SPOT+BEAM+BOYAMA |
| Işık Gücü | 230W |
| Işık Kaynağı | Ampul |
