| Power Source (AC) | |
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 90W |
| Power frequency | 50-60Hz |
| Light source | |
|---|---|
| Type | LED |
| Quantity | 1 |
| Power (W) | 90 |
| Color Rendering Index (CRI) | 65 |
| Color Mixing System | |
|---|---|
| CMY | 8 bit |
| Color Wheel | |
|---|---|
| Color Wheel | 7 + White |
| Dimming | |
|---|---|
| Dimming | 8 bit |
| Beam angle | |
|---|---|
| Beam angle | Range |
| Focus adjustment - Focus | |
|---|---|
| Focus adjustment - Focus | Motorized (8 bit) |
| Prism | |
|---|---|
| Prism 1 | 3 (Linear) |
| GOBO Wheel | |
|---|---|
| Static | 8 |
| Rotary | 6 |
| Rotation | 8 bit |
| Removable slot | No |
| Strobe - frequency | |
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
| DMX control | |
|---|---|
| Number of modes | 1 |
| Number of channels | 16 |
| Movement | |
|---|---|
| Range PAN | 540 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 16 bit |
| Modes of operation | |
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

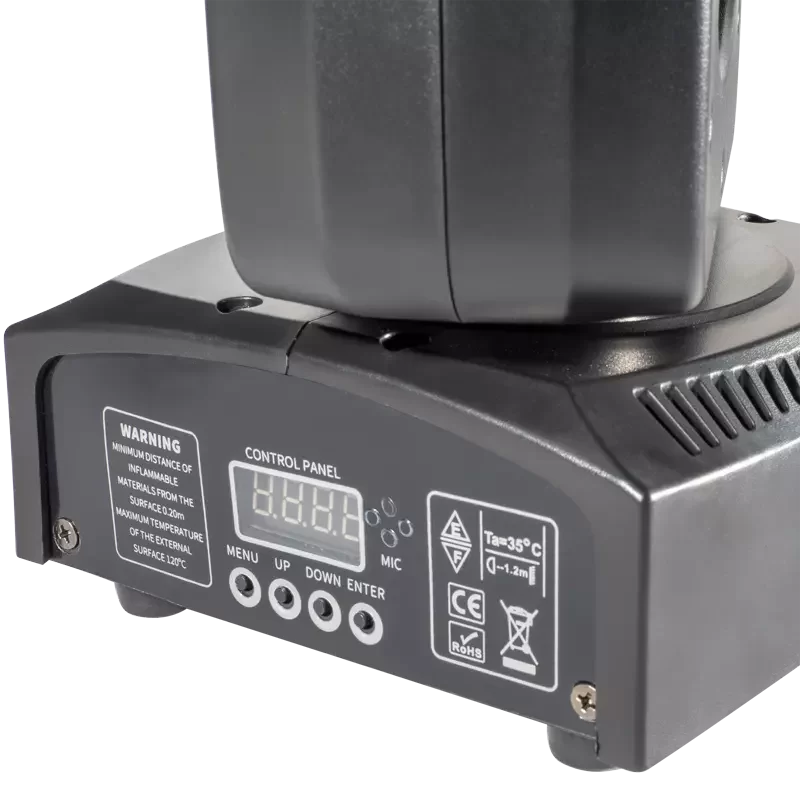

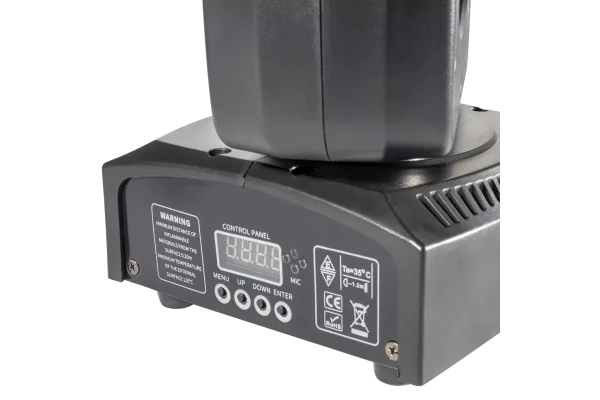

| User Interface | |
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |
| Connectors | |
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin DMX |
| DMX OUT | 3-pin DMX |
| Physical parameters | |
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |
| Fixing | Mounting hole |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing color | Black |
| Cooling | Active |
| Length [cm] | 28 |
| Width [cm] | 18,5 |
| Height [cm] | 36 |
| Weight [kg] | 6,6 |
| Contents of the package | |
|---|---|
| A kind of package | Case (F0901918) |
| Manual | Yes |
| Wiring | PowerCON |
| Device | SPOT LED 90 DIAMOND |
.webp)
| Projeksiyon Işık Kaynağı | Ampul |
| Moving Head Tipi | SPOT+BEAM+BOYAMA |
| Işık Gücü | 230W |
