| Power Source (AC) | |
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 550W |
| Power frequency | 50-60Hz |
| Light source | |
|---|---|
| Type | LED (RGBWAUV) |
| Quantity | 36 |
| Power (W) | 15 |
| Number of control sections | 3 |
| Color Rendering Index (CRI) | 65 |
| Color Mixing System | |
|---|---|
| RGBWAUV | 8 bit |
| Dimming | |
|---|---|
| Dimming | 8 bit |
| ZOOM | |
|---|---|
| ZOOM | Motorized (8 bit) |
| Beam angle | |
|---|---|
| Beam angle | Zmienny (15-50 ⁰) |
| Strobe - frequency | |
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
| DMX control | |
|---|---|
| Number of modes | 2 |
| Number of channels | 18-30 |
| Movement | |
|---|---|
| Range PAN | 630 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 8 bit |
| Modes of operation | |
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| User Interface | |
|---|---|
| Physical buttons | Yes |
| Color display | Yes |
| Connectors | |
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin DMX |
| DMX OUT | 3-pin DMX |
| Physical parameters | |
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |
| Fixing | Mounting hole |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing color | Black |
| Cooling | Active |
| Length [cm] | 34 |
| Width [cm] | 22 |
| Height [cm] | 44,5 |
| Weight [kg] | 8,2 |
| Contents of the package | |
|---|---|
| A kind of package | Case (F0901956) |
| Manual | Yes |

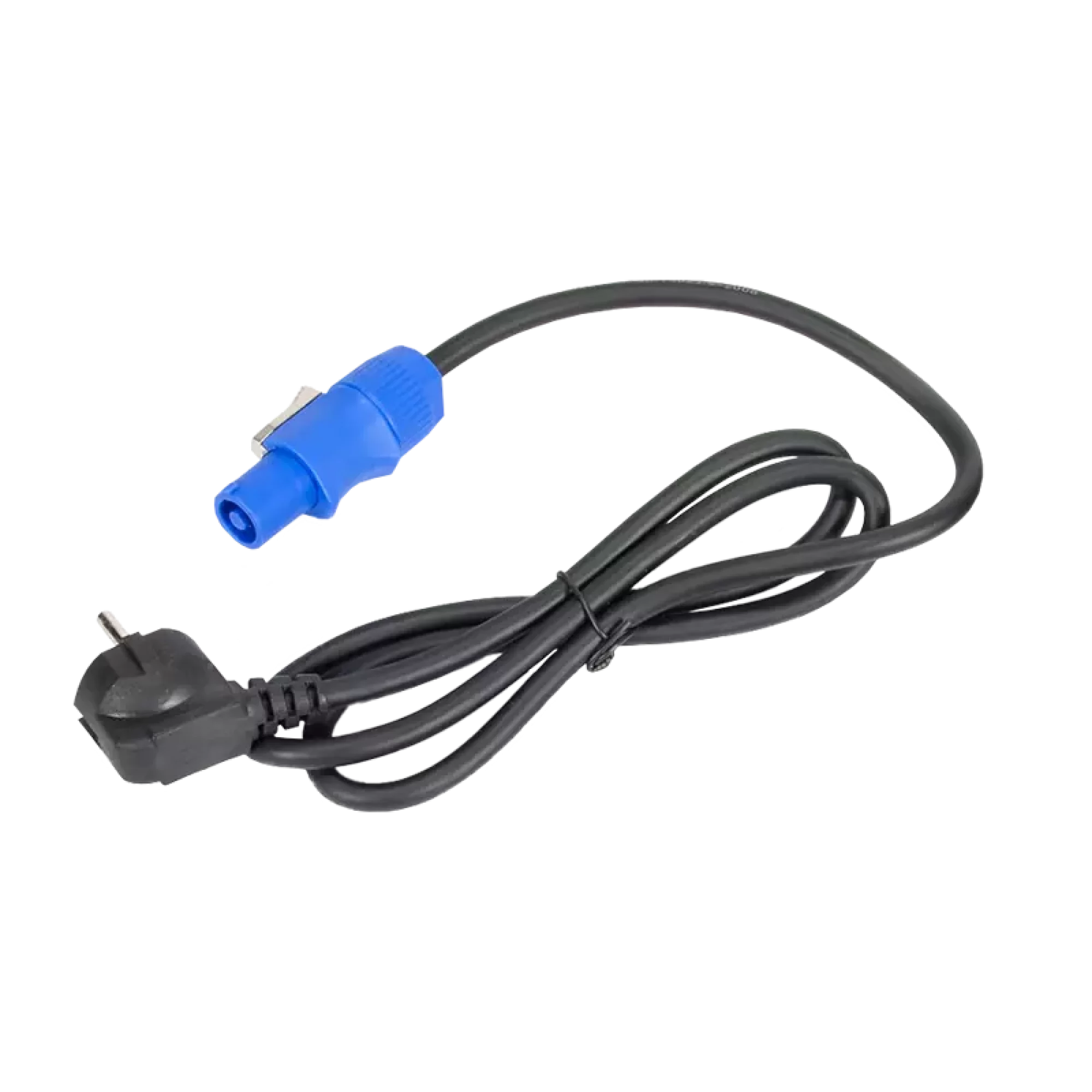

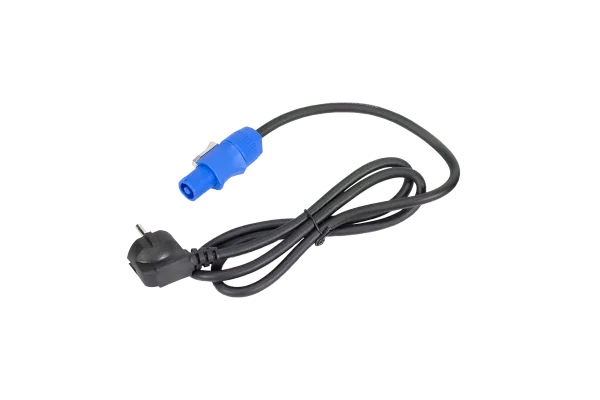

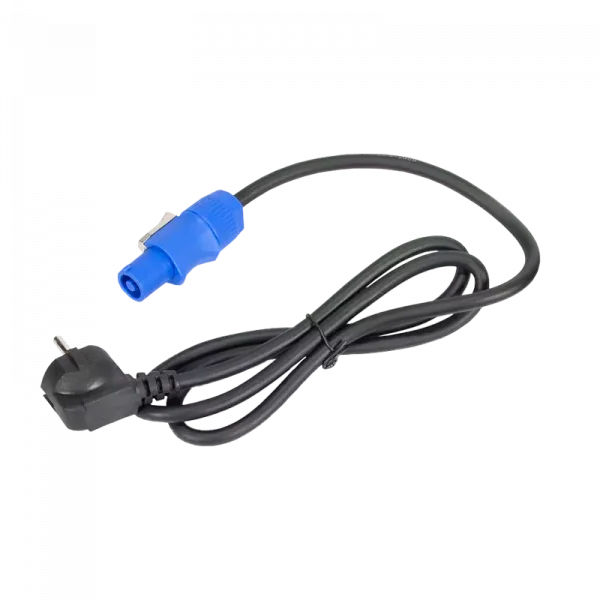

| Wiring | PowerCON |

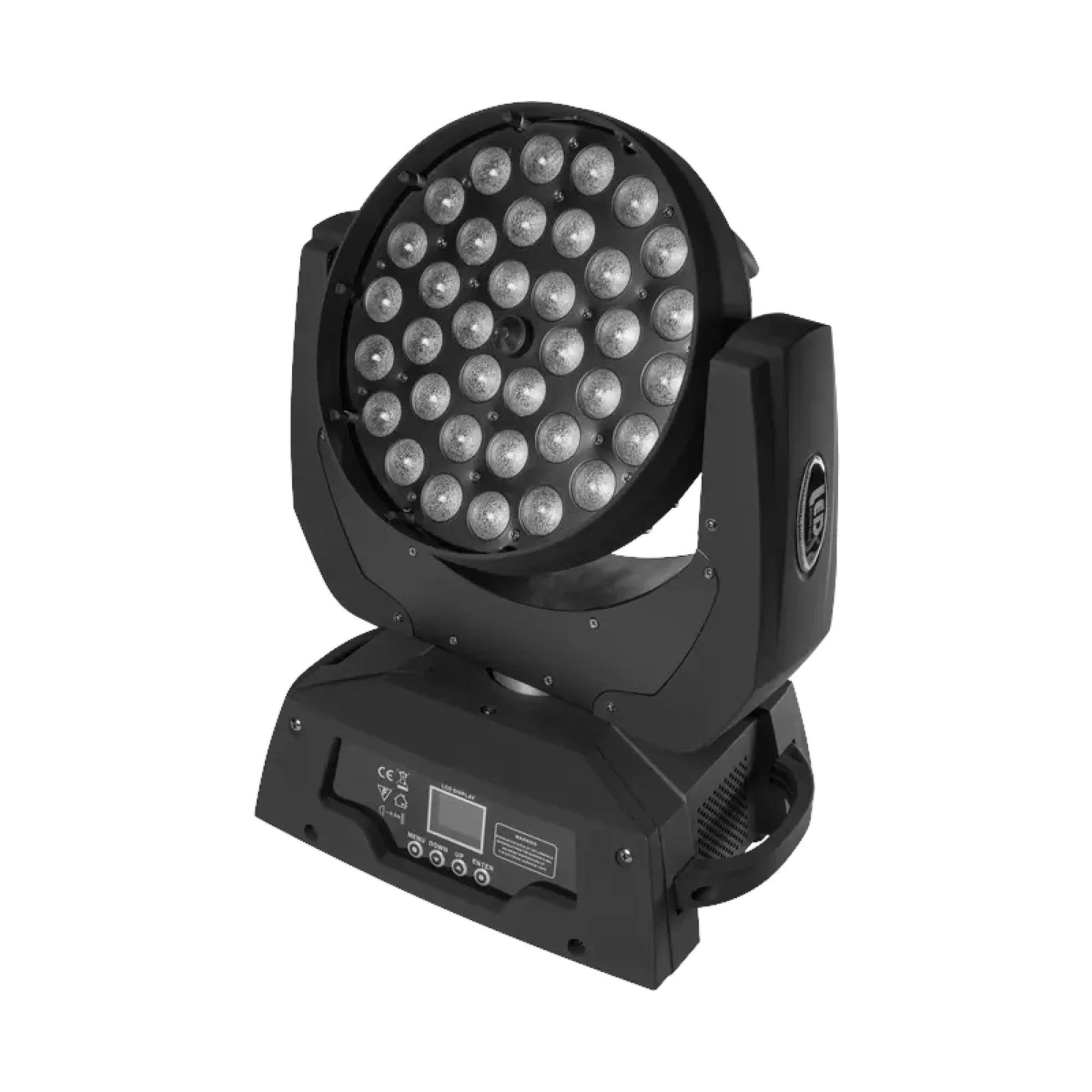

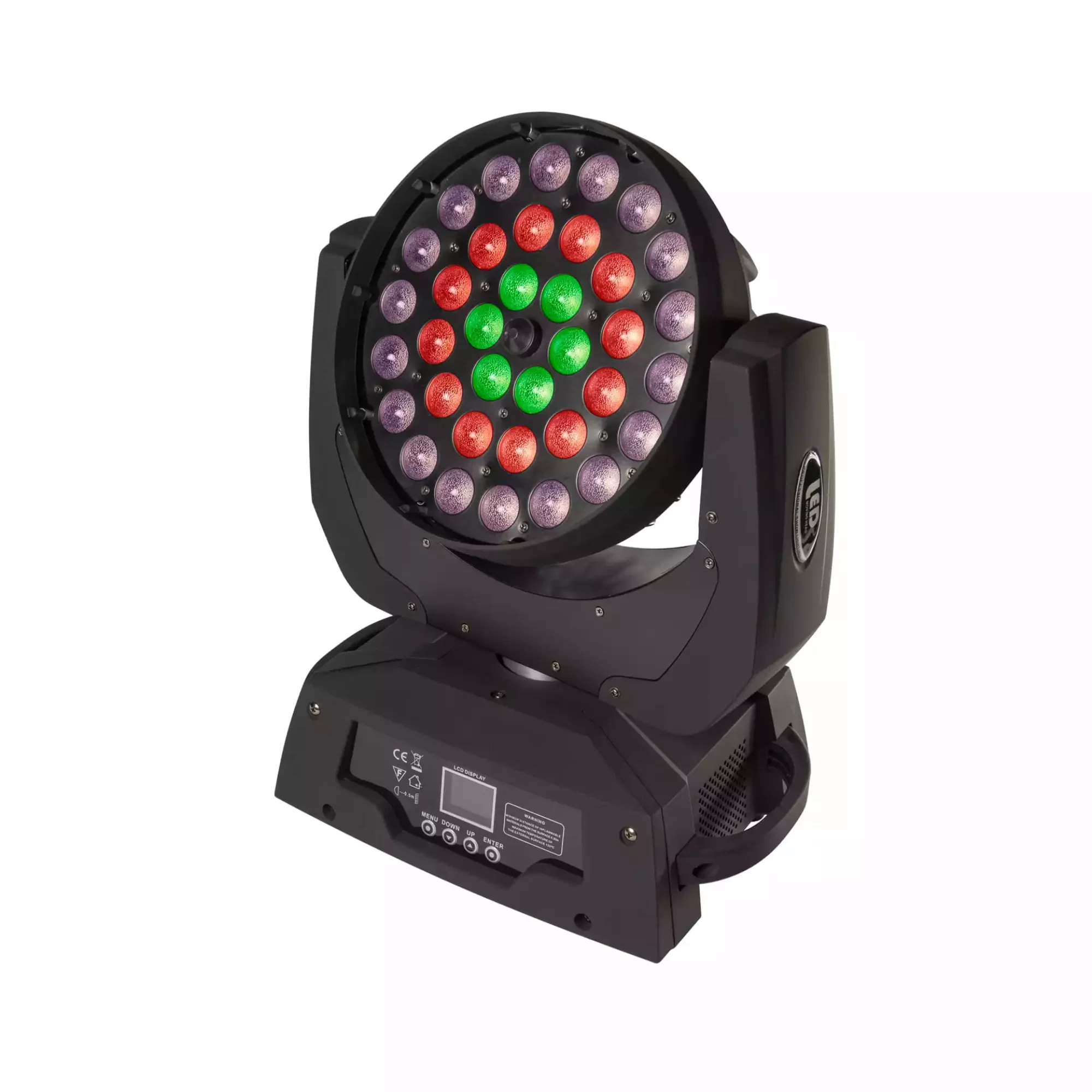

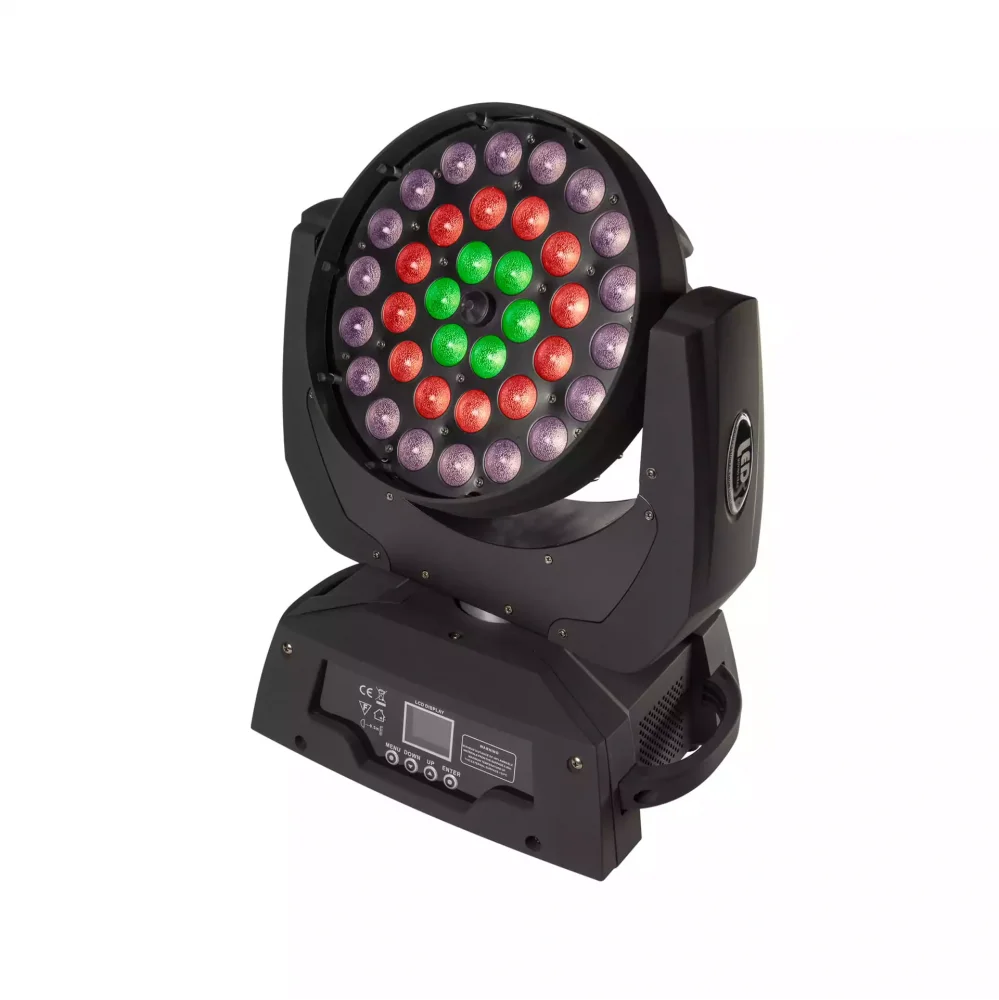

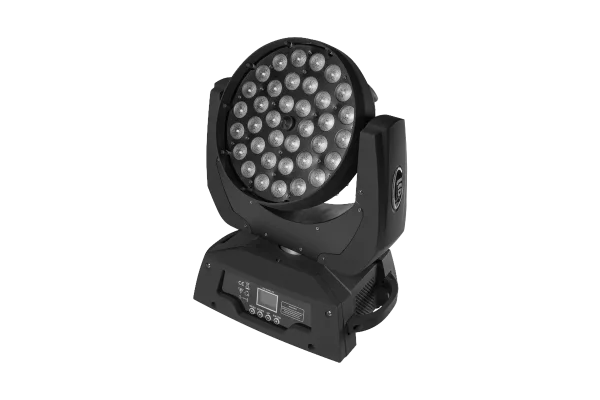

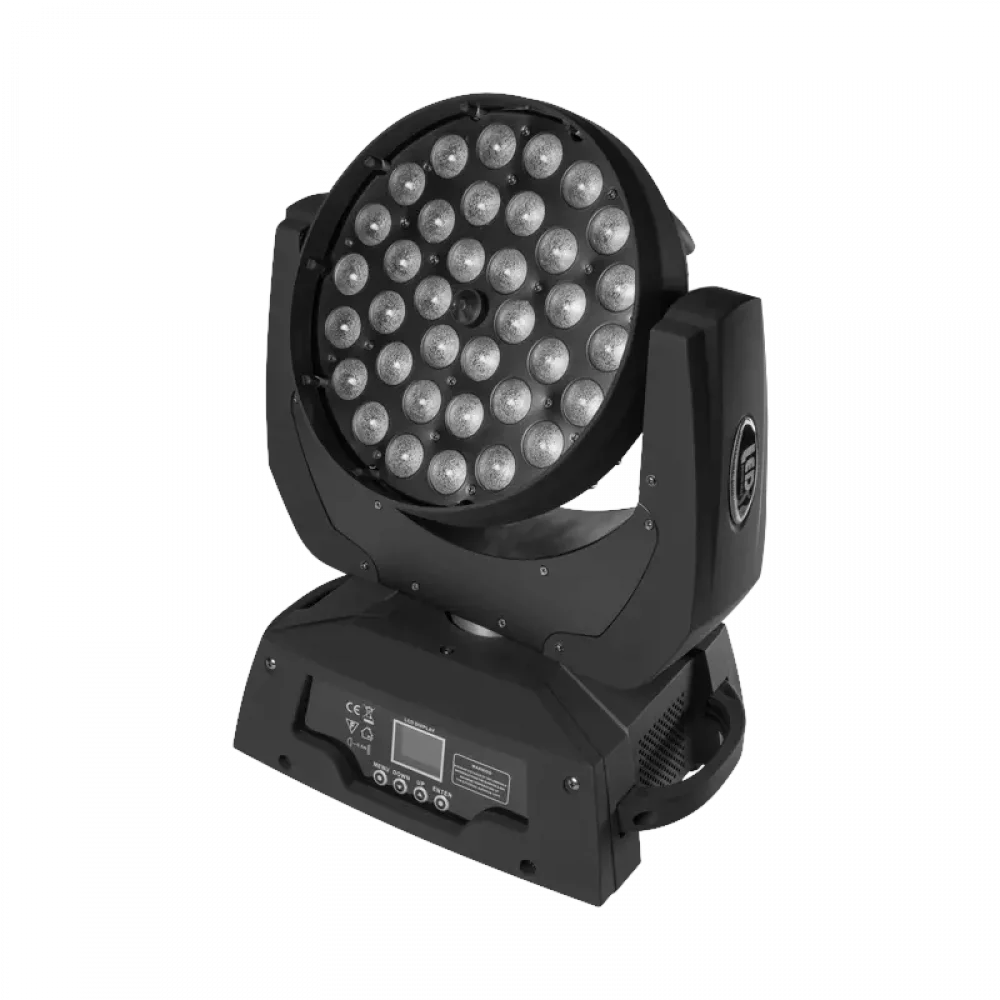

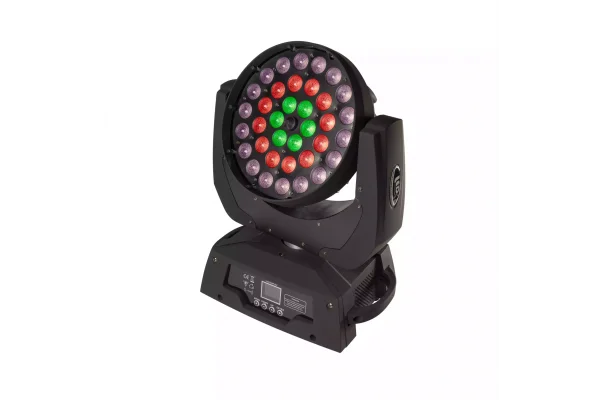

| Device | BEAM LED 3615 +AUV |
| Moving Head Tipi | BOYAMA |
