L-Acoustics K1 2x15" 3-yollu Active speaker

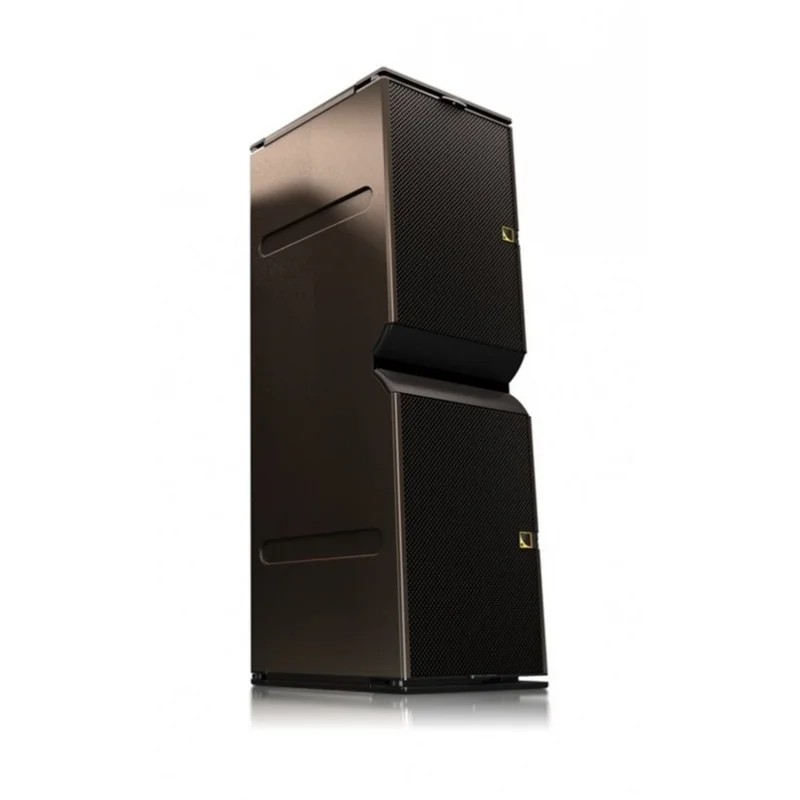

L-Acoustics K1 Line Array Speaker

• Exceptional SPL, LF and throw capability for stadium and outdoor festivals
• New K transducer configuration for smooth horizontal radiation pattern
• State of the art rigging system for laser-like accuracy and quick set-up
• Dedicated LA-RAK K touring system package
• New preset library for “out of the box” results and easy tuning

The L-ACOUSTICS® K1 system has achieved international recognition and is today the prime choice of engineers for the largest stadium tours and outdoor festivals. Its sonic performance, its fully integrated system package and its rider friendliness are considered as the industry benchmarks.
K1 combines a quad-amplified enclosure, a new K transducer arrangement and boosted resources on the HF section. The K1 enclosure is associated with a dedicated LF extension (K1-SB) to offer an unprecedented level of directivity control and throw at low/sub frequencies. K1 sets a new benchmark of coherence and tonal balance control over distance.
K2 can seamlessly be operated with K1 for downfills,  complementary fills and delays. All K standard systems are driven by the LA-RAK universal electronic and signal distribution platform.

WST® Technology - Variable Curvature
L-ACOUSTICS^® pioneered the field of modern line source array as early as 1993 with the introduction of Wavefront Sculpture Technology on the legendary V-DOSC^® system.
Based on physical rules developed by Heil and Urban (AES 1992) the WST^® theory defines five criteria for design and use of true line source arrays.
At the heart of Wavefront Sculpture Technology is the internationally-patented DOSC^® waveguide, which morphs the spherical wavefront of the HF driver into a cylindrical, isophasic wave.
In combination with WST^®, coplanar symmetry - the equivalent of coaxial assembly for HF, MF and LF drivers in vertical arrays - provides a coherent wavefront over the entire horizontal coverage at all frequencies. This behaves as if the sound was radiated by a single, continuous and articulated ribbon.
Any line source featuring L-ACOUSTICS^® elements respects the coplanar symmetry and all WST^®criteria on the entire sonic spectrum. This allows an exceptionally coherent sonic signature in very long throw applications, beyond the limits of other systems.  L-ACOUSTICS^® has been designing reference line array systems for more than 15 years.

Variable curvature, modular (KIVA and KARA) Modular line sources offer tremendous flexibility for both the installation market and rental applications. Both KIVA and KARA® systems are designed to combine a compact, high performance and lightweight enclosure with a dedicated companion LF extension (KILO, SB15m, SB18) delivering the necessary LF resources when a reinforced contour is desired.

Variable curvature, large format (KUDO, V-DOSC, K2 and K1) These systems are particularly suited to large format installations and touring applications for which a reinforced LF contour is desirable. The touring systems rely on the Rental Network K platform featuring the LA-RAK plug-and-play amplification, signal processing and signal distribution rack. The amplified controllers and Network Manager deliver a “right out of the box” contour adjustable with Array Morphing to obtain an homogeneous signature in complex system configurations.
