PHASE OUT
direct replacement / successor: NAC3F-TRUE1-L

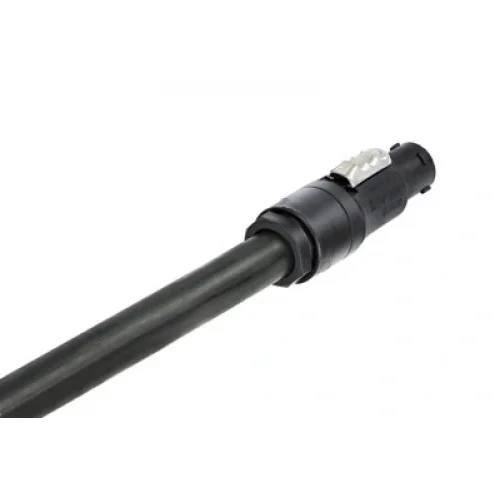

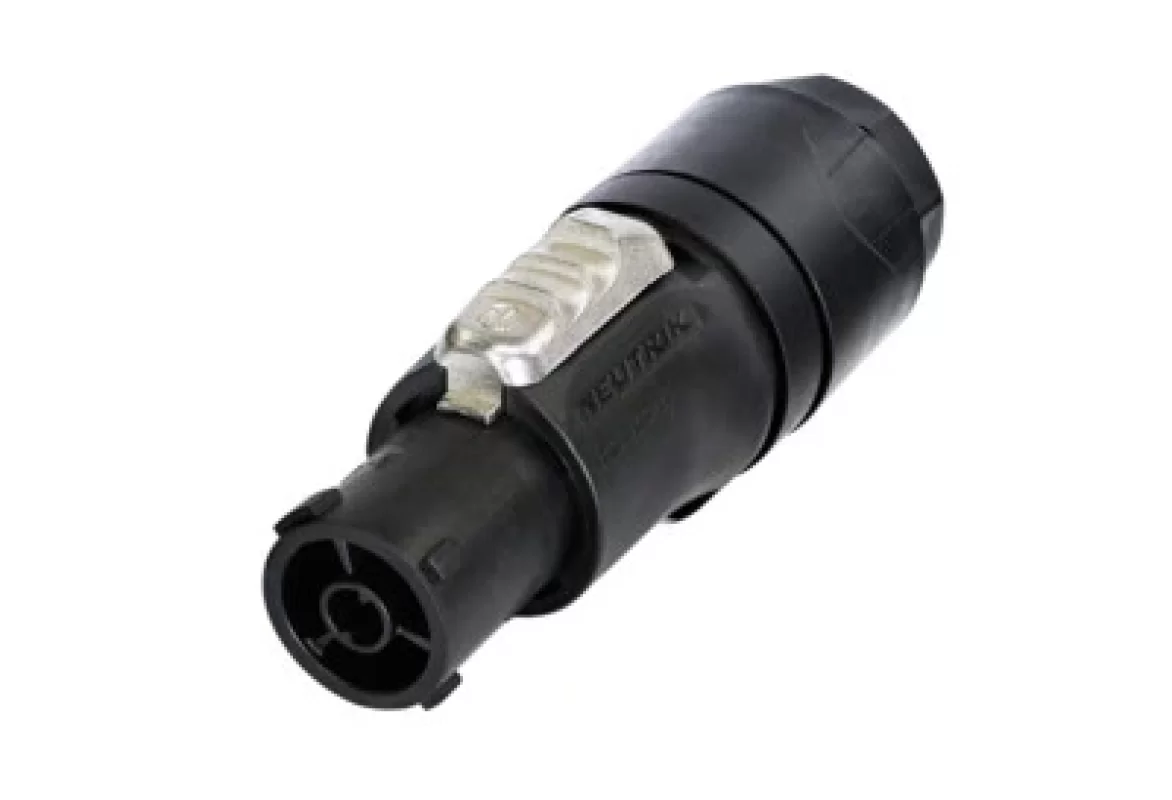

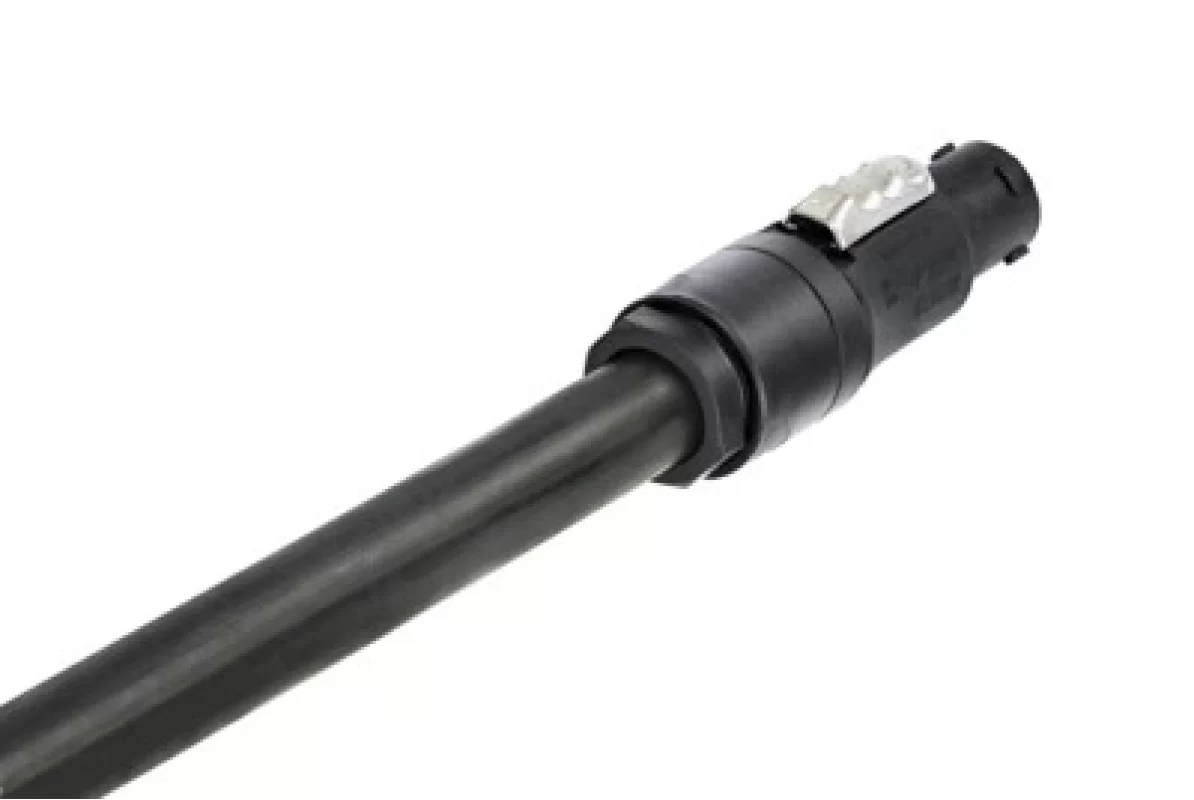

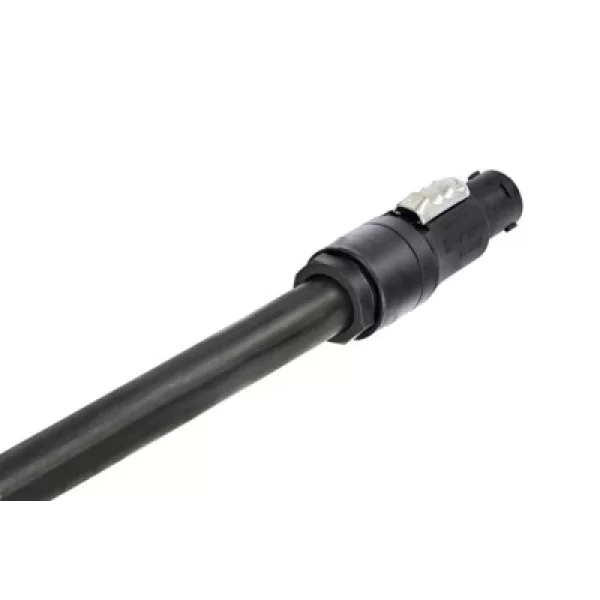

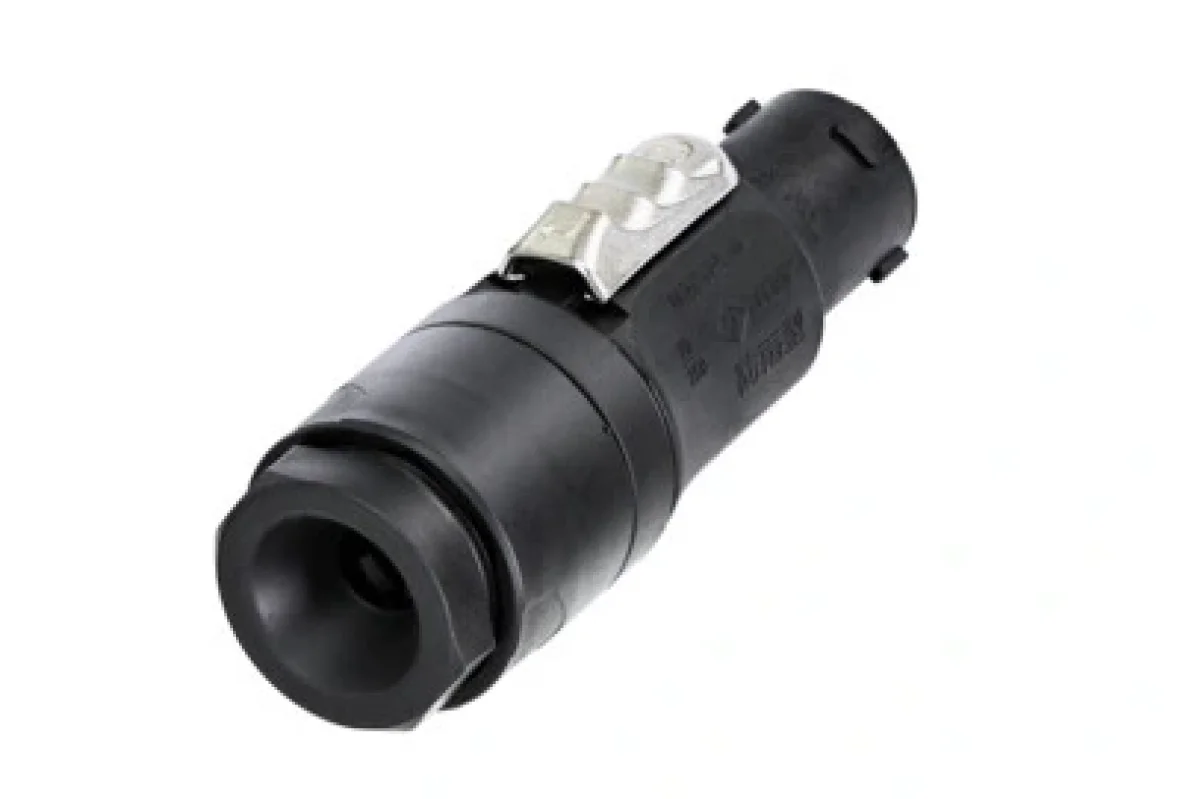

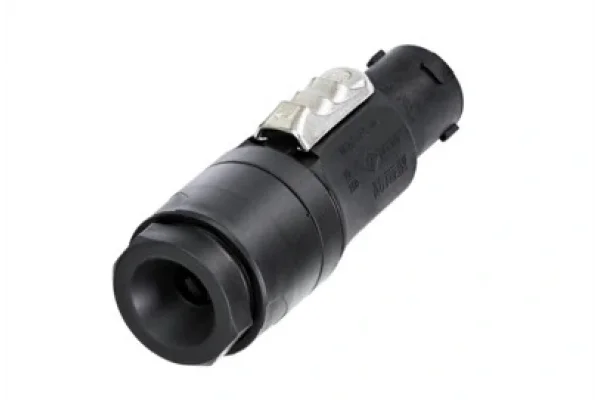

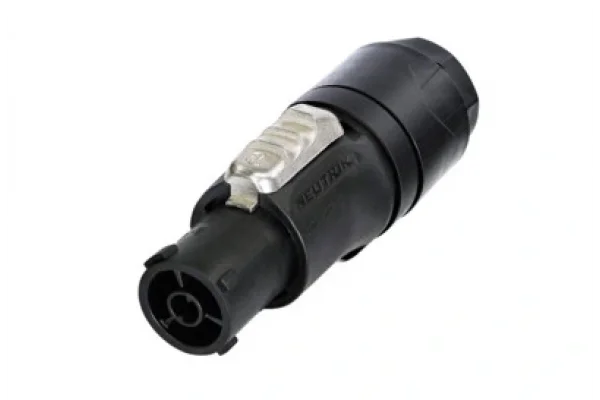

Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.
Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.
Features & Benefits
- IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
- Heavy duty sealed power connector for harsh and demanding environment
- IP65 rating and approved for outdoor protection
- Uses high impact UV-resistant materials
- Extremely robust and reliable cable retention
- TOP True Outdoor Protection
- Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
- Superior NEUTRIK quality standard
Technical Information
| Product |
|---|
| Title | NAC3FX-W-TOP-L |
| Connector series | powerCON TRUE1 TOP |
| Electrical |
|---|
| Dieletric strength | 2.8 kVac |
| Insulation resistance | > 0.1 GΩ |
| Number of electronical contacts | 2 + PE |
| Rating Europe | IEC EN 60320-1: 16 A 250 V AC |
| | Certified with cable types: H07RN-F3G2.5 |
| Rating USA | UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC |
| | Certified with cable types: |
| | - SOOW 12/3, SOOW 14/3 |
| | - SJOOW 12/3 |
| Mechanical |
|---|
| Cable O.D. | 10 – 16 mm (0.39 – 0.63 inches) |
| Lifetime | Typically 5’000 mating cycles |
| Wire size (mm²) | 2.5 mm² |
| Wire size (AWG) | 14 – 12 AWG |
| Material |
|---|
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental |
|---|
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Temperature range | -30 °C to +80 °C |
