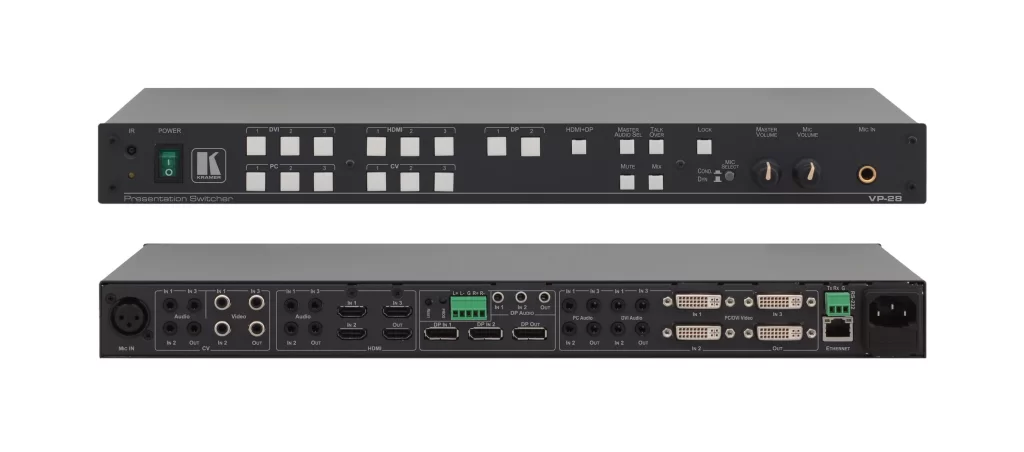

The VP−28 is a high−performance multi−format presentation switcher for composite video, HDMI, DVI, DisplayPort, computer graphics video and stereo audio and micrphone signals. The unit operates as a a 3x1 composite video, 3x1 HDMI, 3x1 computer graphics video, 3x1 DVI−I, & 2x1 DisplayPort switcher, each with unbalanced stereo audio.
Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel) (HDMI & DVI).
HDTV Compatible.
HDCP Compliant.
Audio Level Memory - Remembers and returns to the last audio level setting during switching.
Condenser or Dynamic Microphone - Button selectable.
Microphone & Audio Mixing - Input selectable master audio output.
Mic Talkover - Mutes master audio output when mic signal is sensed.
Level Controls - Master audio output, microphone input.
Flexible Control Options - Front panel, RS−232, Ethernet & IR (included).
Front Panel Control Lockout.
Worldwide Power Supply - 100−240V AC.
Accessory - DVI to DVI and VGA breakout cable (included).
Standard 19” Rack Mount Size - 1U. Rack “ears” included.
