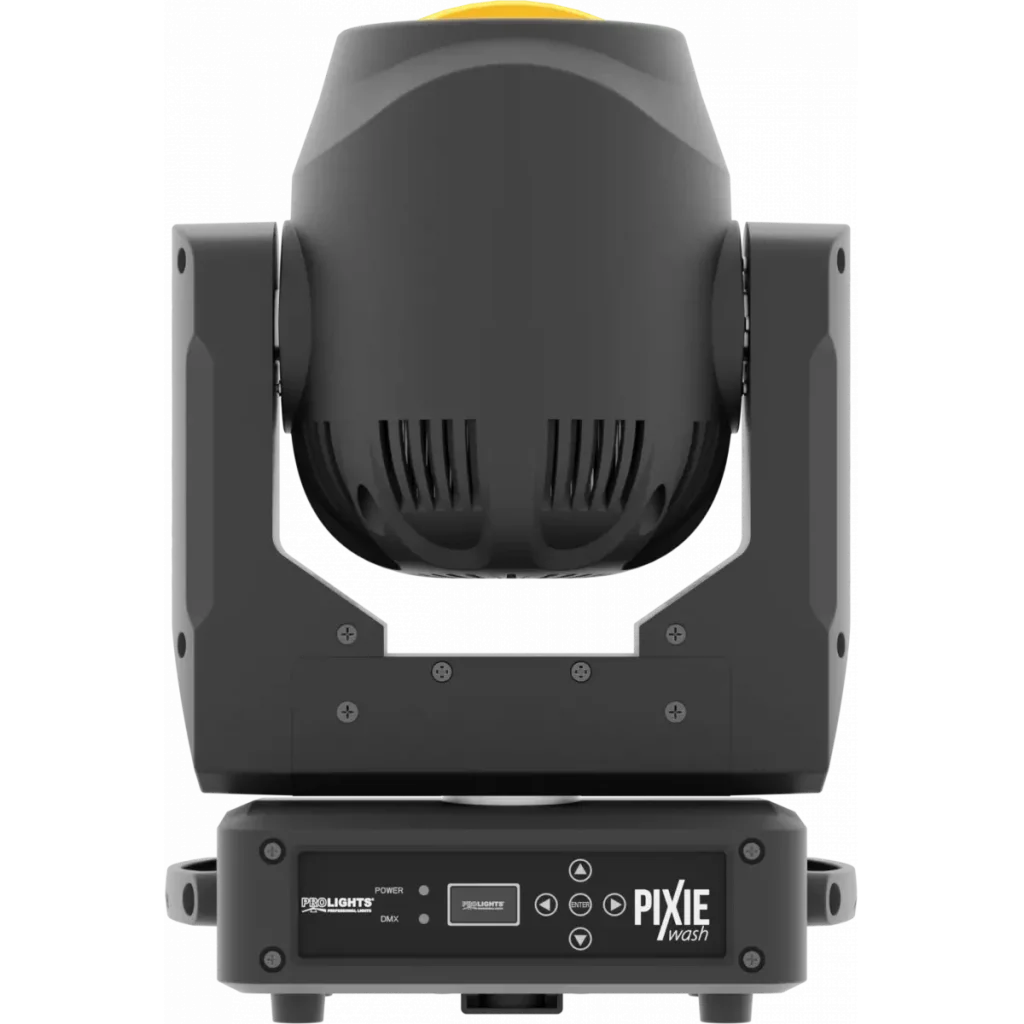

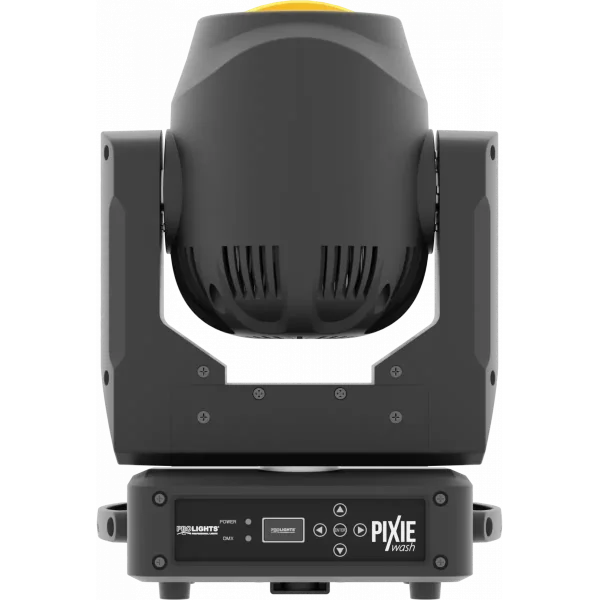

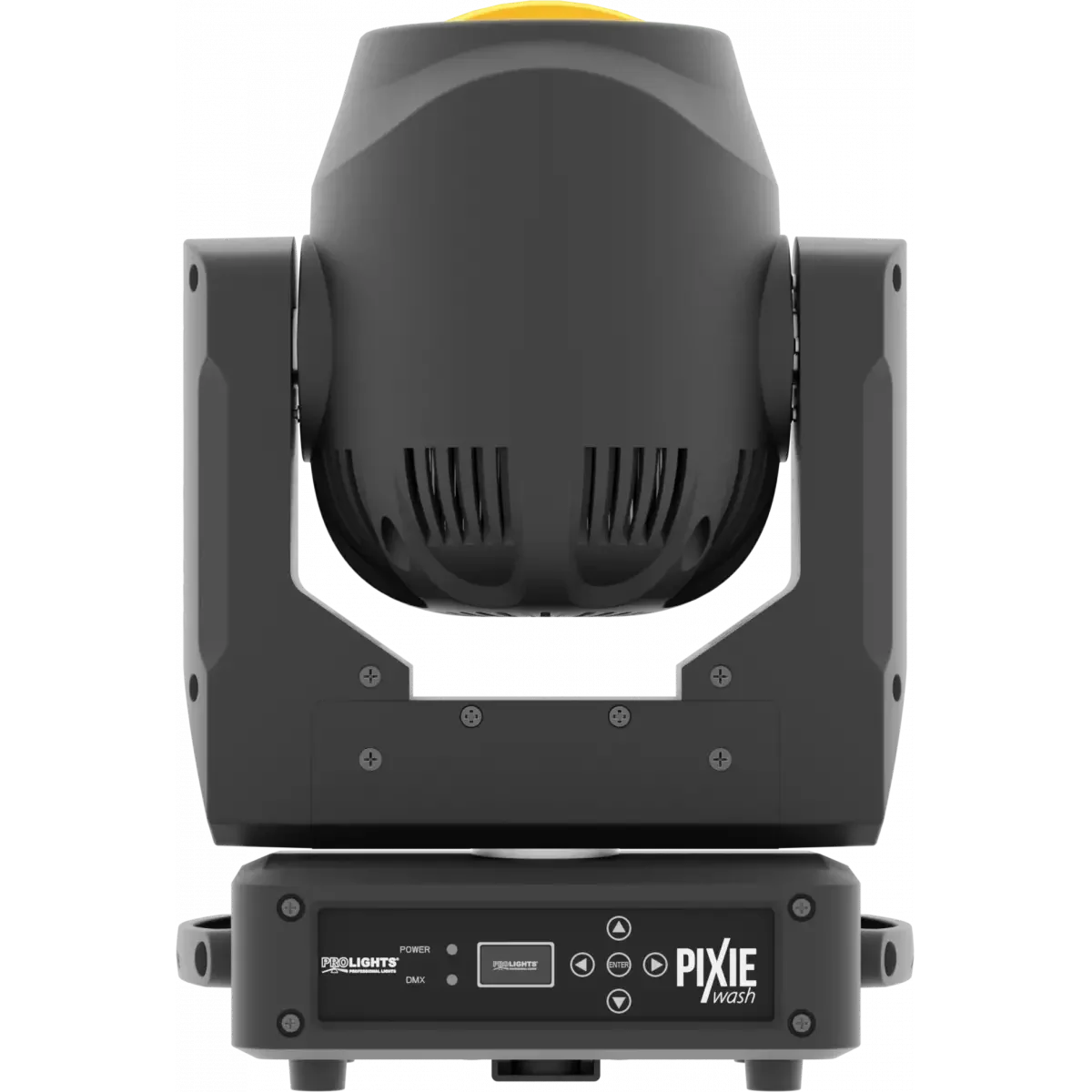

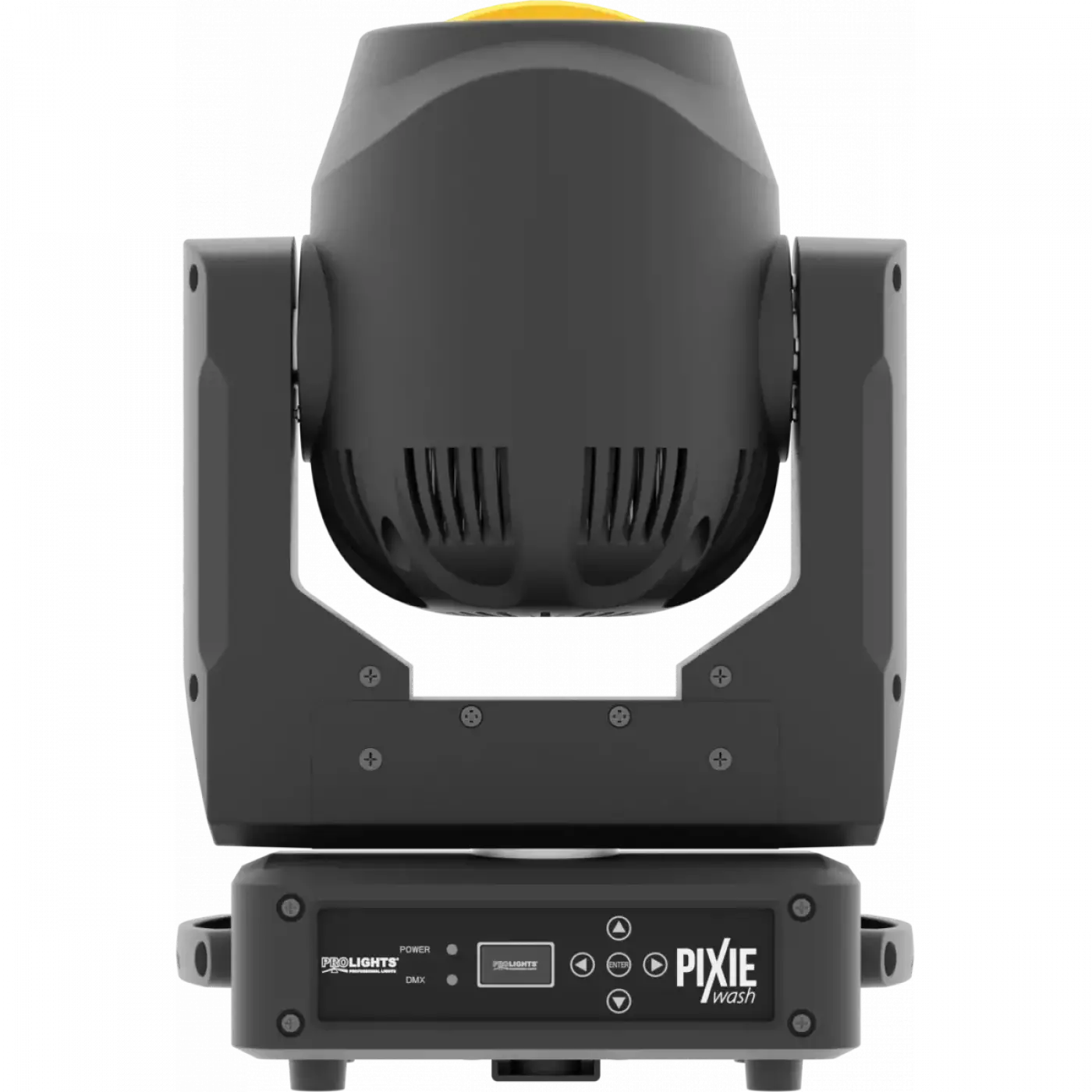

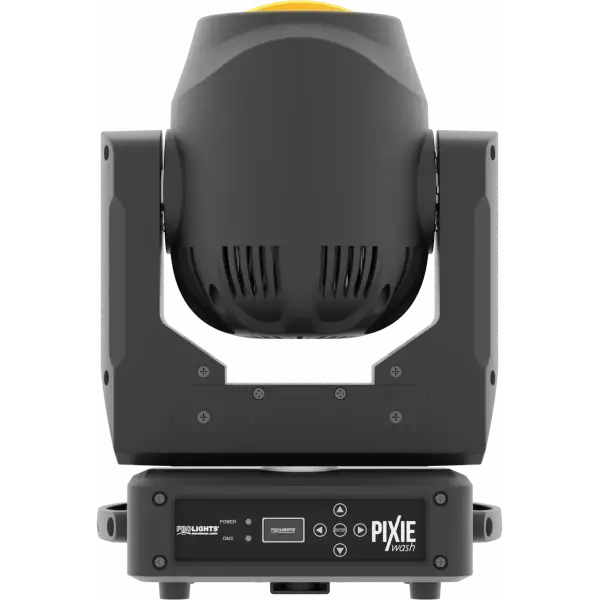

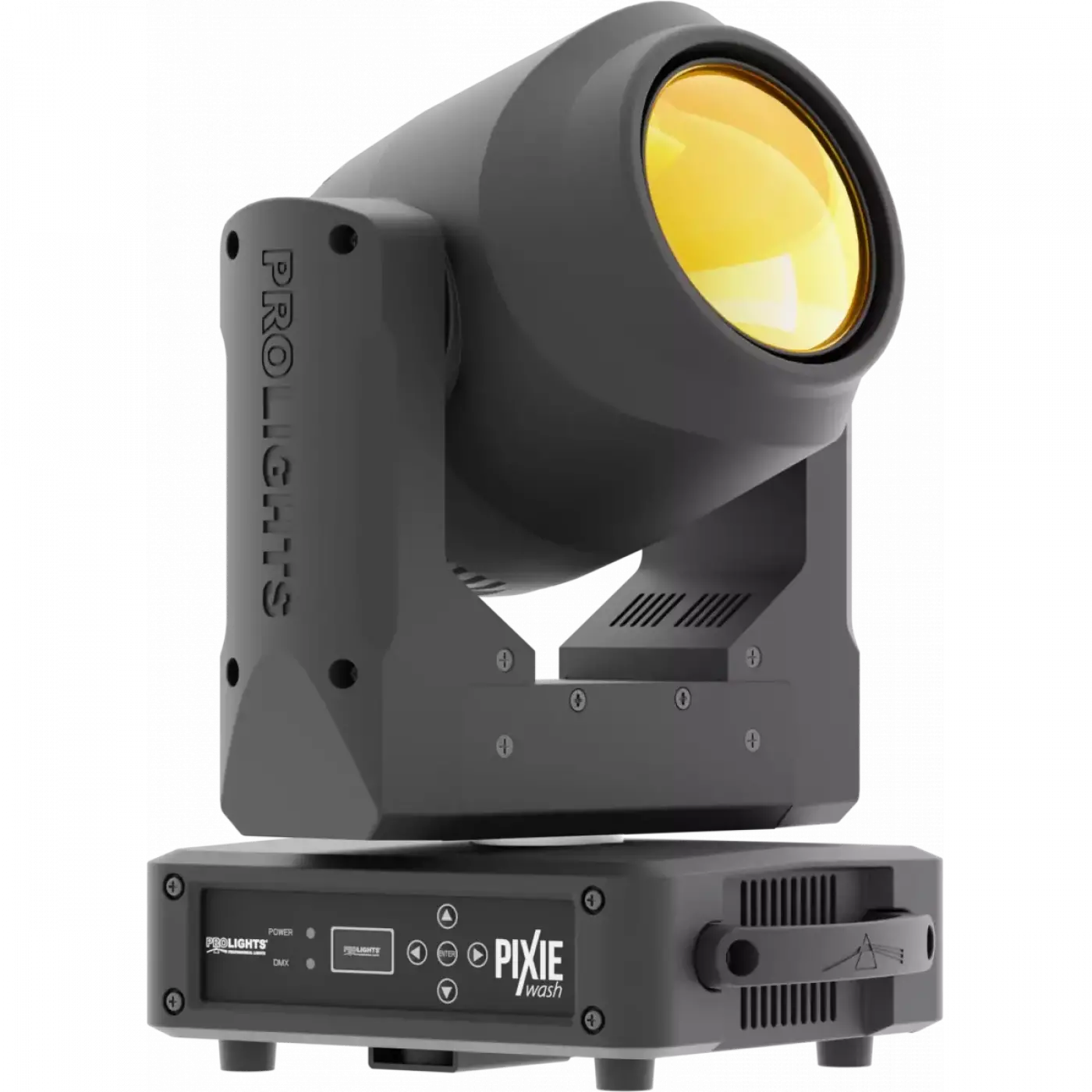

Prolights Pixie Wash LED wash, 60W RGBW Osram Ostar LED (PIXIEWASHBK)

Prolights Pixie; Single 60W Osram Ostar RGBW LED with extensive colour range, Massive 7° to 40° linear zoom with a smooth, even beam , HD dimming is wash spot

Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

LIGHT SOURCE

• Source: 60W RGBW Osram Ostar LED
• Luminous flux: (7°) 1'432 lm - (40°) 1'311 @Full
• Lux: (7°) 3'808 lx - (40°) 296lx @5 m full
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 7° - 40° motorised linear zoom
• Lens diameter: 100mm / 3.94''
• Lens type: high-quality glass lens optics

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K ~ 8.000K
• Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

• Auto mode: built-in programs with execution speed adjustment

CONTROL

• Supported Protocols: DMX512
• DMX channels: 13 / 16ch
• Display: Graphic User Interface
• Master/Slave: for synchronised operation of more units linked in a chain

MOVEMENT

• Pan: 540° - 16-bit resolution
• Tilt: 270° - 16-bit resolution
• Position feedback: automatic repositioning after external movement

ELECTRONICS

• Dimmer: linear 0 - 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: included, self-charging battery backup
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)

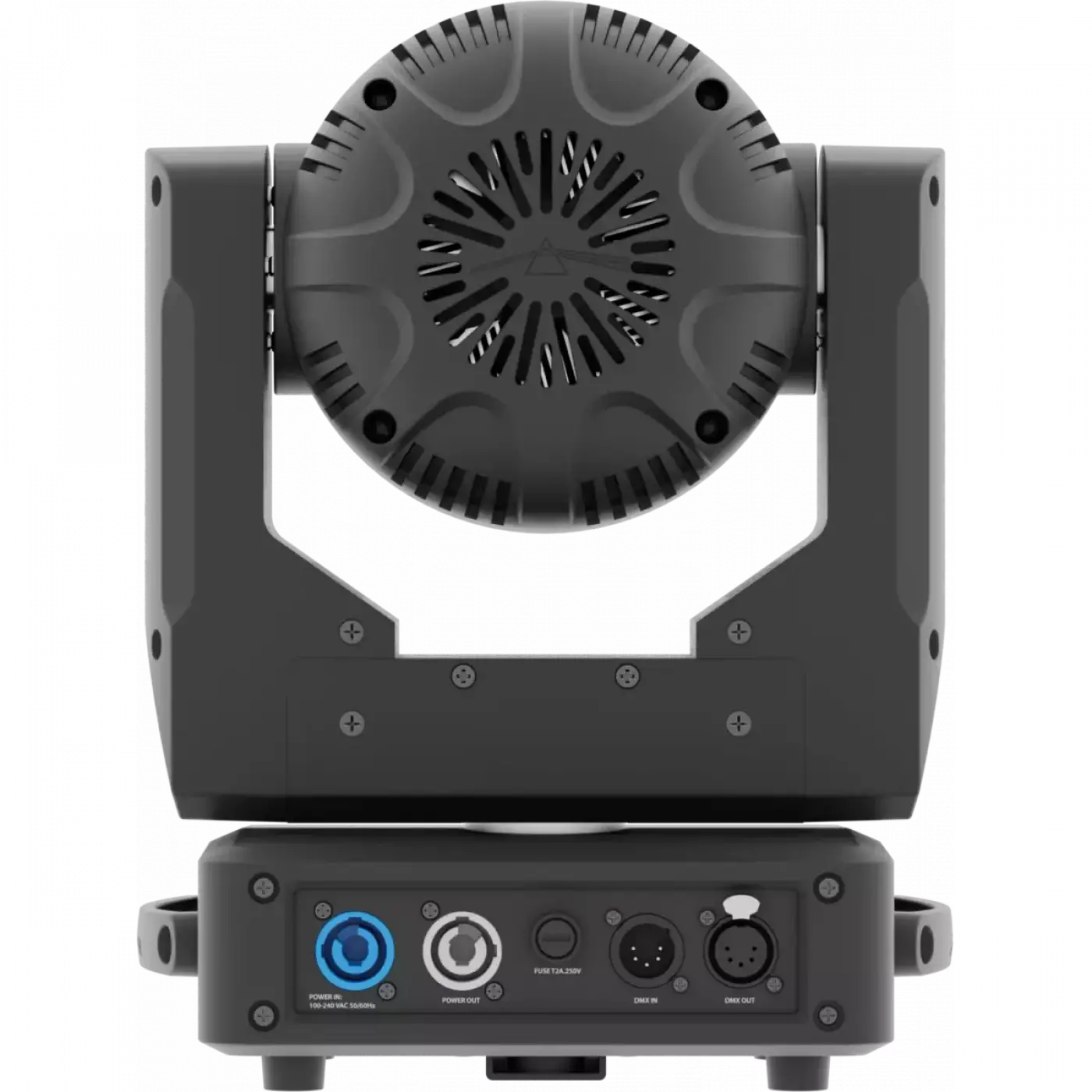

CONNECTIONS

• Power connection: Neutrik powerCON IN/OUT connectors
• Signal connection: XLR 5p IN/OUT connectors

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption (230V): 112W
• Output (at 230V): 18 units on a single power line

PHYSICAL

• IP rating: IP20
• Cooling: forced-air with low-noise fan
• Housing: Aluminium structure with high-resistance polycarbonate cover
• Finish: black or white finishing
• Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
• Dimensions (WxHxD): 253x329x205mm / 9.96''x12.95''x8.07''
• Weight: 7kg / 15.43lbs

INSTALLATION

• Suspension and fixing: any position with quick-lock omega brackets

CERTIFICATIONS / REPORTS

• Compliance: CE, RCM

BOX CONTENT

• 1 x PIXIEWASH
• 1 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON power connector)
• User Manual
