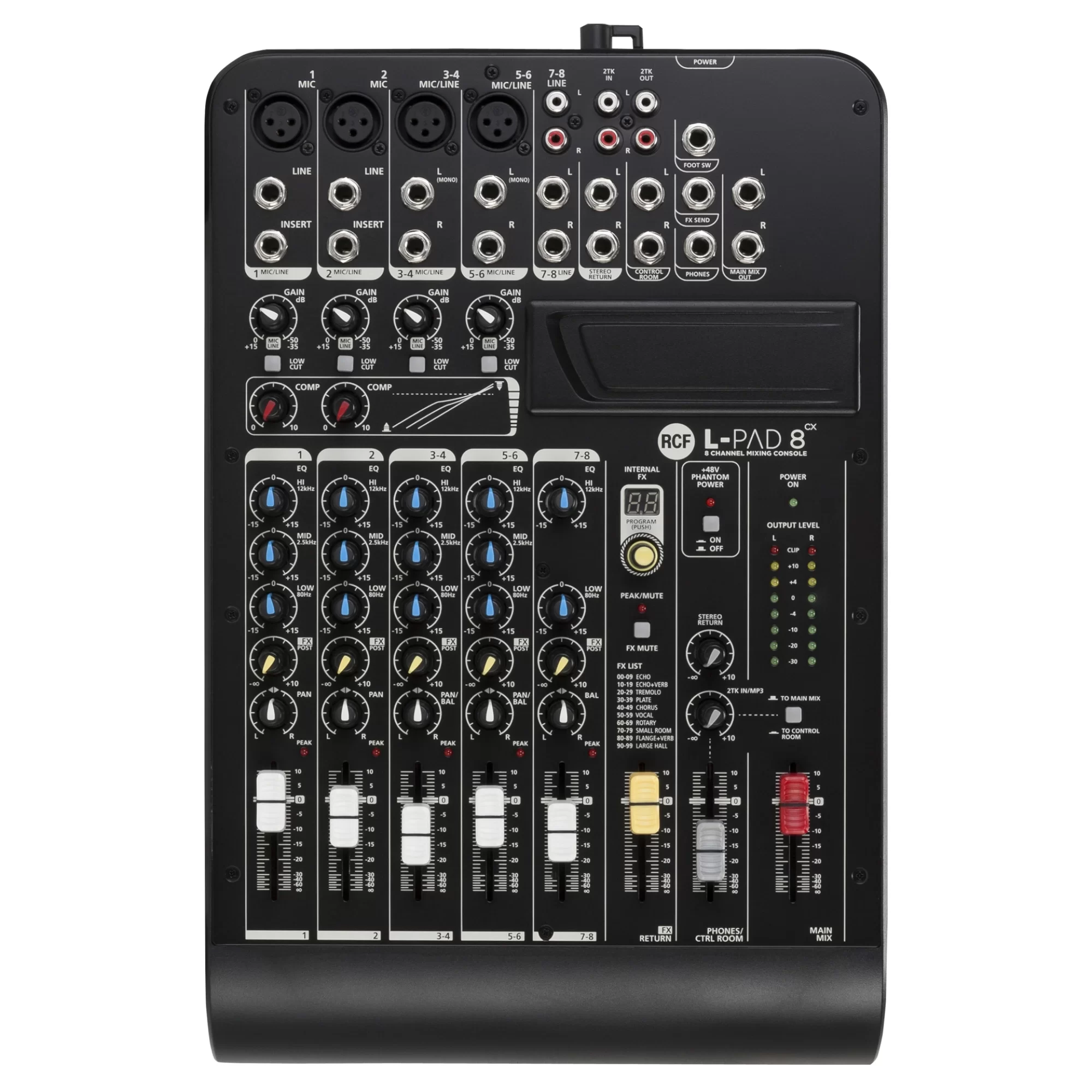

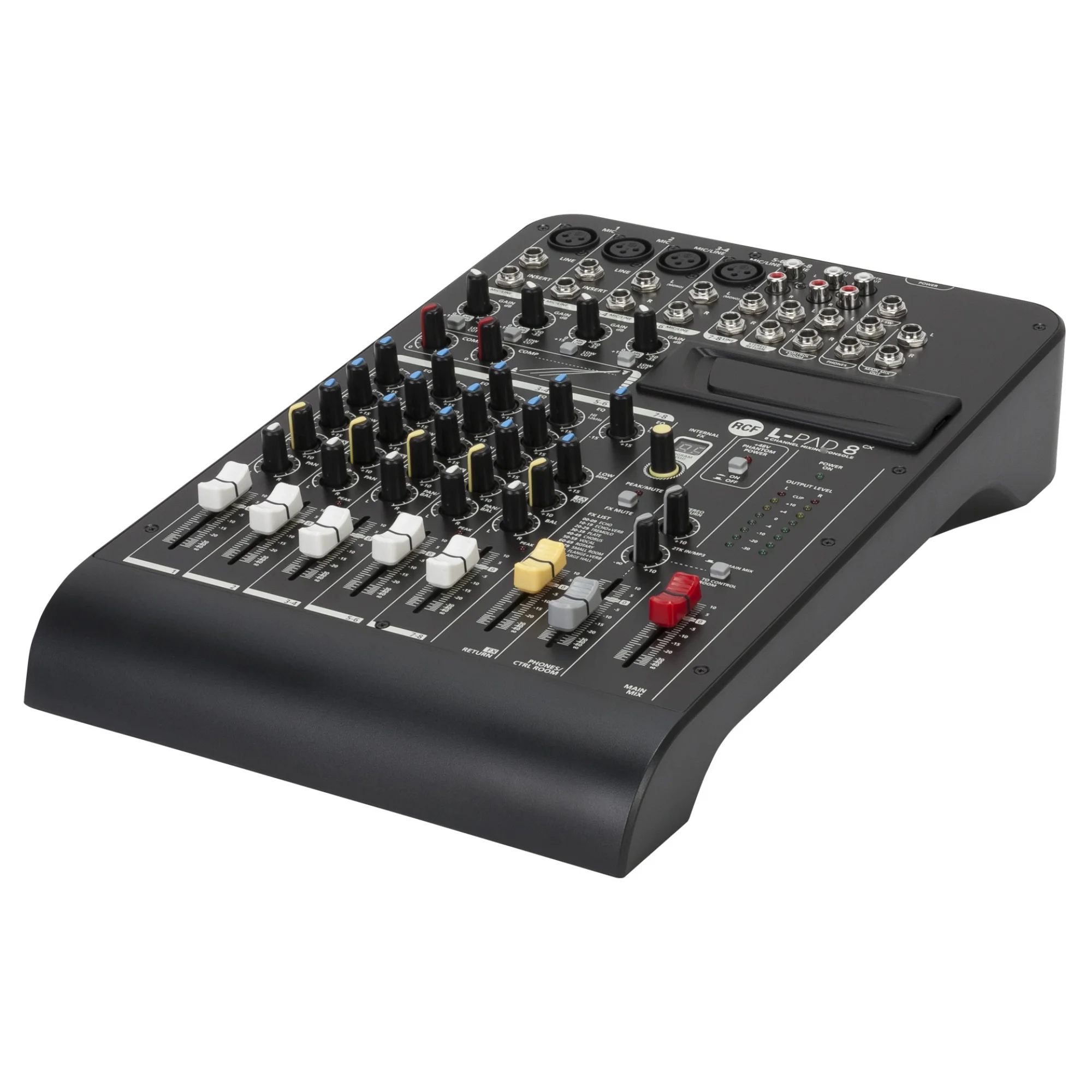

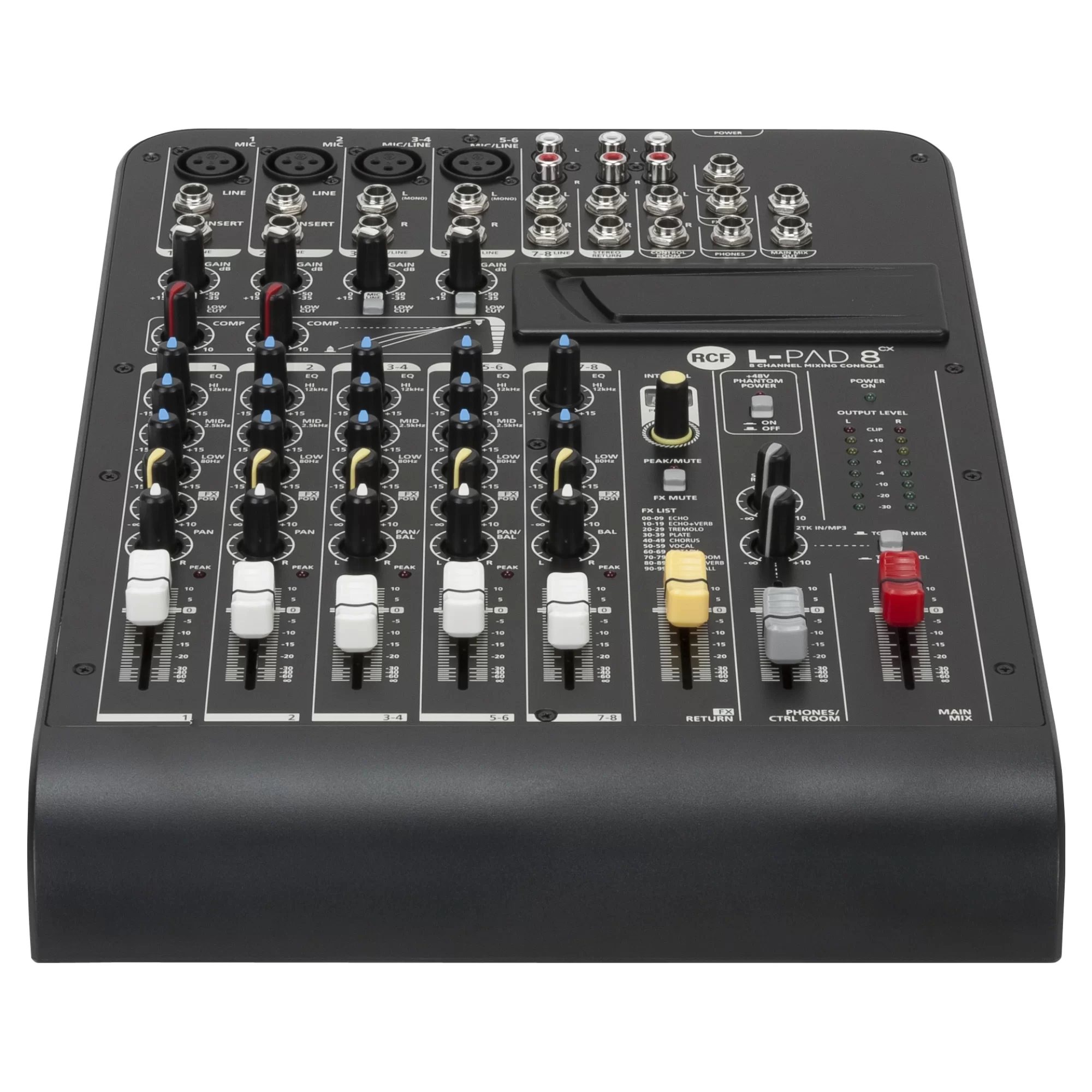

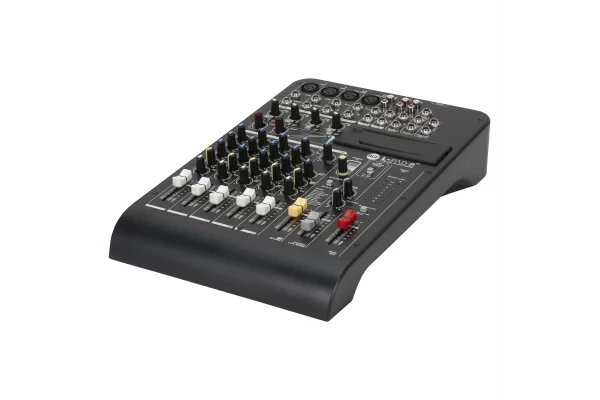

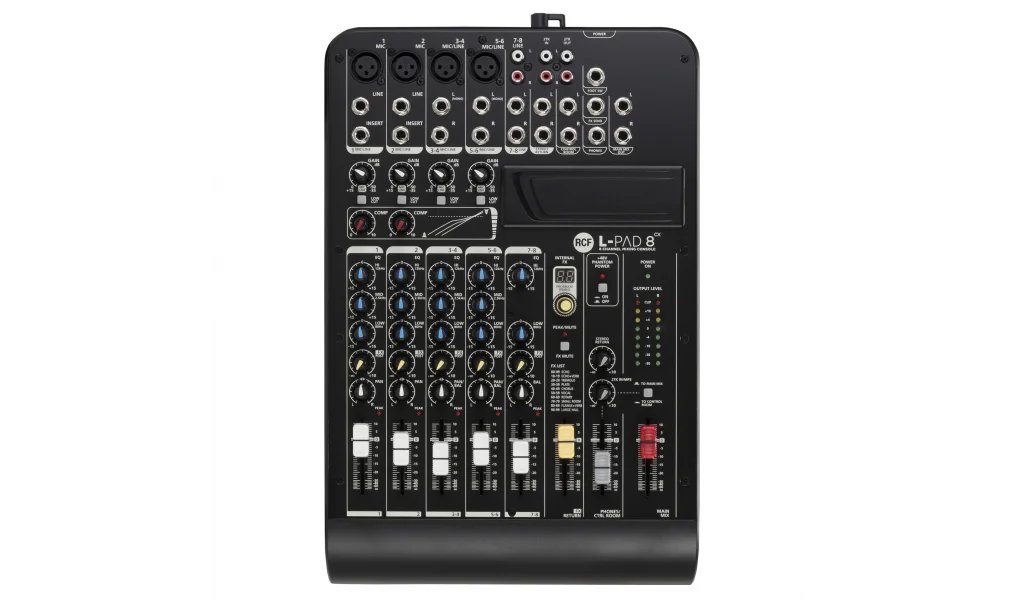

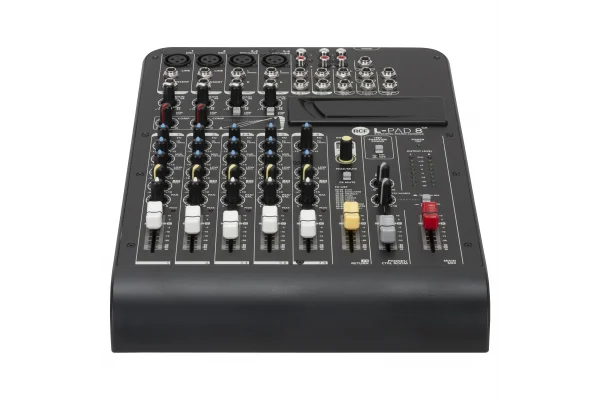

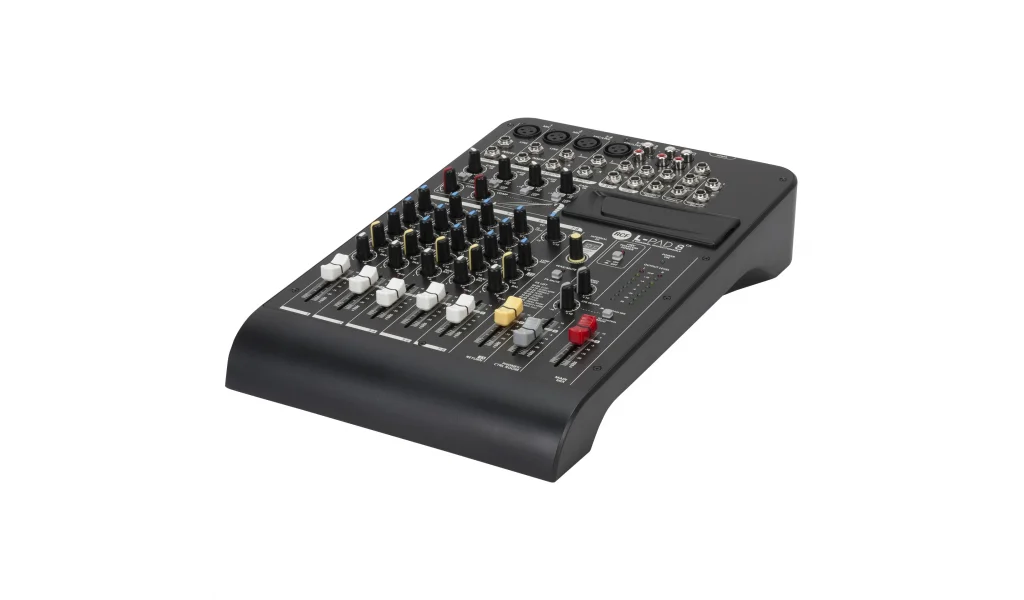

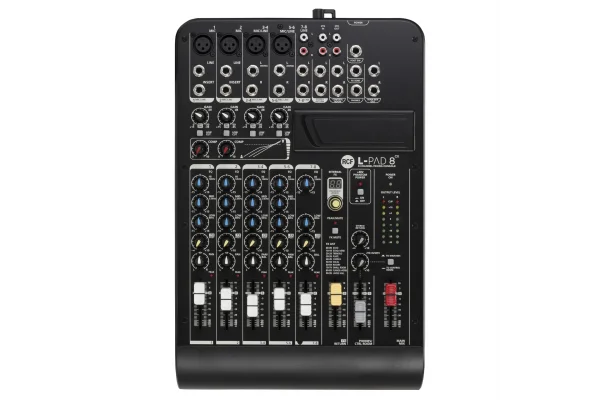

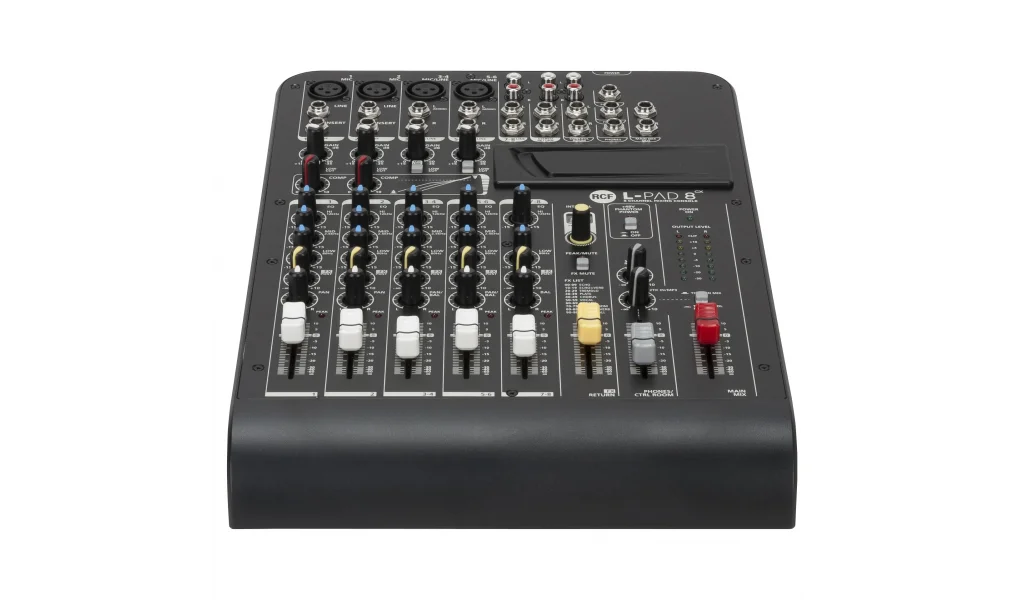

RCF L-PAD 8CX 8 Kanal Mixer

RCF L-PAD 8CX Deck Mikser - 99 DSP Efekt



With four transparent sound mic inputs, three stereo line inputs and the 2tk in/ out, L-PAD8CX is the ideal tool for duo/trio gigs, speech, background music diffusion and parties. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset Internal FX DSP allows the sound to be improved by adding accurate and warm effects. The super versatile LIVEPAD slot permits the optional L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD8CX is easy to grab, transport and handle in all the situations.



• 4 mono INPUT + 3 stereo INPUT
• 2 Compressors (Ch. 1-2)
• 3band/2band EQ
• 1 FX send
• Internal Digital Effects: 99 preset

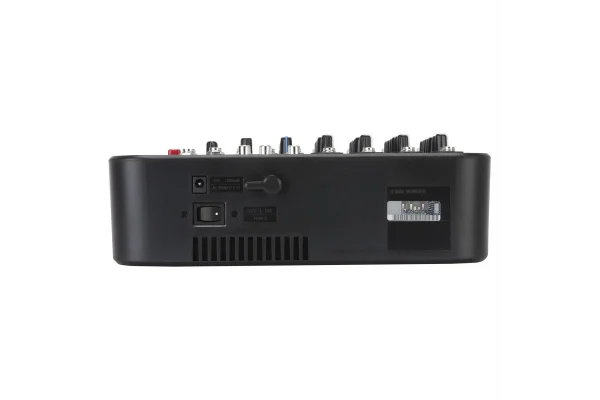

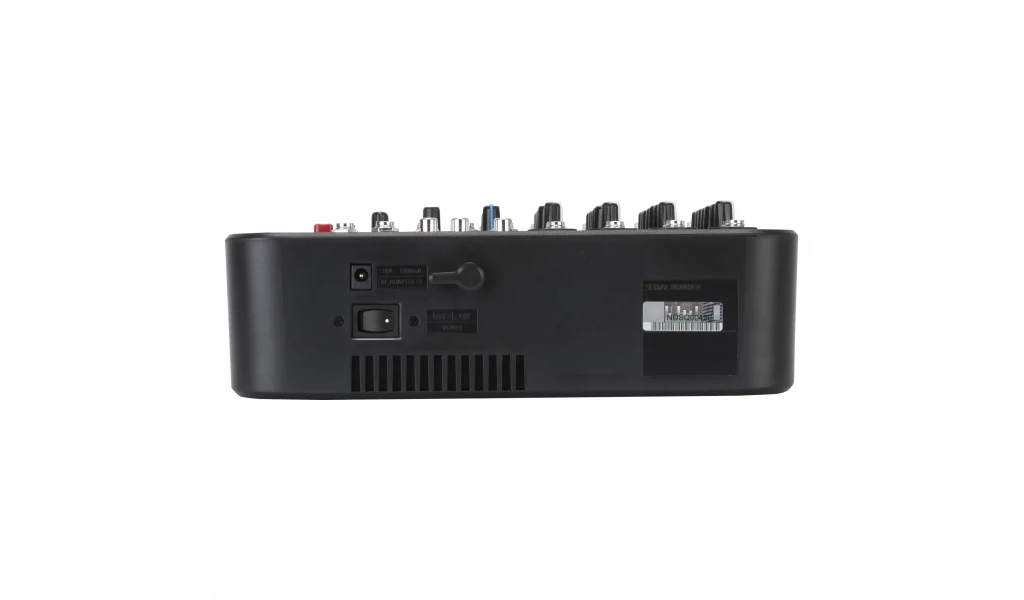

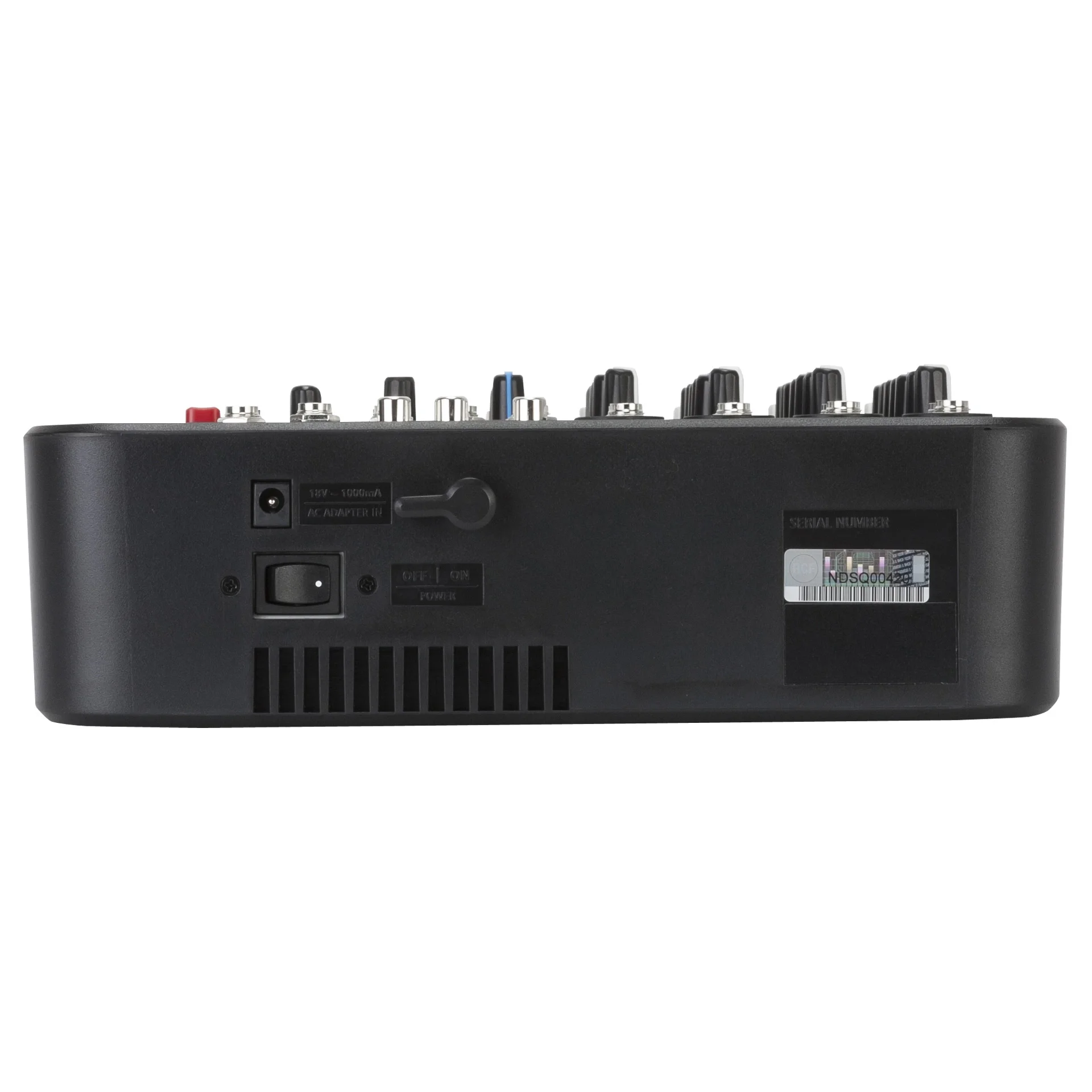

• External PSU 18V~ 1000mA



Electronic Specs.

• Frequency Response: 10Hz ÷ 55kHz
• Total Harmonic Distortion (THD+N): 0.03%%

Inputs

• Mic: 4
• Gain range: 0dB ÷ -50dB
• Low Cut: 75 HzHz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain range: 15dB ÷ -35dB
• Stereo Line: 3
• 2 Track: Yes
• Stereo Return: 1

Outputs

• Main MIX: 1
• Control Room: Yes
• FX Send: 1
• Phones: 1
• 2 Track: Yes

Compressors

• Single Control: 2

EQ

• BANDS on MONO channels: 3
•   +/-15dB @12kHz shelving, +/-15dB @2.5Hz, +/-15dB @80Hz
• BANDS on STEREO channels: 2
•   +/-15dB @12kHz shelving, +/-15dB @80Hz shelving

Auxiliary Sends

• FX: 1 POST

Internal Effects

• Height: 99

Other Features

• Optional Card Slot: Yes
• Footswitch: Yes

Electrical Specs.

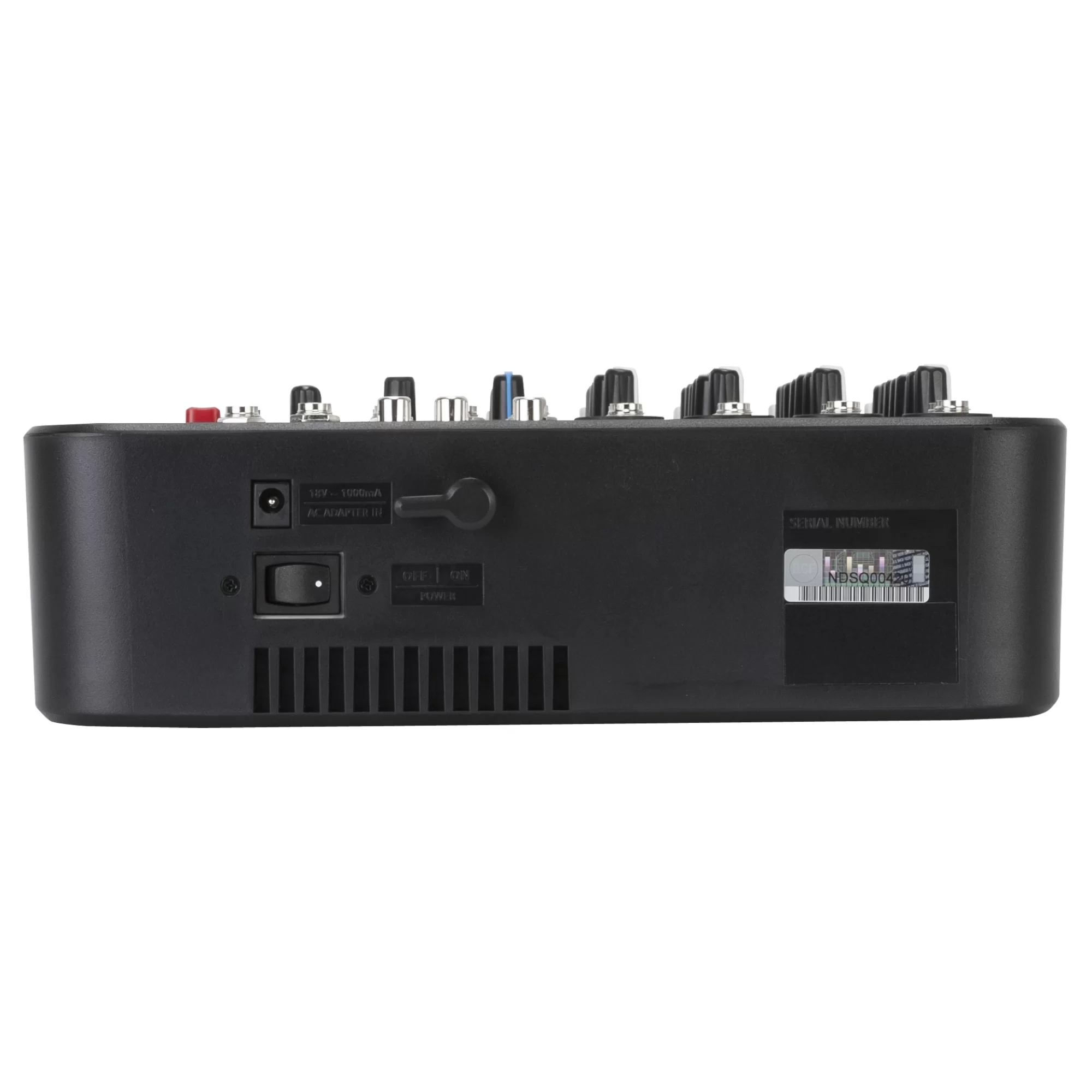

• Power supply: External
• Power requirements: 100-240V
• Power consumption: 24W

Cabinet

• Cabinet Material: ABS
• Colour: Black

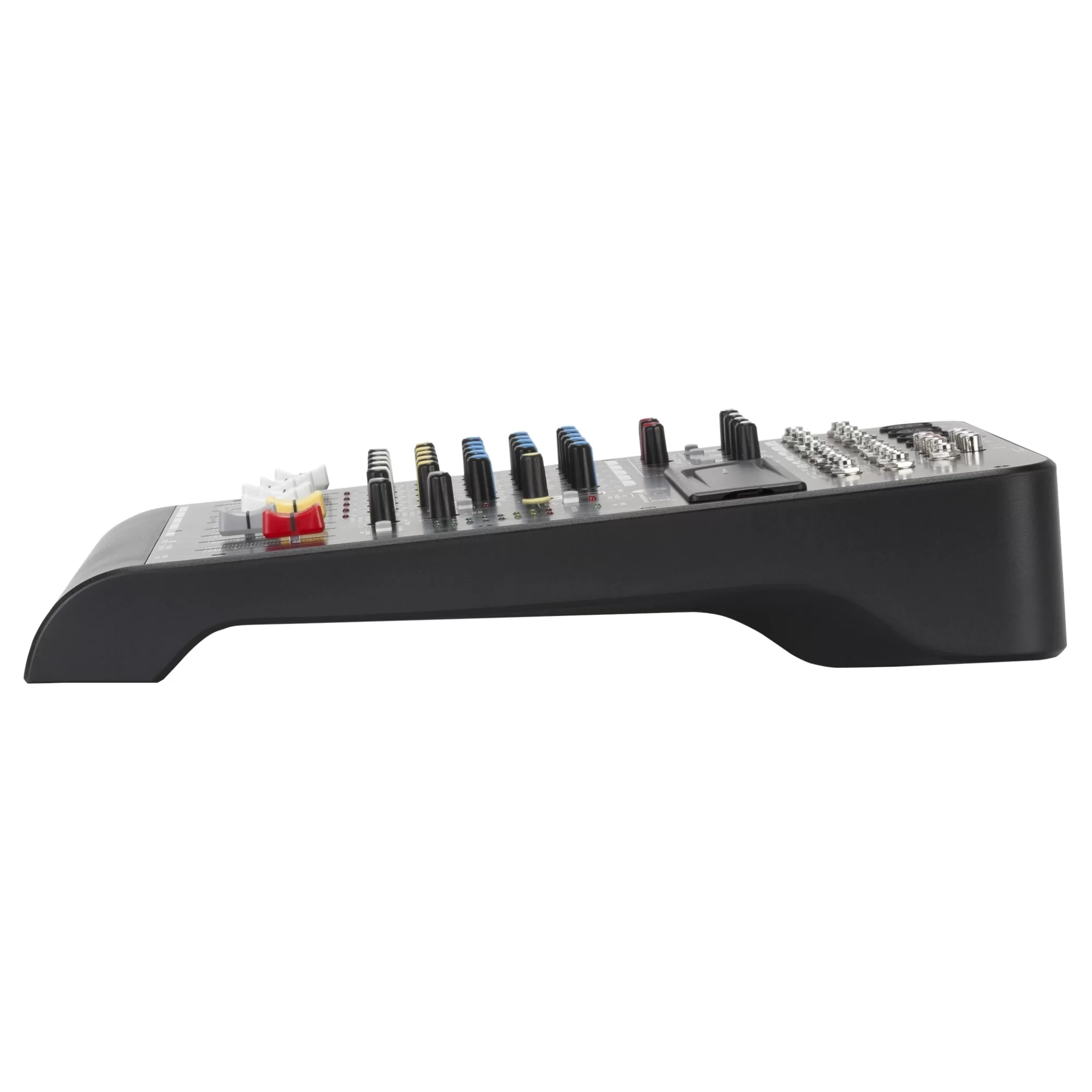

Phisical Specification

• Height: 73.6/2.90 mm/inch
• Width: 256.7/10.11 mm/inch
• Depth: 387.1/15.24 mm/inch
• Net Weight: 2.3/5,07 Kg/Lbs
