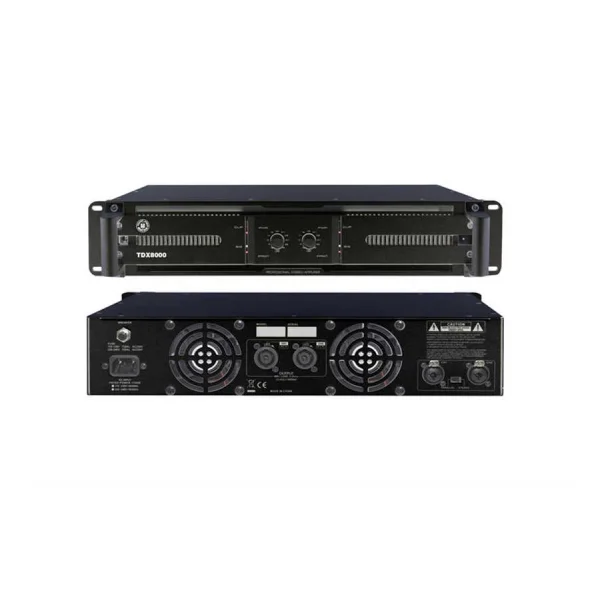

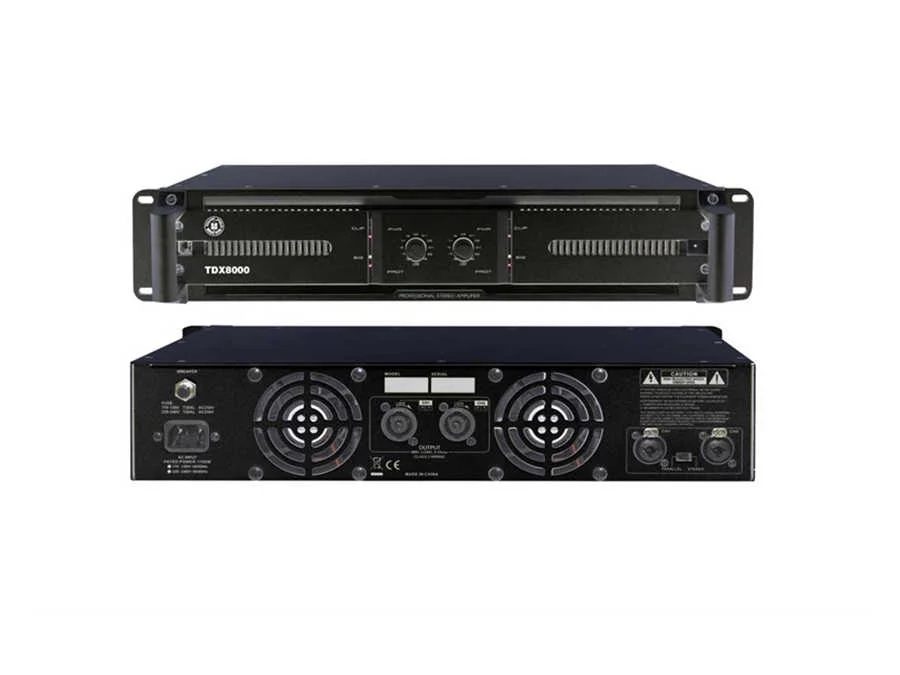

| Model | TDX 8000 |
| Power (Both channels Driven) | 2000W x 2/4Ω (RMS) |
| Input Sensitivity (Limiter Off) | 0.9 - 1.1V (+0/-1dBv) |
| Input Impedance | 20KΩ balanced or 10KΩ unbalanced |
| Frequency Response (At 10dB below Rated Output Power) | 20Hz~20KHz (+0/-1dB) |
| Voltage Gain | 40dB (+/-0.5dB) |
| THD + N | <0.1% (Ref. 1kHz 1/8 Rated Power, A-Weighted) |
| S/N Ratio | >100dB (Ref. 1kHz, A-Weighted) |
| Crosstalk | >70dB (Below Rated Power) |
| Damping Factor (1KHz, 8W) | >200 |
| Power / Output Circuity | Switching Power Class-D |
| Protections | Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar |
| Controls | Front: AC switch (soft-start),Input level control / Rear: stereo, parallel selector |
| Indicators | POWER & SIGNAL: 2 green LED CLIP & PROTECTION: 2 red LED |
| Connectors | Inputs: NEUTRIK COMBO XLR/TRX / Outputs: SPEAKON |
| Power Supply | AC: 110-120V or 220~240V 50/60Hz |
| Dimension (HxWxD) | 44 x 483 x 360 mm / 1.73" x 19.02" x 14.17" |
| Weight | 5.0 kg / 11.02 lbs |
