Spotlight COM-25 ZM 2000 / 2500 Watt Profil Spot, 12˚ - 25˚Derece

Bilgi Alınız ve Lütfen iletişime geçiniz: 0 (533) 592 49 10

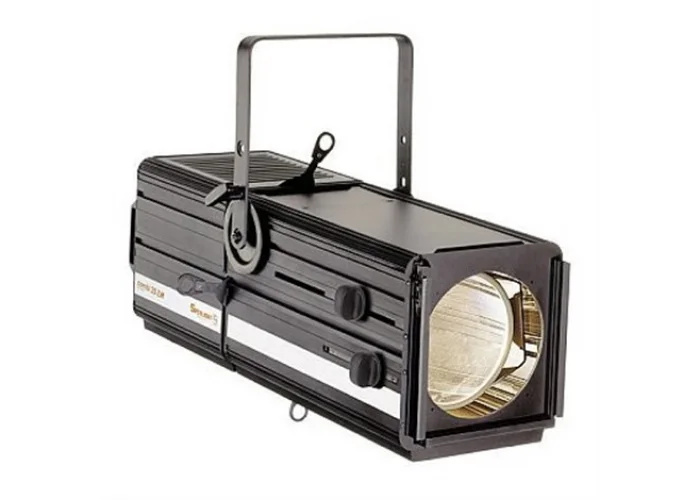

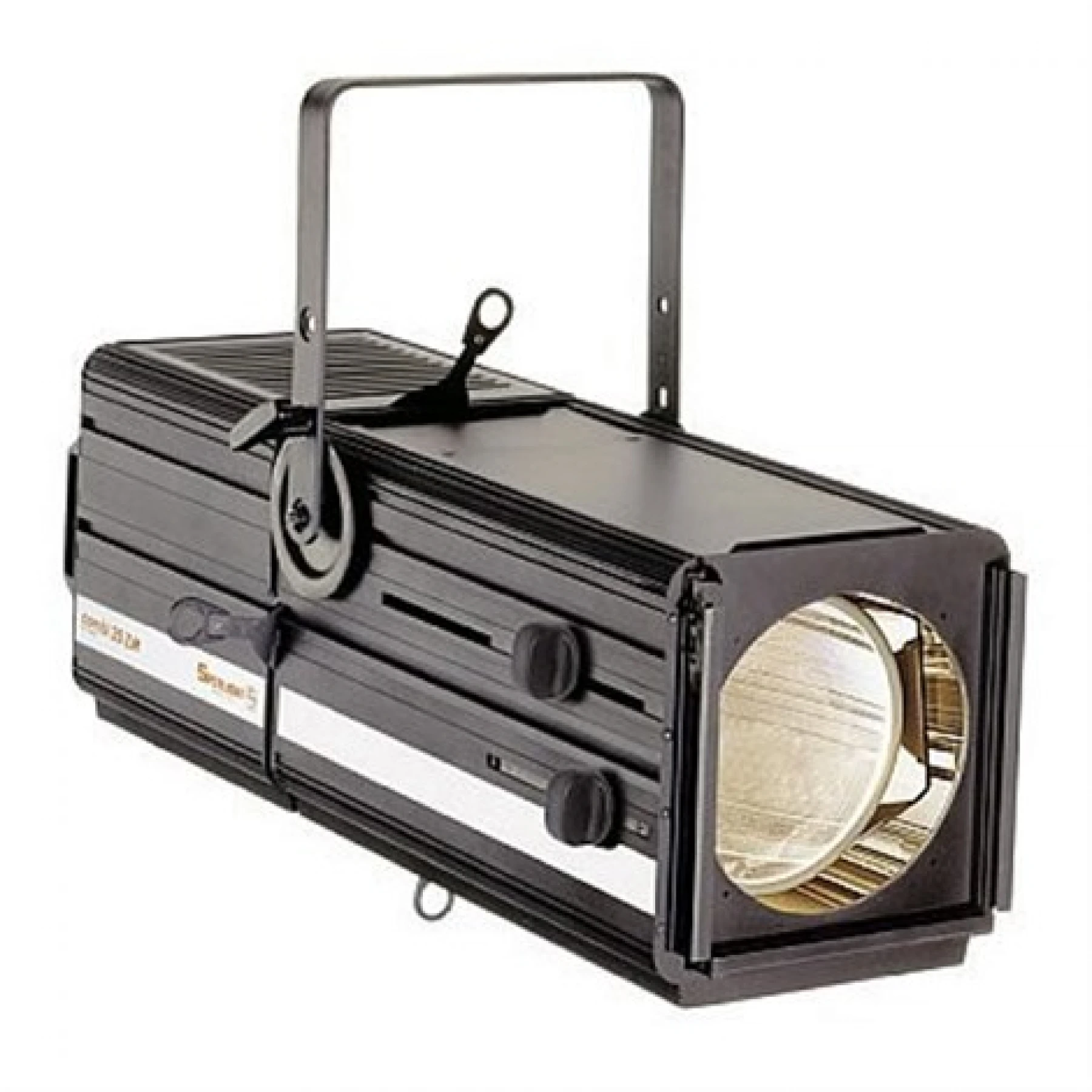

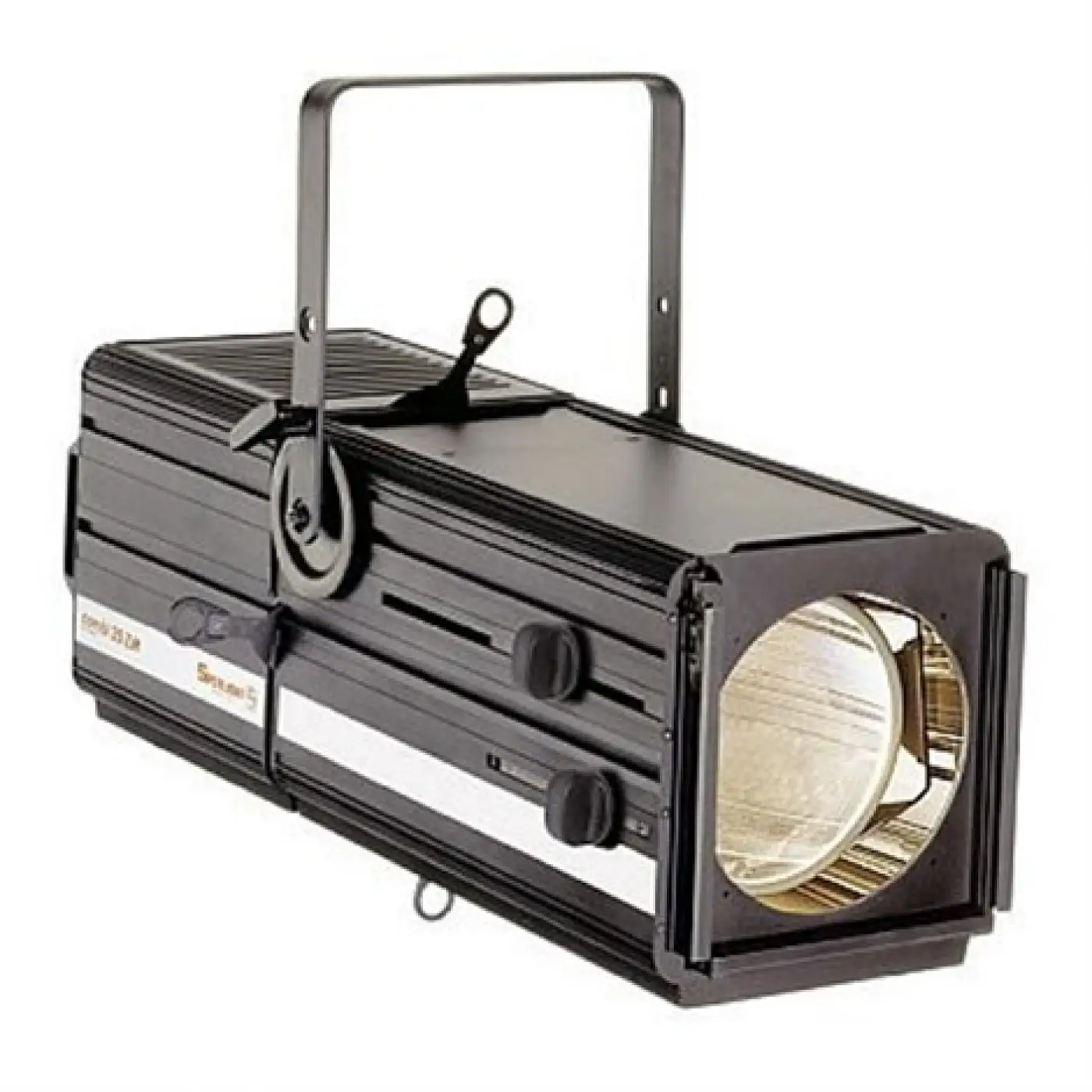

SPOTLIGHT COM-25 ZM PROFİL SPOT


Series: Combi Type: Profile Spots
Power: 2000/2500W halogen
Beam: Variable from 12 to 25°



TECHNICAL FEATURES



 Electrical
Standard 230V, 50/60Hz power supply (others available on request)
Lamp-holder type GX 9.5
2m power supply cable (plug available on request)
Strain relief cable clamp entry into light housing
 Safety
Safety mesh
Filter-frame locking system
Compliance to CE EN 60598-2-17 standards
 Optical
Independent lens zoom system
Spherical reflector in 99.99% polished and treated aluminium:
150mm diameter
18-leaf iris diaphragm (optional)
4 removable shaping shutters mounted between plates specially treated with an anti-abrasive surface
150mm optical tempered glass internal lens
230mm optical glass internal lens
 Mechanical
Extruded aluminium and steel housing
External black anti-scratch Epoxy Resin paint
Labyrinth ventilation to avoid light spillage
Ventilation slots on the rear housing for efficient cooling even in vertical position
 Operational
A and B size gobo holder slots covered by a sliding door to prevent the accessories from falling out and to avoid spill light
Double sliding door to access lenses for maintenance
Peak/Even beam setting
Yoke with 10mm diameter hole, adjustable height, reversible and sliding into extruded rails to balance accessories and for use in any position
High thermal insulating knobs and handles
Tilt positioning with fast-locking lever
