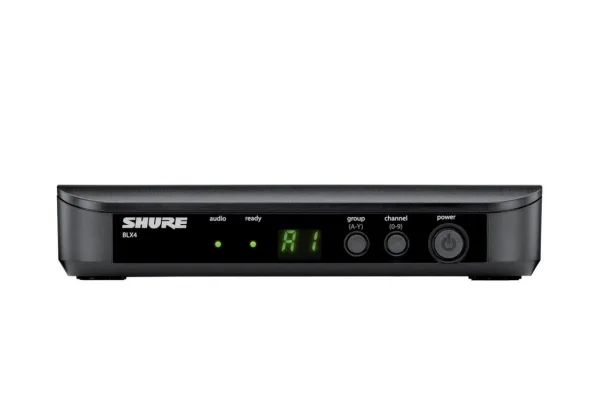

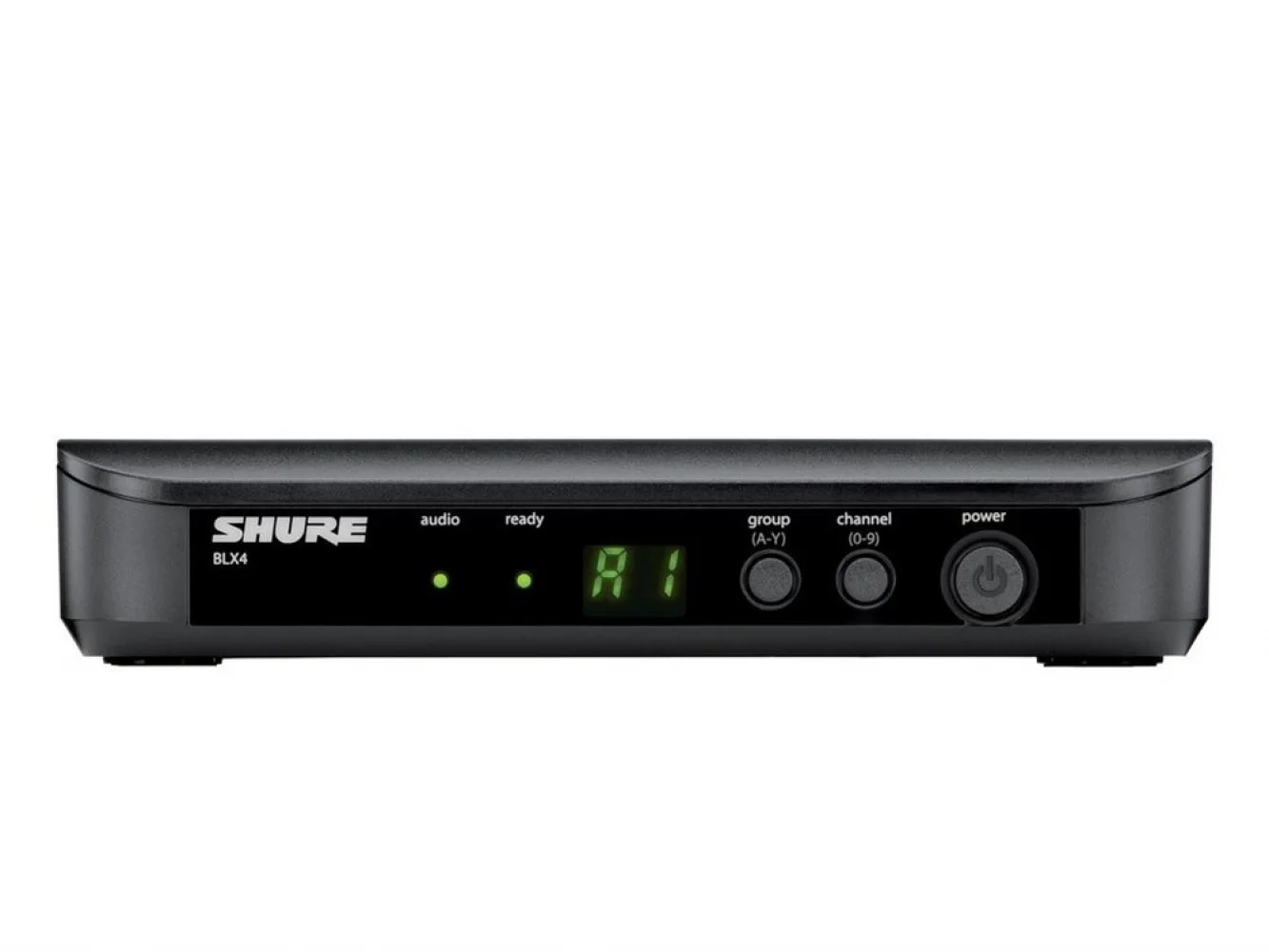

Shure BLX4E
The BLX4 Single-Channel Wireless Receiver from Shure is a single-channel receiver set to Shure s K12 frequency band and operates between 614 to 648 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.
Frekans
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
- Use with BLX Wireless Systems
- One-Touch QuickScan Frequency Selection
- 1x XLR & 1x 1/4" Outputs
- Diversity Antenna
- Audio Status LED Indicator
Specification
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω
1/4": 50 Ω |
| Audio Output Level | XLR Connector: -27 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS |
| Power Requirement | 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm) |
| Weight | 8.5 oz (241 g) |
